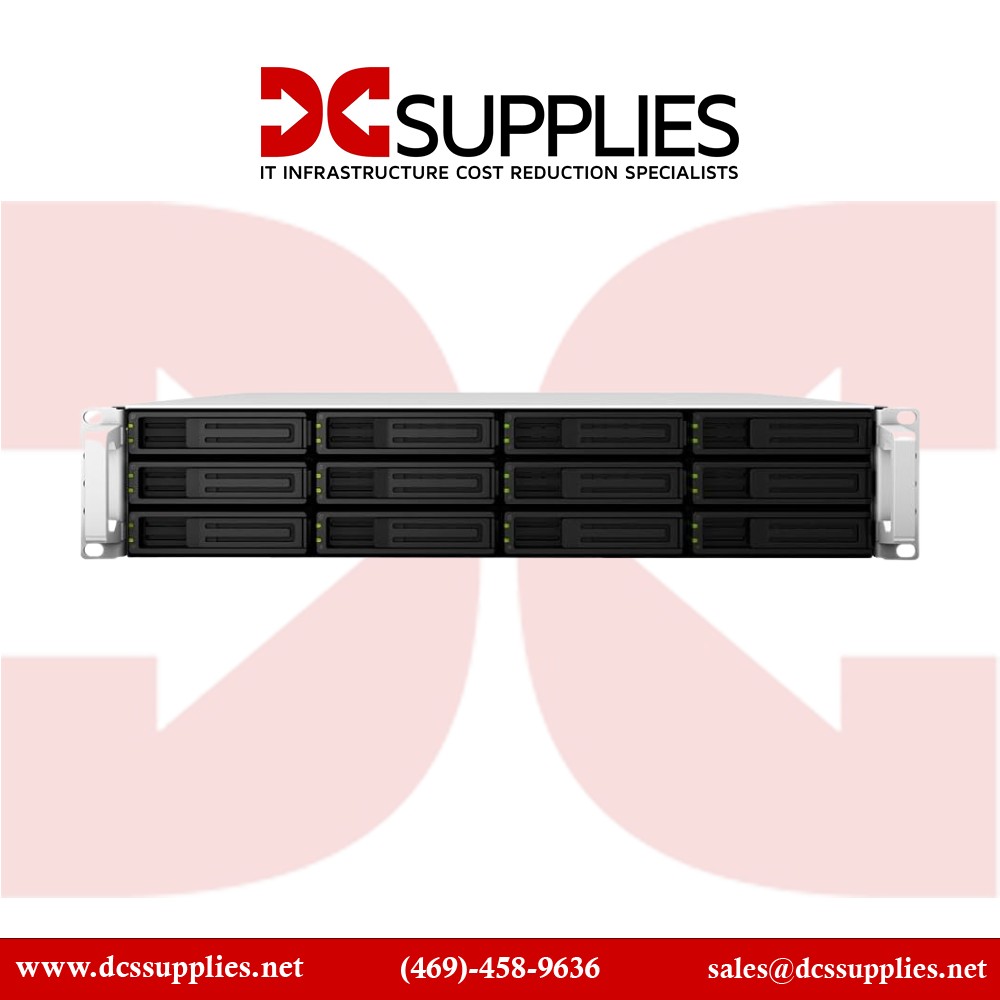

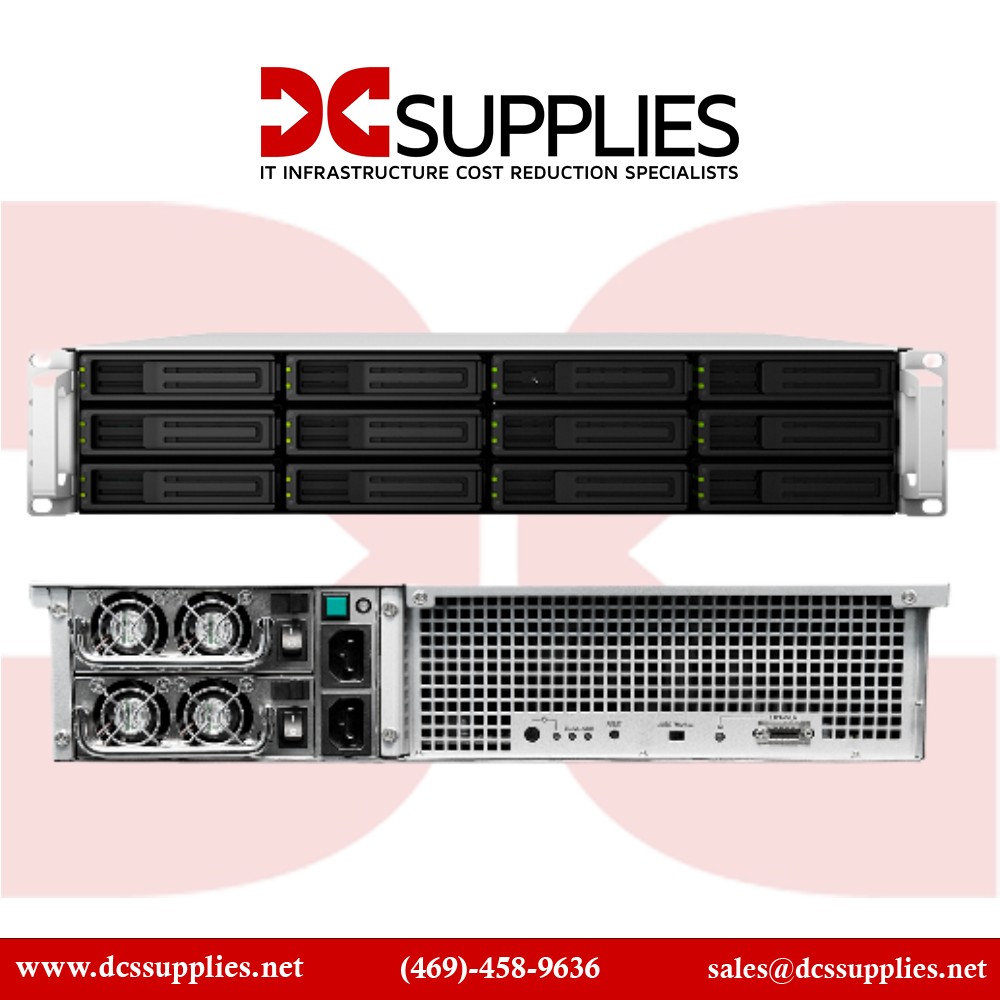

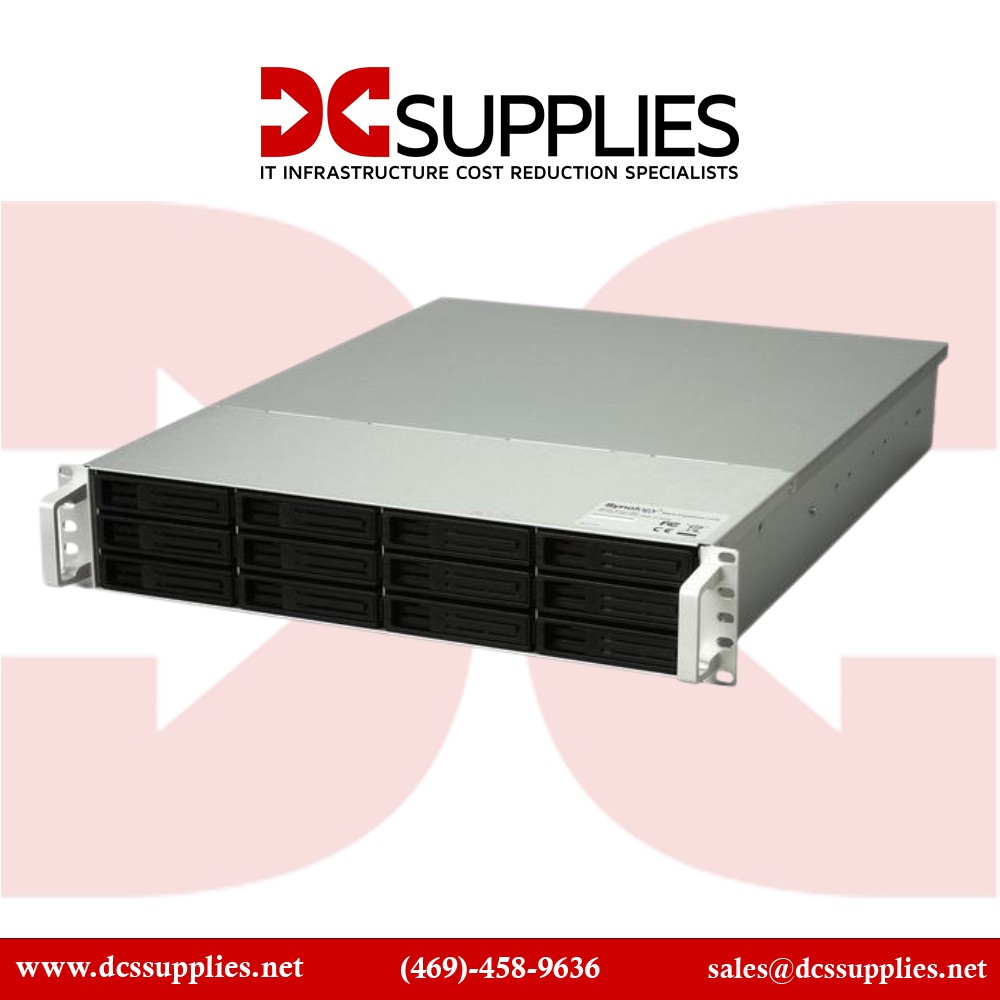

Synology RX1216SAS 12 Bay Rack NAS Expansion Unit View larger

Synology RX1216SAS 12 Bay Rack NAS Expansion Unit

RX1216sas

New

Synology RX1216SAS 12 Bay Rack NAS Expansion Unit
×




Detailed Specifications

Synology RX1216SAS 12 Bay Rack NAS Expansion Unit

Overview :

The RX1216sas 12-Bay Storage Expansion Enclosure from Synology is designed to provide storage capacity expansion for the Synology RackStation RS18016xs+. It provides twelve drive bays, each of which is able to natively support 3.5" and 2.5" SATA III 6 Gb/s and SATA II 3 Gb/s hard drives and SSDs, 3.5" and 2.5" SAS hard drives, and 2.5" SAS SSDs. The drives are hot swappable and there is also RAID management through the Synology Disk Station Manager that supports RAID 0, 1, 5, 6, 10, Basic, & JBOD. The RX1216sas is equipped with 2 x Mini-SAS inputs, 2 x Mini-SAS outputs, and dual redundant 500W power supplies. It operates using 100-240 VAC at 50/60 Hz (single phase) and consumes 67.31W upon drive access.

The RX1216sas 12-Bay Storage Expansion Enclosure includes an accessory pack, two AC power cords, and two Mini-SAS expansion cables. It is protected by a limited 5-year warranty.

Plug-n-use design for seamless storage space upgrade
Redundant data paths & power supplies help ensure service uptime
SATA and SAS drive compatibility for flexible capacity and balanced performance
Managed with Synology DiskStation Manager (DSM)
Backed with Synology's 5-year limited warranty & Synology Replacement Service (SRS)

Specifications :

Power Recovery
Synchronized with the Synology RackStation
Power Supply Unit / Adapter
2 x 500 W
AC Input Power Voltage
100 to 240 VAC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
67.31 W (Access)
34.05 W (HDD Hibernation)
British Thermal Unit
229.84 BTU/hr (Access)
116.25 BTU/hr (HDD Hibernation)

Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drives
Redundant Power Supply
Yes
System Fan
80 x 80 mm x 4 pcs
Easy Replacement System Fan
Yes
Noise Level
45.1 dBA
Certification
FCC Class A
CE Class A
BSMI Class A
Environment
RoHS Compliant
Dimensions
3.5 x 16.9 x 27.2" / 88.0 x 430.0 x 692.0 mm
Weight
29.8 lb / 13.5 kg
