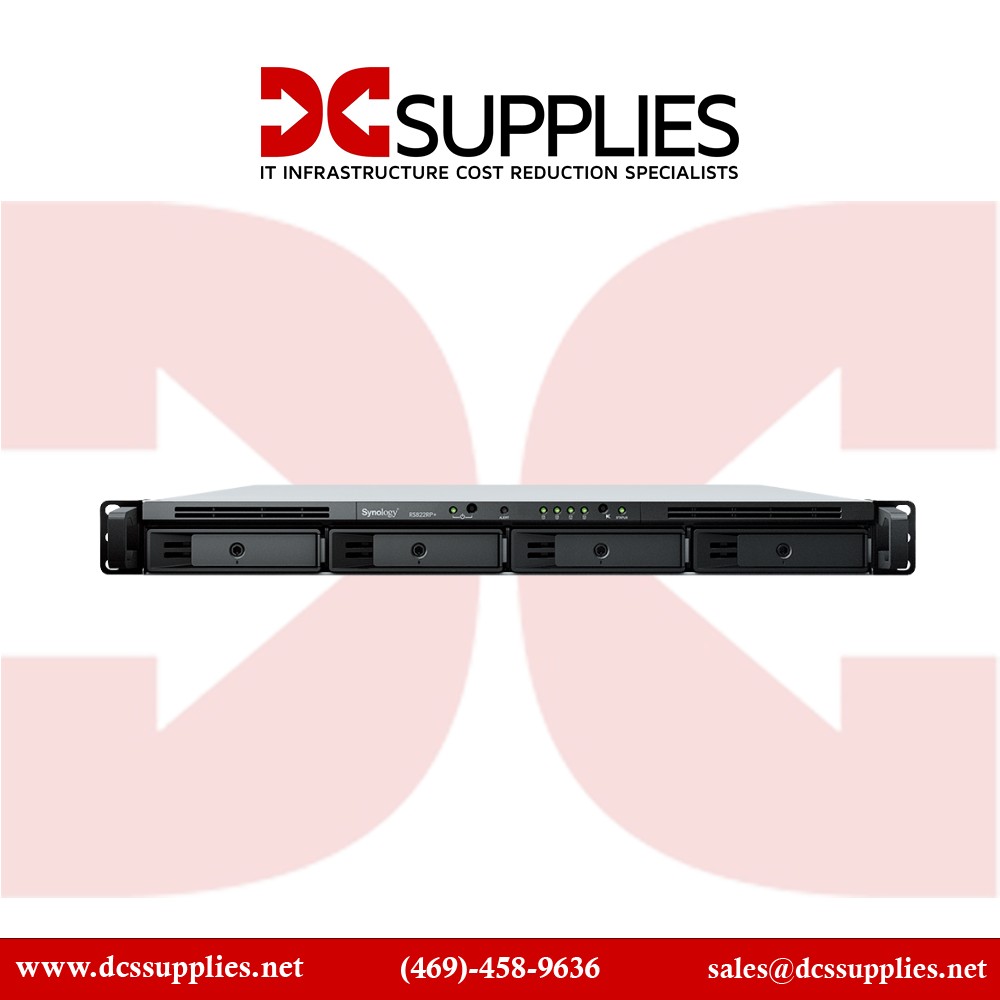

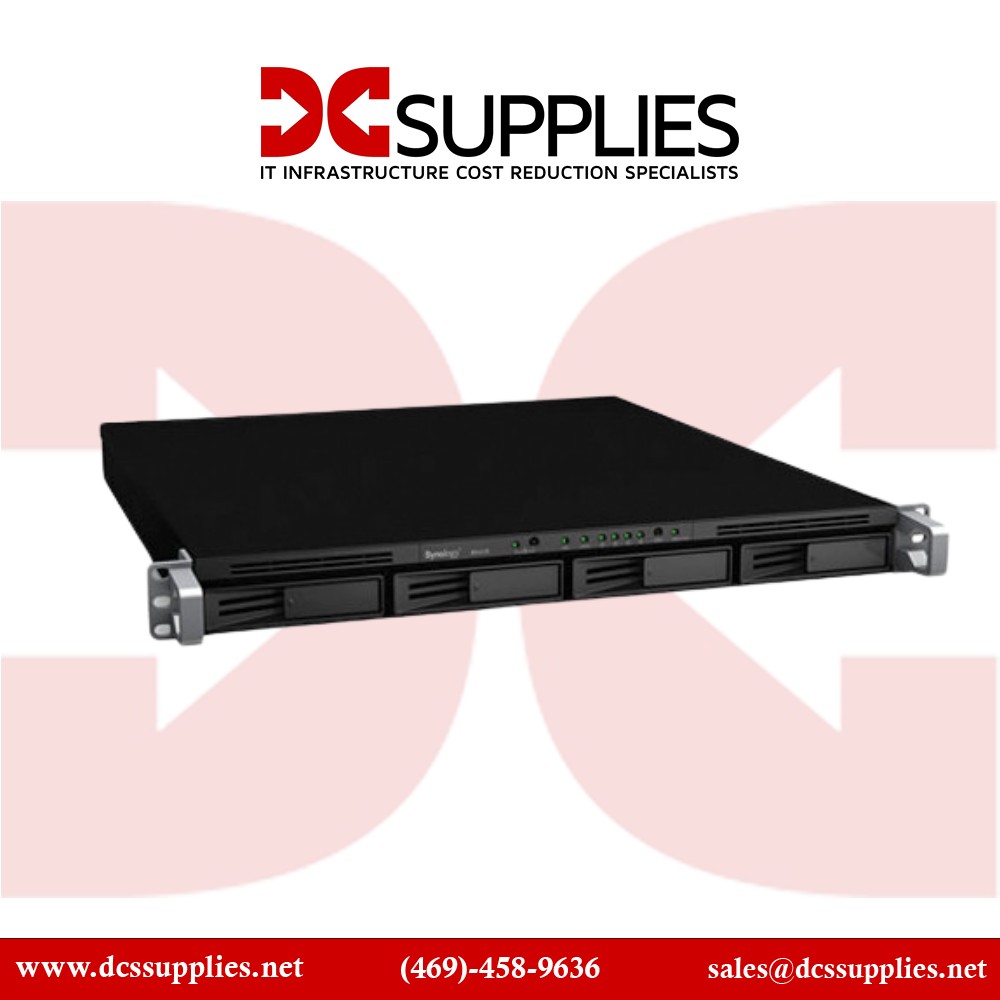

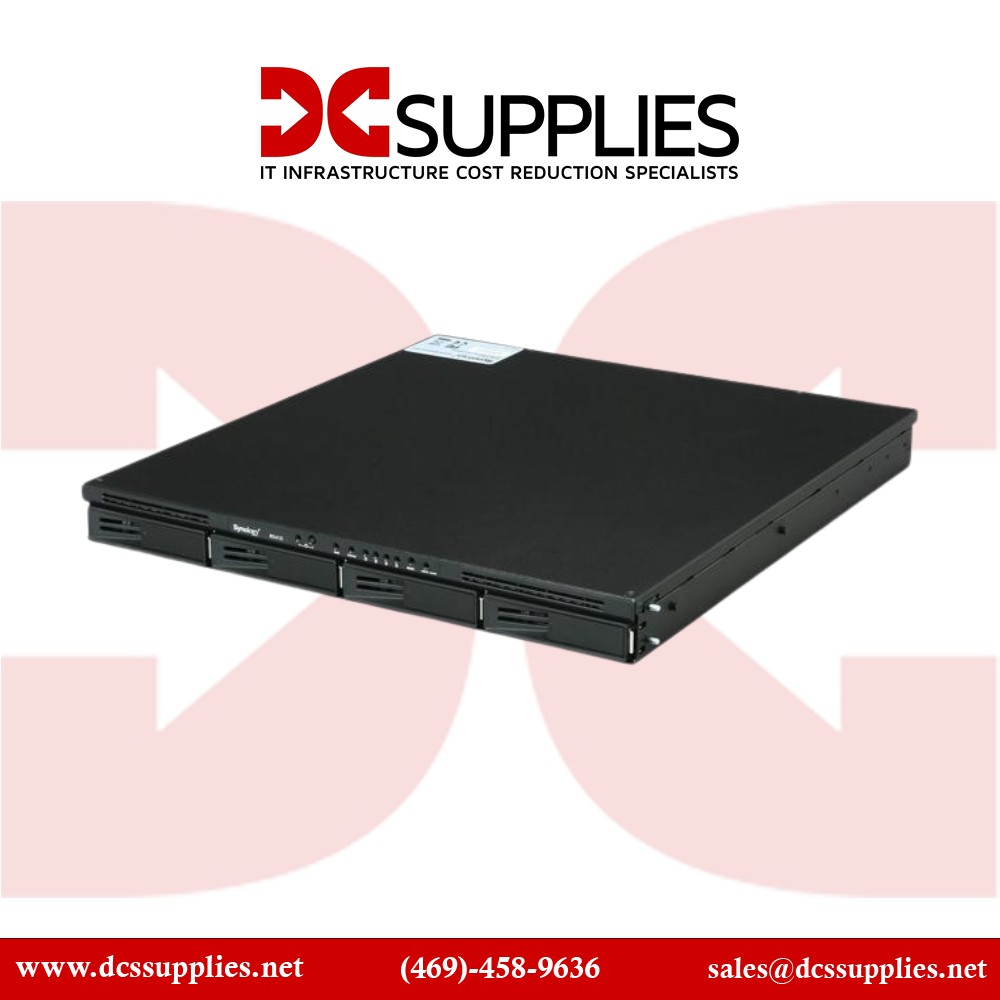

Synology RX415 Diskless System 4-Bay NAS Expansion Unit View larger

Synology RX415 Diskless System 4-Bay NAS Expansion Unit

RX415

New

Synology RX415 Diskless System 4-Bay NAS Expansion Unit
×




Detailed Specifications

Synology RX415 Diskless System 4-Bay NAS Expansion Unit

Overview :

When drive capacity is running low on a Synology 1U RackStation, Synology RX415 provides an easy way to immediately scale capacity by providing an additional 4 slots. A RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing drives, ensuring the Synology RackStation continues providing services during capacity expansion.

Synology RX415 can serve as a dedicated local backup solution for a Synology RackStation. When created as a separate volume, the Synology RX415 provides a great backup solution for local drives in case of system failure.

  • Plug-n-use design for seamless storage space upgrade
  • Online Volume Expansion
  • 12-Inch Depth to Fit in 2-Post Racks & Wall Mount Racks
  • Energy-Saving Deep Sleep Mode
  • Managed from Synology DiskStation Manager (DSM)

Specifications :

Product Name NAS Expansion Unit
Applied Models
  • RS815(RP)+
  • RS814(RP)+
  • RS812(RP)+
  • RS815
  • RS814
  • RS812
Note DSM version requirement: 5.0-4493 Update 3 or later version
Storage
Drive Bay(s) 4
Compatible Drive Type
  • 3.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II SSD
Maximum Internal Raw Capacity 32 TB (8 TB HDD X 4) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
eSATA port 1
Appearance
Size 44 mm X 430.5 mm X 290 mm
Weight 4.23 kg
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 150W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 21.89 W (Access)
9.36 W (HDD Hibernation)
British Thermal Unit 74.69 BTU/hr (Access)
31.94 BTU/hr (HDD Hibernation)
Note Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Redundant Power Supply (for RP model)
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
