Add high-performance enterprise-class storage to your PC or server, by connecting a 2.5" PCIe U.2 SSD. Unleash the performance of your desktop PC or server with this enterprise-class drive adapter. By providing compatibility with newer U.2 NVMe SSDs, such as the Intel SSD 750 series, you can gain faster read/write speeds and higher productivity levels for data-intensive applications.This drive adapter provides an ideal way to upgrade legacy motherboard platforms and your existing computer system, by adding compatibility for newer U.2 NVMe SSDs, which are designed to meet the high-performance needs of today's data centers and enterprise-level applications.The adapter card enables IT professionals and system integrators to upgrade their computing infrastructure by installing the adapter card into the PCIe slots on desktop PCs or servers. Upgrading, rather than replacing computing infrastructure, provides a cost-effective way to enhance your system's performance.U.2 NVMe SSDs also offer superior energy efficiency, providing an advantage to companies looking to reduce energy costs.Companies and organizations with intensive file workloads can achieve greater productivity by upgrading their data center or enterprise-level applications with U.2 NVMe SSD capability. U.2 SSDs are up to four times faster than SATA SSDs, providing extremely fast read/write speeds, high-speed file access and transfers, and rapid boot times. U.2 NVMe SSDs are also more reliable than SATA hard drives, so less time is spent waiting for computers to boot, or applications and files to load.
Specification | Details |
---|---|

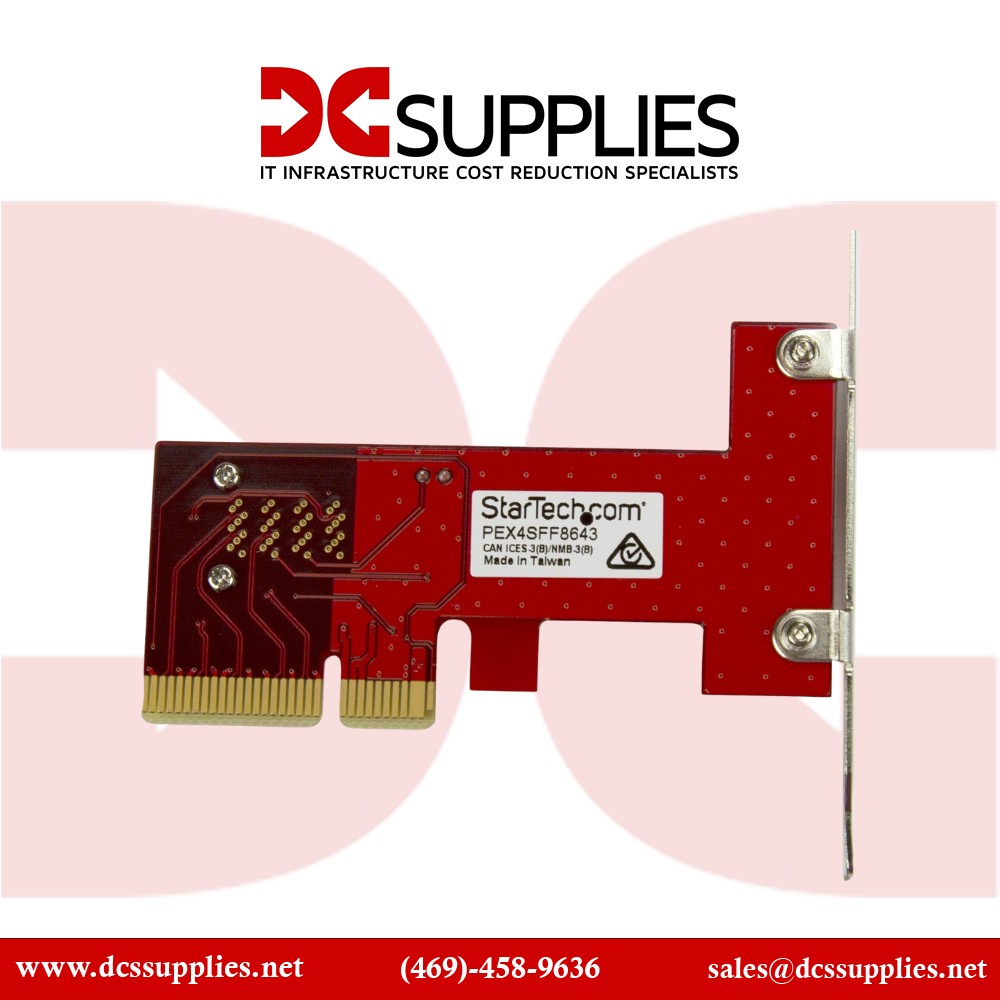

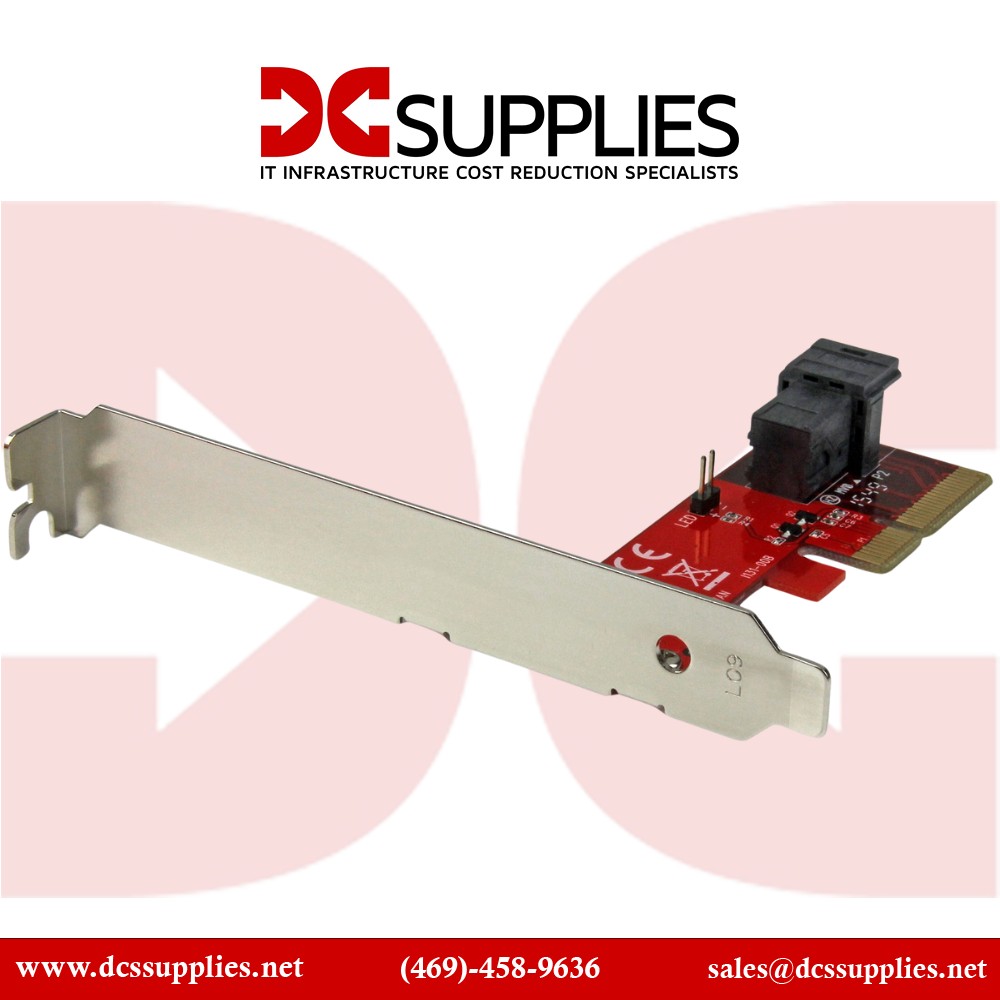

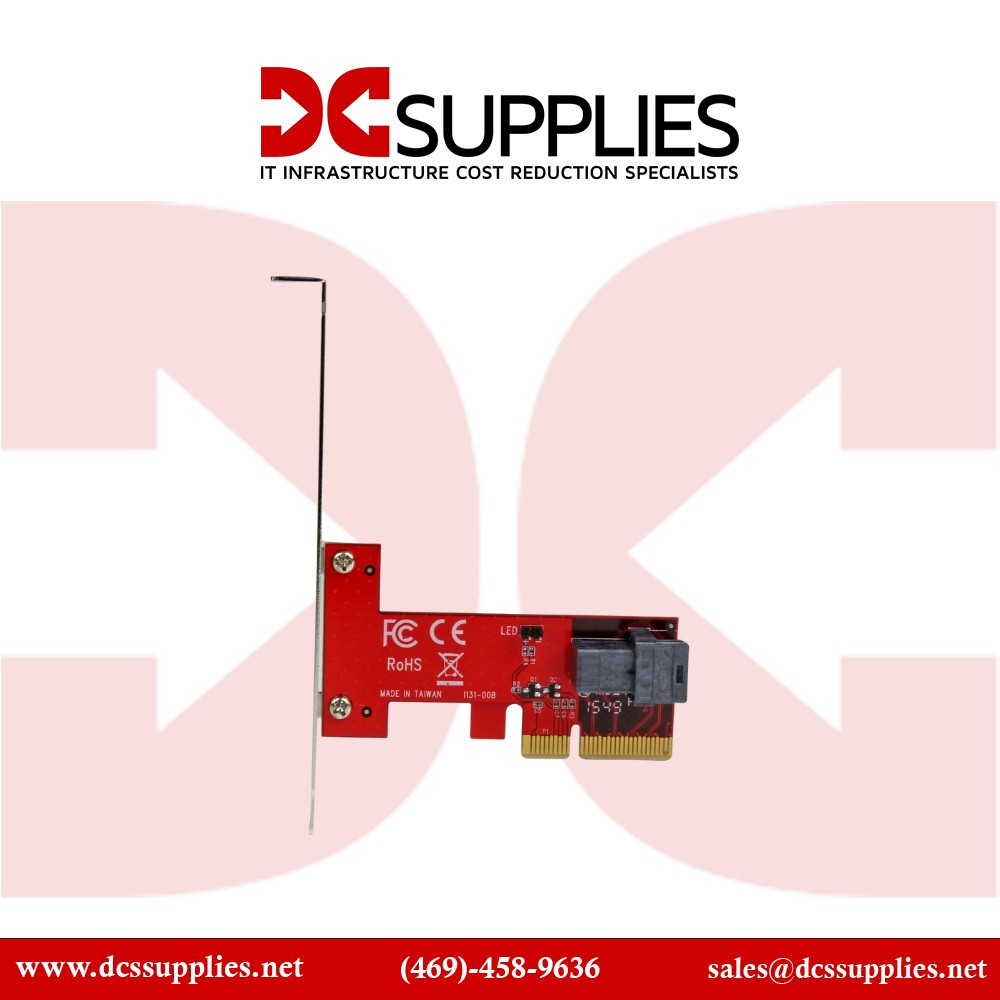

Product Name | StarTech PEX4SFF8643 4-Lane PCI Express to SFF-8643 Adapter |
Part Number | PEX4SFF8643 |
Brand Name | StarTech |
Product Type | PCI Express Adapter |
Interface Type | PCI Express 3.0 |
Connection Type | SFF-8643 (U.2) |
Lane Configuration | 4-Lane PCI Express |
Supported SSD Types | PCIe NVMe U.2 SSDs |
Data Transfer Rate | Up to 32 Gbps (4 lanes at 8 Gbps per lane) |
Form Factor | Low-profile / standard-profile bracket |
Compatibility | Compatible with standard and low-profile PCIe slots; supports U.2 NVMe drives |
Installation | Plug and play installation; no additional drivers required |
Power Requirement | Powered by the PCIe slot (no external power supply needed) |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
Dimensions | 4.9 x 3.6 x 0.8 inches (124 x 92 x 20 mm) |
Weight | 3.7 oz (105 g) |
LED Indicators | None |
Compliance | RoHS compliant; CE certified |
Warranty | 2-Year Warranty |
Included in the Box | 1 x PCI Express to SFF-8643 Adapter, 1 x Low-profile bracket, 1 x User manual |
Typical Applications | - Upgrading storage solutions with NVMe U.2 SSDs - Expanding server storage capacity - Enhancing data transfer speeds in workstations |
Additional Features | - Supports full and half-height PCIe slots - Backward compatible with PCIe 2.0 and PCIe 1.0 - No driver installation required |
Environmental Standards | - FCC, CE, and RoHS certifications |
