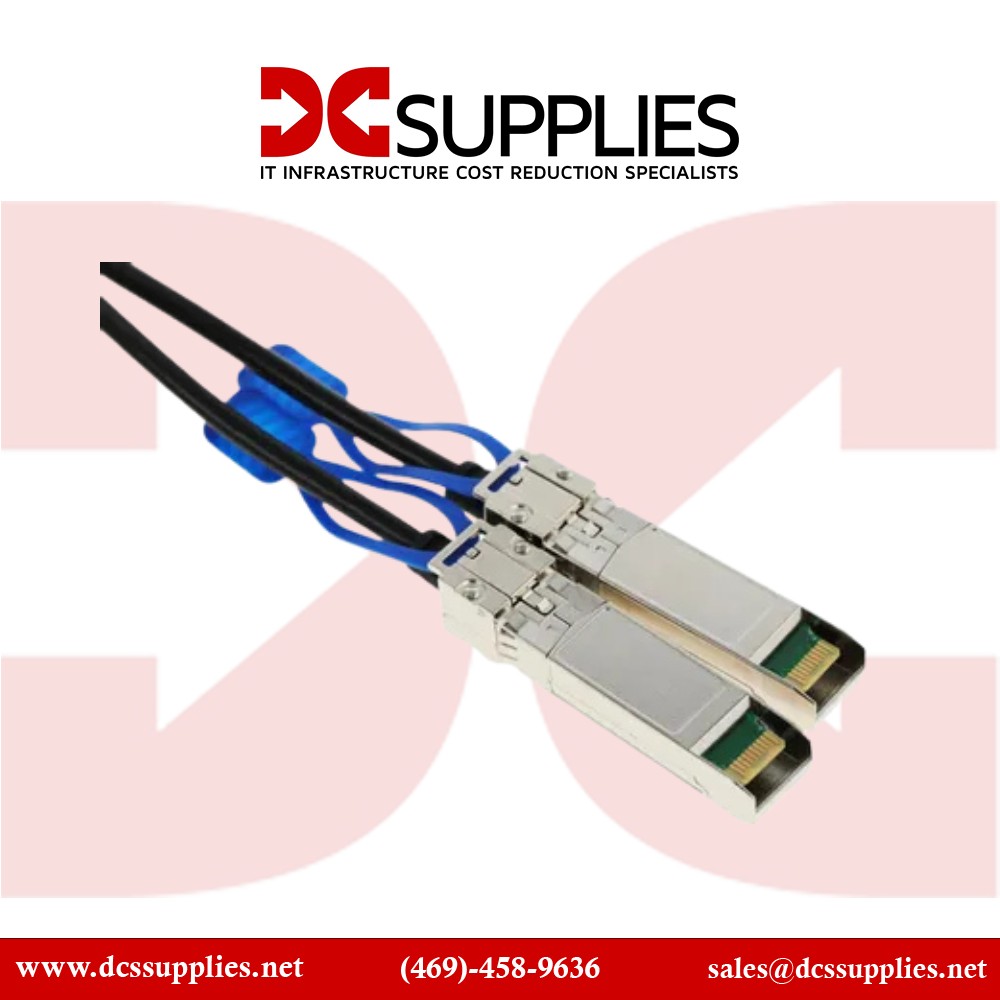

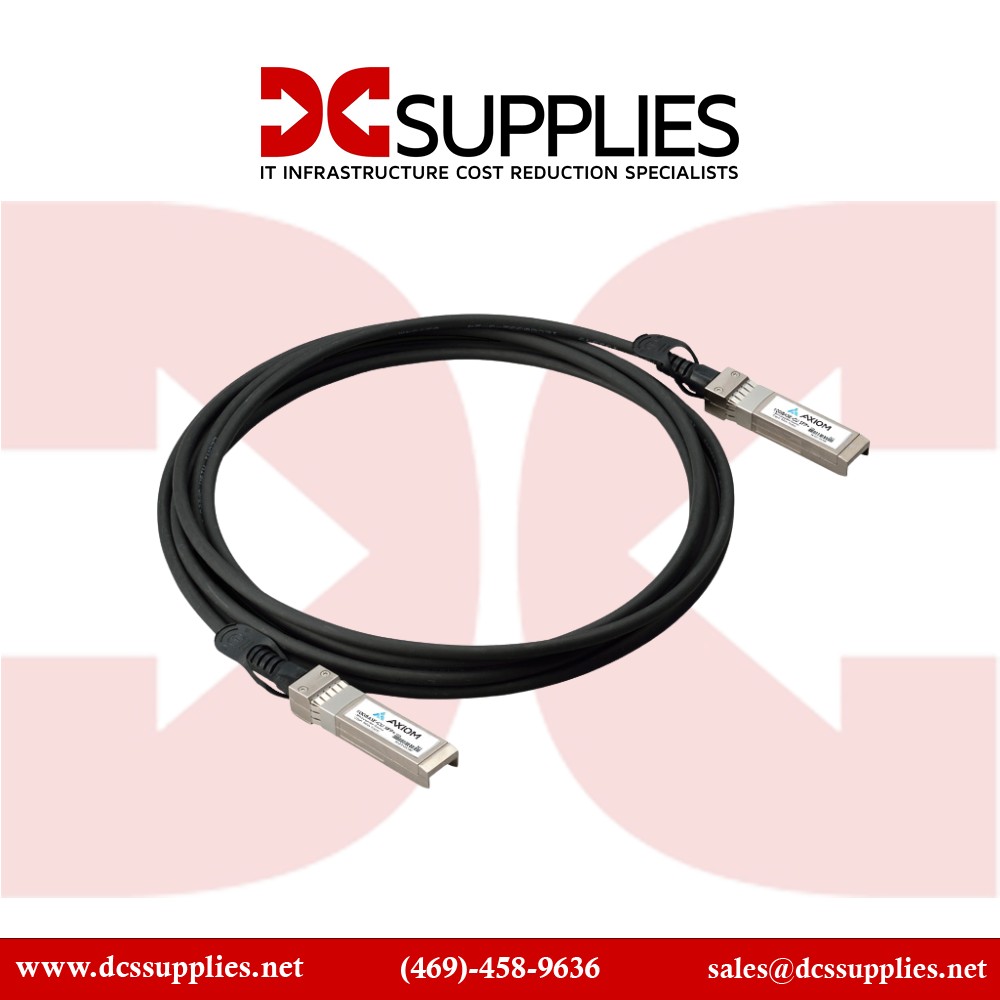

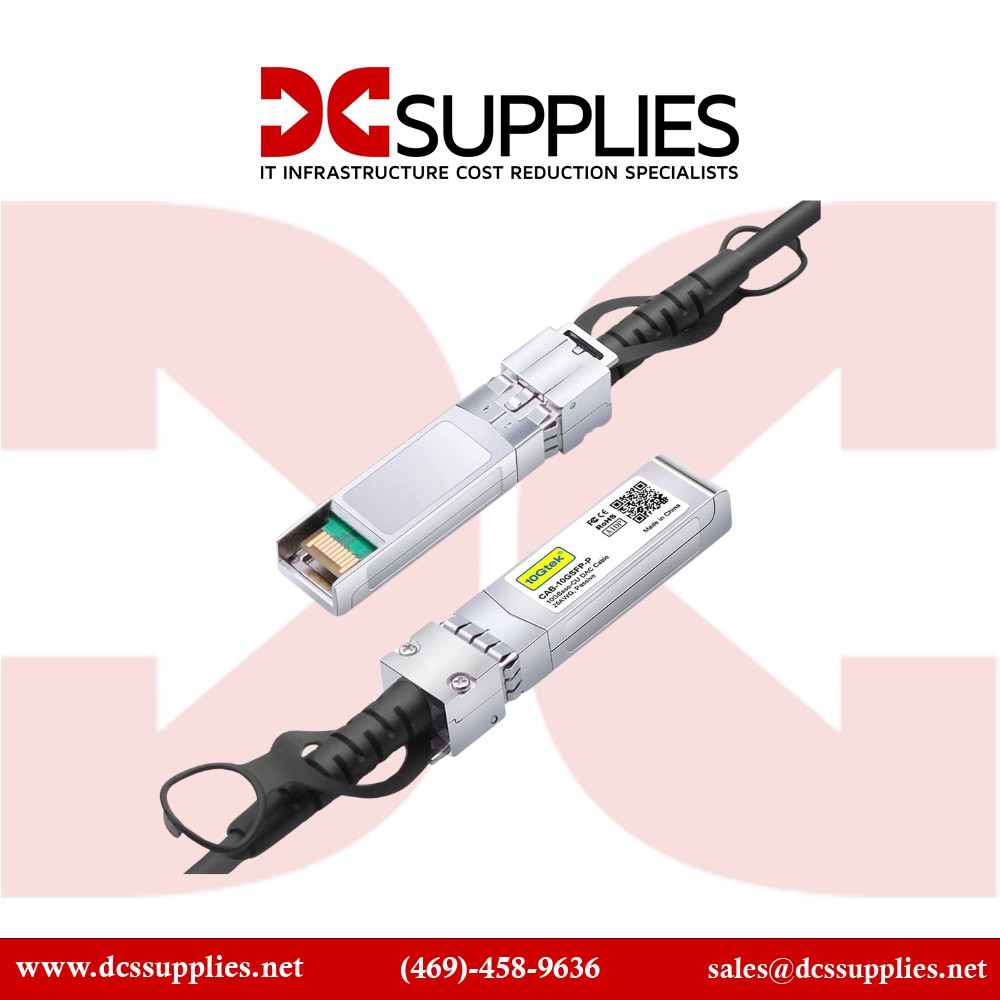

Axiom AGC761-AX 1000BASE-CU SFP Passive DAC Twinax Cable NetGear Compatible 1m View larger

Axiom AGC761-AX 1000BASE-CU SFP Passive DAC Twinax Cable NetGear Compatible 1m

AGC761-AX

New

Axiom AGC761-AX 1000BASE-CU SFP Passive DAC Twinax Cable NetGear Compatible 1m
×




Detailed Specifications

Axiom AGC761-AX 1000BASE-CU SFP Passive DAC Twinax Cable NetGear Compatible 1m

Overview:

Axiom Twinax Direct Attach Cables (DAC) are 100% compatible in all OEM applications. They are pre-configured with an application specific code to meet the requirement set forth by the router and switch OEMs. Axiom compatible twinax cables perform, fit and function identically when compared to "Original" cables. Axiom brand cables also function with other brands within the same network.

  • 100% Guaranteed Compatibility in all OEM applications
  • Part number and unique product serialization; Eliminates any network communication conflicts and provides easy identification
  • Fully compliant with the multi-sourcing agreement (MSA) which enables them to work in all MSA compliant platforms

Original Equipment Manufacturer (OEM)® names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for comparative purposes only.

Specifications :

SpecificationDetails
Product Name Axiom AGC761-AX 1000BASE-CU SFP Passive DAC Twinax Cable
Part Number AGC761-AX
Brand Name Axiom
Product Type SFP Passive Direct Attach Copper (DAC) Twinax Cable
Cable Length 1 meter (3.28 feet)
Data Rate 1 Gbps (1000BASE-CU)
Connector Type SFP (Small Form-factor Pluggable)
Cable Type Passive Twinax Copper
Compatibility NetGear switches and devices with 1000BASE-CU SFP slots
Wire Gauge (AWG) 30 AWG
Power Consumption Passive, no additional power needed
Form Factor Hot-pluggable SFP DAC
Compliance - MSA (Multi-Source Agreement) compliant
- RoHS compliant
Distance Support Up to 1 meter
Temperature Range Operating: 0°C to 70°C (32°F to 158°F)
Protocol Support IEEE 802.3z 1000BASE-CU
Hot-Swappable Yes
Shielding Fully shielded for EMI (Electromagnetic Interference) reduction
Warranty Lifetime warranty
Weight Approximately 0.1 lbs (45 grams)
Electrical Specifications Maximum Current: 30mA
Cable Assembly Pre-terminated SFP to SFP connectors
Certifications FCC, CE, UL, and TAA compliant
Key Features - Low power consumption
- Low latency connectivity
- Plug-and-play installation
MTBF (Mean Time Between Failures) > 1,000,000 hours
RoHS Compliance Yes
