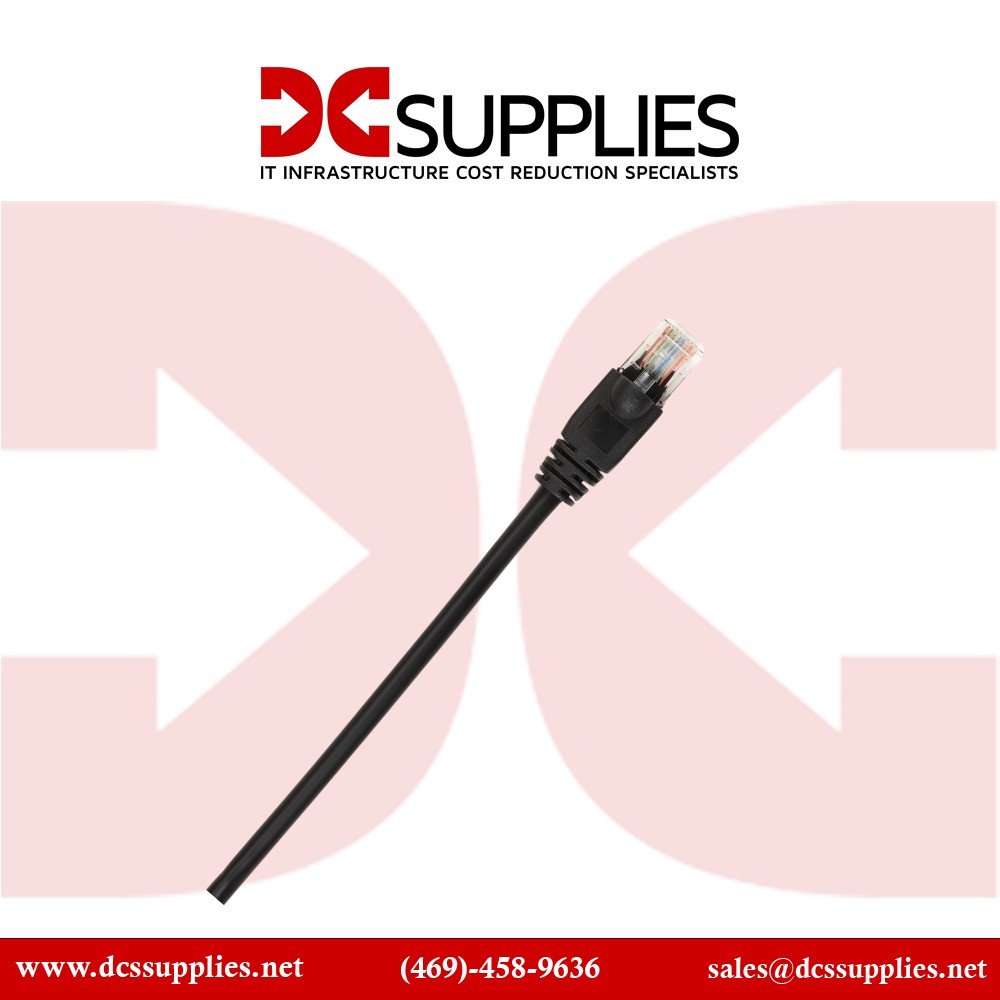

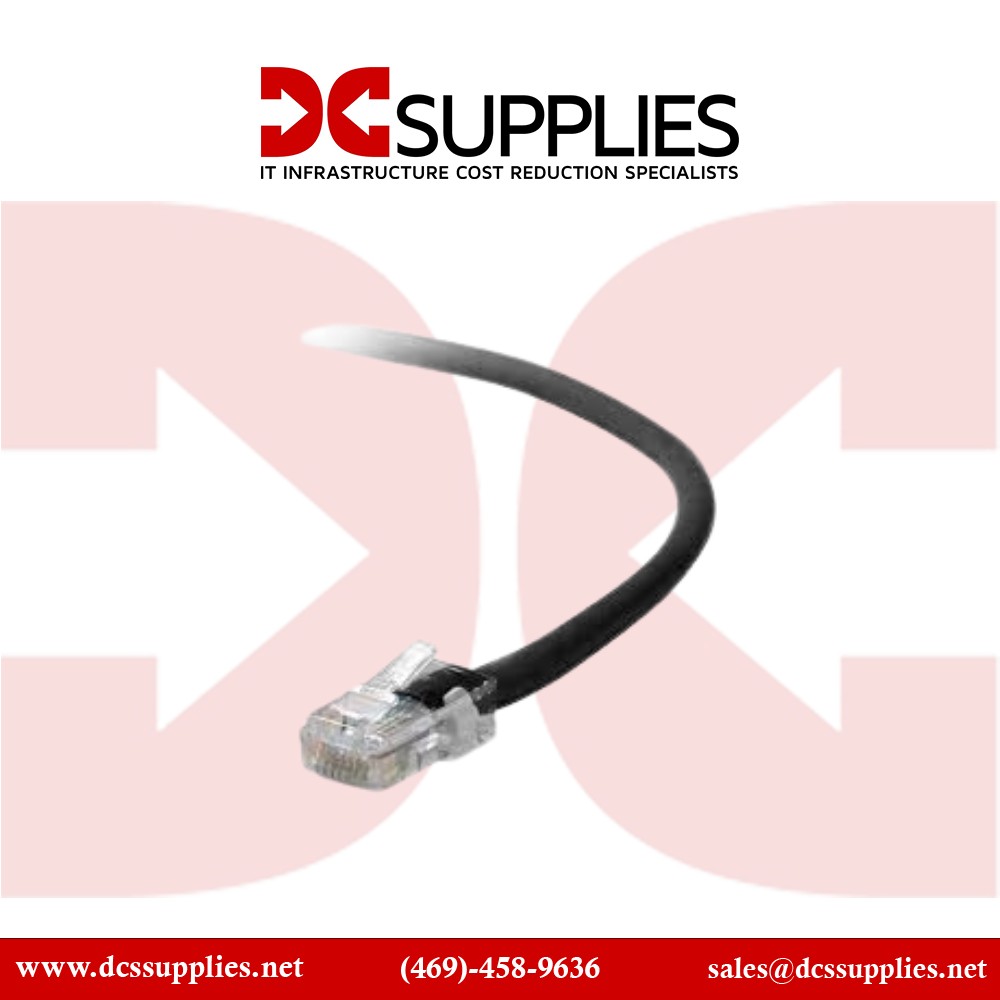

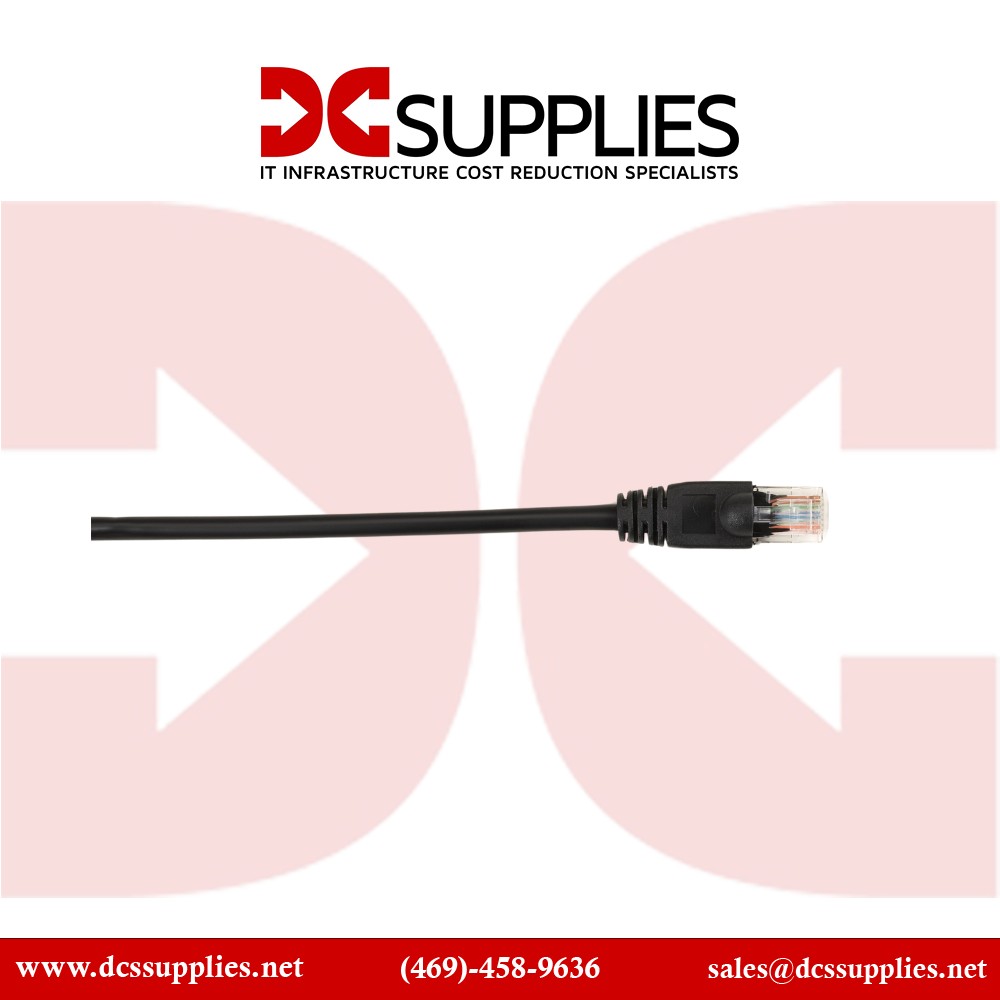

Black Box CAT6PC-003-BK-25PAK Connect Cat.6 UTP Patch Network Cable, 3 ft, 1 Gbit/s Data Transfer Rate View larger

Black Box CAT6PC-003-BK-25PAK Connect Cat.6 UTP Patch Network Cable, 3 ft, 1 Gbit/s Data Transfer Rate

CAT6PC-003-BK-25PAK

New

Black Box CAT6PC-003-BK-25PAK Connect Cat.6 UTP Patch Network Cable, 3 ft, 1 Gbit/s Data Transfer Rate
×




Detailed Specifications

Black Box CAT6PC-003-BK-25PAK Connect Cat.6 UTP , 3 ft, 1 Gbit/s Data Transfer Rate

Overview :

Black Box Connect Basic CAT6 patch cables are constructed to industry-standard requirements, providing the functionality you need for Gigabit Ethernet applications without the premium price. Tested to CAT6 standard 250-MHz performance, these cables meet or exceed the industry spec, ensuring the transmission of your voice, data, audio/video and/or PoE signals. These CAT6 patch cables come with a molded, snagless boot design that secures connections, protects the RJ-45 tab and provides strain relief, durability and resistance to corrosion. Available in a variety of lengths and colors, Black Box's Connect line of cabling gives you the flexibility to build your install however you want.

Specification :

Conductor 26 AWG
Frequency Up to 250 MHz
Gold Contacts 3-Micron
Impedance 100 ± 15 ohms
Jacket CM PVC
Approvals RoHS, CE, UL/cUL
Cable Type Stranded
PS-NEXT (Minimum) 36.3dB at 250MHz
Snagless Connector Yes
Standards TIA/EIA-568-C.2 Category 6
NEXT (Minimum) 38.3dB at 250MHz
Connector Plating Gold Flash
Return Loss (Minimum) 8dB at 250MHz
Shielded No
Attenuation (Maximum) 32.8dB at 250MHz
Connector A Type/Gender (1) RJ45 (Male)
Connector B Type/Gender (1) RJ45 (Male)
