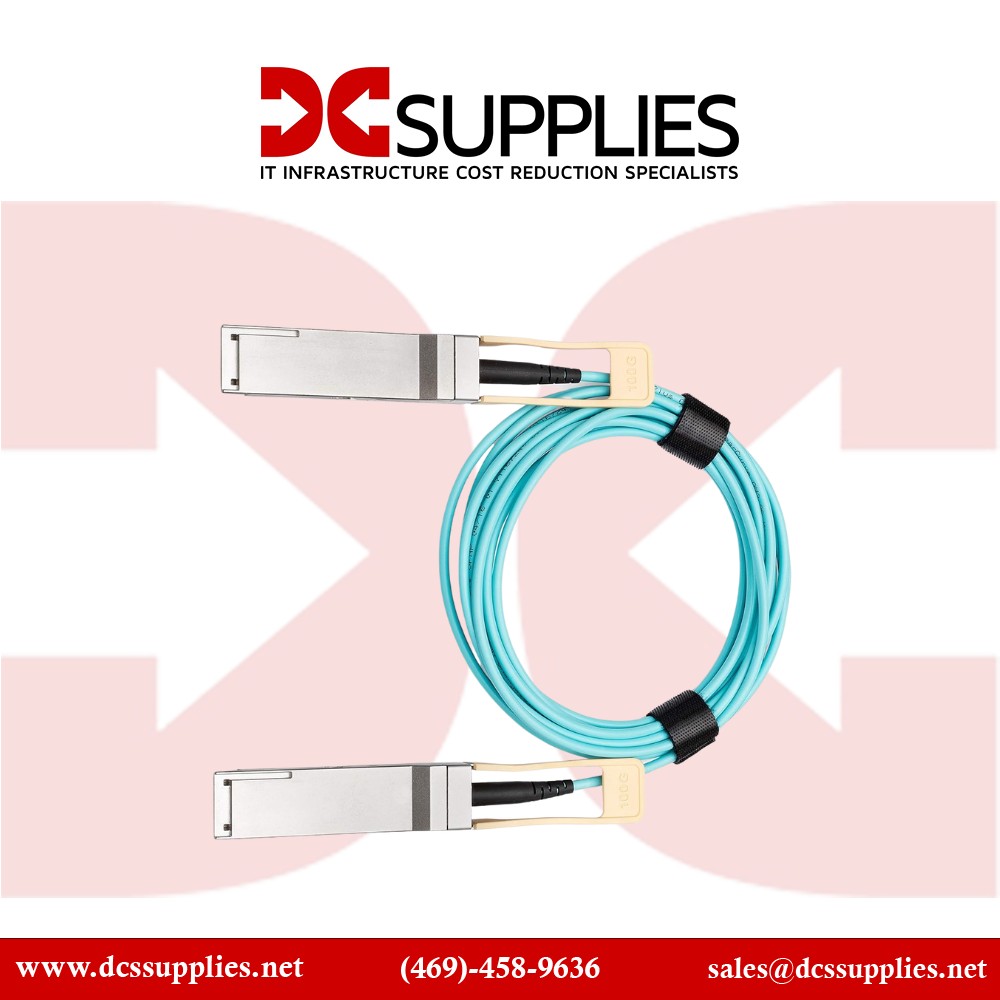

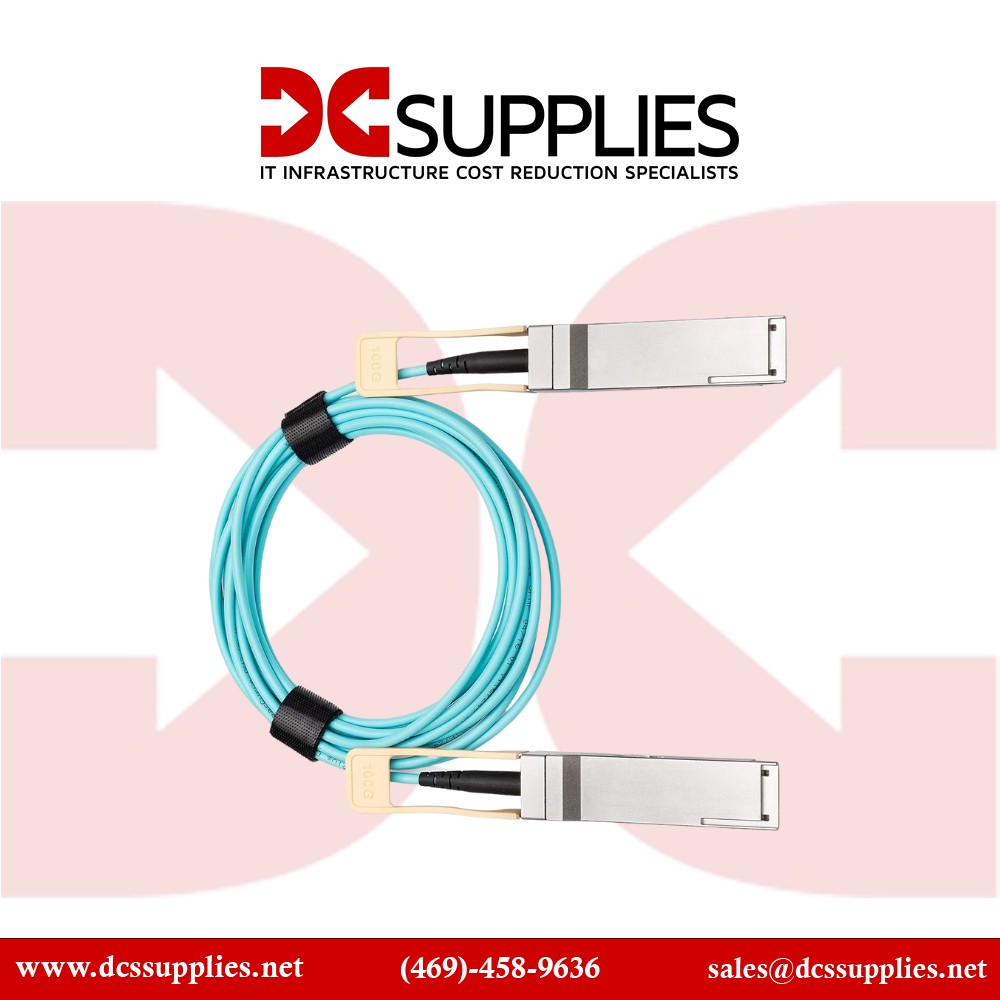

NVIDIA MFA1A00-C010 AOC Cable Ethernet 100GbE QSFP 10m

Overview :

The NVIDIA MFA1A00-C010 AOC Cable is designed for high-performance data center applications, supporting 100GbE Ethernet systems. This 10-meter active optical cable features QSFP28 connectors and utilizes VCSEL-based (Vertical Cavity Surface-Emitting Laser) technology. It offers high port density, configurability, and a much longer reach compared to passive copper cables. The cable is hot-pluggable, ensuring easy installation and replacement.The MFA1A00-C010 adheres to the SFF-8665 standard, with four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 25Gb/s. It supports selectable retiming per lane for both optical transmitters and receivers, enabling optimal performance at 25Gb/s rates and lower bit rates without retiming. The cable's transmitters have programmable input equalizers and input squelch functions, while the receivers feature programmable output amplitude and pre-emphasis.This active-fiber cable solution is power-efficient, providing enhanced connectivity for data center interconnects. It ensures higher port bandwidth, density, and configurability at a lower cost and reduced power requirement. Rigorous production testing guarantees the best out-of-the-box installation experience, performance, and durability.

Key Features:

• High-Speed Data Transfer: Supports 100GbE Ethernet systems with data rates up to 100Gbps.
• Multi-Mode Fiber: Utilizes MMF with a 10-meter reach.
• QSFP28 Connectors: QSFP28 to QSFP28 connectors for secure and reliable connections.
• VCSEL Technology: Ensures efficient optical data transmission.
• Hot-Pluggable: Easy to install and replace.
• SFF-8665 Compliant: Adheres to industry standards.
• Selectable Retiming: Supports optimal performance for different data rates.
• Power Efficient: Low power consumption (<3.5W).
• Durable Design: OFNP jacket material with a minimum bend radius of 7.5mm.

Technical Specifications:
