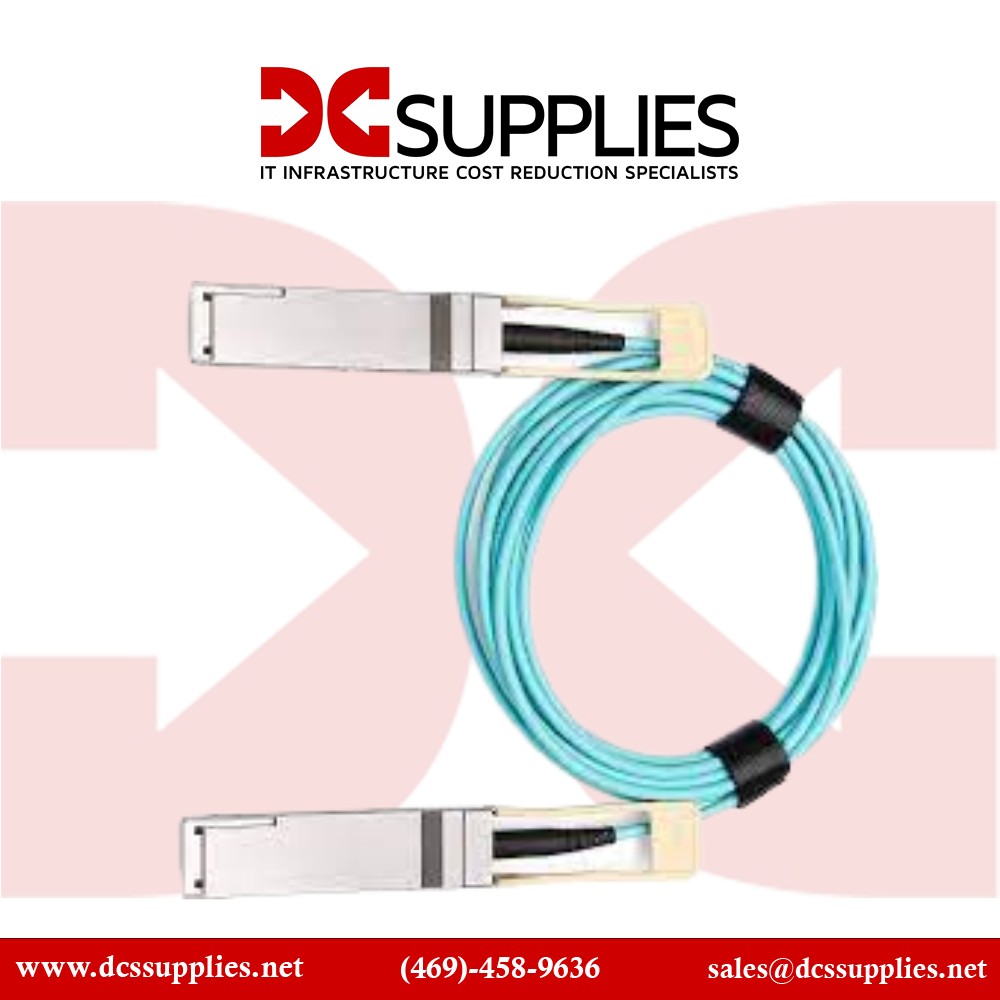

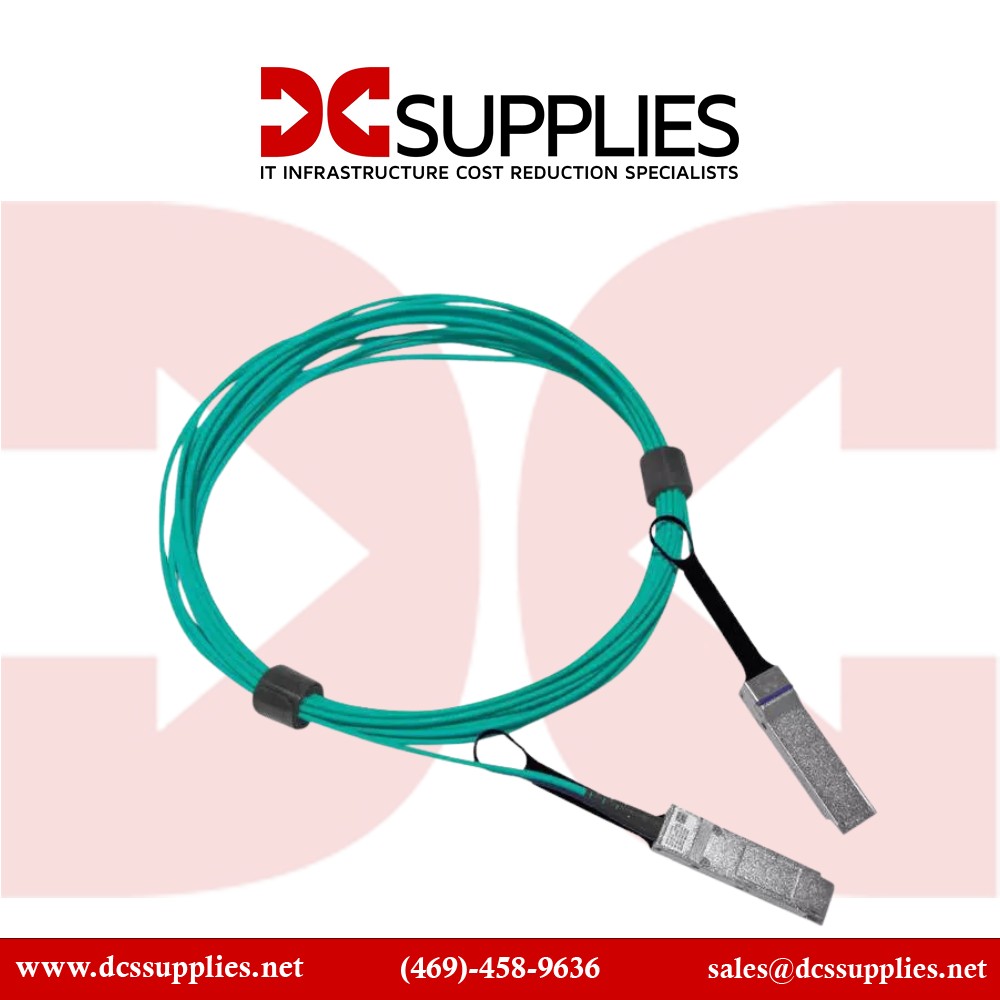

NVIDIA Mellanox MFS1S00-H030V 200Gbit/s InfiniBand QSFP56+Active Optical Cable

Overview :

Mellanox MFS1S00-H030V Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56, 30mThe NVIDIA MFS1S00 is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) systems.The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.The MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.The MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gb/s rates.NVIDIA's unique quality cable solutions provide power-efficient connectivity for data center interconnects. It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

Key Features :

• Supports IBTA IB HDR
• Up to 200Gb/s
• 4x 50Gb/s PAM4 modulation
• Programmable Rx output amplitude and pre-emphasis

Specifications :
