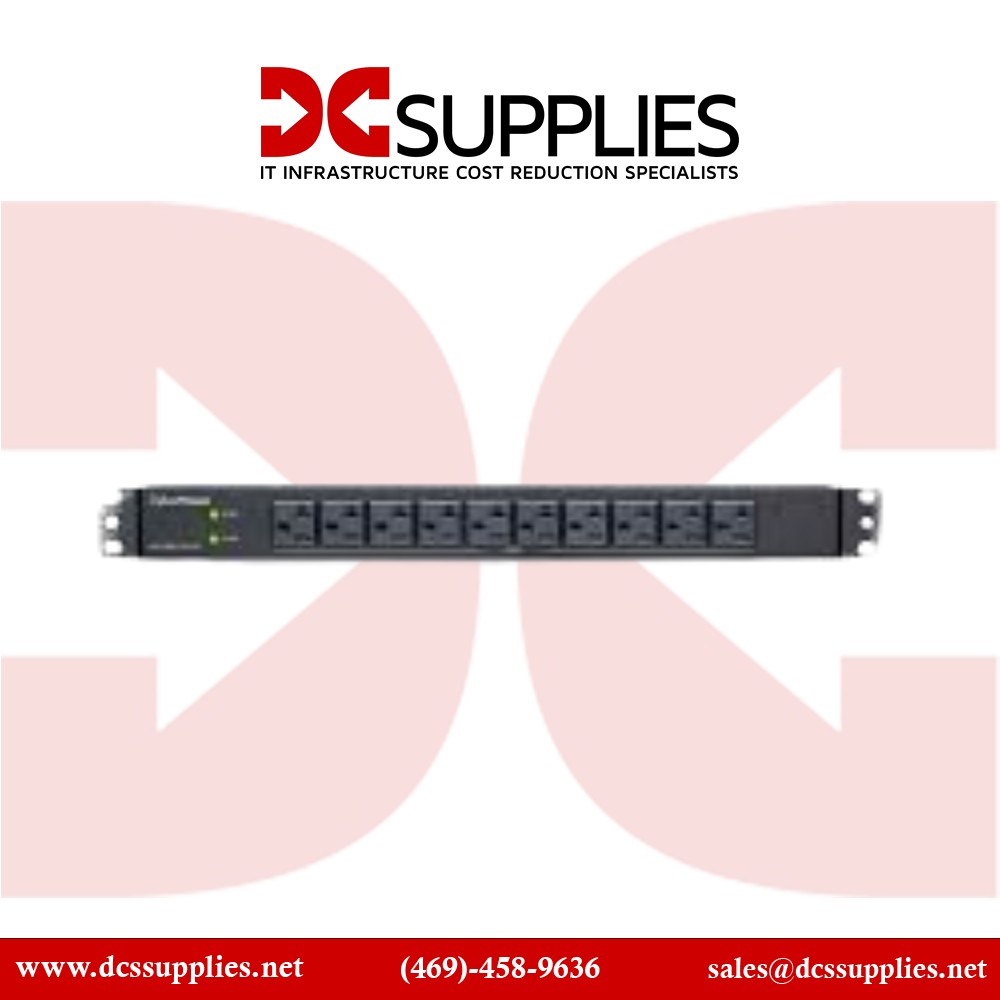

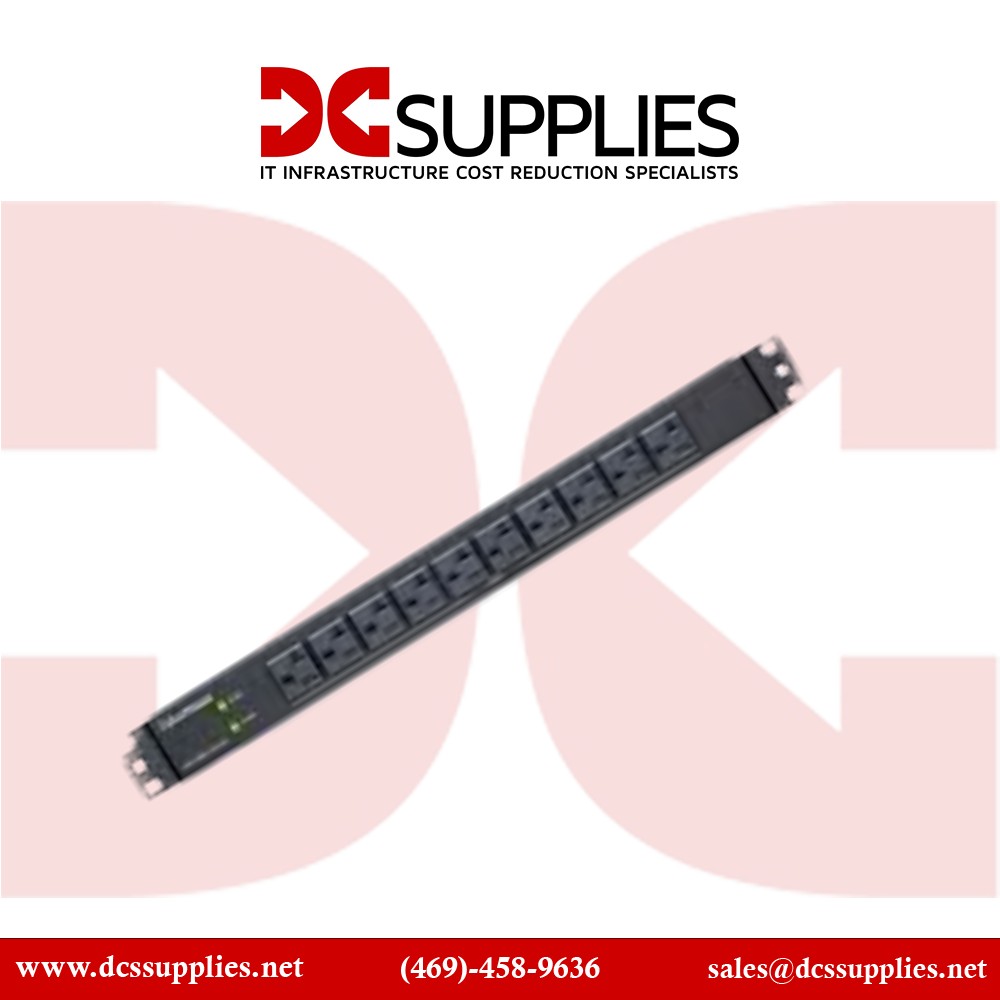

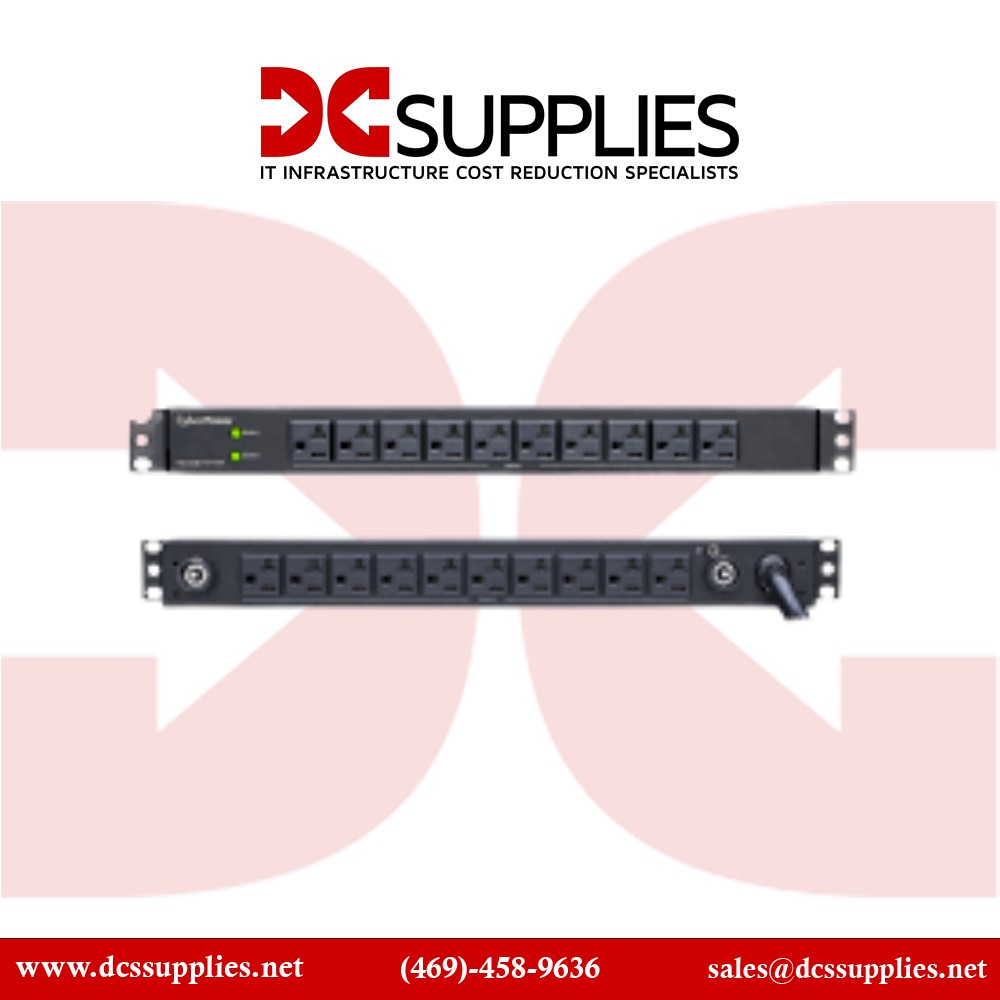

CyberPower PDU30BT10F10R 30A Basic PDU 1U 20 Out 5-20R 120V 10F/10R Out L5-30P 12FT Cord View larger

CyberPower 30A Basic PDU 1U 20 Outlets

PDU30BT10F10R

New

1U basic PDU with 20 outlets, 30A capacity, 120V, and a 12-ft cord for reliable power distribution
×




Detailed Specifications

CyberPower PDU30BT10F10R 30A Basic PDU 1U 20 Outlets

Overview :

The CyberPower Basic PDU30BT10F10R 20-Outlets PDU provides 120V 30A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

Specifications :

Product Name 30A Basic PDU 1U 20 Out 5-20R 120V 10F/10R Out L5-30P 12FT Cord
Manufacturer Part Number PDU30BT10F10R
Product Type PDU
Receptacle Type NEMA 5-20R
Product Family Basic PDU
Energy Star No
PDU Type Basic
Mounting Orientation Vertical
Rack Height 1U
Plug / Connector Type NEMA L5-30P
Length 2.3"
Mount Type Rack-mountable
Protection Type Overload Protection
Input Voltage 120 V AC
Output Voltage 120 V AC
Environmentally Friendly Yes
Receptacle Detail 20 x NEMA 5-20R
Height 1.8"
Width 17.5"
Product Series Basic PDU
Limited Warranty Lifetime
