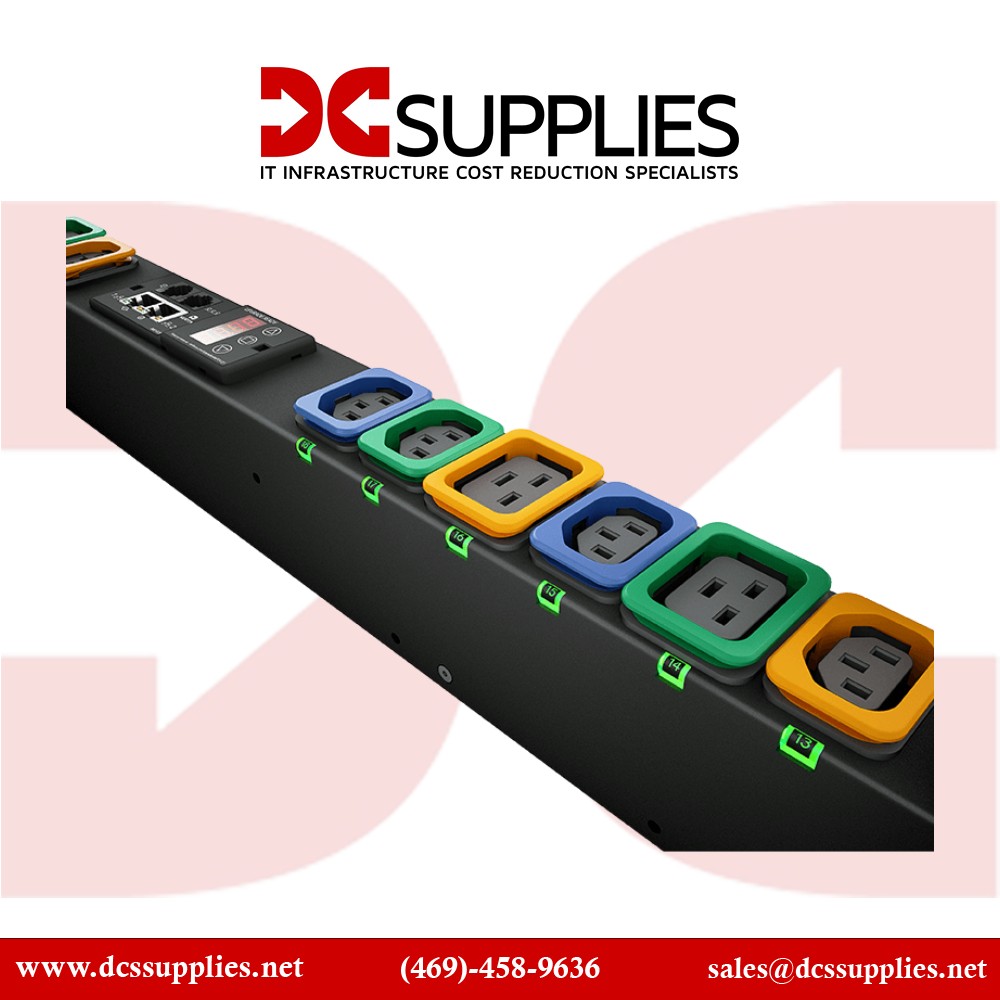

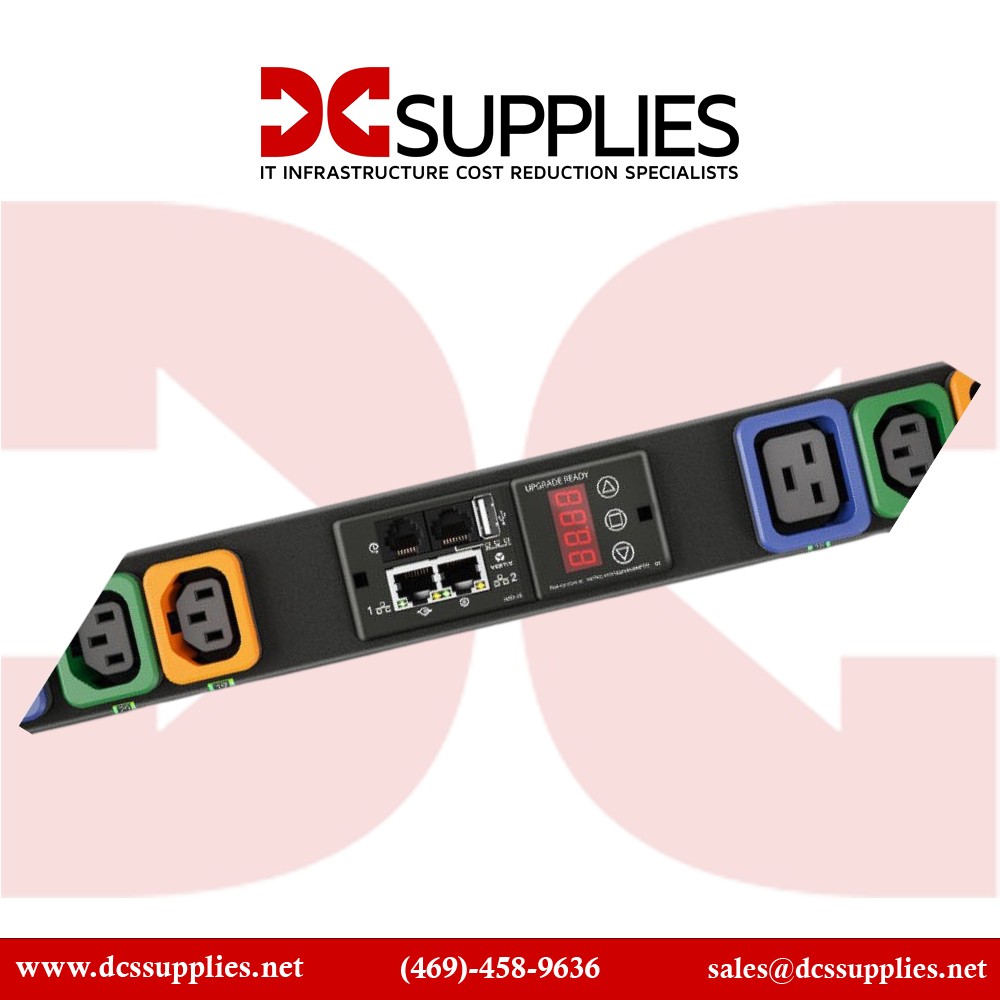

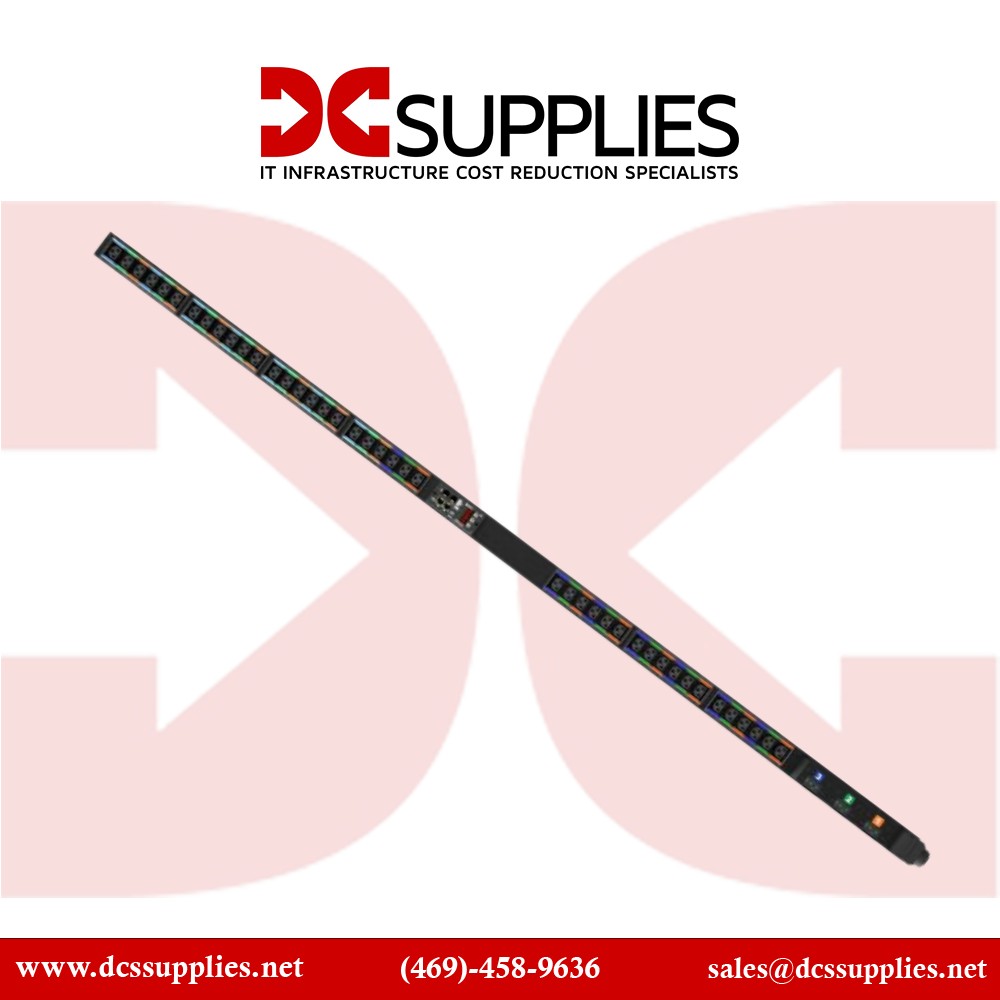

Vertiv VP8865 Geist PDU - Unit Monitoring - 0U 30A 120 208V View larger

Vertiv VP8865 Geist PDU - Unit Monitoring - 0U 30A 120 208V

VP8865

New

Vertiv VP8865 Ge

ist PDU - Unit Monitoring - 0U 30A 120 208V
×




Detailed Specifications

Vertiv VP8865 Geist PDU - Unit Monitoring - 0U 30A 120 208V

Overview :

The Vertiv Geist Monitored Rack PDU VP8865 is a 30A, 120V/208V WYE, 0U vertical rack power distribution unit (PDU) with input power monitoring. The VP8865 has (36) IEC C13, (6) IEC C19, and (2) NEMA 5-20R outlets, and a L21-30P plug providing 8.6kW in power capacity. This Monitored Data Center rPDU provides you quick access to critical power usage information so you can evaluate energy usage trends and maximize uptime. The hot-swappable Interchangeable Monitoring Device displays current on the local LED display. Visible Light Communication technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.

Specification :

Product Name Vertiv Geist PDU VP8865 - Unit Monitoring - 0U 30A 120/208V
Manufacturer Part Number VP8865
Product Type PDU
Phase Three Phase
Receptacle Type IEC 60320 C13

IEC 60320 C19

NEMA 5-20R
Product Family rPDUs
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 8600 W
Plug / Connector Type NEMA L21-30P
Input Current 30 A
Length 2"
Mount Type Rack-mountable
Input Voltage 120 V AC

230 V AC
Network (RJ-45) Yes
Receptacle Detail 36 x IEC 60320 C13

6 x IEC 60320 C19

3 x NEMA 5-20R
Plug / Connector Detail 1 x NEMA L21-30P
Country of Origin United States
Height 72"
Width 2"
Depth 2"
Product Series rPDUs
