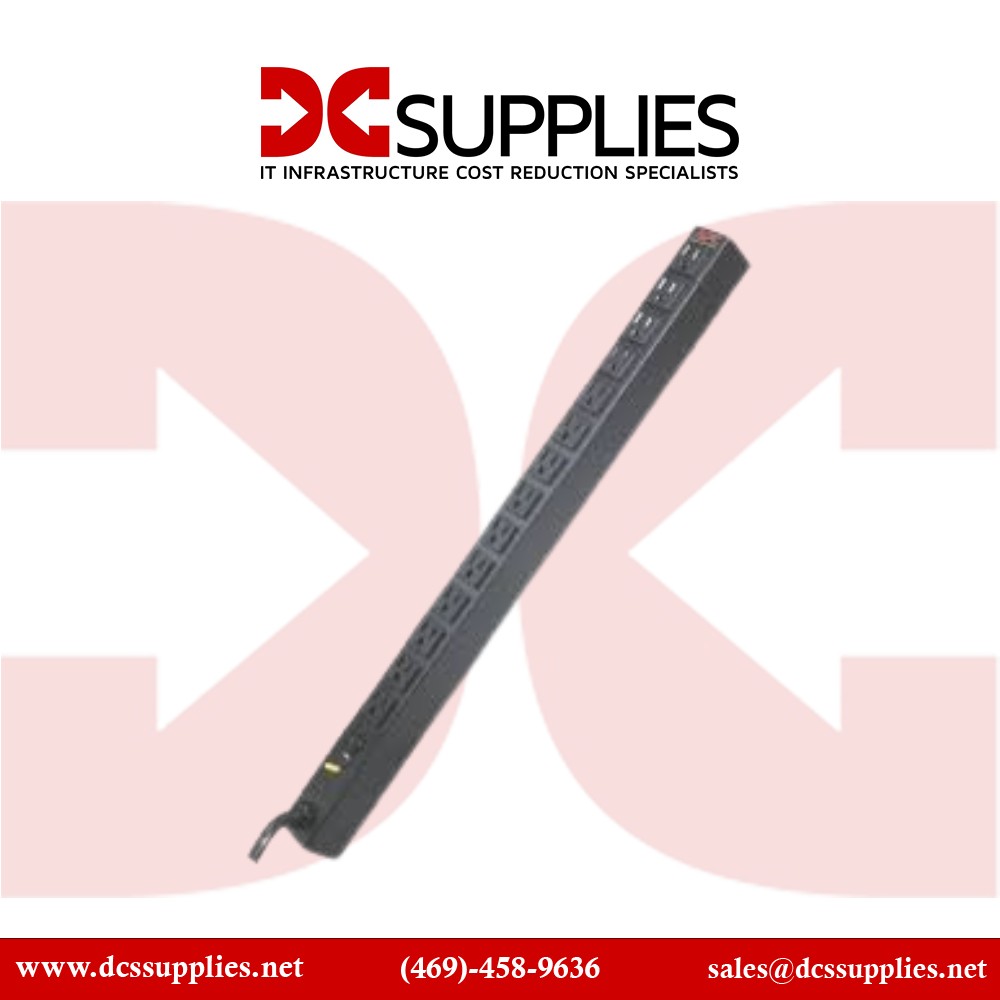

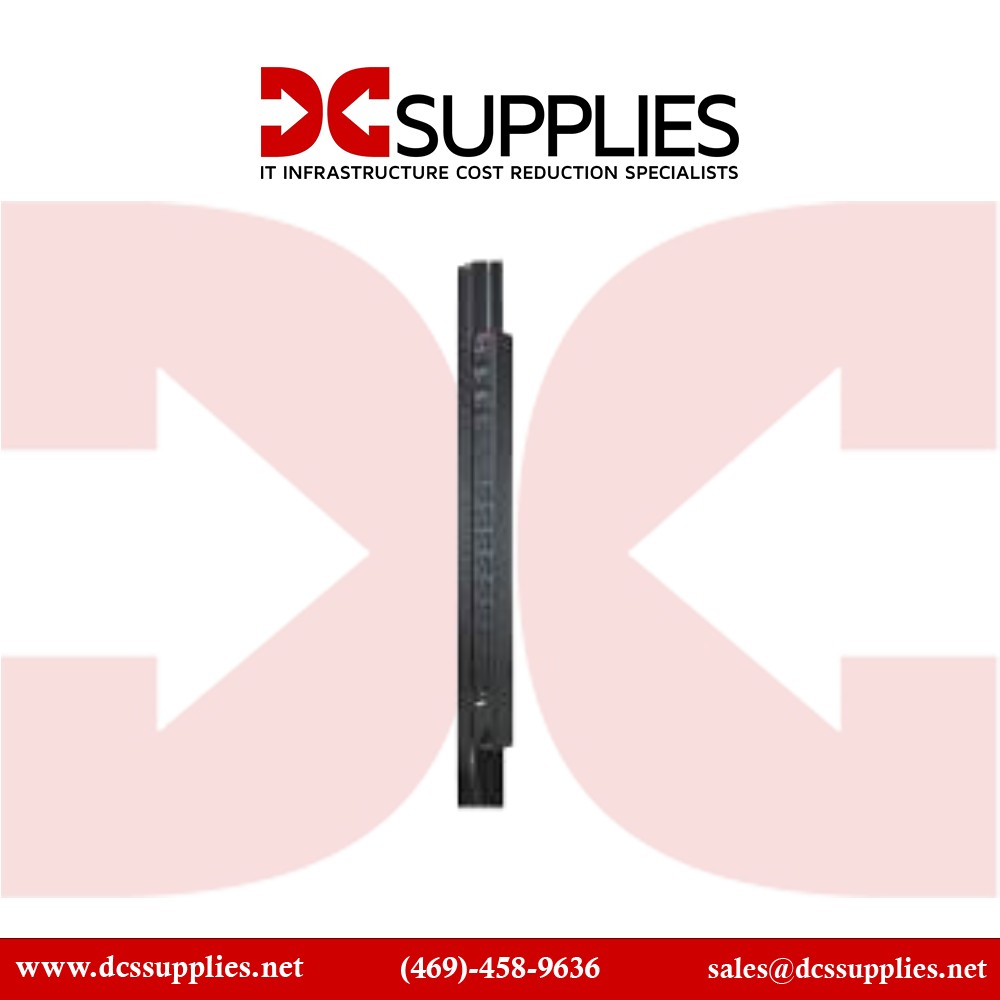

APC AP9551 Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15 View larger

APC AP9551 Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15

AP9551

New

APC Basic Zero U rack PDU with 14 NEMA 5-15R outlets, 120V
×




Detailed Specifications

APC AP9551 Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15

Overview :

The APC AP9551 is a basic rack power distribution unit (PDU) designed for efficient power management in IT and data center environments. Featuring a Zero U vertical mounting design, it conserves valuable rack space while offering 14 NEMA 5-15R outlets for reliable power distribution. The unit supports a maximum input current of 20A at 120V, making it ideal for high-power IT equipment. Equipped with a 12-foot power cord and NEMA L5-20P plug, it ensures flexible installation. Built with robust mounting brackets and a toolless mounting kit, the AP9551 simplifies deployment and provides uninterrupted power distribution for mission-critical applications.

Key Features :

  • Zero U Vertical Mounting – Saves rack space for optimized equipment layout.
  • 14 NEMA 5-15R Outlets – Provides ample connections for IT hardware.
  • 20A Input Current, 120V Operation – Supports high-power applications.

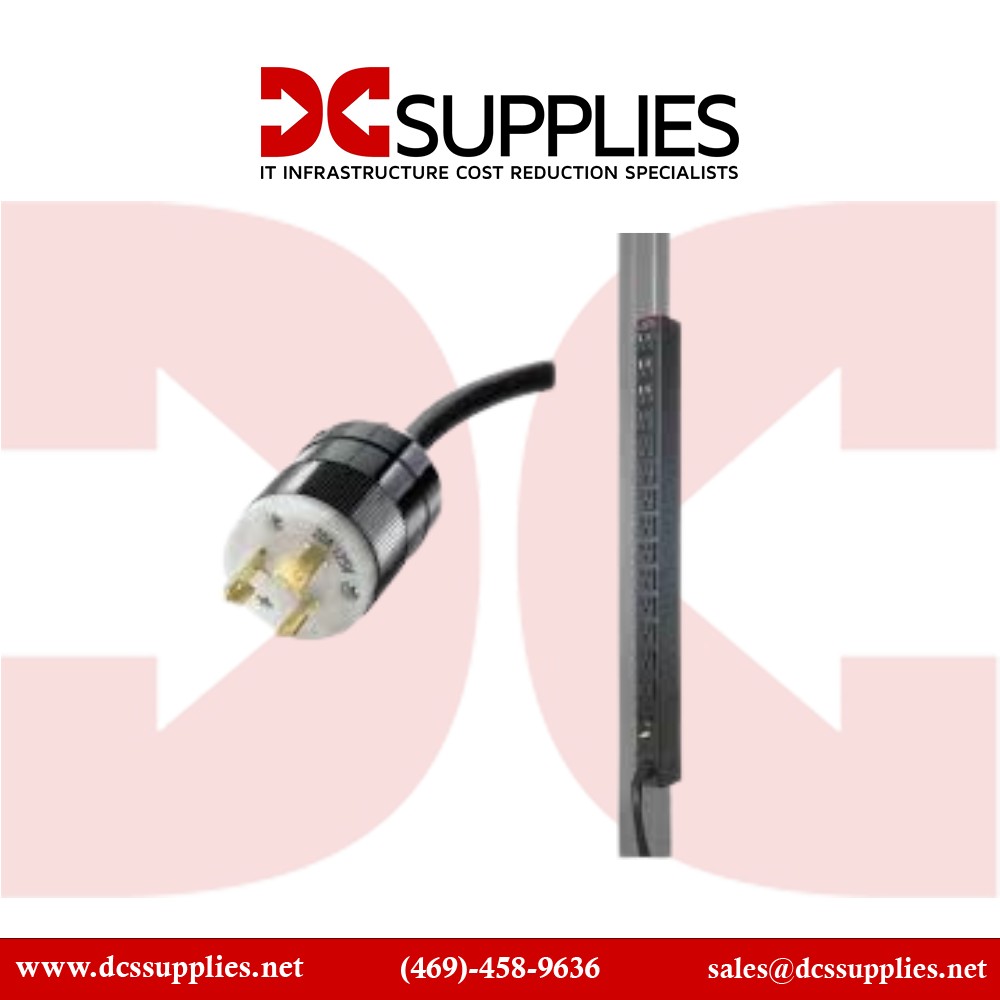

  • 12-ft Power Cord with NEMA L5-20P Plug – Ensures flexible installation.
  • Toolless Mounting Kit Included – Quick and easy rack integration.

Specifications :

SpecificationDetails
Part Number AP9551
Brand APC
Product Type Rack PDU
PDU Type Basic
Input Voltage 100-120V
Output Voltage 120V
Max Input Current 20A
Outlet Type 14 x NEMA 5-15R
Plug Type NEMA L5-20P
Cord Length 12 ft (3.7 m)
Mounting Zero U, Vertical
Load Capacity 1920 VA
Dimensions (H x W x D) 24.02 x 1.65 x 1.73 in
Weight 4.9 lb (2.2 kg)
Certifications UL Listed, CSA, cUL Listed
Operating Temperature 32°F to 113°F (0°C to 45°C)
