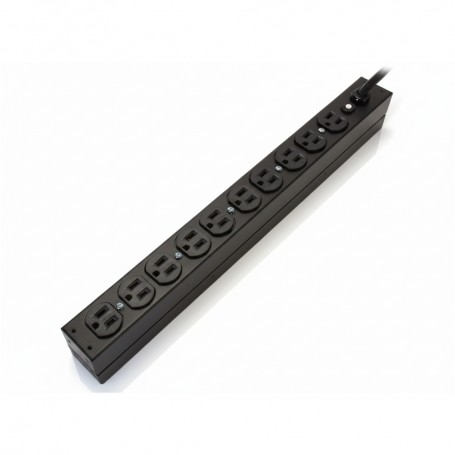

APC AP9562 1U 15A 120V 5-15R Outlets Basic Rack PDU View larger

APC AP9562 1U 15A 120V 5-15R Outlets Basic Rack PDU

AP9562

New

In Stock

1U rack-mounted basic PDU with 15A input,

×




$119.00

Detailed Specifications

APC AP9562 1U 15A 120V 5-15R Outlets Basic Rack PDU

Overview:

The APC AP9562 Rack PDU is a basic 1U rack-mountable power distribution unit (PDU) designed for server rooms, data centers, and networking applications. With a 15A input capacity and 10 NEMA 5-15R output receptacles, it provides efficient power distribution for IT infrastructure. This APC PDU supports horizontal (1U) rack mounting and has no mounting preference, making it adaptable to different rack configurations. Its resettable circuit breakers protect against overloads, ensuring uninterrupted operation of connected equipment.

Key Features:

  • 1U Rack-Mountable Design – Compact form factor for efficient space utilization.
  • 15A Input Power – NEMA 5-15P input connector for standard power connections.
  • 10 NEMA 5-15R Output Receptacles – Distributes 120V power efficiently.
  • 1400 VA Load Capacity – Suitable for small to medium IT setups.
  • Resettable Circuit Breakers – Provides overload protection for connected devices.
  • Durable Black Enclosure – Sturdy metal construction for reliable performance.
  • RoHS Compliant – Environmentally friendly design.

Specifications:

Part Number AP9562
Brand APC
Product Type PDU
Form Factor 1U Rack-Mountable
Input Connector NEMA 5-15P
Output Connectors 10 x NEMA 5-15R
Input Voltage 120V
Output Voltage 120V
Power Capacity 1400 VA
Current Rating 12A
Input Current Limits 15A
Mounting Options No Preference / Rack-Mounted (1U)
Circuit Breakers Resettable
Enclosure Color Black
Width 17.60 inches (44.7 cm)
Depth 2.24 inches (5.7 cm)
Height 1.73 inches (4.4 cm)
Compliance RoHS Compliant
TAA Compliance No
