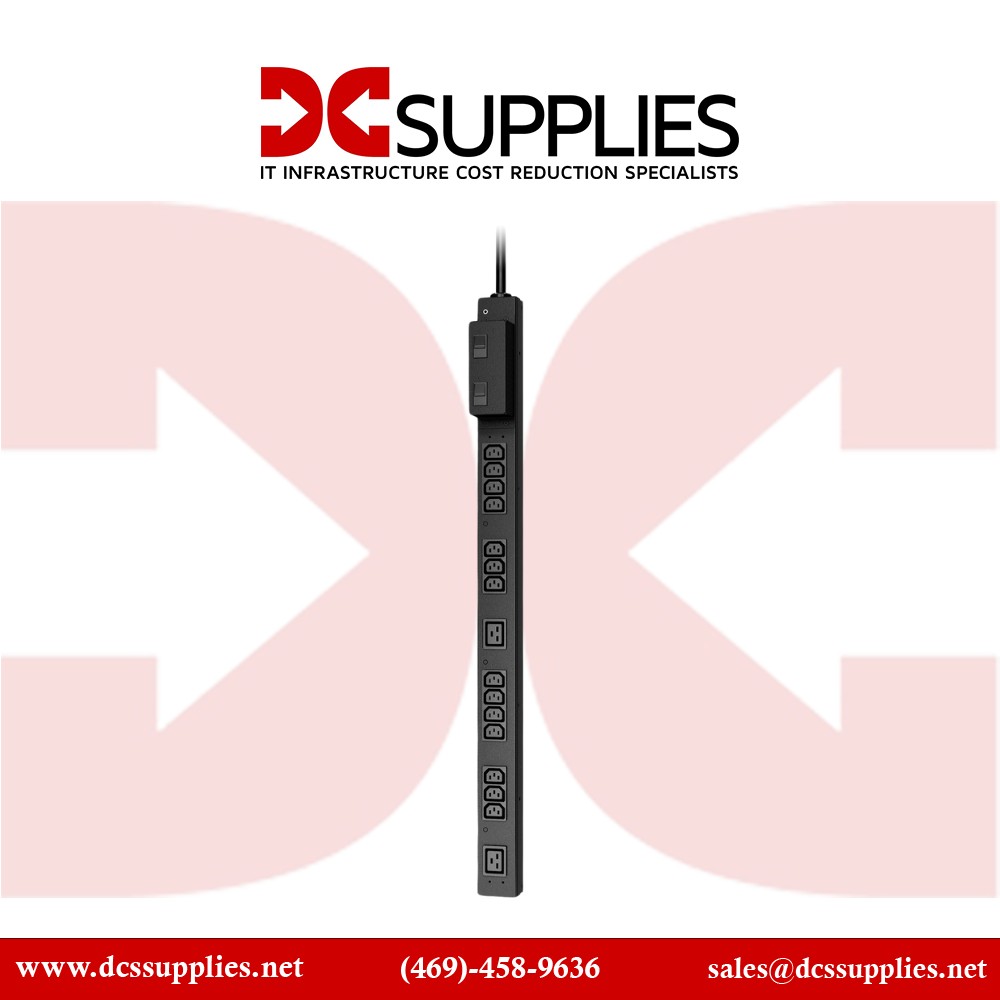

APC AP6002A Basic Rack PDU Half Height 200-208V 30A View larger

APC AP6002A Basic Rack PDU Half Height 200-208V 30A

AP6002A

New

In Stock

APC by Schneider Electric Basic AP6002A 16-Outlet PDU
×




$244.90

Detailed Specifications

APC AP6002A Basic Rack PDU Half Height 200-208V 30A 14 C13 2 C19

Overview :

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Total Cost of Ownership

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Specifications:

Part Number AP6002A
Brand APC
Product Type PDU
Rack Units 0U (Vertical)
Input Voltage 208V
Output Voltage 200V / 208V
Load Capacity 5000 VA
Line Rated Current 24A
Input Plug Type NEMA L6-30P
Cord Length 10 ft (3.05 m)
Outlet Type 14 x IEC 60320 C13, 2 x IEC 60320 C19
Mounting Mode Vertical (Side-mounted)
Mounting Preference Lower
Dimensions (HxWxD) 32.80 x 2.20 x 1.85 in (83.3 x 5.6 x 4.7 cm)
Weight 6.13 lbs (2.78 kg)
Standards Compliance UL Listed, cUL Listed
Operating Temperature 32 – 122°F (0 – 50°C)
