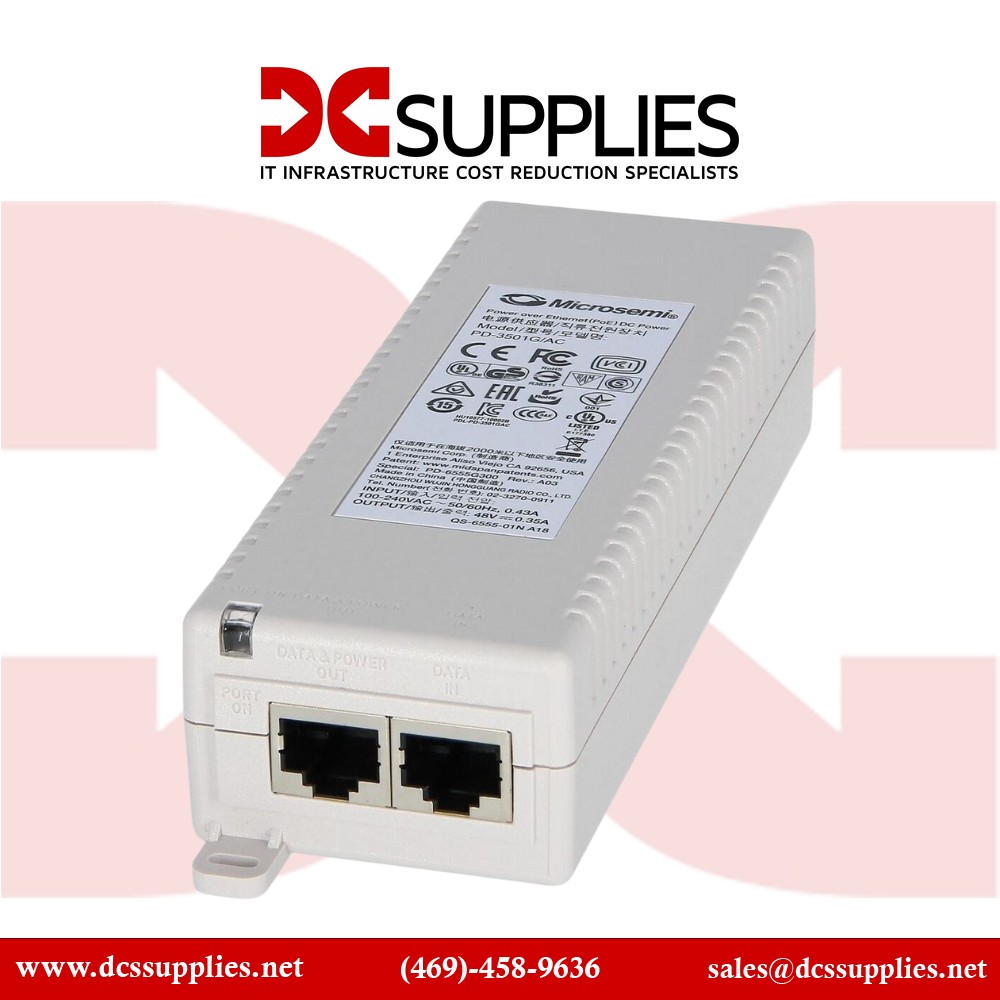

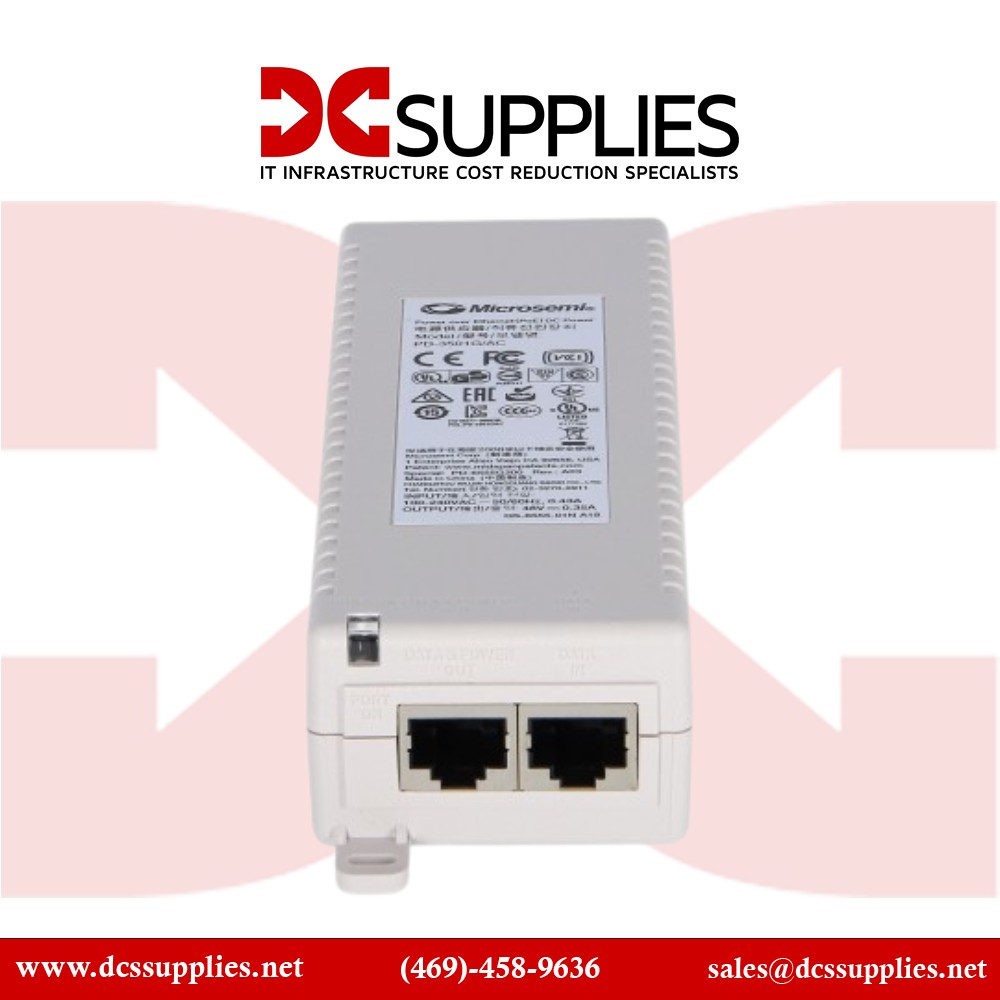

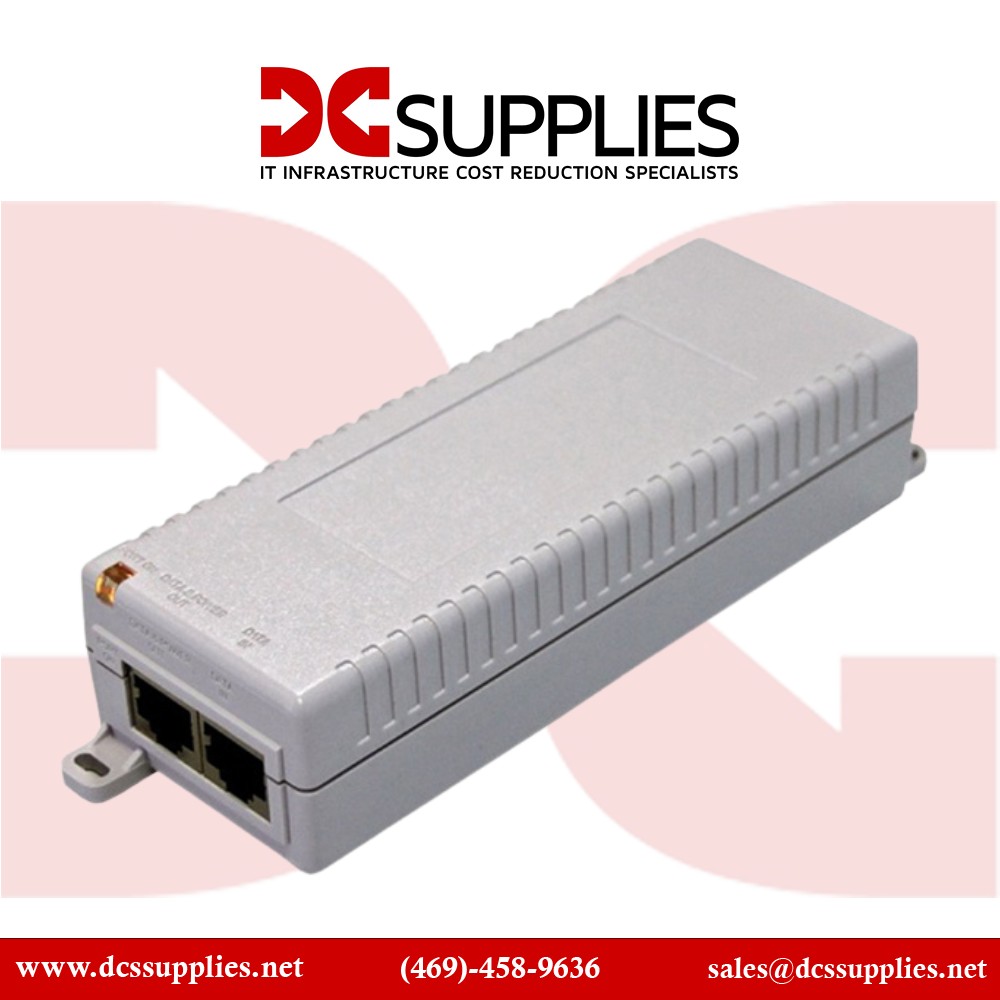

HP JW627A Aruba PD-3501G-AC - PoE Injector - 15.4 Watt Power Supply View larger

HP JW627A Aruba PD-3501G-AC - PoE Injector - 15.4 Watt Power Supply

JW627A

New

HP JW627A Aruba PD-3501G-AC - PoE Injector - 15.4 Watt Power...

×




Detailed Specifications

HP Aruba PD-3501G-AC - PoE Injector - 15.4 Watt Power Supply (JW627A)

Overview :

The Aruba JW627A PD-3501G-AC PoE Injector enables efficient connection of IEEE 802.3af compliant devices to non-PoE LAN switch ports. This external PoE injector powers your PoE-supported devices on local networks. Its RJ-45 Gigabit LAN port allows easy and convenient connection. With MTBF time of 100,000 hours, this white Power over Ethernet injector ensures enhanced reliability. In addition, it works at a frequency of 47 Hz to 63 Hz and AC voltage of 90 volts to 264 volts. This device is compatible with many Aruba models such as Aruba AP-103, Aruba AP-204, Aruba AP-204 FIPS/TAA, Aruba AP-205, Aruba AP-205 (US), Aruba AP-205 FIPS/TAA, Aruba AP-205H FIPS/TAA and more.PoE injector for connection of wireless access points and other IEEE 802.3af devices to a switchAdheres to cUL, EN55022 Class B, EN55024, FCC Part 15 B, RoHS and other compliant standards

  • Product Description : Aruba Pd-3501g-ac - Poe Injector - 15.4 Watt
  • Device Type : Poe Injector - External
  • Input Voltage : Ac 90-264 V
  • Output Voltage:50 V
  • Power Capacity:15.4 Watt
  • Output Connectors : 1 X Rj-45

Specifications :

Frequency Required 47 - 63 Hz
Power Output Connectors Details 1 x RJ-45
Output Voltage 50 V
Power Capacity 15.4 Watt
Interfaces 1 x Gigabit LAN - RJ-45
MTBF 100,000 hours
Compliant Standards IEEE 802.3af, UL, VCCI, cUL, GS, EN55024, EN55022 Class B, FCC Part 15 B, RoHS, IEC 60950-1, WEEE
Service & Support Limited warranty - 1 year
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 90% (non-condensing)
Width 2.1 in
Depth 5.5 in
Height 1.3 in
Weight 7.05 oz
Designed For HPE OfficeConnect OC20 (EG), OC20 (IL), OC20 (JP), OC20 (RW), OC20 (US) ¦ HPE Aruba AP-203H (EG) FIPS/TAA Unified Hospitality, AP- ...
Product Description HPE Aruba PD-3501G-AC - PoE injector - 15.4 Watt
Device Type PoE injector - external
Input Voltage AC 90-264 V
Output connectors 1 x RJ-45
Dimensions (WxDxH) 2.1 in x 5.5 in x 1.3 in
Manufacturer Warranty 1-year warranty
manufacturer Hewlett Packard Enterprise
