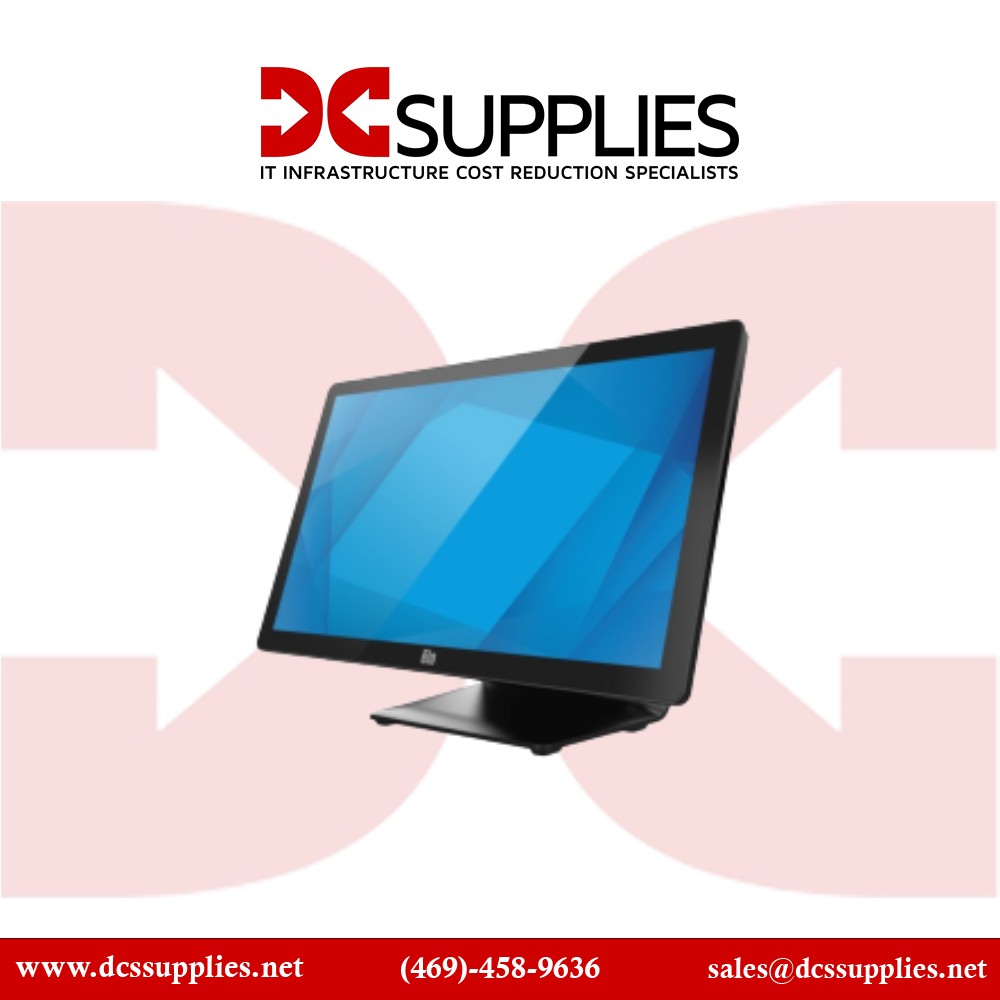

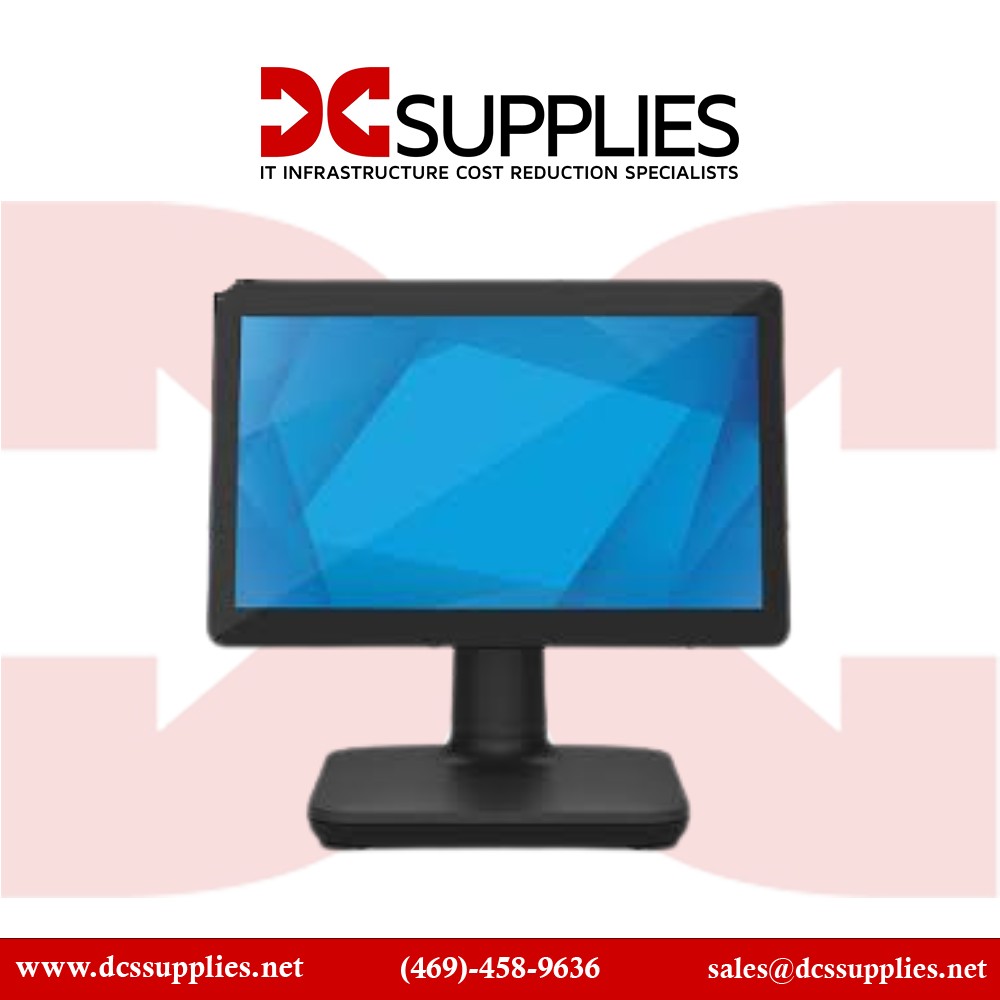

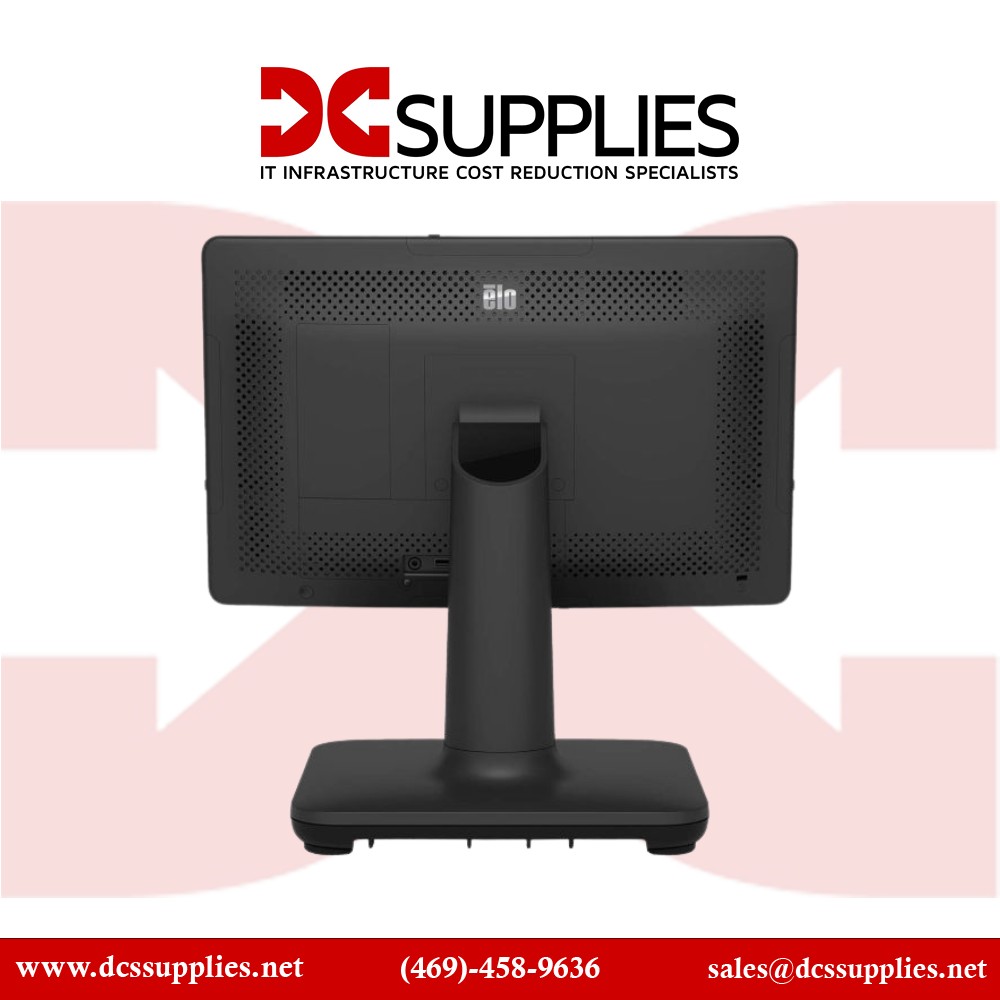

Elo E136131 E-Series 2.0 15.6-Inch Touchscreen All-In-One POS System - Celeron J4125 - 2GHz - 4GB RAM View larger

Elo E136131 E-Series 2.0 15.6-Inch Touchscreen All-In-One POS System - Celeron J4125 - 2GHz - 4GB RAM

E136131

New

Elo E136131 E-Series 2.0 15.6-Inch Touchscreen All-In-One POS System

×




Detailed Specifications

Elo E136131 E-Series 2.0 15.6-Inch Touchscreen All-In-One POS System - Celeron J4125 - 2GHz - 4GB RAM

Overview :

Purpose-built for point of sale, the E-Series 2 offers a 15.6-inch touchscreen display, Intel's 8th generation Celeron processor and an integrated expansion hub to connect the peripherals you need.

Expand withElo Edge Connect.

Seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Add a customer-facing display with ease.

The E-Series 2 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.

Connect all of your POS accessories.

Integrated into the base of the stand, the expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all.

Windows or Linux.You choose.

The E-Series 2 utilizes the reliability-tested performance and security of Intel's 8th Generation Celeron processor, integrated Trusted Platform Modules and the Windows 10 operating system. For added flexibility, the E-Series 2 offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

A POS system you can count on.

Rigorously tested and backed by a three-year warranty. With splash-proof housing and a rugged retail-hardened design, the E-Series 2 can withstand the adverse conditions associated with most commercial environments.

Specifications :

Product Name E-Series 2, Windows 10, 15.6-inch wide, 1366x768 High Definition Display, Celeron, 4GB RAM, 128G
Manufacturer Part Number E136131
Product Type POS Terminal
Touchscreen Yes
Processor Manufacturer Intel
Display Screen Type LED
Solid State Drive Capacity 128 GB
USB Yes
Network (RJ-45) Yes
Serial Port Yes
Product Family E
Cash Drawer Port Yes
Product Color Black
Color Family Black
Operating System Windows 10 IoT Enterprise LTSC (64-bit)
Processor Speed 2.70 GHz
Processor Type Celeron
Screen Size 15.6"
Standard Memory 4 GB
Horizontal Viewing Angle 90°
Vertical Viewing Angle 50°
Number of Speakers 2
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics 600
Wireless LAN Yes
Solid State Drive Interface M.2/SATA
Touchscreen Technology Projected Capacitive
Ethernet Technology Gigabit Ethernet
Powered USB Yes
Number of USB 3.0 Ports 3
Multi-touch Screen Yes
Number of Micro USB 2.0 Ports 4
USB Type-C Yes
Speaker Power 2 W
Active Display Size (Horizontal) 13.55"
Active Display Size (Vertical) 7.62"
Number of Simultaneous Touch Points 10
Number of USB Type C Ports 1
Processor Model J4125
Processor Cache 4 MB
Memory Technology DDR4 SDRAM
Color Supported 266,144 Colors
Product Series E
Features Edge-to-Edge Glass Design
Form Factor All-in-One
Contrast Ratio 400:1
Aspect Ratio 16:9
Response Time 10 ms
Power Source AC Power

DC Power

Stock Details
Manufacturer Elo
Manuf Part# E136131
