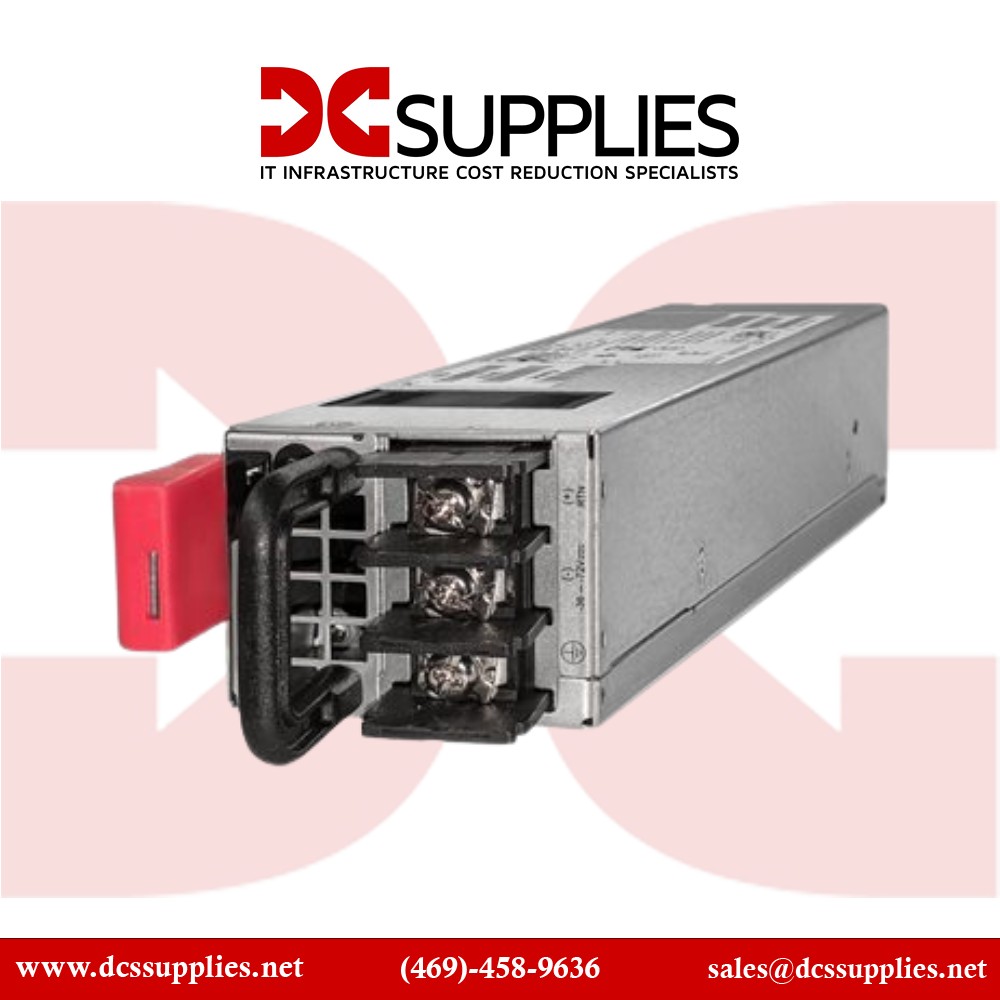

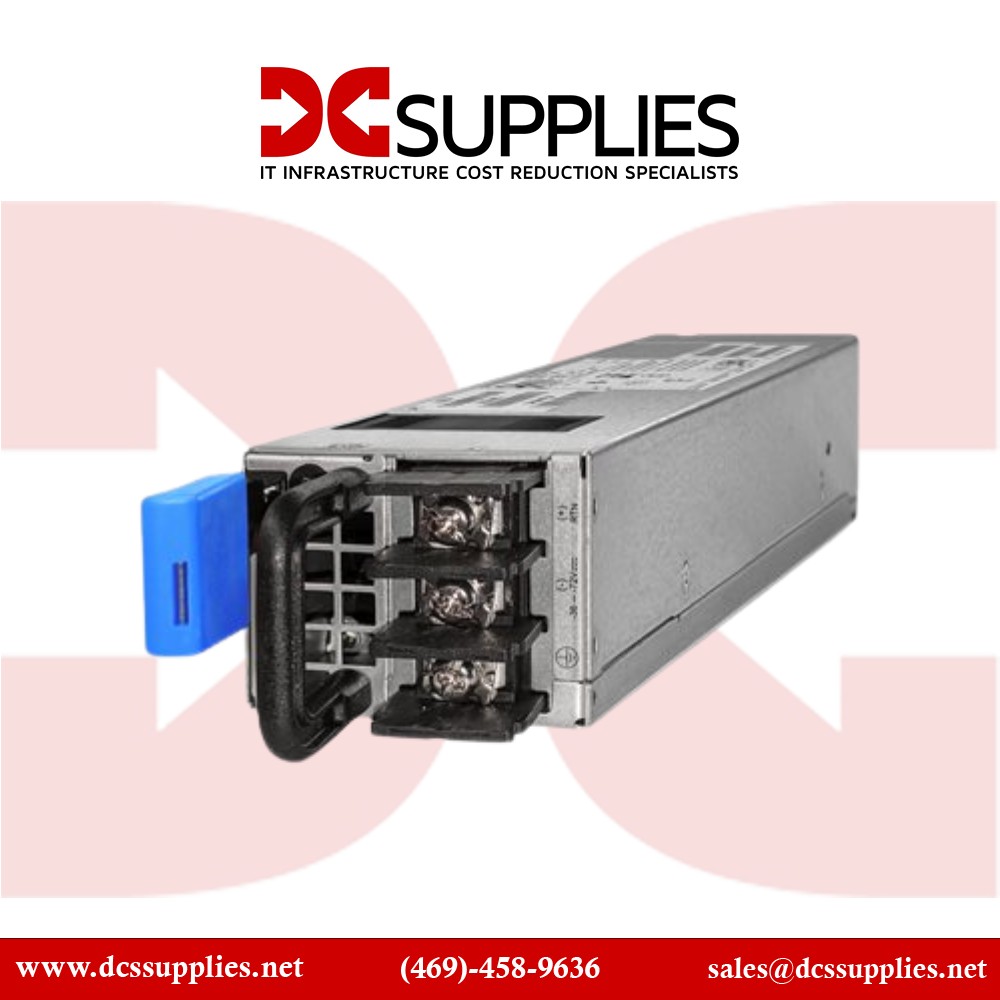

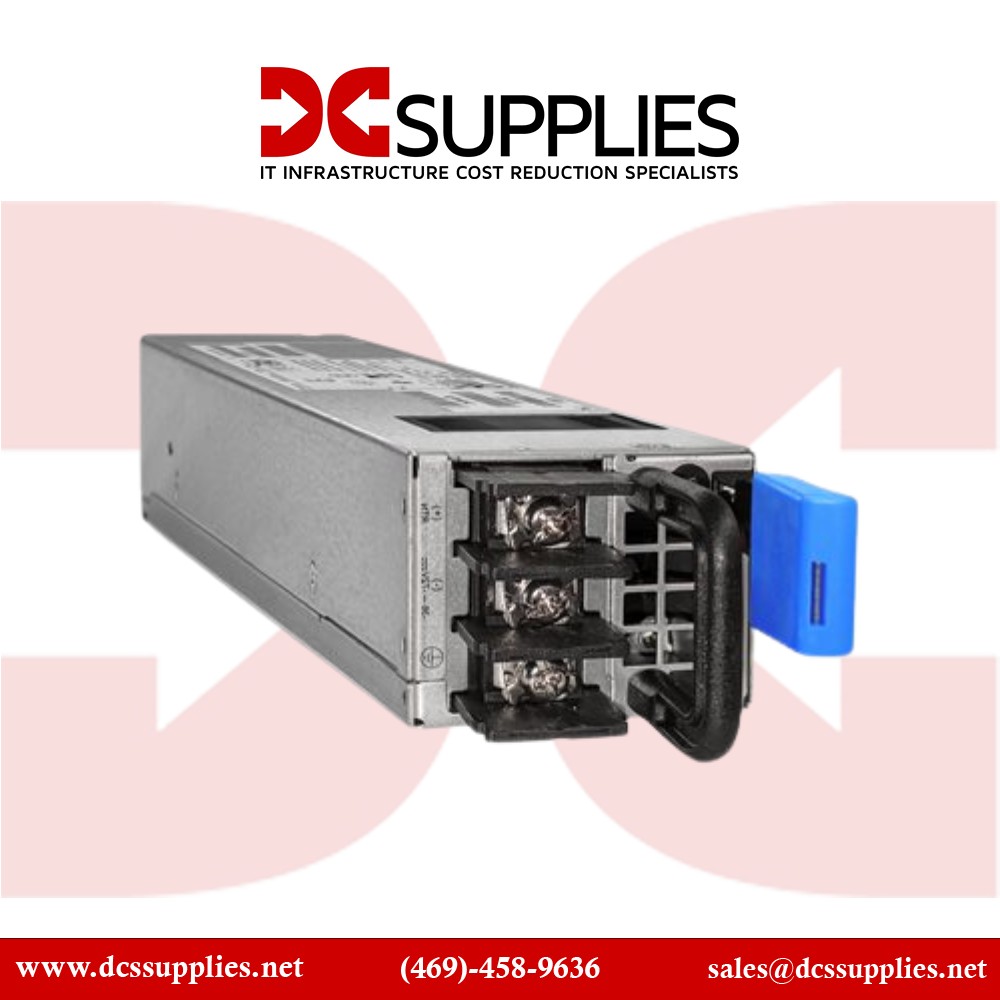

VERTIV RMPSU2-8-400 Rackmount Power Supply - Reliable and Efficient 12V DC Power Solution

Overview :

The Avocent RMPSU increases reliability while providing economies of scale and convenience that aren't possible with external power supplies.Power integrity, safety and management are core elements of the RMPSU system. At start up, the RMPSU checks the status of the power module(s). It then enables each of the power outputs in sequence to reduce the instantaneous load on the power modules.After start up each power output is protected by overlapping safety features that guard against excess demand by any connected device. Additionally,the RMPSU can be controlled and monitored via a web interface. Temperature, fan speeds and individual current measurements are viewable and each output can be individually controlled. The RMPSU features either one, or two, hot-swappable switched mode 460W power modules. A single power module is rated at 500,000 hours MTBF and can easily meet the needs of sixteen ports. However, in situations where redundancy is required, a second power module is available. With two power modules, the normal load will be intelligently balanced; with the full power load transferring immediately to the healthy module should one of the modules cease operation.
