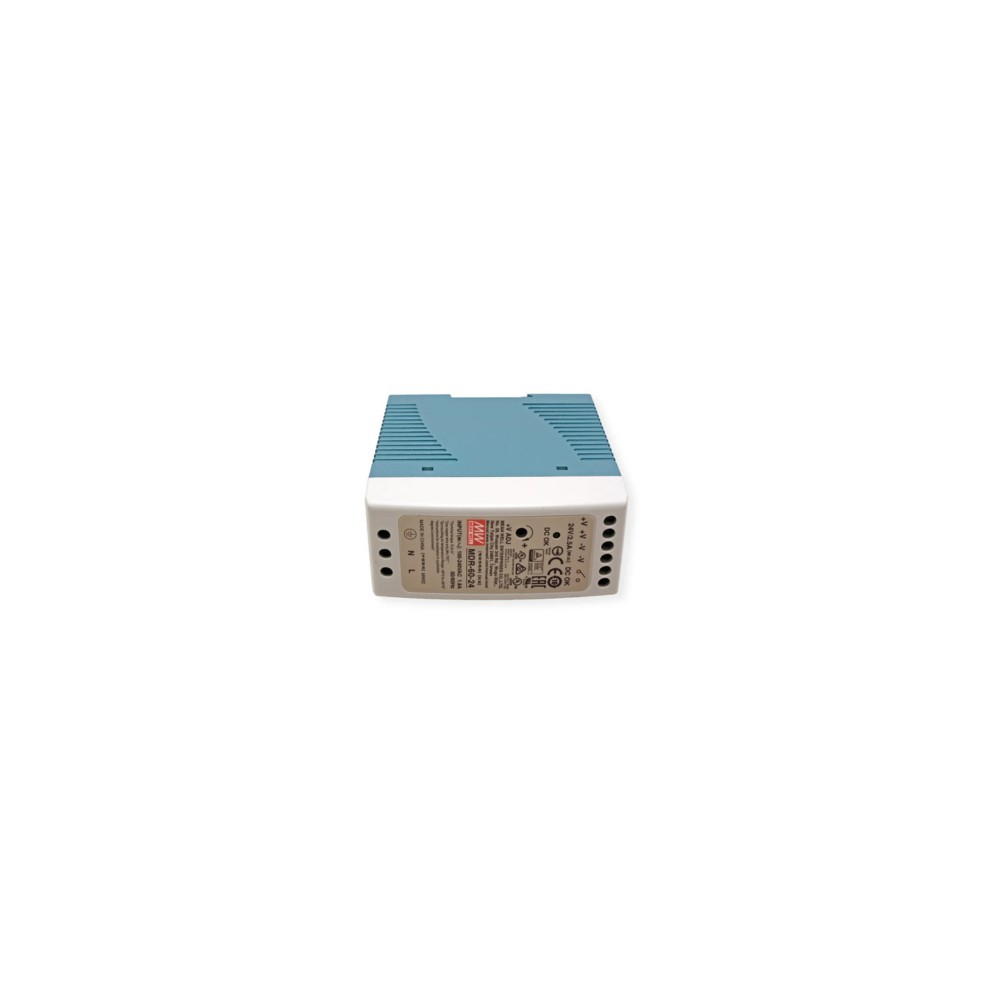

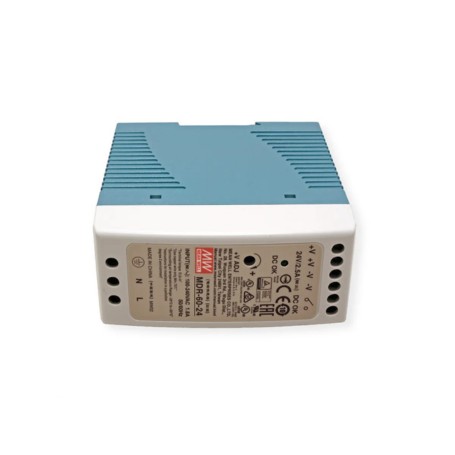

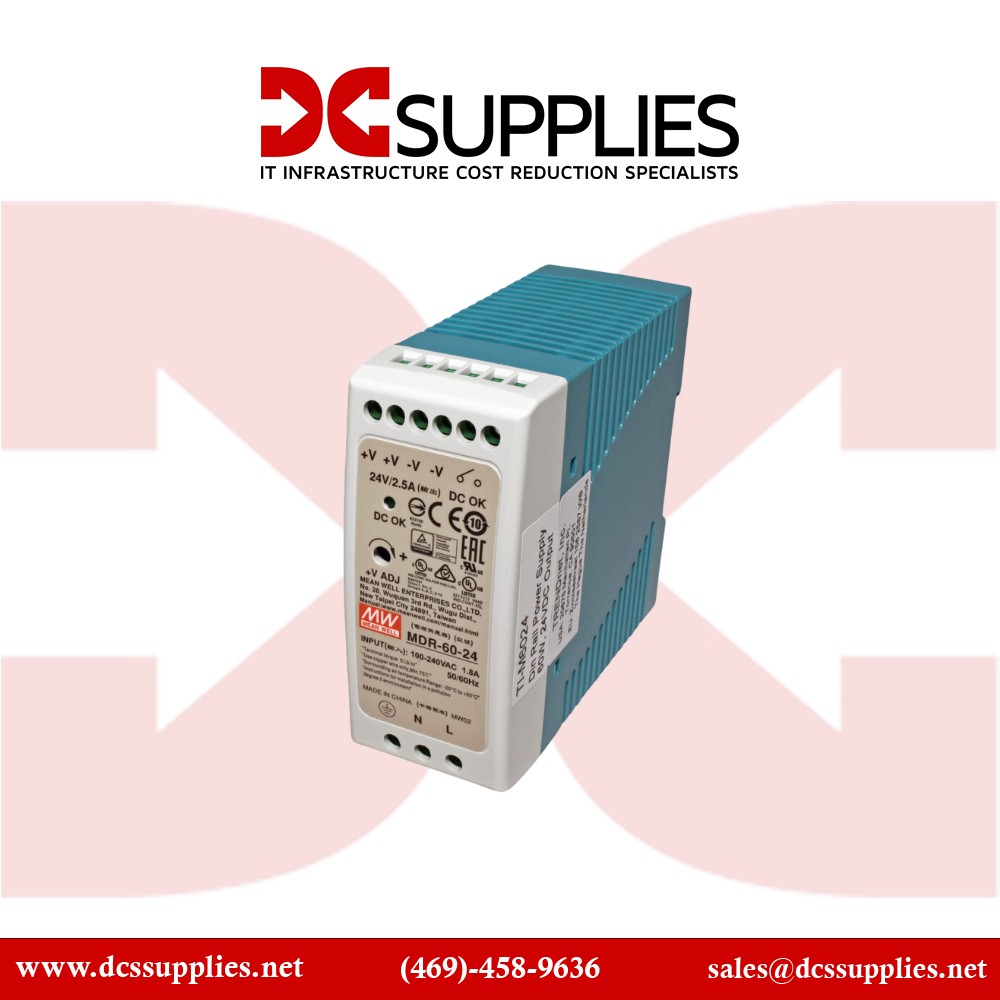

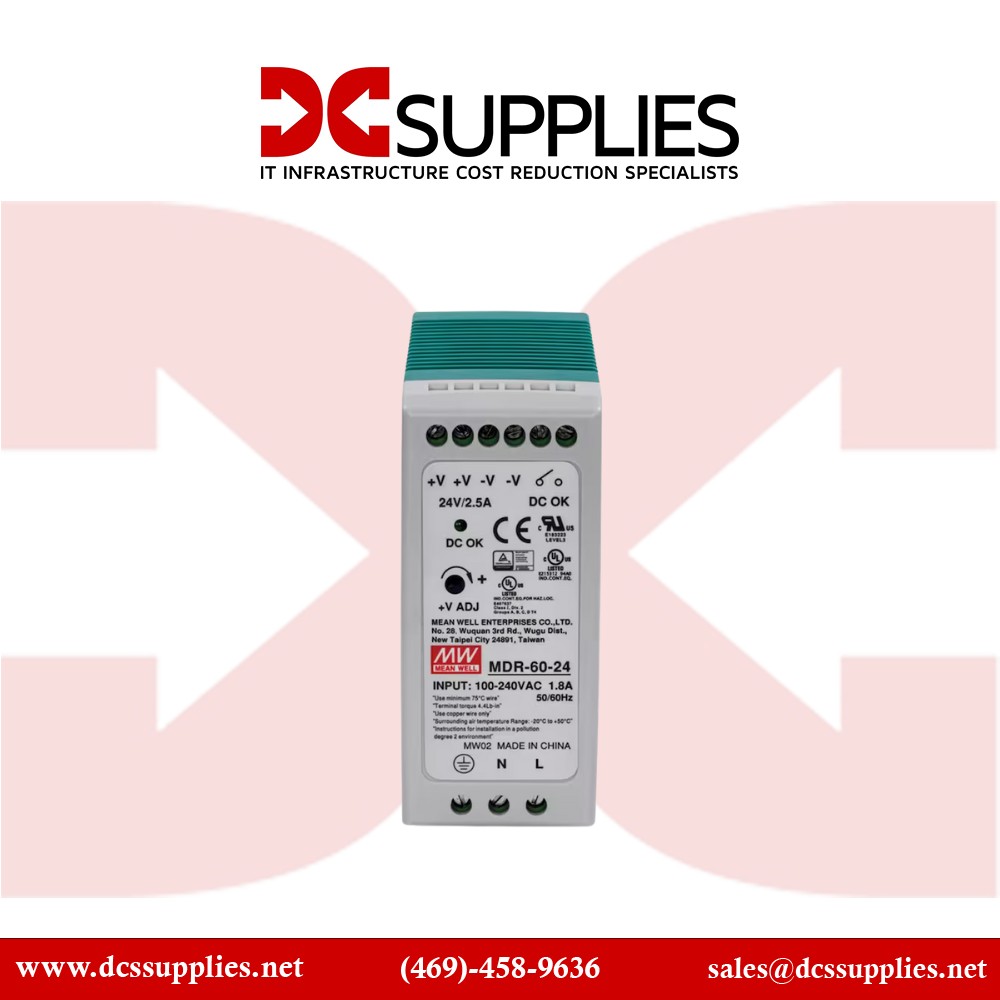

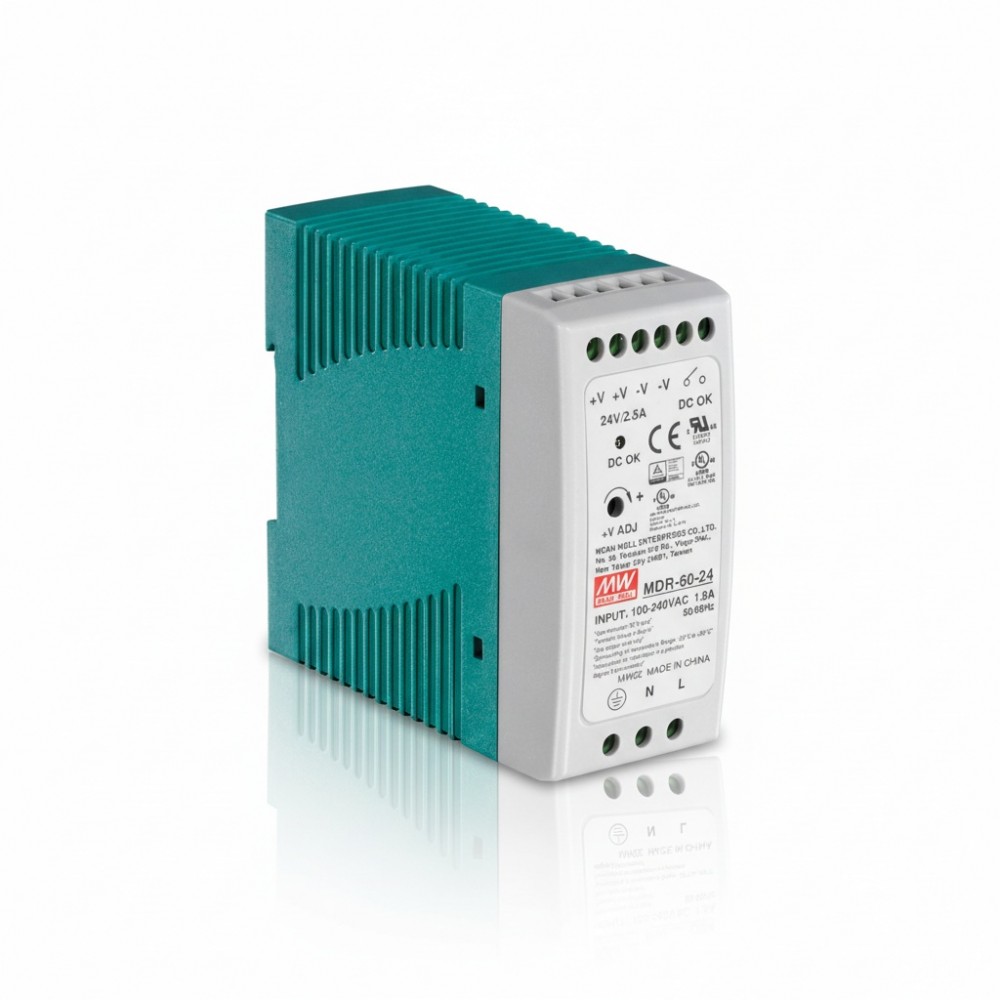

TRENDnet TI-M6024 60 W Single Output Industrial DIN-Rail Power Supply View larger

TRENDnet TI-M6024 60 W Single Output Industrial DIN-Rail Power Supply

TI-M6024

New

in stock

TRENDnet TI-M6024 60 W Single Output Industrial DIN-Rail Power Supply
×




$34.90

Detailed Specifications

TRENDnet TI-M6024 60 W Single Output Industrial DIN-Rail Power Supply

Overview :

TRENDnet's 60 W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60 Watts of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with an integrated DIN-rail mount and overload current protection.60 Watt PowerProvides up to 60 Watts (24 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points.Overload ProtectionOverload/short circuit/over voltage protectionFull Load TestThis power supply undergoes a 100 % full load burn-in testPassive CoolingCooling by free air convectionDIN-Rail MountMetal enclosure with integrated DIN-rail mountExtreme TemperaturesRated for an operating temperature range of -20 to 70 °C (-4 to 158 °F)Safety CertificationsCertified for UL 508, UL 60950-1, TUV EN60950-1, and Class I, Div. 2 Group A, B, C, D hazardous locations T4Electro Magnetic Emission/ImmunityCompliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, and criteria AVibration Resistant

Specifications :

Part Number TI-M6024
Product Name DIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP
Product Type Proprietary Power Supply
Product Condition New
TAA Compliant Yes
Form Factor DIN Rail
Product Model TI-M6024
Output Power 60 W
Output Voltage 24 V DC
Output Voltage Detail 24 V DC @ 2.5 A
Country of Origin China
Height 3"
Width 5"
Output Current 2.50 A
Limited Warranty 3 Year
NDAA Compliant Yes
Length 10"
