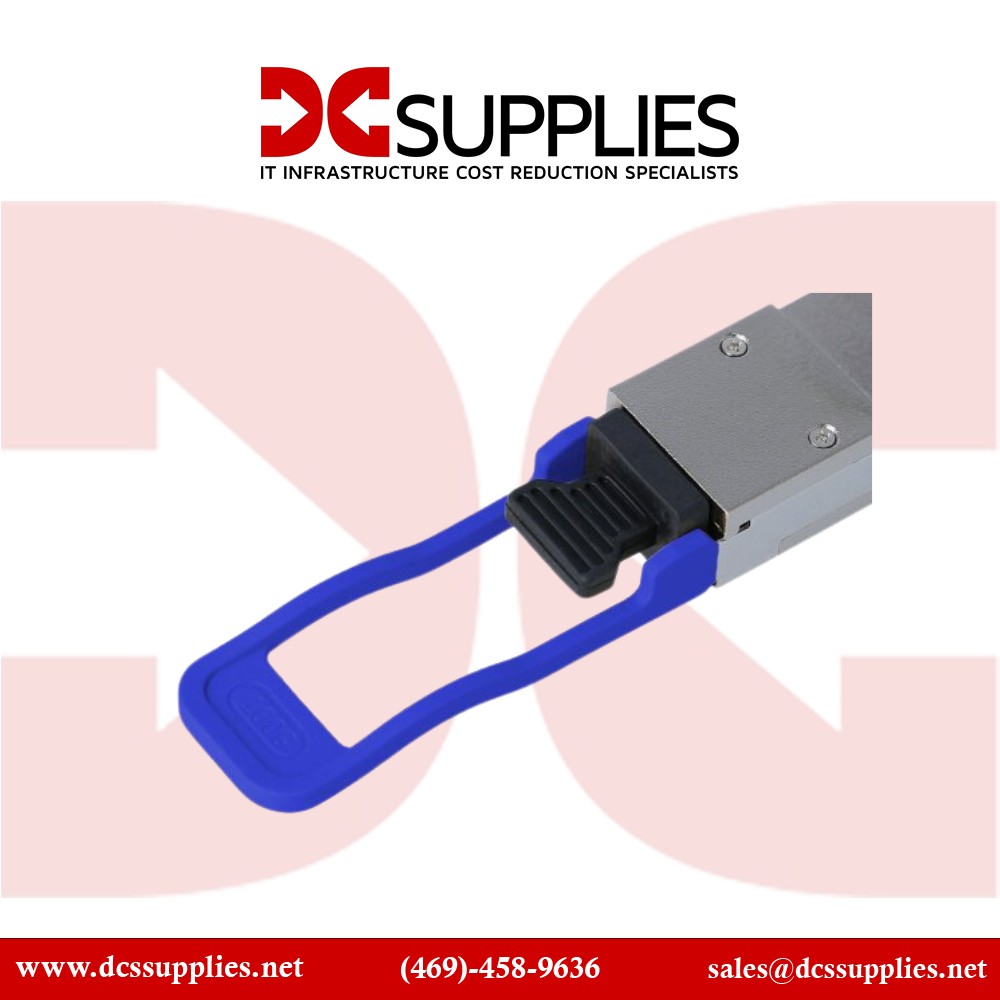

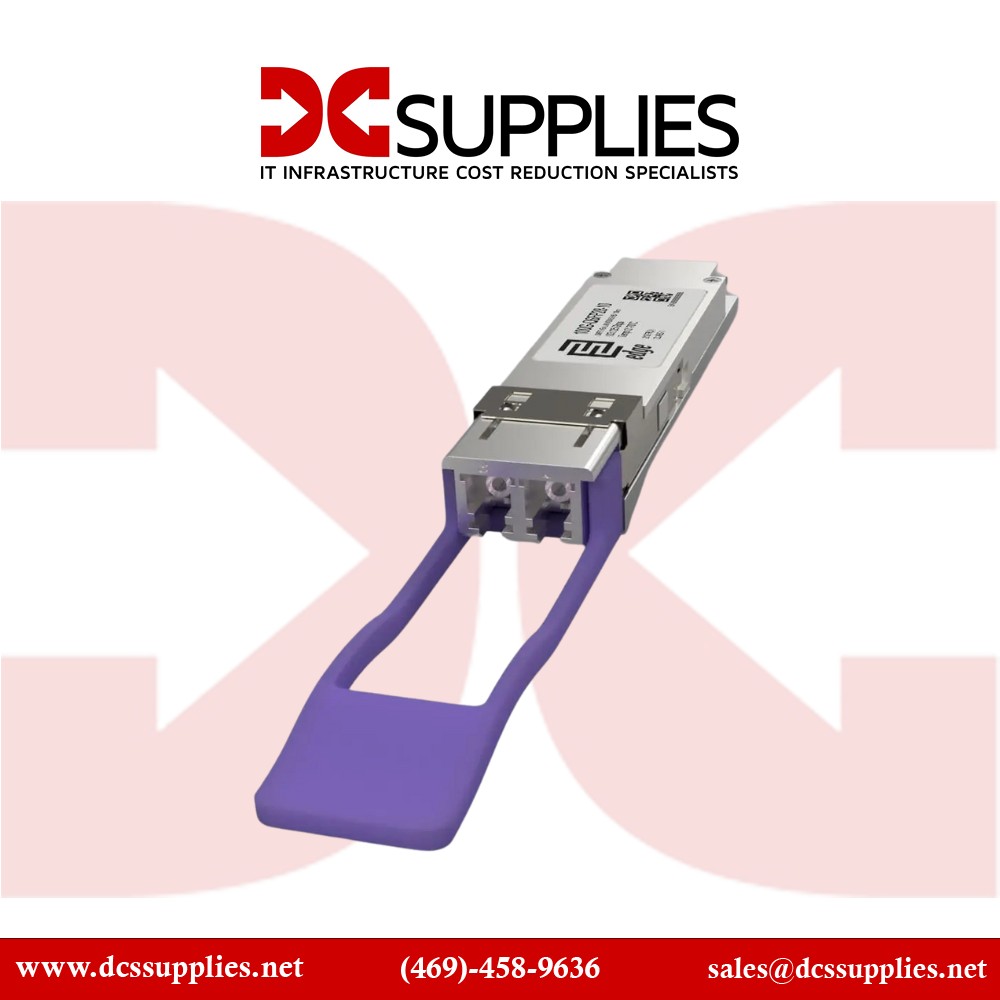

Ruckus Wireless E40G-QSFP-LR4 LLC 1-pack 40G LR4 QSFP+ Optic LC View larger

Ruckus Wireless E40G-QSFP-LR4 LLC 1-pack 40G LR4 QSFP+ Optic LC

E40G-QSFP-LR4

New

In Stock

Experience pinnacle connectivity with the Ruckus Wireless QSFP+ Transceiver Module
×




$4,895.00

Detailed Specifications

Ruckus Wireless E40G-QSFP-LR4 LLC 1-pack 40G LR4 QSFP+ Optic LC

Overview :

The Ruckus E40G-QSFP-LR4 is a high-performance 40G LR4 QSFP+ optic module designed to deliver exceptional long-range connectivity for modern data centers and enterprise networks. This module features LC connectors and is engineered to provide reliable and high-speed data transmission over long distances.Supporting 40 Gigabit Ethernet (40G) data rates, the E40G-QSFP-LR4 is ideal for applications requiring extended reach, such as interconnecting data centers, linking network switches, or providing high-speed backbone connections. The LR4 (Long Reach 4) technology ensures robust performance over distances of up to 10 kilometers (6.2 miles) on single-mode fiber (SMF), making it a versatile choice for large-scale network deployments.The module is compatible with QSFP+ ports, making it suitable for use with a variety of networking equipment. Its compact form factor and easy integration facilitate a straightforward installation process, enhancing network flexibility and scalability.

Specifications :

SpecificationDetails
Part Number E40G-QSFP-LR4 LLC
Product Type 40G LR4 QSFP+ Optical Transceiver
Brand Name Ruckus Wireless
Data Rate 40 Gbps (40GBASE-LR4)
Connector Type LC Duplex
Wavelength 1271 nm, 1291 nm, 1311 nm, 1331 nm (WDM)
Fiber Type Single-Mode Fiber (SMF)
Maximum Distance 10 km over SMF
Form Factor QSFP+ (Quad Small Form-Factor Pluggable Plus)
Transmission Scheme Wavelength Division Multiplexing (WDM)
Number of Channels 4 (1271, 1291, 1311, 1331 nm)
Optical Output Power -7 to +2.3 dBm per channel
Receiver Sensitivity -11.5 dBm per channel
Power Consumption ≤ 3.5 Watts
Dimensions 4.72 x 0.72 x 0.36 inches (120 x 18.4 x 9.1 mm)
Weight 0.15 lbs (68 grams)
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Humidity Range 5% to 85% (Non-Condensing)
Distance Supported 10 km on single-mode fiber
Modulation Format NRZ (Non-Return to Zero)
Protocol Support IEEE 802.3ba (40GBASE-LR4), MSA Compliant
Digital Diagnostics Yes (Supports Digital Optical Monitoring, DOM)
Hot-Swappable Yes
Applications Data Centers, Enterprise Networks, Service Providers
Compliance Standards IEEE 802.3ba, RoHS, CE, FCC
