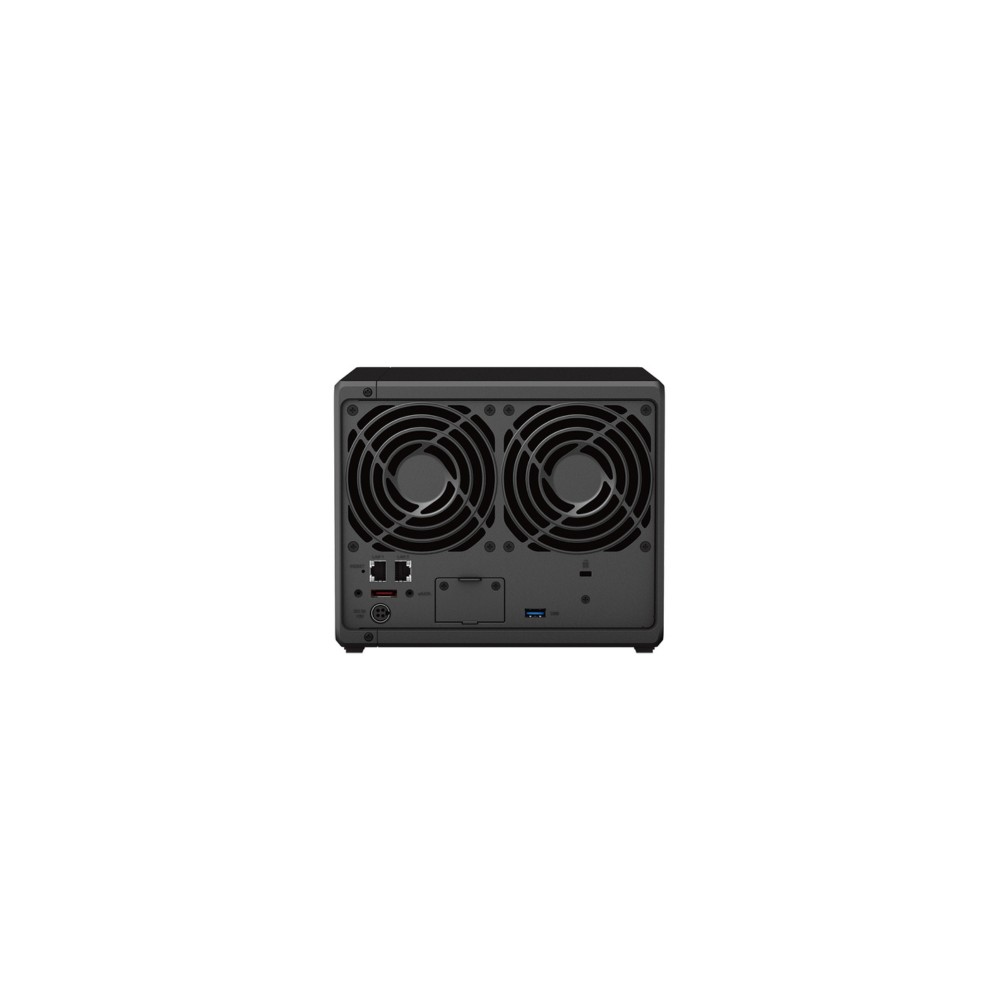

Synology 4-Bay DiskStation DS923+ NAS - Diskless View larger

Synology 4-Bay DiskStation DS923+ NAS - Diskless

DS923+

New

In Stock

The Synology DS923+ 4-Bay DiskStation NAS offers versatile storage and backup solutions

×




$695.00

Detailed Specifications

Synology 4-Bay DiskStation DS923+ NAS High-Performance Diskless Storage Solution

Overview :

The Synology 4-Bay DiskStation DS923+ is designed for efficient data storage, management, and backup in both home and office environments. With its compact, 4-bay design and powerful performance, the DS923+ offers a scalable NAS solution with seamless file sharing and versatile multimedia applications. Equipped with an AMD Ryzen processor and support for both SSD caching and expansion options, this diskless NAS provides flexible and high-performance storage for power users and small to medium-sized businesses.

Key Features:

  • 4-Bay Diskless NAS: Offers flexibility to install drives of your choice, supporting up to 72TB of raw storage.
  • AMD Ryzen™ Embedded V1500B Quad-Core Processor: Ensures powerful performance for multi-user environments and high-demand tasks.
  • Upgradable Memory: 4GB DDR4 ECC RAM, expandable up to 32GB for better multitasking.
  • Dual M.2 2280 NVMe SSD Slots: Accelerates performance with SSD caching or additional storage expansion (drives sold separately).
  • Expandable with DX517: Add more bays for additional storage capacity with the Synology DX517 expansion unit.
  • 10GbE Network Ready: Optionally install a 10GbE network card for ultra-fast data transfers (sold separately).
  • Comprehensive File Management: Supports Synology's DSM (DiskStation Manager) software for easy file management, sharing, and backup.
  • Virtualization & Backup Solutions: Suitable for hosting virtual machines and enterprise backup solutions.
  • Rich Multimedia Features: Ideal for media streaming, hosting private cloud solutions, or managing surveillance systems.

Specification :

SpecificationDetails
Brand Name Synology
Model DiskStation DS923+
Product Type NAS (Network Attached Storage)
Bay Count 4 drive bays
Processor AMD Ryzen™ Embedded R1600, dual-core 2.6 GHz, up to 3.1 GHz
System Memory (RAM) 4 GB DDR4 ECC SODIMM (expandable up to 32 GB)
Storage Expansion Supports up to 9 drives with 1x DX517 expansion unit
Internal Drive Support 3.5” or 2.5” SATA HDD/SSD
Hot Swappable Drive Bays Yes
Maximum Raw Capacity 72 TB (4 x 18TB HDD)
Networking 2 x 1GbE RJ-45 ports (with Link Aggregation / Failover support)
Optional Network Upgrade 1 x PCIe 3.0 slot for 10GbE NIC
NVMe Cache Support 2 x M.2 2280 NVMe SSD slots
File System EXT4 (internal drives), Btrfs, EXT4 (external drives)
RAID Support RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Synology Hybrid RAID (SHR), Basic, JBOD
Power Consumption 30.3W (access), 9.4W (HDD hibernation)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Cooling System 2 x 92 mm fans (with adjustable fan speed modes)
USB Ports 2 x USB 3.2 Gen 1 ports
eSATA Ports 1 x eSATA port for expansion
Dimensions (HxWxD) 6.54" x 7.83" x 8.78" (166 x 199 x 223 mm)
Weight 2.24 kg
Power Supply Unit 100W internal power supply
Software DiskStation Manager (DSM) OS
Warranty 3-year limited warranty (extendable to 5 years)
