Synology DiskStation DS3622xs+ NAS Tower Ethernet LAN Black D-1531 View larger

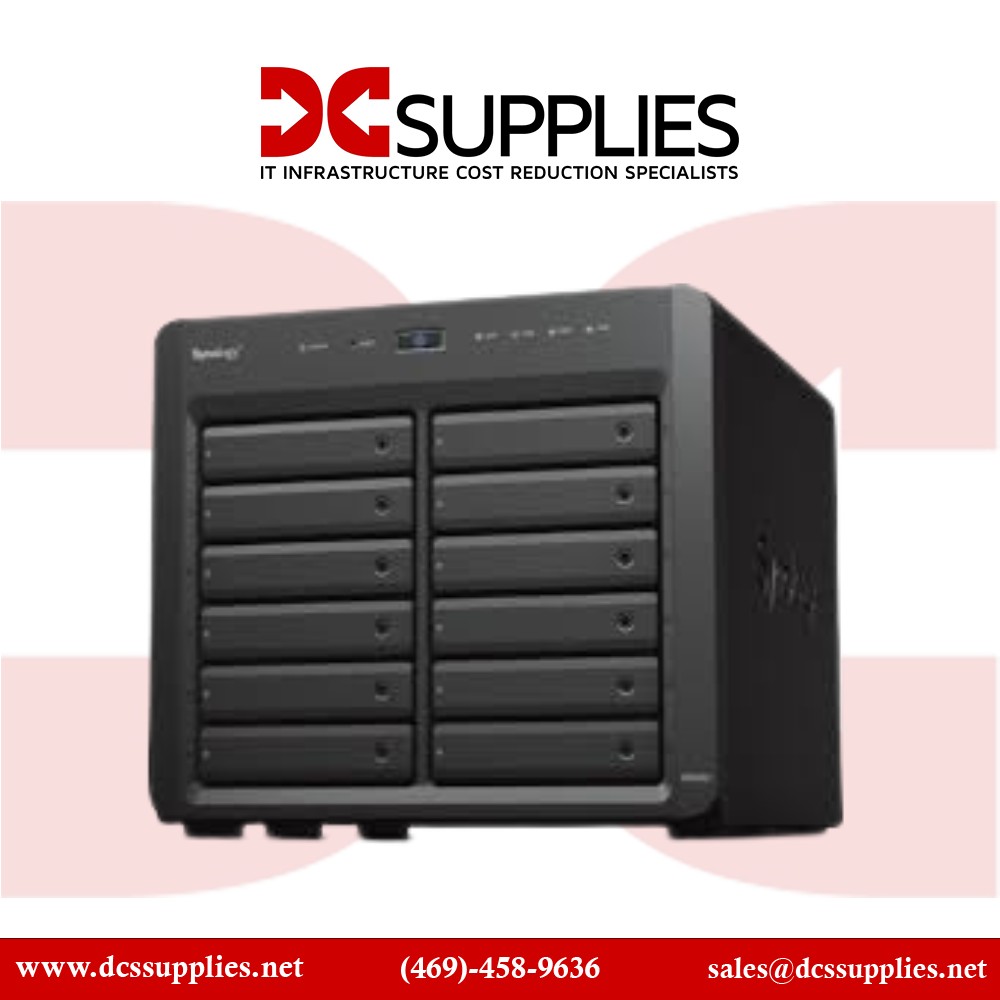

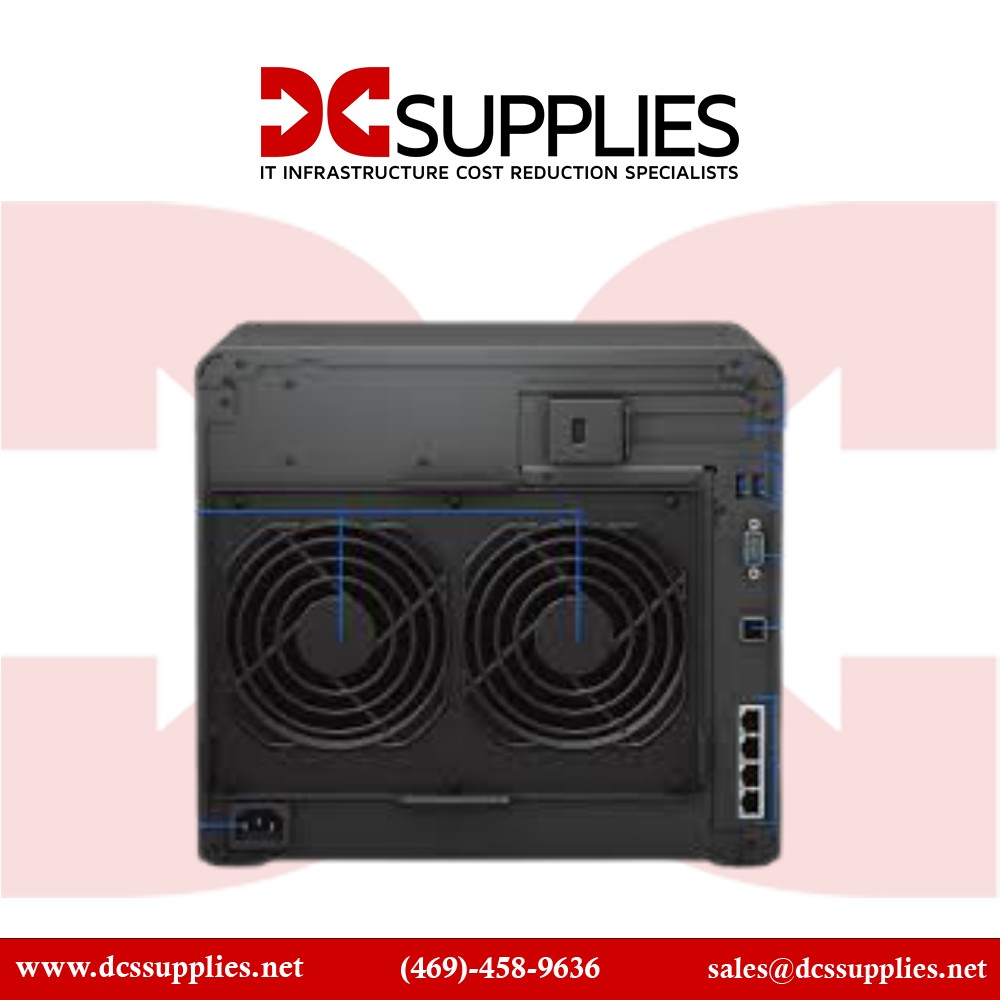

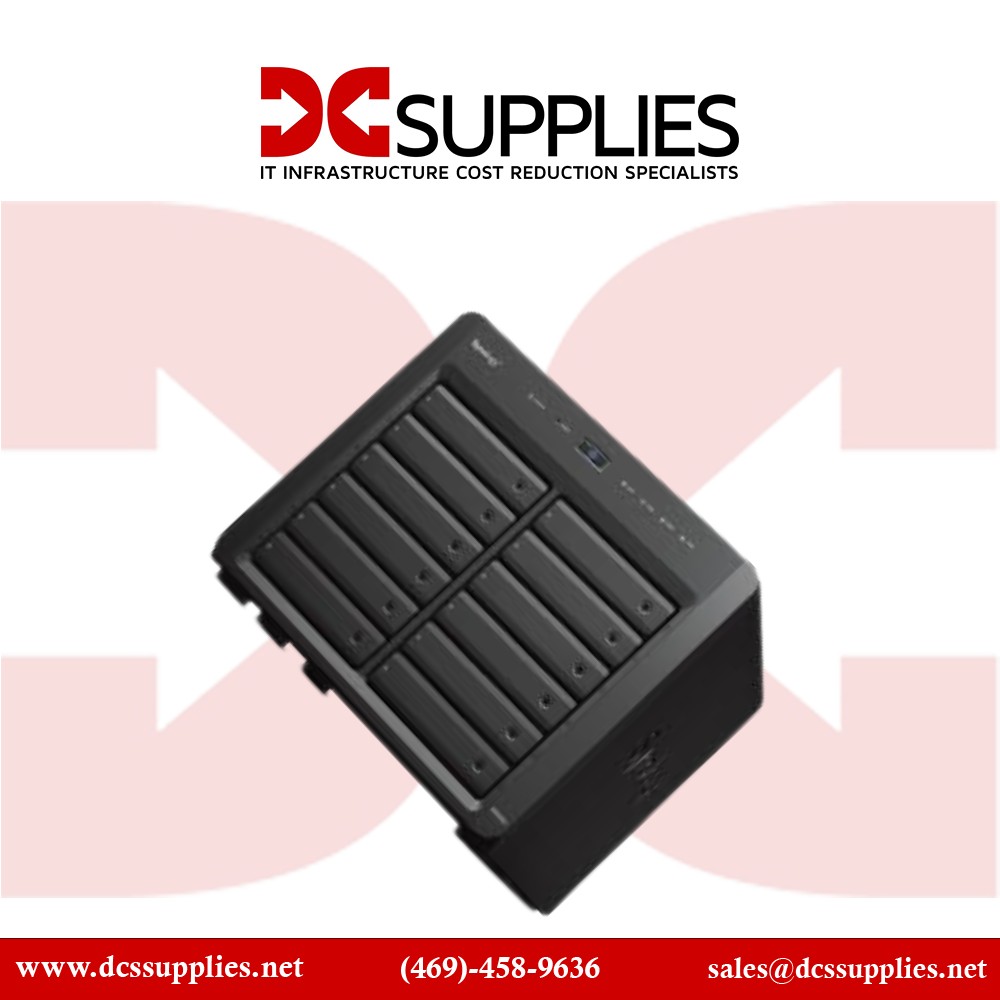

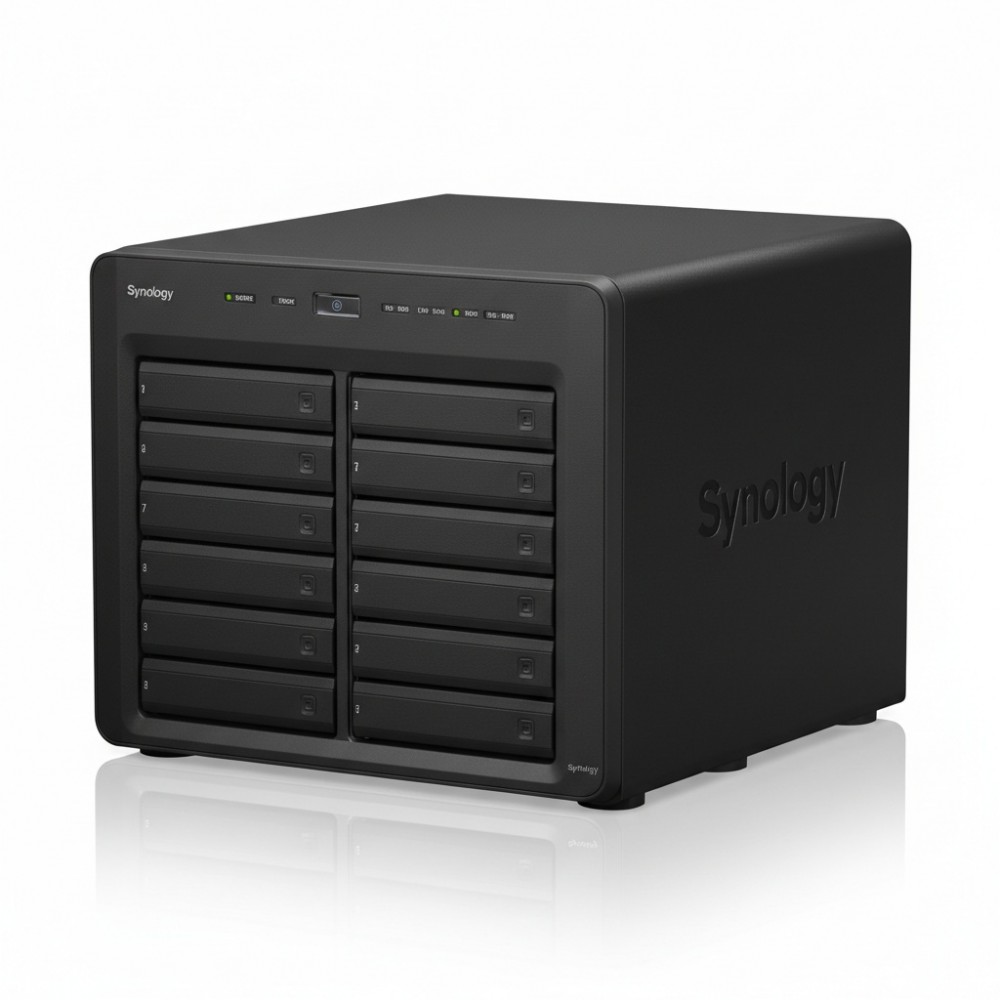

Synology DS3622xs+ DiskStation NAS Tower Ethernet LAN Black D-1531

DS3622XS+

New

In Stock

Synology DS3622xs+ DiskStation NAS Tower Ethernet LAN Black D-1531

×




$3,589.00

Detailed Specifications

Synology DS3622xs+ Synology DiskStation NAS Tower Ethernet LAN Black D-1531

Overview:

High-performance mass storage 12-bay Synology DS3622xs+ is a powerhouse NAS perfect for the needs of small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.

The DS3622xs+ features twelve drive bays, supporting both 3.5" and 2.5" SATA drives, offering vast storage capacity. Additionally, with the use of Synology expansion units, the storage can be expanded up to 36 drives, making it a flexible solution for large-scale data storage needs. This NAS is also equipped with dual 10GbE ports and four 1GbE ports, providing high-speed network connectivity and ensuring quick data transfer and access.

Designed with data protection in mind, the DS3622xs+ supports various RAID configurations, including RAID 1, 5, 6, and 10, providing redundancy and safeguarding against drive failures. It also features comprehensive security measures such as AES-NI hardware encryption, ensuring data remains secure from unauthorized access.

Specifications

Storage
Storage drives installed No
Installed storage drive type No
Supported storage drive types HDD & SSD
Number of storage drives supported 12
Maximum supported storage capacity 200 TB
Hot-swap drive bays Yes
RAID support Yes
Supported file systems BTRFS, Fat, HFS+, NTFS, ext3, ext4
RAID levels 0, 1, 5, 6, 10, JBOD
Supported storage drive interfaces Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported 2.5,3.5"
Processor
Processor manufacturer Intel
Processor boost frequency 2.7 GHz
CPU configuration (max) 1
Conflict-Free processor Yes
Processor frequency 2.2 GHz
Processor family Intel® Xeon® D
Processor model D-1531
Processor cores 6
Number of processors supported 1
Memory
Internal memory type DDR4
Internal memory 16 GB
Maximum RAM supported 48 GB
Memory slots 4
Memory form factor SO-DIMM
Network
Link aggregation Yes
Ethernet LAN Yes
Ethernet LAN data rates 1000,10000 Mbit/s
Wake-on-LAN ready Yes
Supported network protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Ports & interfaces
USB port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
PCI Express x8 (Gen 3.x) slots 1
Ethernet LAN (RJ-45) ports 4
Hard drive
RAID support Yes
Supported file systems BTRFS, Fat, HFS+, NTFS, ext3, ext4
RAID levels 0, 1, 5, 6, 10, JBOD
Design
Fan diameter 2 4.72" (12 cm)
Cooling type Active
Fan diameter 4.72" (12 cm)
Product colour Black
Number of fans 2 fan(s)
Chassis type Tower
Technical details
Type NAS
Device class Home & Home Office
Backup function Yes
Product colour Black
Noise level 25 dB
Multilingual support Yes
Chassis type Tower
Number of fans 2 fan(s)
Harmonized System (HS) code 84714100
Performance
Browser supported Safari, Google Chrome, Firefox, Microsoft Edge
Type NAS
Device class Home & Home Office
Backup function Yes
Server operating systems supported Windows Server 2016, Windows Server 2019
Web-based management Yes
Operating system installed DiskStation Manager
Noise level 25 dB
Multilingual support Yes
Access Control List (ACL) Yes
Cooling
Cooling type Active
Fan diameter 4.72" (12 cm)
Number of fans 2 fan(s)
Security
Access Control List (ACL) Yes
Software
Server operating systems supported Windows Server 2016, Windows Server 2019
Operating system installed DiskStation Manager
Management features
Web-based management Yes
Power
Power consumption (HDD standby) 54.33 W
Power supply location Built-in
Power supply unit (PSU) capacity 550 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 94.42 W
Number of power supply units 1
Weight & dimensions
Width 11.8" (300 mm)
Depth 13.4" (340 mm)
Height 10.6" (270 mm)
Weight 21.6 lbs (9.8 kg)
Packaging content
Cables included AC, LAN (RJ-45)
Processor special features
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Virtualization Technology (VT-x) Yes
Intel TSX-NI version 1.00
Intel TSX-NI Yes
Intel Trusted Execution Technology Yes
Intel Secure Key Technology version 1.00
Intel Enhanced Halt State Yes
Intel 64 Yes
Idle States Yes
Execute Disable Bit Yes
Enhanced Intel SpeedStep Technology Yes
Embedded options available No
System requirements
Server operating systems supported Windows Server 2016, Windows Server 2019
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Certificates
Certification FCC CE BSMI VCCI RCM UKCA EAC KC UL
Logistics data
Harmonized System (HS) code 84714100
Packaging data
Cables included AC, LAN (RJ-45)
