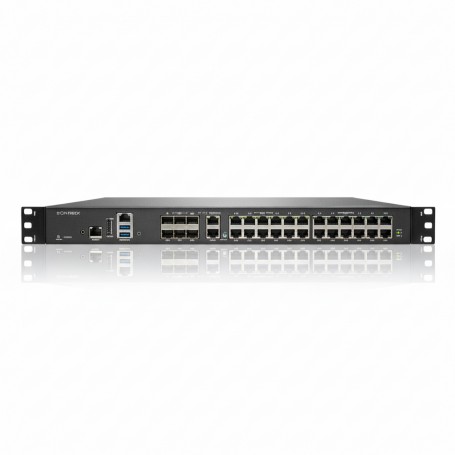

SonicWall 02-SSC-3928 NSa 5700 Advanced Edition security appliance View larger

SonicWall 02-SSC-3928 NSa 5700 Advanced Edition security appliance

02-SSC-3928

New

SonicWall NSa 5700 is a next-generation firewall designed for

×




Detailed Specifications

SonicWall 02-SSC-3928 NSa 5700 Advanced Edition security appliance 10 GigE, 5 GigE, 2.5 GigE - 1U

Overview:

The SonicWall NSa 5700 is a high-performance security appliance designed to provide scalable, automated, and advanced threat protection for enterprises requiring high-speed deep packet inspection and secure connectivity. It integrates intrusion prevention, anti-virus, anti-spyware, and application intelligence while ensuring minimal latency and maximum security. With 28 Gbps firewall throughput, 7 Gbps TLS/SSL decryption, and 15 Gbps VPN throughput, the NSa 5700 delivers uncompromising security for high-traffic networks. The multi-core processing architecture ensures smooth performance across DPI, IPS, VPN, and anti-malware scanning.

Specifications:

Part Number 02-SSC-3928
Brand SonicWall
Product Type security appliance
Form Factor 1U Rackmount
Firewall Throughput 28 Gbps
Threat Prevention Throughput 15 Gbps
Application Throughput 18 Gbps
IPS Throughput 17 Gbps
Anti-Malware Throughput 16 Gbps
TLS/SSL Inspection Throughput 7 Gbps
VPN IPSec Throughput 15 Gbps
Concurrent SPI Connections 5,000,000
DPI Connections 3,500,000
DPI SSL Connections 350,000
VPN Tunnels (Site-to-Site) 6,000
Max IPSec VPN Clients 4,000
Max SSL VPN Users 1,500
Virtual Interfaces (VLANs) 512
Network Interfaces 10GbE, 5GbE, 2.5GbE, 1GbE
Hard Drive 128GB SSD
Power Supply AC 100-240V, 50/60Hz
Dimensions (WxDxH) 16.9 in x 18.3 in x 1.8 in
Weight 17.2 lbs
VoIP Support SIP, H.323 (v1-v5)
Warranty 1-Year Manufacturer Warranty
