Dell PowerEdge R650xs server ghz 32 gb rack intel xeon View larger

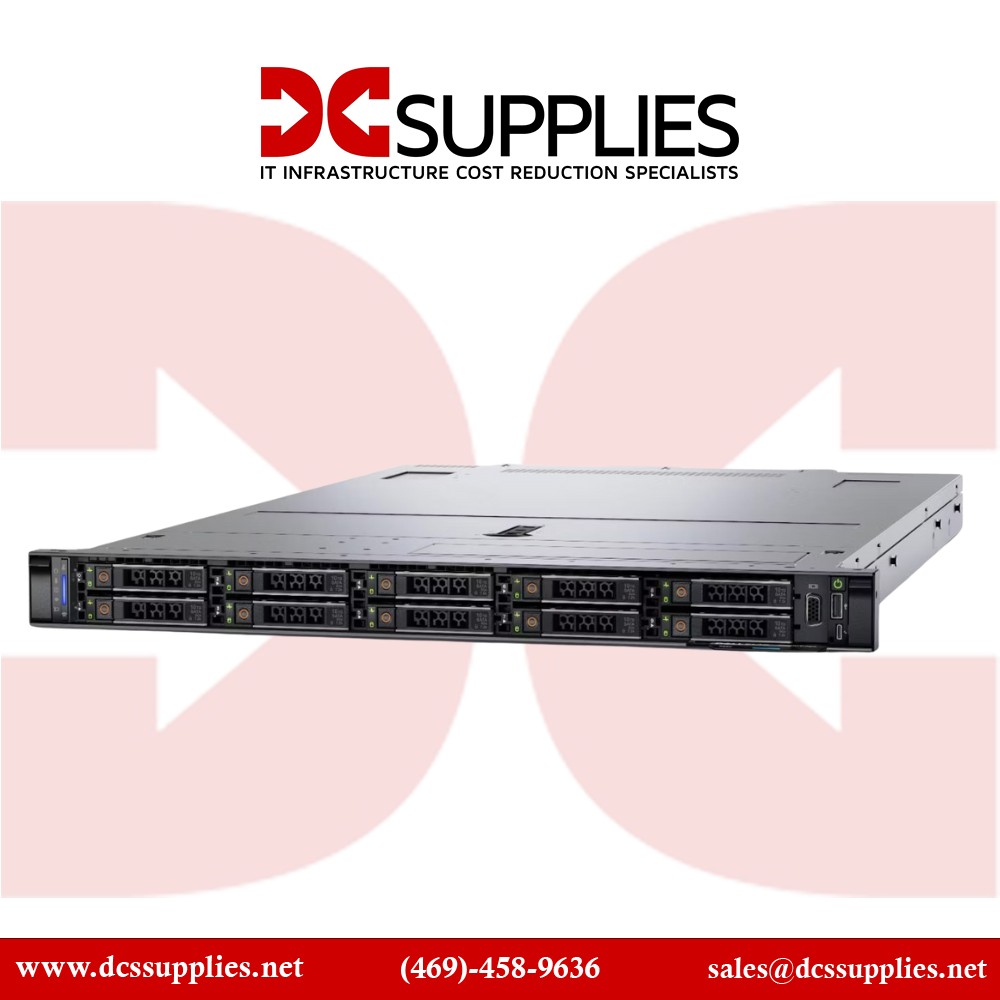

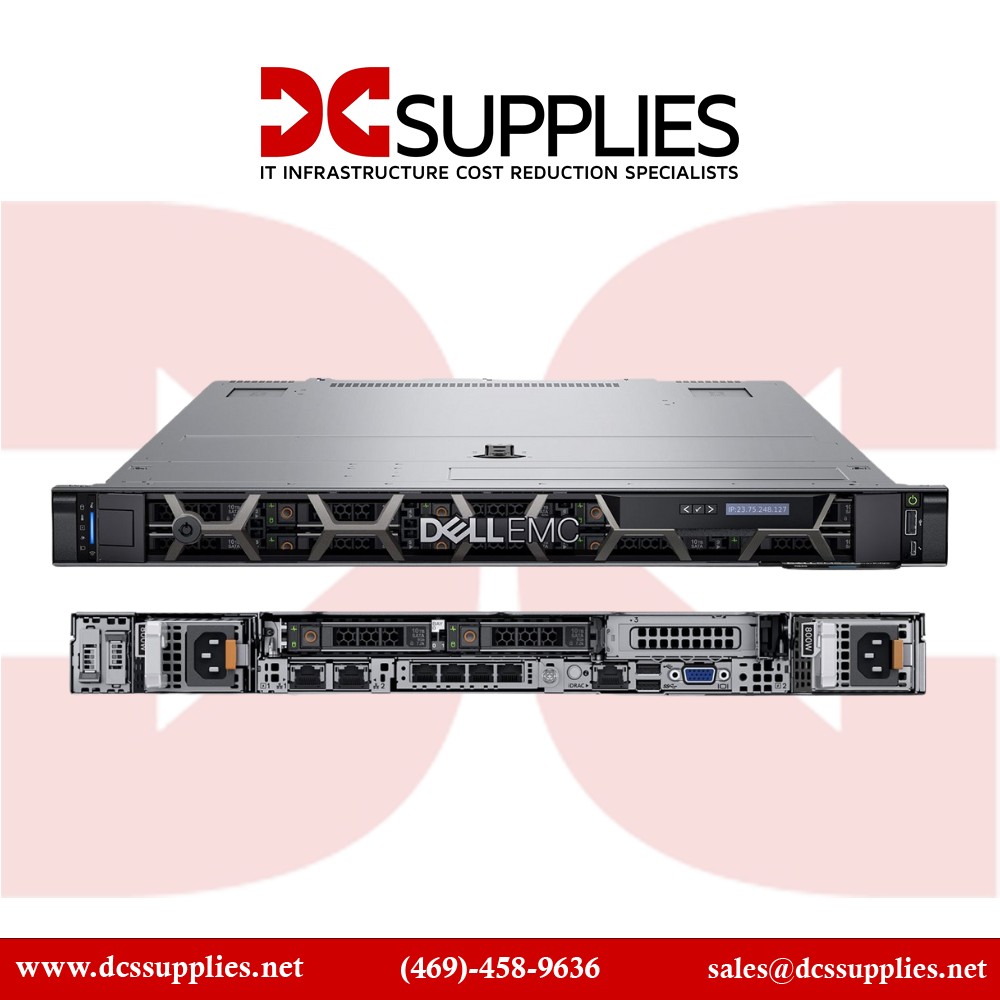

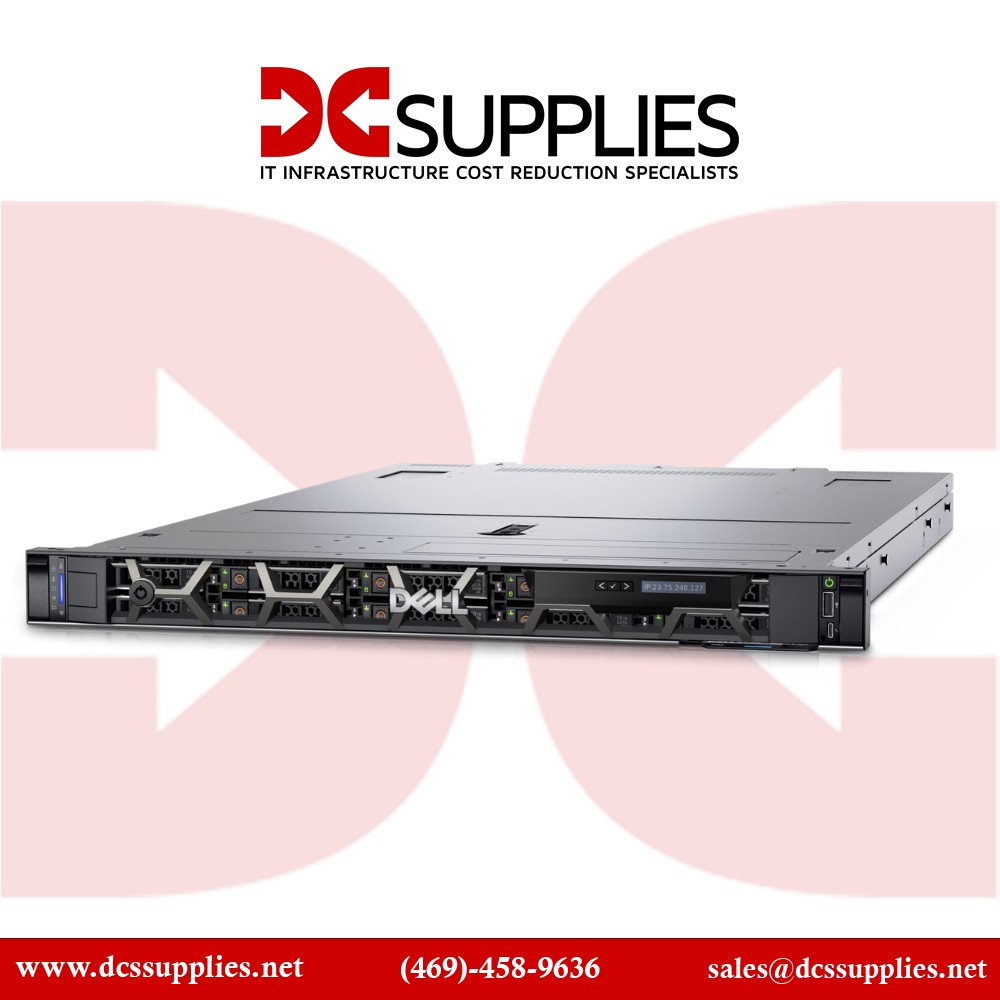

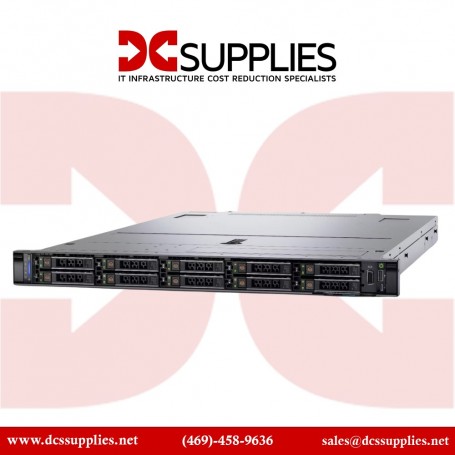

Dell PowerEdge R650xs Refurbished like New Server

R650xs

New

Dell poweredge r650xs...

×




Detailed Specifications

Dell PowerEdge r650xs server 2.4 GHz 32 GB rack intel xeon

Overview :

The Dell EMC PowerEdge R650xs, with 3rd generation Intel Xeon Scalable processors, is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.The new Dell EMC PowerEdge R650xs is a 1U, dual-socket server that’s purpose-built to maximize value with distinctive feature sets for scale-out environments. With it, you can:

  • Add additional power and cores: Up to two 3rd generation Intel Xeon Scalable processors, up to 32 cores per socket
  • Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec
  • Improve throughput, reduce latency: With up to 5 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support
  • Include flexible storage: Up to 12x 3.5” SAS/SATA HDDs or SSDs; or up to 16x 2.5” SAS/SATA HDDs or SSDs, and 8 NVMe drives
  • Enable virtualization, medium VM density or VDI, and software-defined storage node workloadsThe Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
  • Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
  • Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
  • Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
  • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for multiple operating environments, from on-premise to cloud to edge

Specifications :

Processors Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory
  • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s
  • Supports registered ECC DDR4 DIMMs only
Storage controllers
  • Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
  • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB
  • External PERC (RAID): PERC H840, HBA355e
Drive bays Front bays:
  • 0 drive bay
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB

Rear bays:

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power supplies
  • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot-swap redundant
  • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1100W -48Vdc hot-swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
Cooling options Air cooling
Fans
  • Standard (STD) fans, High-performance SLVR fans or High-performance GOLD fans
  • Up to seven cabled fans
Dimension
  • Height – 42.8 mm (1.68 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 734.95 mm (28.92 inches) – without bezel and 748.79 mm (29.47 inches) – with bezel
Form Factor 1U rack server
Embedded management
  • iDRAC9
  • iDRAC Direct
  • iDRAC Service Module
  • Quick Sync 2 wireless module
Bezel Optional bezel or security bezel
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
Mobility OpenManage Mobile
Integrations and Connections OpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integrations
  • Red Hat Ansible Modules
  • VMware vCenter and vRealize Operations Manager

OpenManage Connections

  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • OpenManage Connections
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
Network Options 1 x OCP 3.0
GPU options Not supported
Ports Front Ports
  • 1 x Dedicated iDRAC Direct micro-USB
  • 1 x USB 3.0
  • 1 x VGA
Internal Ports
  • 1 x USB 3.0 (optional)
Rear Ports
  • 1 x USB 2.0
  • 1 x Serial (optional)
  • 1 x USB 3.0
  • 2 x RJ-45
  • 1 x VGA (optional for liquid cooling configuration)
PCIe Up to 3 x PCIe Gen4 slots
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
