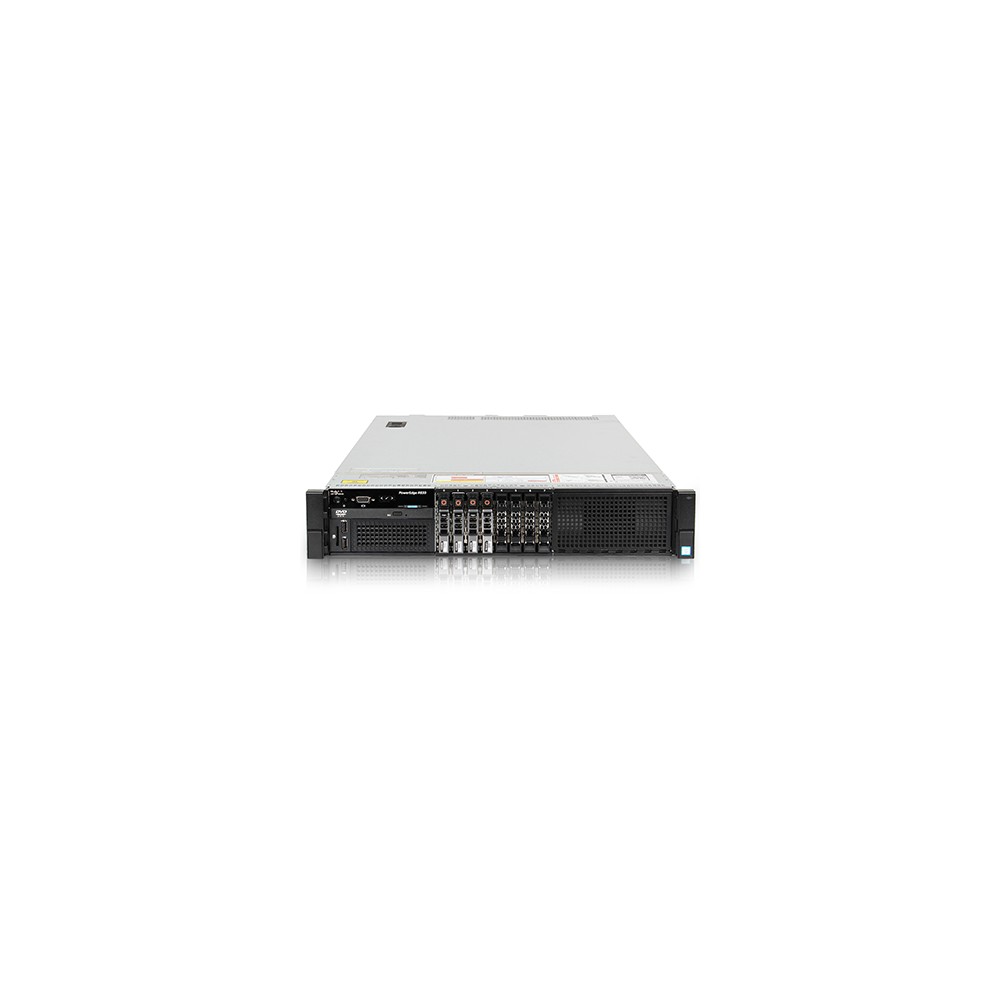

Dell EMC PowerEdge R830 8 Bay SFF 2U Rackmount Server

Overview :

With support for four processors, the Dell R830 server is just a step below Dell’s flagship PowerEdge R930 server, which also supports four processors. Dell's commitment to well-engineered products is very clear with a logical chassis layout and the ability to run the server with either two or four processors using a unique processor expansion module that also includes integrated memory module slots supported by the additional processors.The PowerEdge R830 features Intel's C612 chipset and will support either two or four E5-4600 v4 processors with data transfer speeds of up to 2400MT/s. Administrators can start out with just two processors, and by installing the optional processor expansion module (PEM) can add two additional processors and double the supported memory. Although most customers will opt for the four-processor configuration given there are plenty of two-socket alternatives in the Gen13 PowerEdge line but nice to know you can start with two processors and add two more at a later date.With a two-processor configuration, the R830 will support up to 24 DDR4 load-reduced (LRDIMM) or registered (RDIMM) memory modules. With the addition of the CPU riser or PEM the system will support a total of four processors and up to 3TBs of memory using 64GB memory modules in all 48 DIMM slots.This R830 comes configured for either eight or sixteen 2.5-inch storage bays. Choose from either SAS/SATA HDDs, SAS/SATA SSDs, Nearline SAS hard drives or a mix of drive types with hot data stored on faster SSDs and cold data stored on slower, less expensive HDDs. The system also supports a 1.6TB NVMe express flash PCIe card for use as a boot drive or mass storage device.

Specifications :

•  Brand: Dell
•  Product Line: PowerEdge
•  Product Type: Rackmount Server
•  Form Factor: 2U Rack
•  Processors: Up to 2x Intel Xeon E5-4600 v4 series
•  Processor Cache: Up to 22 cores per processor
•  Memory: Fully expandable up to 6TB DDR4 2400 MT/s RDIMM and LRDIMM (48 DIMM Slots)
•  Hard Drives: Up to 8x 2.5" SAS/SATA HDD/SSD drives
   Up to 16x 2.5" SAS/SATA HDD/SSD drives
•  bullet Maximum Internal Storage: 8x 2.5" - Up to 16TB (NL-SAS/SATA) / 14.4TB (SAS) / 30.72TB (SSD)
   16x 2.5" - Up to 32TB (NL-SAS/SATA) / 28.8TB (SAS) / 61.44TB (SSD)
•  I/O Slots: 7 PCIe 3.0 slots
