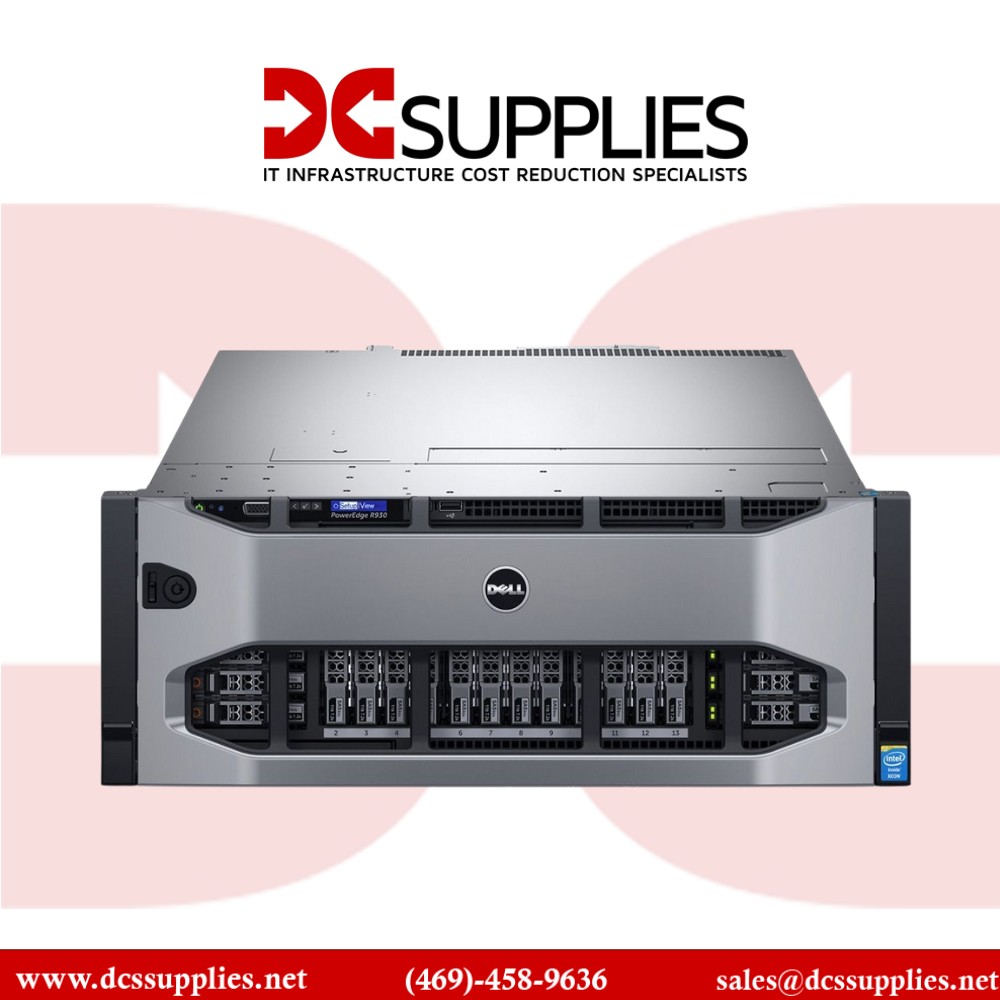

Dell R930 PowerEdge 24 Bay SFF 4U Rackmount Server

Overview :

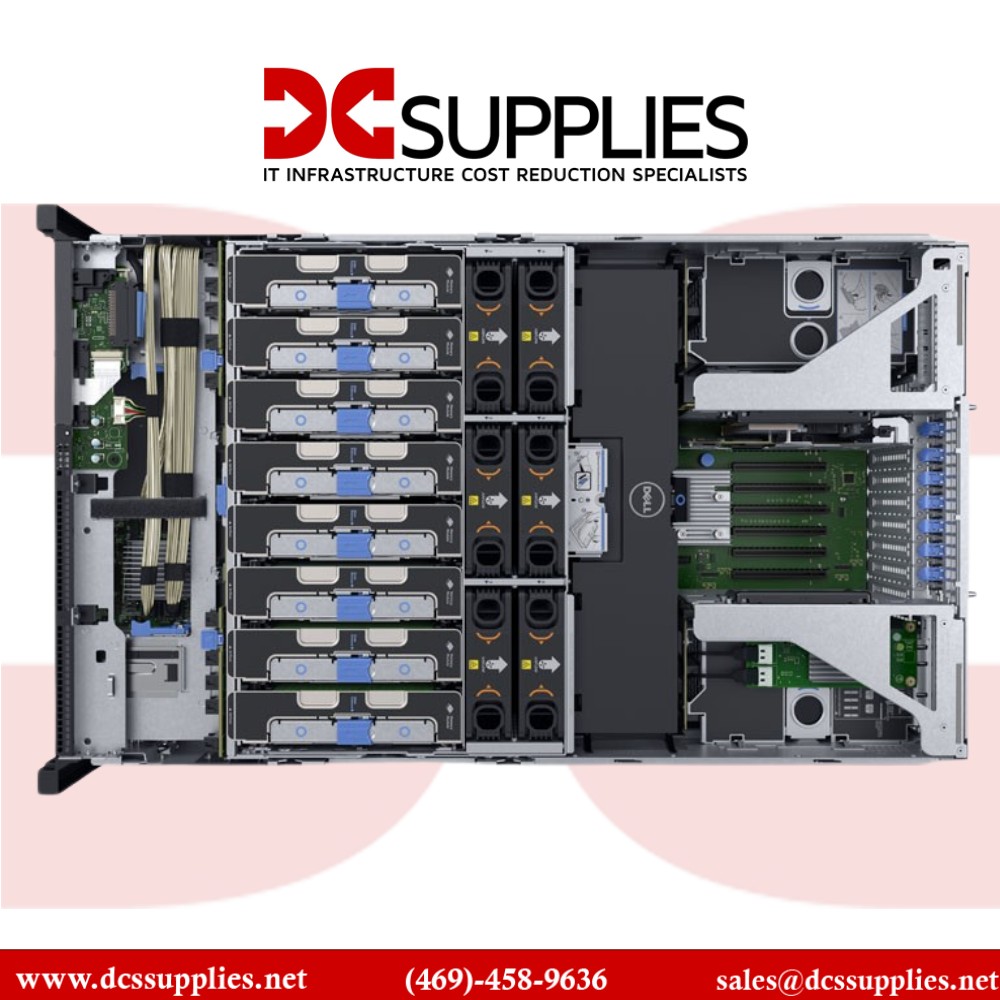

The Dell EMC PowerEdge R930 server offers high reliability, availability and serviceability (RAS) for mission-critical services and provides high-level support for High-Performance Computing (HPC), ERP, CRM, accounting, sales, and HR. With the dense memory offered by this server, in-memory database applications like SAP HANA are easily supported providing real-time, in-memory analytics for Online Transaction Processing (OLTP), and Online Analytical Processing. The R930 rack server is also an excellent choice for high-performance computing (HPC) applications.This server features the C602J chipset, which is capable of supporting up to four Intel Xeon E7-8800 or E7-4800 v4 processors offering more cores and greater memory bandwidth when compared to v3 CPUs. Four to 24 cores of processing power are available depending on the choice of processor, with up to 96 total cores available when paired with four top-end processors. More cores means more processing power and support for more virtual partitions.Eight memory card riser books are located behind the drive bays on this platform. Each riser holds twelve DDR4 memory modules, either registered DIMMs (RDIMM) or load-reduced DIMMs (LRDIMM). DDR4 modules support transfer speeds of up to 2400MT/s, although keep in mind, that transfer speeds are also dependent on CPU choice, memory module speed, and configuration. In a four-processor configuration with all 96 slots loaded with 64GB DDR4 memory modules, up to 6TB of memory is available. Using 128GB modules 12TB of memory is supported!

Key Features :

• 4U rack server with high-density computing power
• Supports up to four Intel Xeon E7-8800 v4 processors
• Up to 96 DDR4 DIMM slots for massive memory capacity
• Flexible storage options including SAS, SATA, and NVMe SSDs
• Integrated security and management features

Specifications :

• Processor: Supports up to 4 Intel Xeon E7-8800 v4 processors
• Memory: Up to 12TB DDR4 RAM, 96 DIMM slots
• Storage: Supports SAS, SATA, and NVMe SSD options
• Expansion: Up to 10 PCIe slots
• Power Supply: Redundant power supplies available
• Management: iDRAC8 with Lifecycle Controller
• Form Factor: 4U rack server
• Networking: Multiple Ethernet options available
