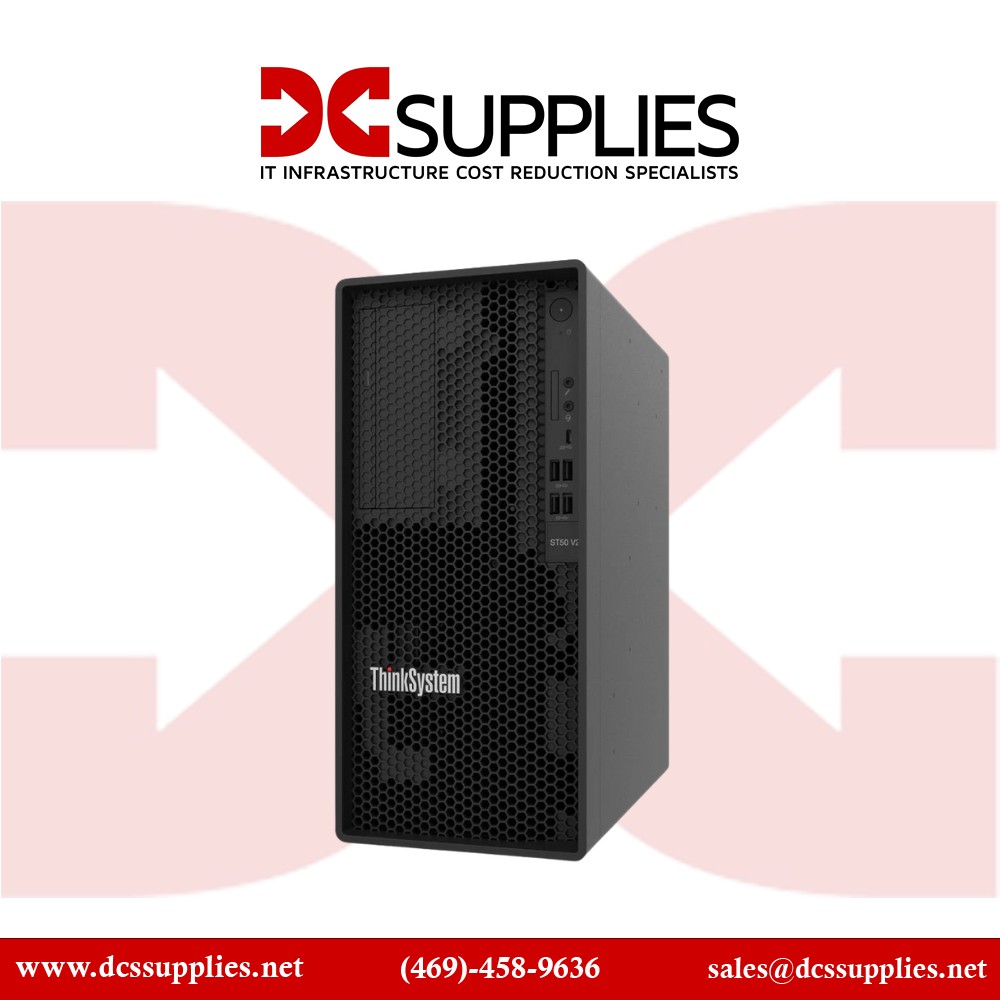

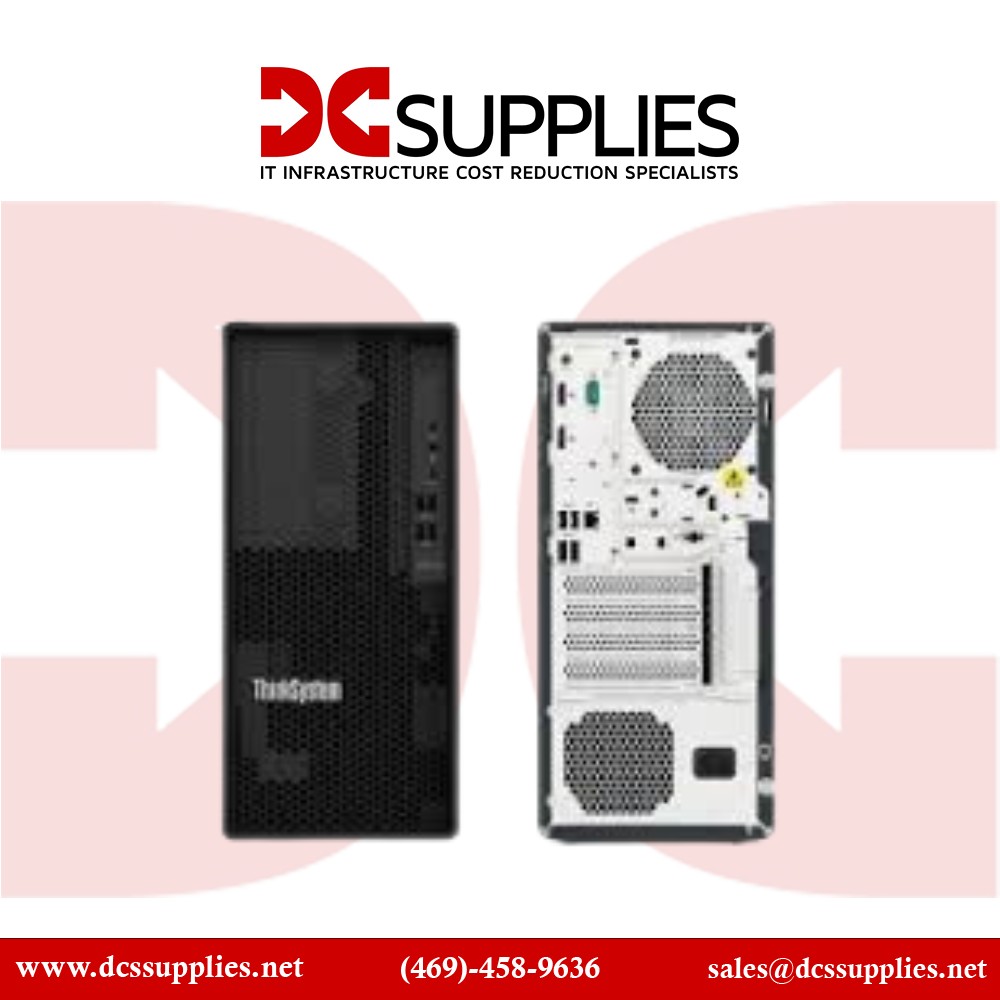

Lenovo 7D8JA02GNA ThinkSystem ST50 V2 Server Xeon E-2324G 16GB RAM 300W PSU View larger

Lenovo 7D8JA02GNA ThinkSystem ST50 V2 Server Xeon E-2324G 16GB RAM 300W PSU

7D8JA02GNA

New

Lenovo 7D8JA02GNA ThinkSystem ST50 V2 Server Xeon E-2324G 16GB RAM 300W PSU
×




Detailed Specifications

Lenovo 7D8JA02GNA ThinkSystem ST50 V2 Server Xeon E-2324G 16GB RAM 300W PSU

Overview :

The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".

This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.

Specifications :

Product Name Thinksystem ST50 V2 E-2324G 16GB
Product Type Server
Processor Core Quad-core (4 Core)
Environmentally Friendly Yes
Processor Manufacturer Intel
Number of Total Memory Slots 4
Number of Processors Supported 1
Number of Processors Installed 1
Total Hard Drive Capacity No
RAID Supported Yes
Ethernet Technology Gigabit Ethernet
Maximum Power Supply Wattage 300 W
Product Family ThinkSystem ST50 V2
Limited Warranty Duration 3 Year
Processor Model E-2324G
Memory Technology TruDDR4
Operating System No
Chipset Intel C256
Form Factor Tower
Processor Speed 3.10 GHz
Processor Type Xeon
Controller Type Serial ATA/600
Maximum Memory Supported 64 GB
Standard Memory 16 GB
Cache 8 MB
Number of External 5.25" Bays 1
Chipset Manufacturer Intel
Chipset Model C256
Graphics Controller Manufacturer Intel
Number of Power Supplies Supported 1
Number of Power Supplies Installed 1
Number of Internal 2.5" Bays 1
Graphics Memory Technology DDR4 SDRAM
Graphics Memory Accessibility Shared
Hot Swappable Power Supply No
Number of Total Expansion Bays 4
Number of 3.5" Bays 2
Number of Total Expansion Slots 3
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
DisplayPort Yes
Remote Management Yes
Total Number of USB Ports 9
Number of Occupied Memory Slots 1
Hot Swappable Bays No
PCI Express x1 (Gen 3.x) Slots 1
Memory Clock Speed 3.20 GHz
Number of SFF Bays 1
Number of LFF Bays 2
PCI Express Details Slot 1: PCIe 4.0 x16 full-height half-length (FHHL)

Slot 2: PCIe 3.0 x1 FHHL

Slot 3: PCIe 3.0 x4 (physical connector is x16) FHHL
Remote Management Controller XClarity
Height 14.8"
Width 6.7"
Depth 12.4"
Product Series ST50 V2
Plug / Connector Type C13
Operating System Supported Windows Server 2019

Windows Server 2022

Red Hat Enterprise Linux 8.4

Red Hat Enterprise Linux 8.5

Red Hat Enterprise Linux 8.7

Red Hat Enterprise Linux 9.0

Red Hat Enterprise Linux 9.1

SUSE Linux Enterprise Server 15 SP3

SUSE Linux Enterprise Server 15 SP4
Product Model 7D8JA02GNA
Product Line ThinkSystem
Security Features
  • Chassis Intrusion Switch
  • Power-on Password
  • Administrator's Password
  • Trusted Platform Module (TPM), supporting TPM 2.0
Error Checking ECC
Input Voltage 120 V AC

230 V AC
Signal Processing Unregistered (Unbuffered)
Limited Warranty 3 Year
Number of DisplayPorts 2
Power Source Power Supply
