StarTech.com NETRS2321P View larger

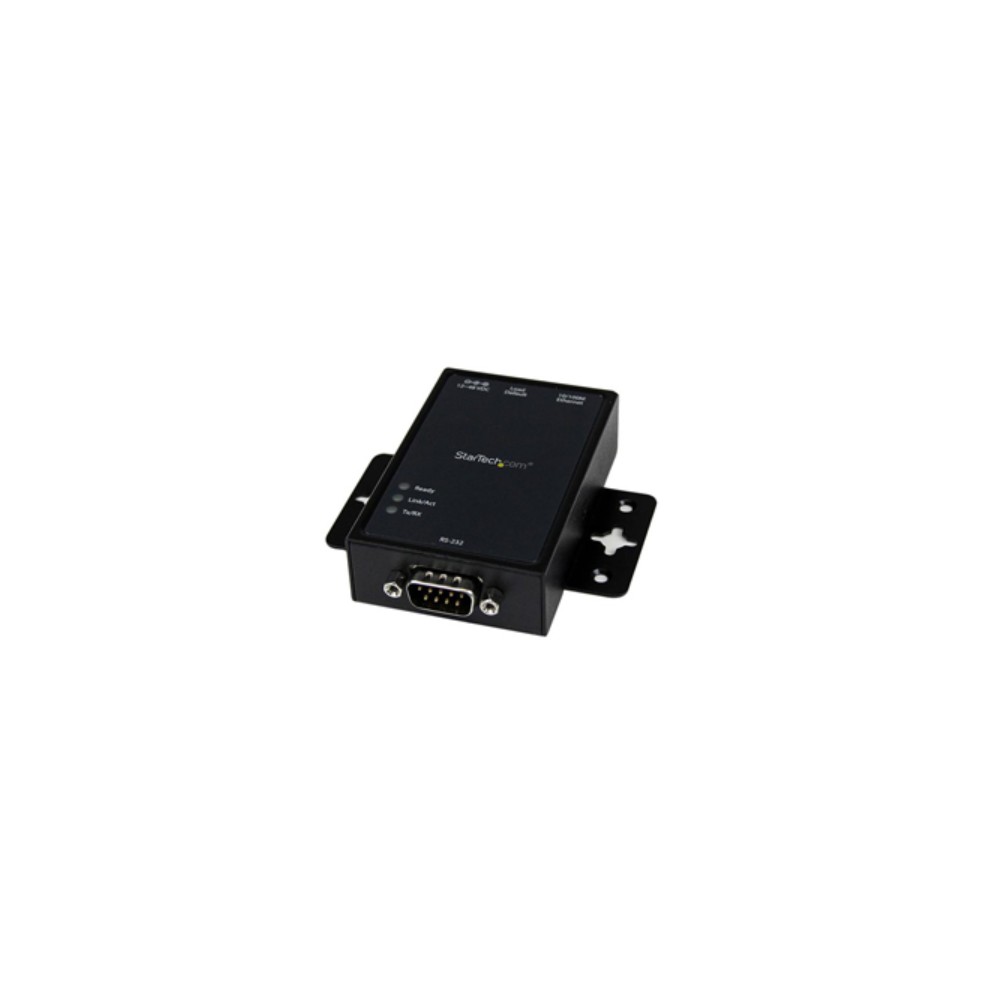

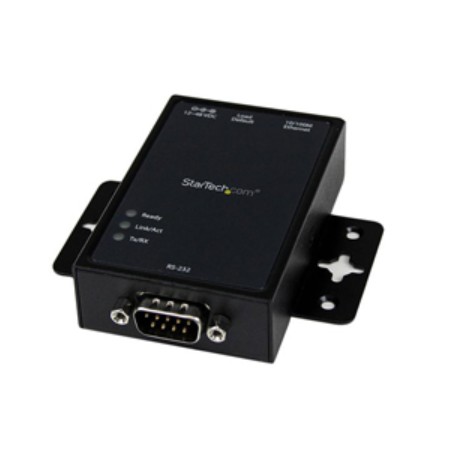

StarTech.com NETRS2321P 1 Port RS232 to Ethernet IP Converter

NETRS2321P

New

StarTech NETRS2321P 1 Port RS232 Serial to IP Device Server Adapter
×




Detailed Specifications

StarTech.com NETRS2321P 1 Port RS232 to Ethernet IP Converter

Overview:

This 1-port serial device server is an effective serial-over-IP solution that lets you connect to, configure, and remotely manage an RS232 serial device over a LAN (Local Area Network).

For more control options, the device server is compatible with the free, StarTech.com Serial Device Application Software (NETRSAPP). When coupled with the NETRS2321P, this handy application for iOS, Android, and Chrome Browser lets you build a custom serial control interface that’s tailored to your specific application.

Access your serial devices remotely:

The versatile device server is designed to function seamlessly with your integrated serial ports while offering baud rates faster than many other device servers (up to 460.8Kbps). The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected.

Flexible setup and operation:

It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware.

The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP, and UDP protocols.

Aluminum housing provides the durability you can count on

With sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications.

Specifications:

Product Name 1 Port RS232 Serial to IP Ethernet Converter / Device Server
Manufacturer Part Number NETRS2321P
Product Type Device Server
Network Standard 10/100Base-TX
Wireless LAN No
Ethernet Technology Fast Ethernet
Number of Network (RJ-45) Ports 1
Serial Port Yes
Media Type Supported Twisted Pair
Number of Serial Ports 1
TAA Compliant Yes
Product Color Black
Form Factor Rail-mountable

Wall Mountable
Environmentally Friendly Yes
ISM Band No
UNII Band No
USB No
Network (RJ-45) Yes
Parallel Port No
Network (RJ-11) No
Phone Line (RJ-11) No
PoE (RJ-45) Port No
Centronics Port No
Country of Origin Taiwan
Height 0.9"
Width 2.1"
Depth 3.4"
Compatibility
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Linux: The included software does not support Linux to emulate a local COM port Linux users would need to use Telnet
Packaged Quantity 1
