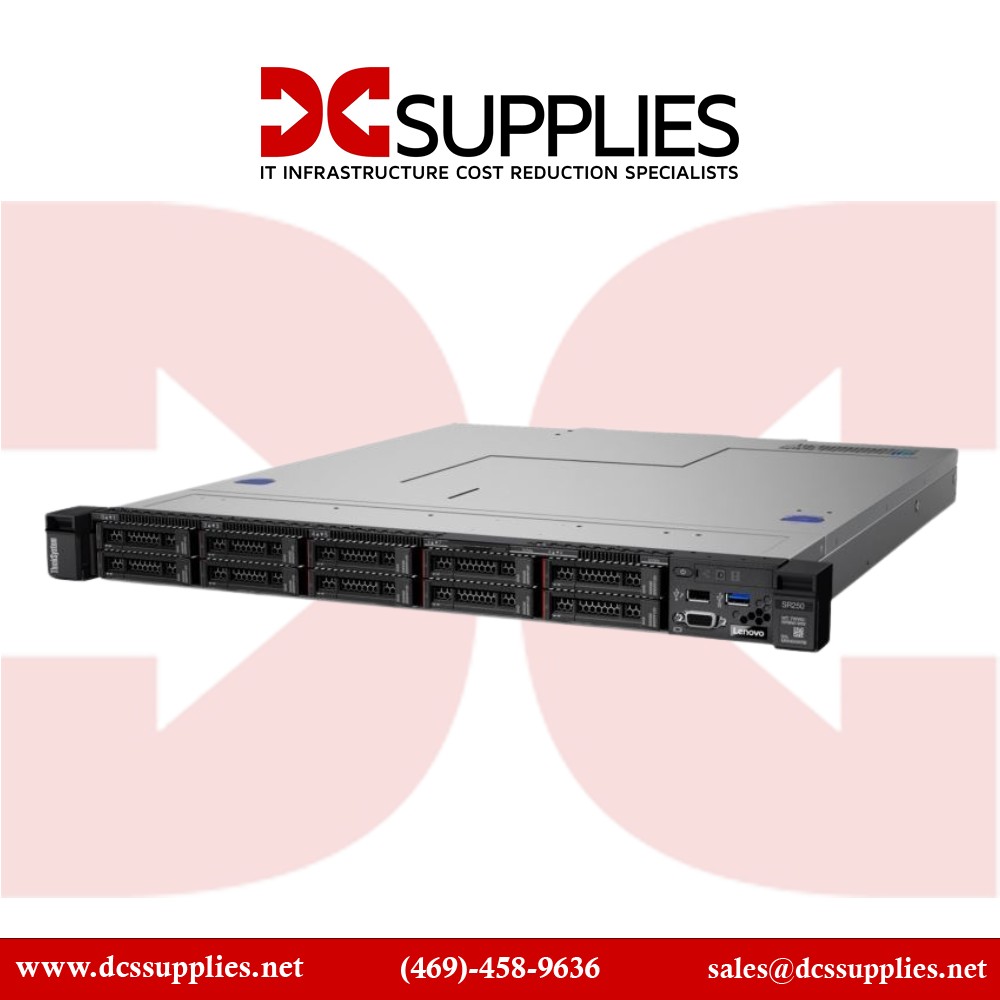

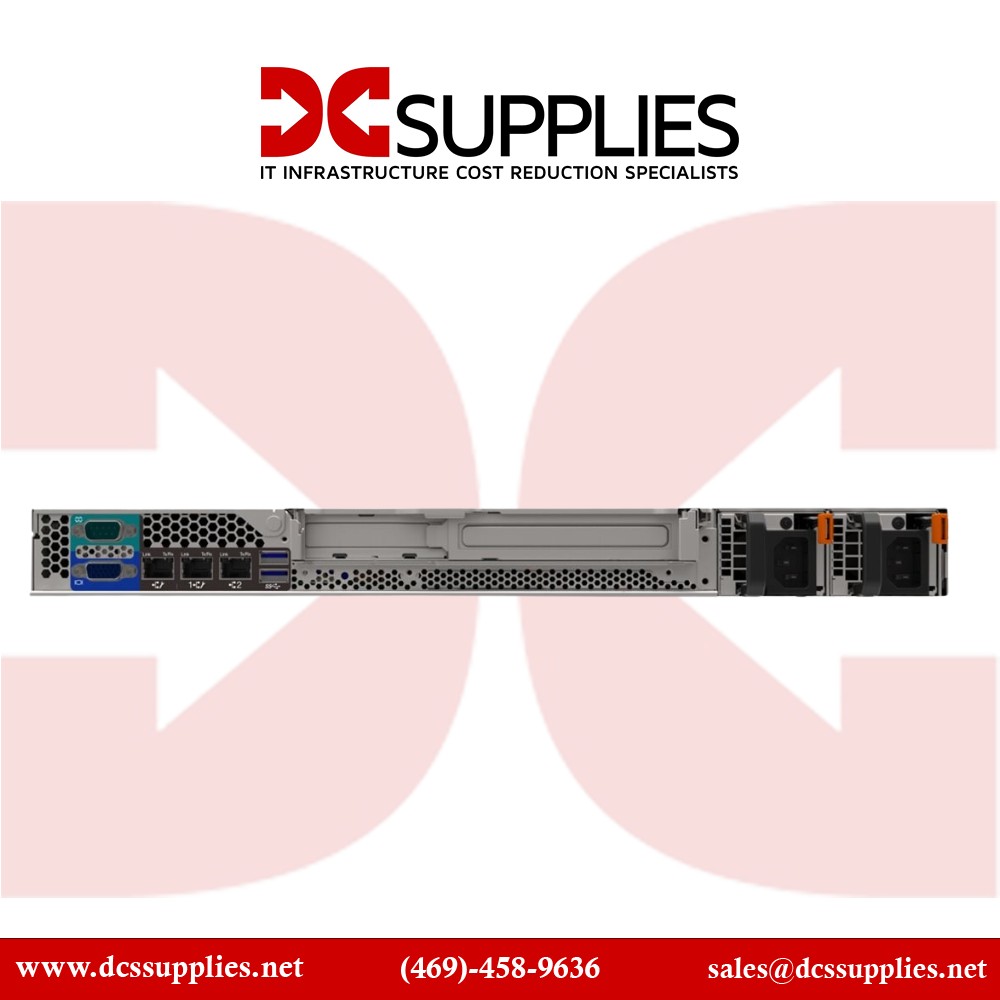

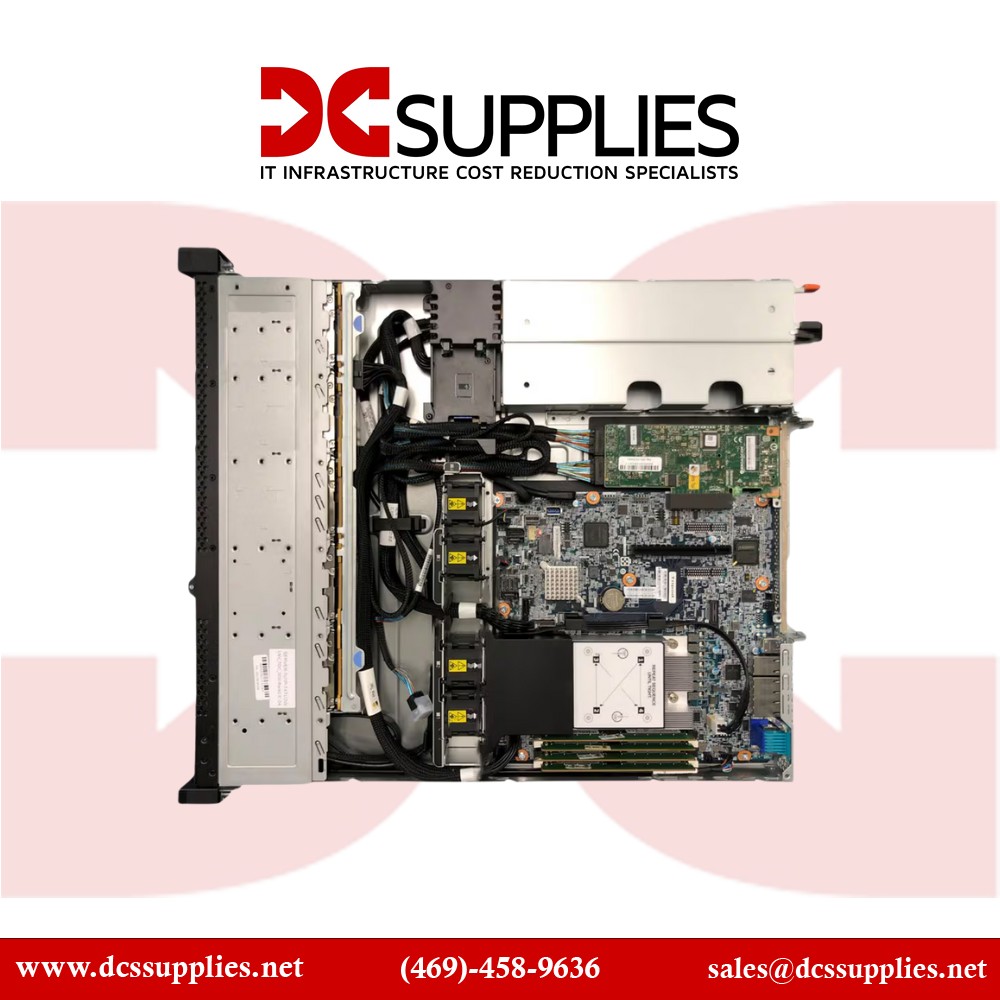

Lenovo 7D7QA01ZNA THINKSYSTEM SR250 V2 E-2334 16GB View larger

Lenovo 7D7QA01ZNA THINKSYSTEM SR250 V2 E-2334 16GB

7D7QA01ZNA

New

Lenovo 7D7QA01ZNA Thinksystem SR250 V2 E-2334 16GB
×




Detailed Specifications

Lenovo 7D7QA01ZNA THINKSYSTEM SR250 V2 E-2334 16GB

Overview :

The Lenovo ThinkSystem SR250 V2 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".

This product guide provides essential presales information to understand the ThinkSystem SR250 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR250 V2 and consider its use in IT solutions.

Specifications :

Product Name Thinksystem SR250 V2 E-2334 16GB
Product Type Server
Processor Core Quad-core (4 Core)
Environmentally Friendly Yes
Processor Manufacturer Intel
Number of Total Memory Slots 4
Optical Drive Type No
Number of Processors Supported 1
Number of Processors Installed 1
Total Hard Drive Capacity No
RAID Supported Yes
Ethernet Technology Gigabit Ethernet
Maximum Power Supply Wattage 450 W
Product Family ThinkSystem SR250 V2
Energy Star Yes
Limited Warranty Duration 3 Year
Processor Model E-2334
Memory Technology TruDDR4
Chipset Intel C256
Rack Height 1U
Form Factor Rack
Processor Speed 3.40 GHz
Processor Type Xeon
Controller Type Serial ATA
Maximum Memory Supported 64 GB
Standard Memory 16 GB
Cache 8 MB
Chipset Manufacturer Intel
Chipset Model C256
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Graphics Memory Capacity 16 MB
Hot Swappable Power Supply Yes
Number of Total Expansion Bays 4
Number of 3.5" Bays 4
VGA Yes
Number of Network (RJ-45) Ports 3
Network (RJ-45) Yes
Remote Management Yes
Total Number of USB Ports 4
Number of USB 2.0 Ports 1
Number of Occupied Memory Slots 1
Hot Swappable Bays Yes
Memory Clock Speed 3.20 GHz
Number of LFF Bays 4
Remote Management Controller XClarity Enterprise (XCC)
Height 1.7"
Width 17.1"
Depth 21.5"
Product Series SR250 V2
Plug / Connector Type C13
Operating System Supported Windows Server 2019

Windows Server 2022

Red Hat Enterprise Linux 8.4

SUSE Linux Enterprise Server 15 SP3
Product Model 7D7QA01ZNA
Product Line ThinkSystem
Security Features
  • Power-on Password
  • Administrator's Password
  • Trusted Platform Module, supporting TPM 2.0
  • Optional lockable front bezel for physical security
Error Checking ECC
Input Voltage 120 V AC

230 V AC
Limited Warranty 3 Year
Number of VGA Ports 2
