Netgear ACM761-10000S QSFP28 - 1 x MPO 100GBase-SR4 Network View larger

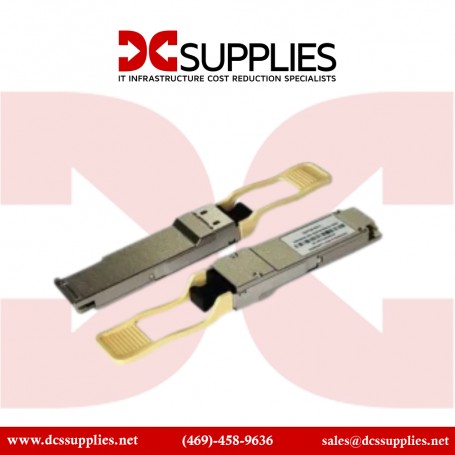

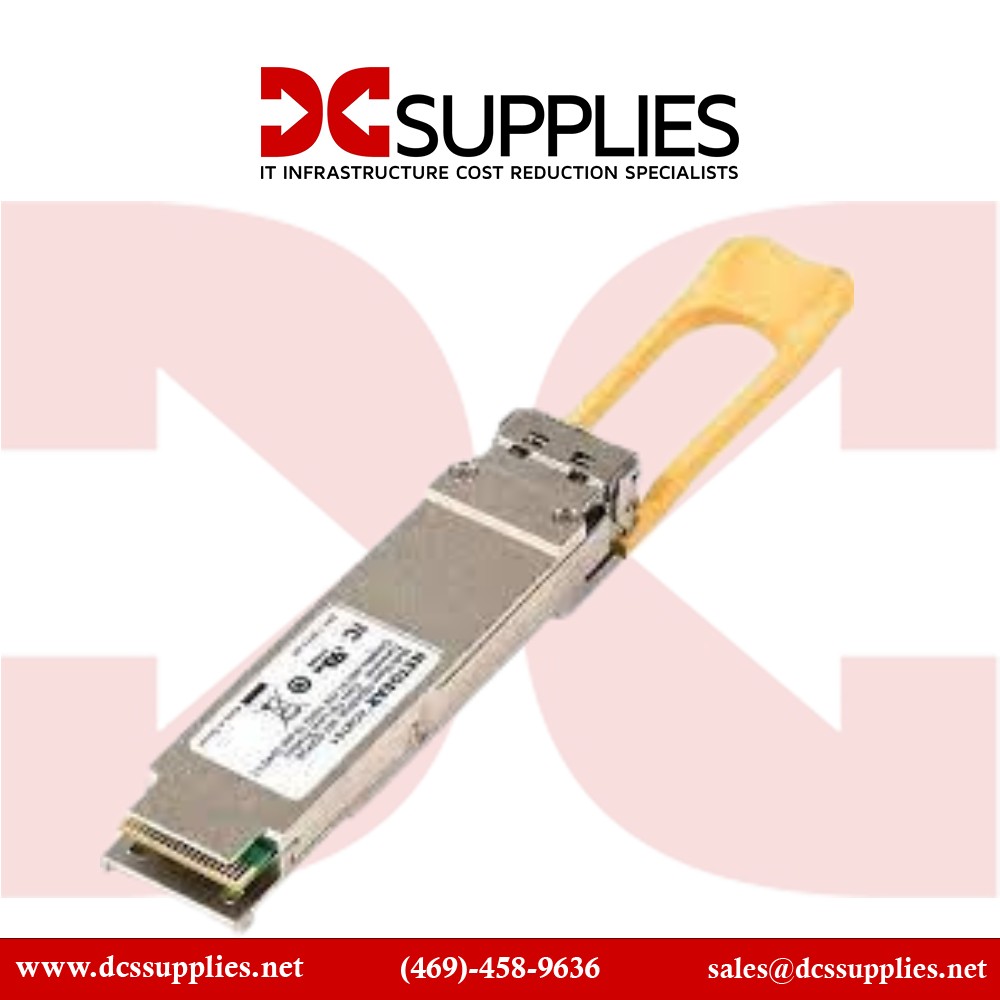

Netgear ACM761-10000S QSFP28 - 1 x MPO 100GBase-SR4 Network

ACM761-10000S

New

Netgear Transceiver Supports Multi-Mode OM3/OM4 Fiber
×




Detailed Specifications

Netgear ACM761-10000S QSFP28 transceiver module

Overview :

Designed to fit most QSFP28 compatible switches, this 100GBASE-SR4 QSFP28 Transceiver Module from Netgear helps you complete your high-bandwidth data links. Featuring an MTP/MPO duplex interface, this transceiver supports up to 100 Gb/s transfers over up to 328.1' long multi-mode OM4 fiber cables. The maximum transmission distance with OM3 cables is 229.6 feet. With its MPO ACM761-10000S (MTP12) connector, the NETGEAR ACM761-10000S QSFP28 Transceiver provides 100GBASE-SR4 throughput across 4 duplex MMF links up to 328 ft. Compatible with M4500 model switches such as M4500-32C (CSM4532) and M4500-48XF8C (XSM4556).

Specification :

SpecificationDetails
Description NETGEAR ACM761 - QSFP28 transceiver module
Manufacturer NETGEAR (ACM761-10000S)
UNSPSC 43201540
Device Type QSFP28 transceiver module
Form Factor Plug-in module
Packaged Quantity 1
Networking Technology Wired
Data Link Protocol 100 Gigabit Ethernet
Data Transfer Rate 100 Gbps
Expansion Interface 1 x Ethernet 100GBase-SR4 - MTP/MPO multi-mode female
Max Transfer Distance 100 m
Compliant Standards OM4, OM3
Cabling Type 100GBase-SR4
