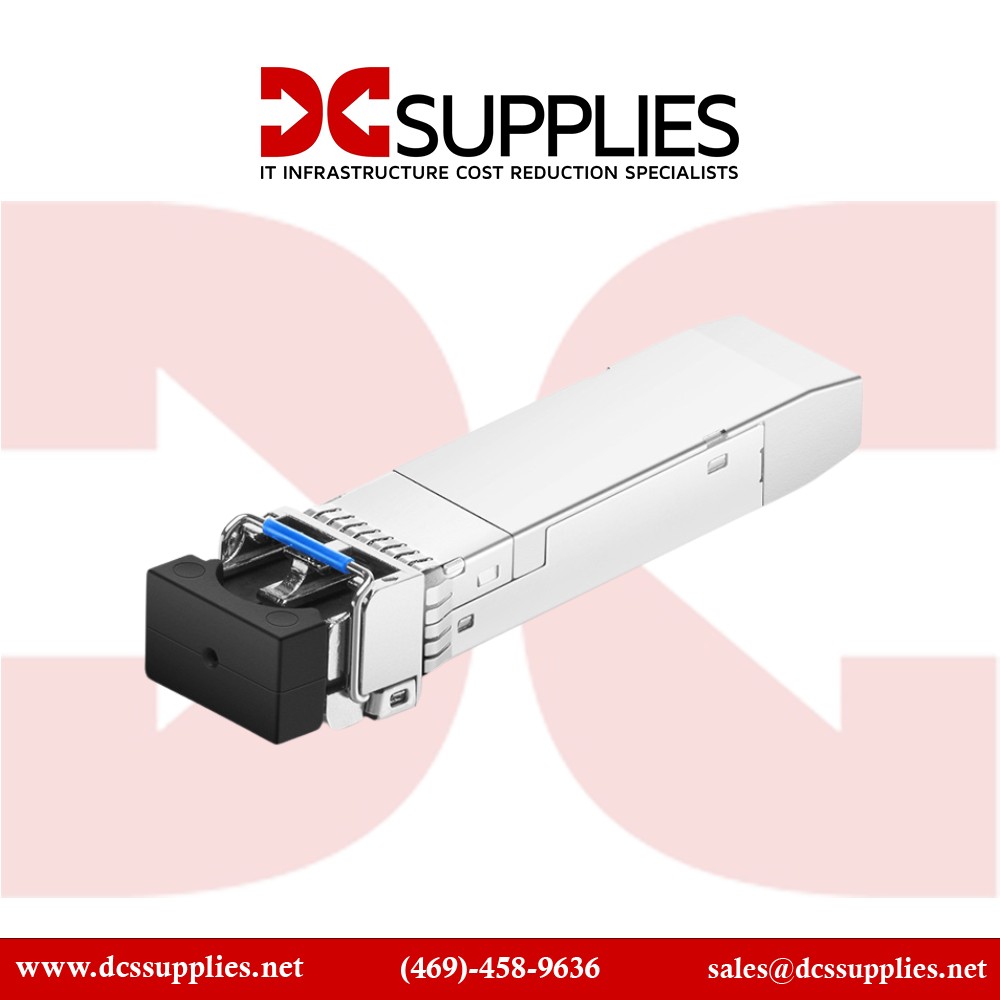

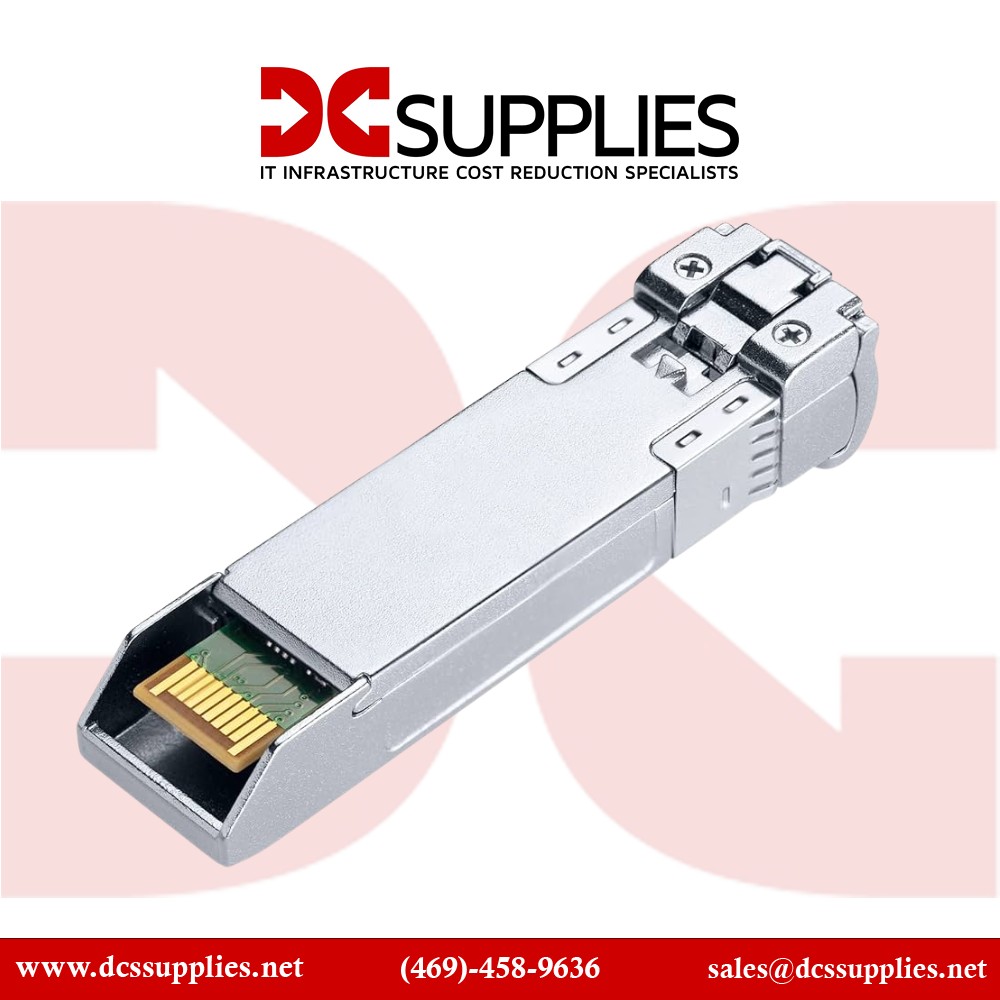

ENET AA1419060-E6-ENC 1000B-CWDM SFP 1GE 2G 1610 40KM View larger

ENET AA1419060-E6-ENC 1000B-CWDM SFP 1GE 2G 1610 40KM

AA1419060-E6-ENC

New

In Stock

ENET AA1419060-E6-ENC 1000B-CWDM SFP 1GE 2G 1610 40KM
×




$249.00

Detailed Specifications

ENET AA1419060-E6-ENC 1000B-CWDM SFP 1GE 2G 1610 40KM

Overview :

The ENET AA1419060-E6-ENC 1000BASE-CWDM SFP transceiver is optimized for long-distance data transmission using single-mode fiber (SMF). It supports both 1Gbps and 2Gbps data rates, operating at a wavelength of 1610nm, and offers a maximum reach of 40km. This hot-swappable module is ideal for CWDM networks and provides a cost-effective solution for extending network distances. Compatible with a wide range of networking equipment, it ensures high performance and reliability in demanding environments.

Key Features :

  • 1000BASE-CWDM SFP transceiver
  • Supports 1GE and 2G speeds
  • 1610nm wavelength
  • 40km transmission range
  • Single-mode fiber (SMF) support
  • Hot-swappable design
  • Low power consumption
  • Digital Diagnostic Monitoring (DDM)
  • SFP MSA compliant
  • RoHS compliant
  • Compatible with various networking devices
  • CWDM (Coarse Wavelength Division Multiplexing) technology

Technical Specifications :

SpecificationDetails
Part Number AA1419060-E6-ENC
Brand ENET
Form Factor SFP
Data Rate 1Gbps / 2Gbps
Wavelength 1610nm
Max Distance 40km
Fiber Type Single-Mode Fiber (SMF)
Connector LC Duplex
Power Consumption Low Power
Hot-Swappable Yes
Diagnostics Digital Diagnostic Monitoring (DDM)
Compliance SFP MSA, RoHS
Operating Temperature 0°C to 70°C
CWDM Channels 1610nm
Protocol Support 1000BASE-CWDM
Compatibility Multi-Vendor Compatible
