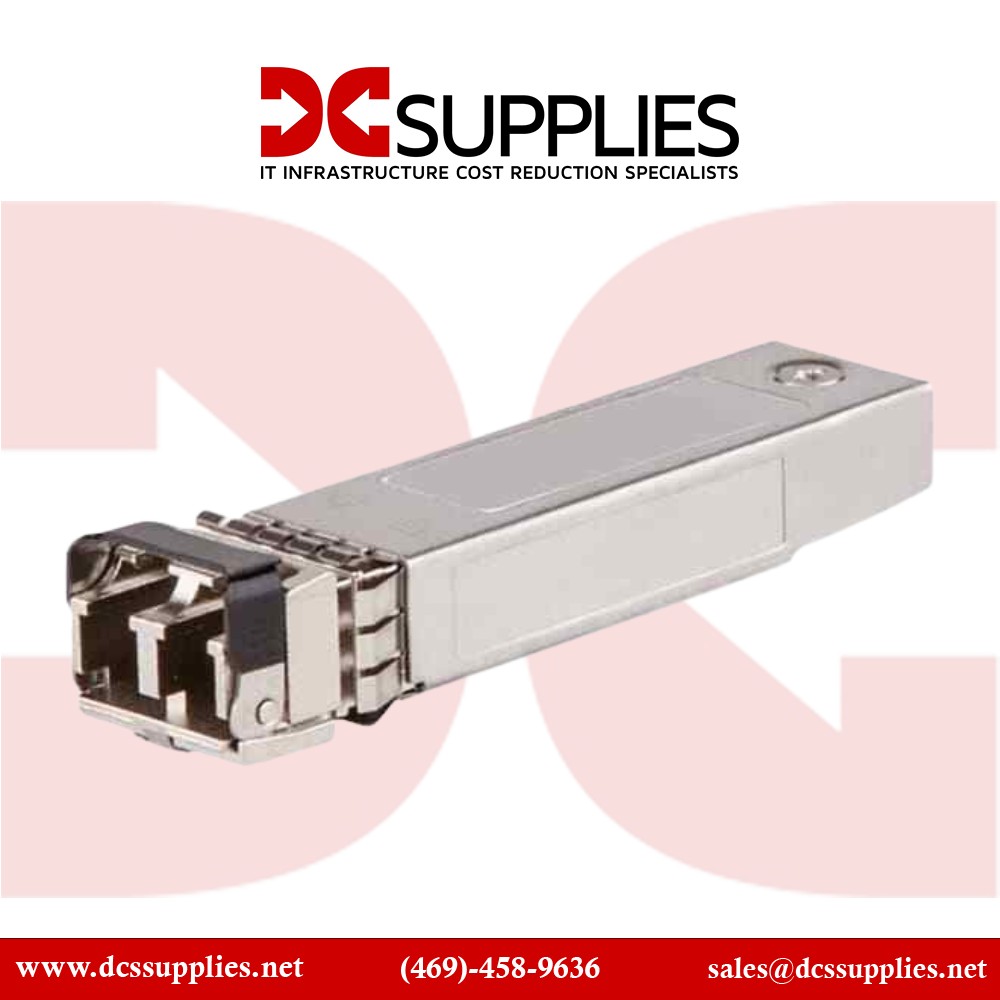

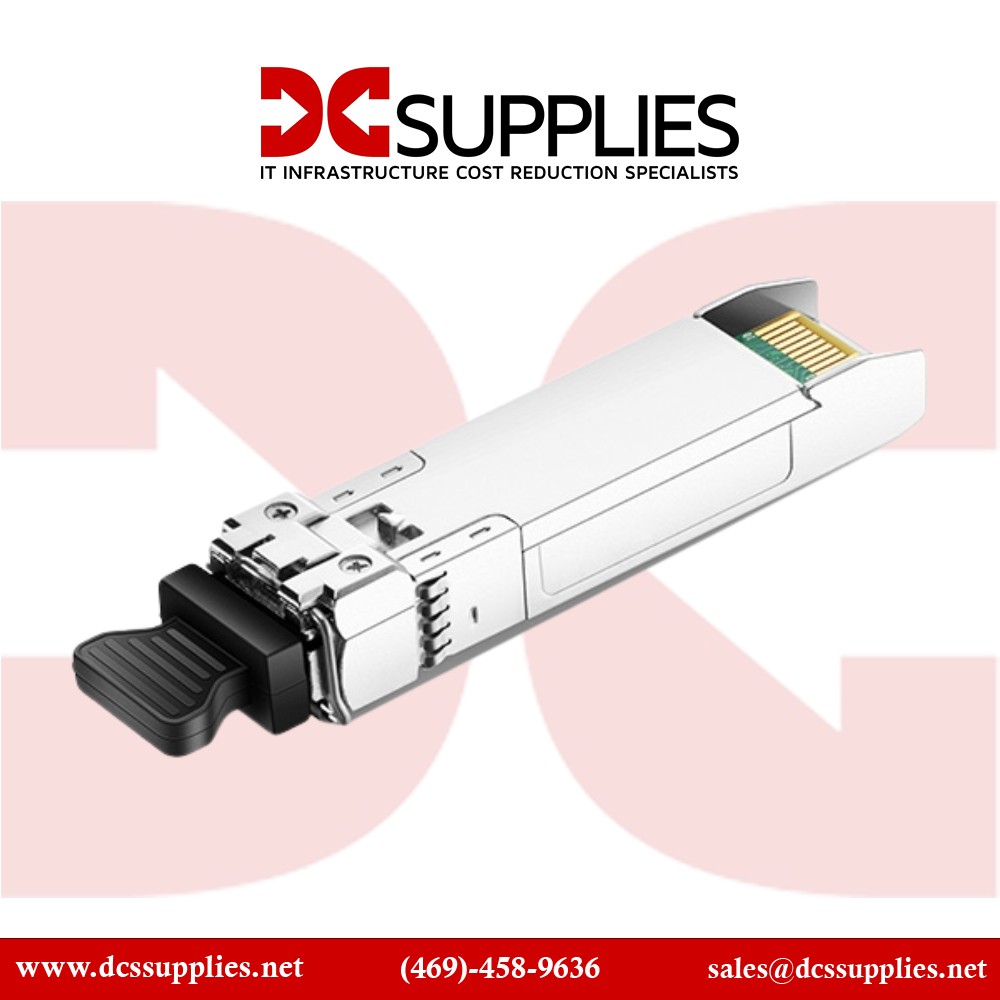

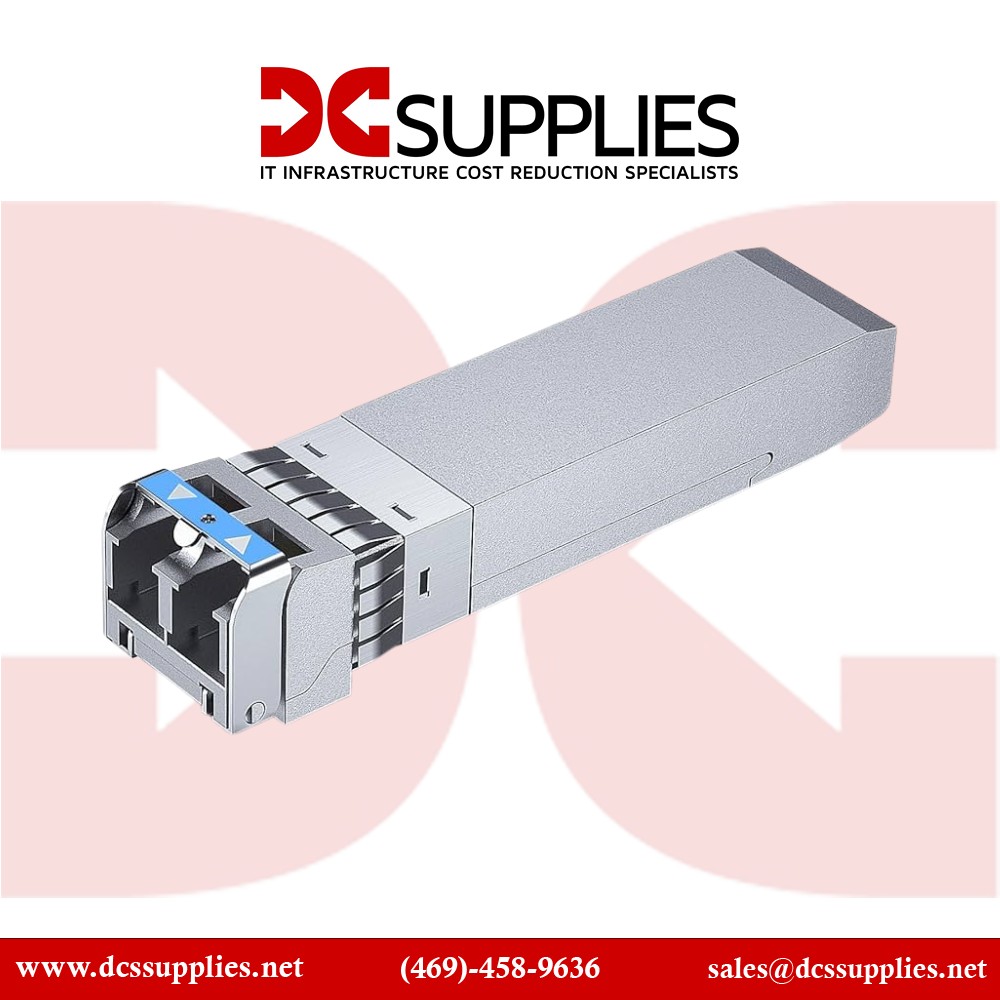

HP JD103A Compatible 1000BASE-LH100 SFP 1550nm 100km Transceiver View larger

HP JD103A Compatible 1000BASE-LH100 SFP 1550nm 100km Transceiver

JD103A

New

HP JD103A Compatible 1000BASE-LH100 SFP 1550nm 100km Transceiver
×




Detailed Specifications

HP JD103A Compatible 1000BASE-LH100 SFP 1550nm 100km Transceiver

Overview :

This HP JD103A compatible transceiver from DC Supplies is a high performance and cost-effective small form factor pluggable module. It is designed for 1000BASE-LH100 Gigabit Ethernet and 1G Fiber Channel extended long reach the application. It fully complies with the Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment.

Specification :

  Compatible Part Number JD103A Manufacturer Part Number JD103A-DC
  Form Factor SFP   Data Rate 1.25Gb/s
  Wavelength 1550 nm   Fiber Type SMF
  Max Distance 100 km   Optical Components DFB/APD
  Transmitter Power 0 ~ 5 dBm   Extinction ratio > 9 dB
  Receiver Sensitivity < -32 dBm   Receiver Overload > -7 dBm
  Connector LC Duplex   Digital Diagnostic Monitoring Yes
  Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C		   Weight 0.025 kg
  Application 1x Fiber Channel, Switch to Switch Interface

Gigabit Ethernet, Switched Backplane Applications

Router/Server Interface, Other Optical Links

   Compliance IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
