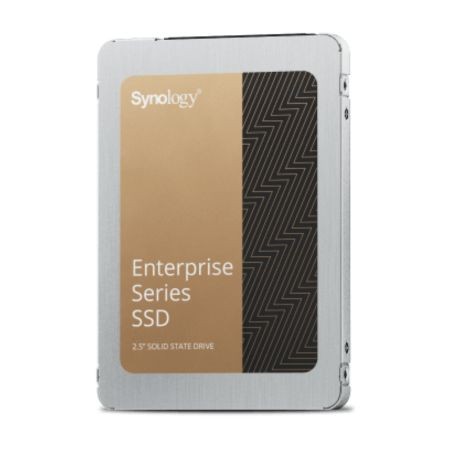

Synology SAT5220-960G 2.5" Enterprise SATA SSD - 960GB View larger

Synology SAT5220-960G 2.5" Enterprise SATA SSD - 960GB

SAT5220-960G

New

The Synology SAT5220-960G 2.5" Enterprise SATA SSD. Optimized for demanding applications

×




Detailed Specifications

Synology SAT5220-960G 2.5" Enterprise SATA SSD

Overview :

The Synology SAT5220-960G is a 2.5" Enterprise SATA SSD designed to meet the high-performance needs of modern data centers and enterprise environments. With a capacity of 960GB, this SSD offers exceptional read and write speeds, making it ideal for applications such as virtualization, databases, and high-demand workloads. Engineered for reliability and endurance, the SAT5220 series is built to handle intensive data operations while ensuring optimal performance and stability.

Key Features:

  • High Capacity: 960GB of storage space provides ample room for applications, files, and data.
  • Enterprise-Grade Performance: Delivers impressive sequential read speeds of up to 560 MB/s and write speeds of up to 520 MB/s, ensuring quick data access and processing.
  • SATA III Interface: Compatible with standard SATA III (6 Gb/s) interfaces, making it easy to integrate into existing systems.
  • Durability and Reliability: Designed with advanced error correction and wear leveling technologies to extend the lifespan and maintain data integrity.
  • Low Power Consumption: Optimized for energy efficiency, reducing operational costs while providing consistent performance.
  • Wide Compatibility: Supports various Synology NAS devices and compatible with other systems that accept 2.5" SATA drives.

Specification :

SpecificationDetails
Brand Name Synology
Model SAT5220-960G
Product Type Enterprise SATA SSD
Form Factor 2.5 inch
Capacity 960GB
Interface SATA 6.0 Gb/s
NAND Flash Type 3D TLC NAND
Sequential Read Speed Up to 530 MB/s
Sequential Write Speed Up to 500 MB/s
Random Read IOPS Up to 95,000 IOPS
Random Write IOPS Up to 65,000 IOPS
Endurance (TBW) 2,188 TBW
Drive Writes Per Day (DWPD) 1.0 DWPD
MTBF (Mean Time Between Failures) 1.5 million hours
Data Protection End-to-end data protection, Power Loss Protection (PLP)
Encryption AES 256-bit encryption
Reliability Full Enterprise-grade reliability
TRIM Support Yes
S.M.A.R.T Monitoring Yes
Operating Temperature 0°C to 70°C (32°F to 158°F)
Shock Resistance 1500G, 0.5ms
Dimensions (HxWxD) 0.28" x 2.75" x 3.93" (7 mm x 69.85 mm x 100.45 mm)
Weight 60 grams
Power Consumption Active: 2.5W; Idle: 1.2W
Warranty 5-year limited warranty
