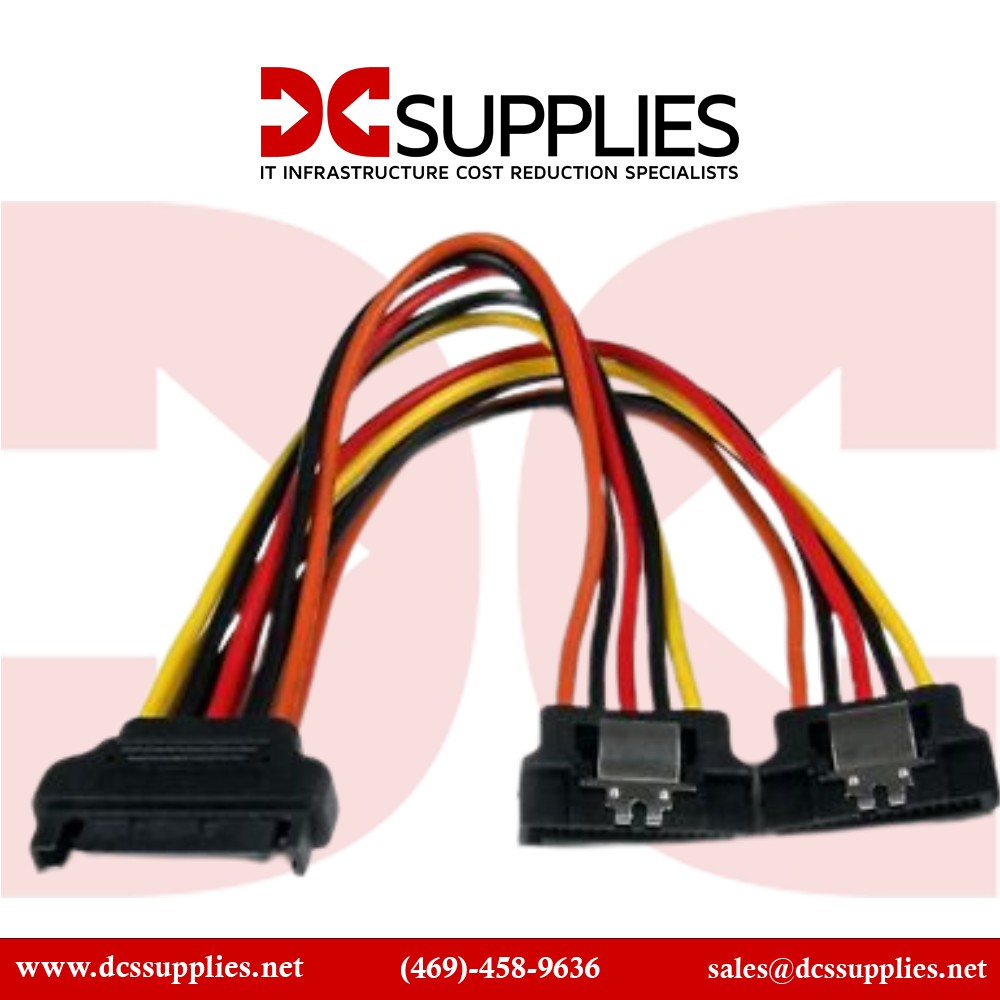

StarTech.com DSATPMOLP4 Dual SATA to LP4 Power Cable Adapter PVC Jacket 18AWG View larger

StarTech.com DSATPMOLP4 Dual SATA to LP4 Power Adapter - 18AWG

DSATPMOLP4

New

In Stock

StarTech.com DSATPMOLP4 Dual SATA to LP4 Power Adapter - 18AWG
×




$16.90

Detailed Specifications

StarTech.com DSATPMOLP4 Dual SATA to LP4 Power Adapter - 18AWG

Overview :

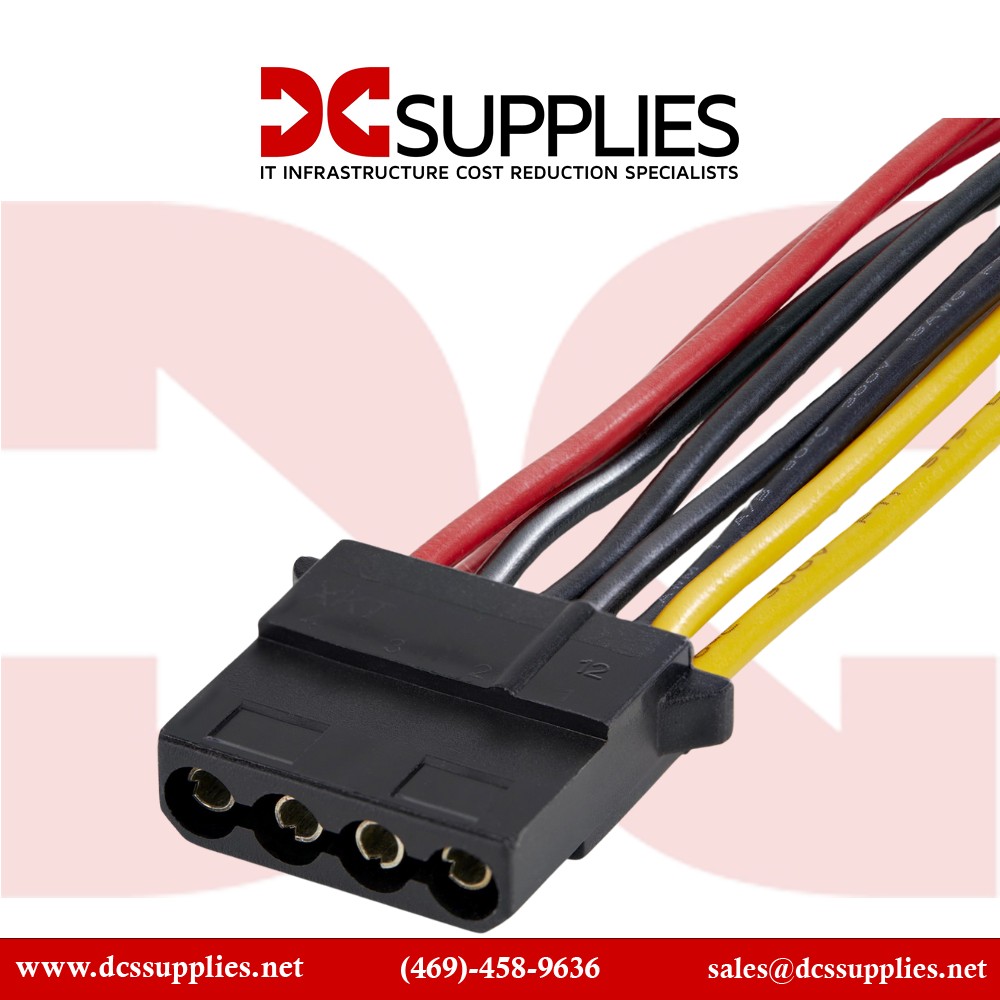

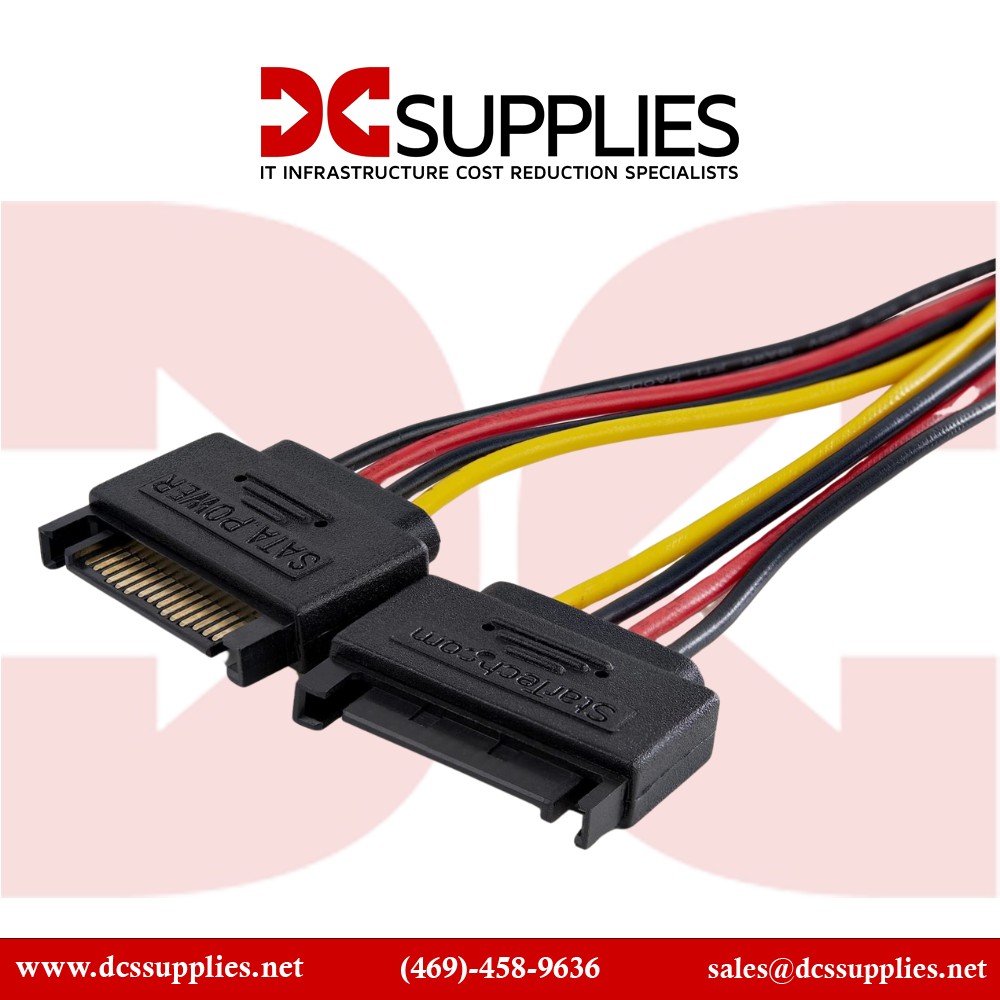

Enhance your power connectivity with the SATA Power to LP4 Power Cable Adapter, a reliable solution designed for robust power distribution within your PC. This adapter features two male SATA power connectors and one female LP4 power connector, providing a versatile and efficient way to address power requirements for peripherals without the need for a power supply upgrade.

This internal power cable eliminates the necessity of upgrading your power supply specifically for peripherals demanding additional power via the LP4 connector. By combining two SATA power connections into a single 4-Pin LP4 connector, this adapter empowers you to extend power connections, allowing flexible positioning of internal PC devices such as hard drives, DVD-ROM drives, and add-in cards within the system case.

The dual SATA to LP4 power cable offers a 6-inch cable length from each SATA connector to the 4-pin LP4 peripheral power connector. This design ensures efficient cable management and optimal placement of connected devices.

Designed to overcome SATA power supply (ATX) output limits, the dual SATA to LP4 power cable provides a total power output of 108W (9A at 12V) and 45W (9A at 5V). The dual SATA power inputs supply additional 5V and 12V power lines, delivering a robust power solution for drive backplanes and storage peripherals.

Upgrade your power distribution with the Dual SATA to LP4 Power Cable, a versatile adapter that maximizes power output, flexibility, and efficiency for your internal PC devices, eliminating the need for a power supply upgrade.

Specifications :

Product Name Dual SATA to LP4 Power Cable Adapter PVC Jacket 18AWG
Manufacturer Part Number DSATPMOLP4
Product Type Splitter Cord
Connector on First End SATA
Connector on Second End LP4
Cord Length 5.90"
Voltage Rating 12 V DC

5 V DC
Current Rating 9 A
First End Connector Type SATA
First End Connector Detail 2 x 15-pin SATA Male
Second End Connector Type LP4
Second End Connector Detail 1 x 4-pin LP4 Female
Country of Origin China
