Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

NETGEAR listens to and supports the Pro AV community

• IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
• Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
• The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
• NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
• AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
• SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI

Enterprise-class hardware

• From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
• Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)

Other IT use cases

• Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
• Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack

Industry standard management

• Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
• SNMP, sFlow and RSPAN - the entire feature set is available without license

Industry leading warranty

• NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
• 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

• AV Line M4350-24X4V Ethernet Switch
• Power Cord(s)
• USB Type-C To USB-A 2.0 Console Cable
• Rubber Caps For The SFP+/SFP28/QSP28 Sockets
• Rubber Footpads For Tabletop
• installation Installation Guide
• Rackmounting Standard Brackets
• Longer Brackets For Recessed Mounting

Specification

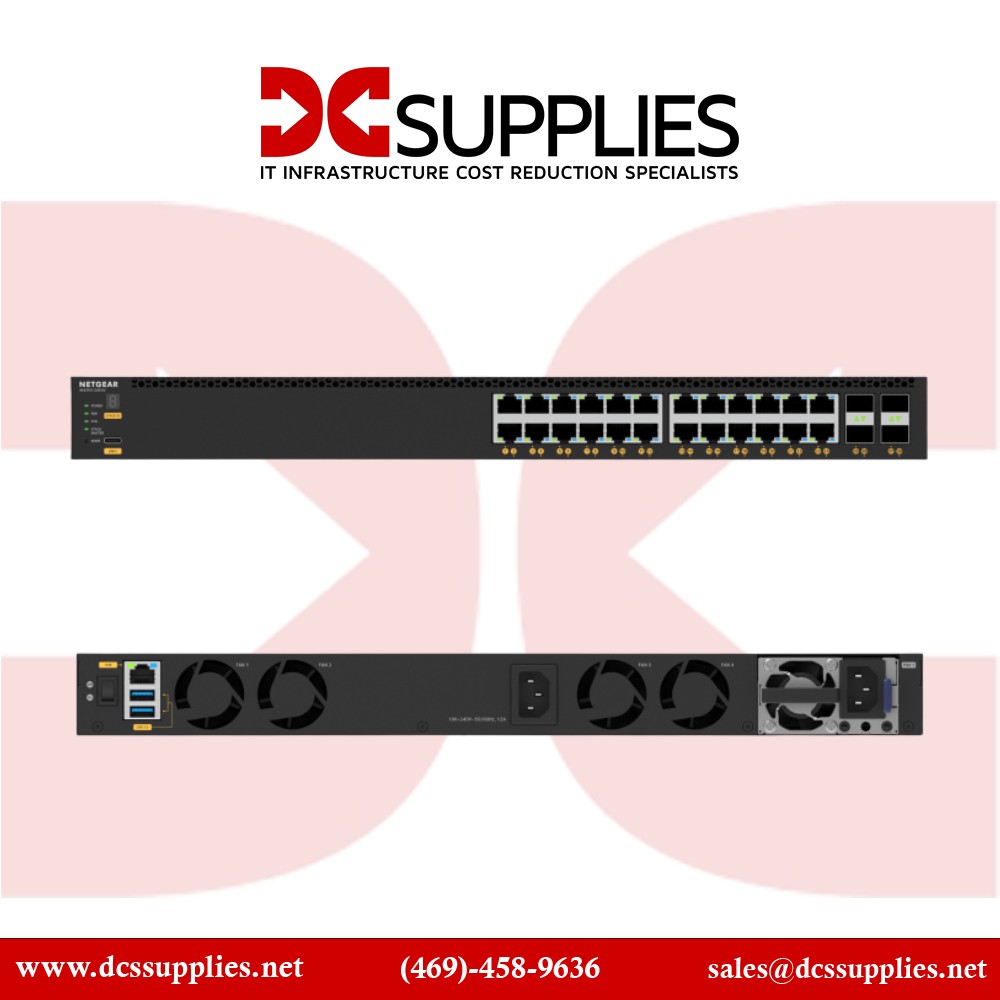

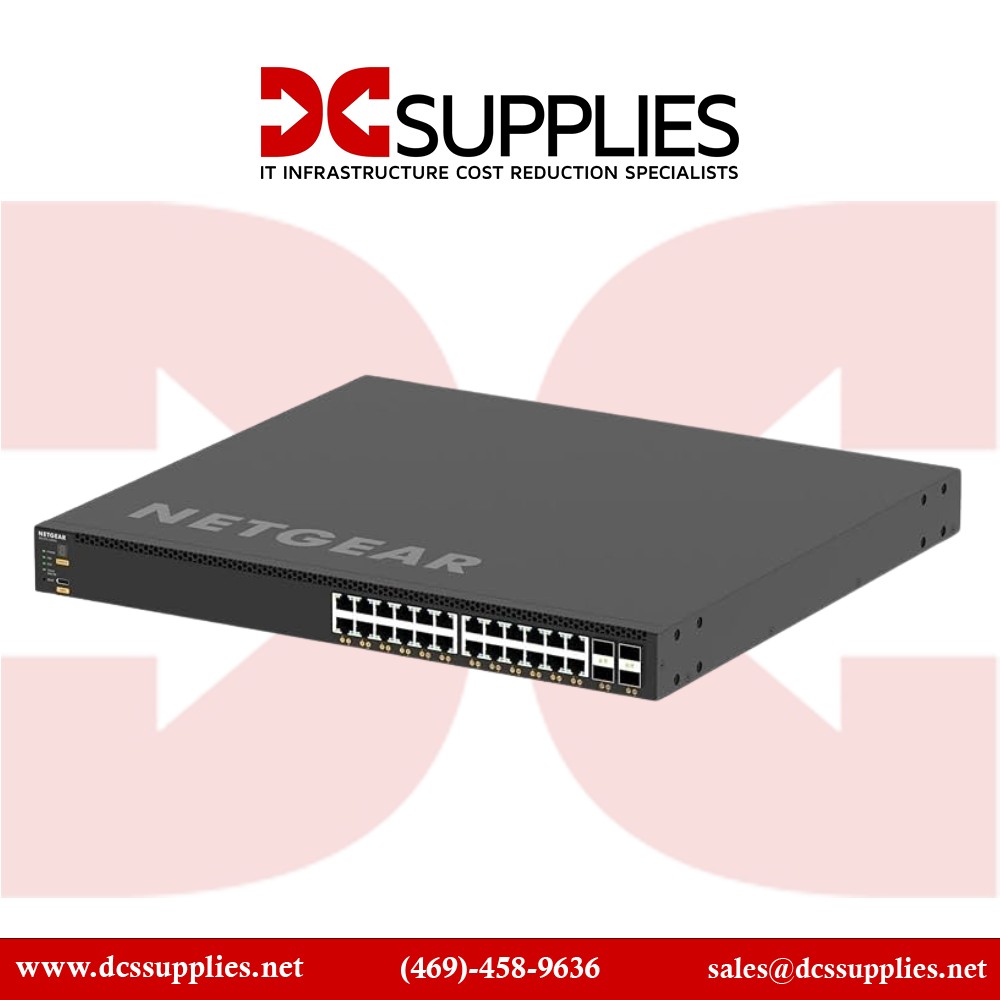

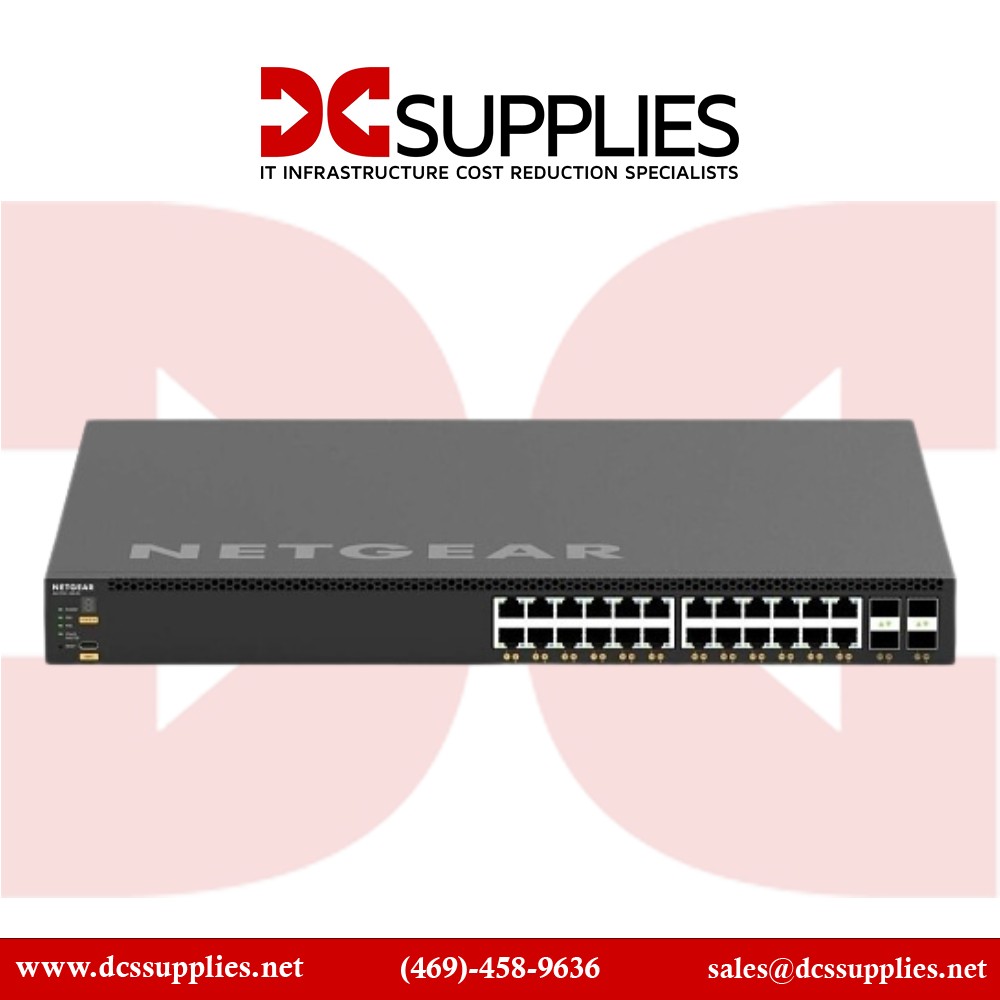

• Product Description:	NETGEAR AV Line M4350-24X4V - switch - 28 ports - managed - rack-mountable
  Part Number	XSM4328CV-100NES
  Device Type:	Switch - 28 ports - L3 - managed - stackable
  Enclosure Type:	Front to back airflow rack-mountable 1U
  Subtype:	10 Gigabit Ethernet / 25 Gigabit Ethernet
  Ports:	24 x 100/1000/2.5G/5G/10GBase-T (PoE+) + 4 x 1/10/25 Gigabit SFP28
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	576 W
  Performance:	Routing/switching capacity: 680 Gbps
  Capacity:	Packet buffer size: 32 MB ¦ Multicast entries (IPv4): 256 ¦ Multicast entries (IPv6): 16 ¦ VLANs supported: 4000 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ DHCP users: 2000 ¦ ARP entries: 4000 ¦ NDP entries: 512
  MAC Address Table Size:	16K entries
  Jumbo Frame Support:	12000 bytes
  Routing Protocol:	Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP
  Remote Management Protocol:	SNMP, HTTPS, CLI, Telnet, SSH, MIB, RSTP, DHCP, RMON
  Features:	Jumbo Frames support, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, LACP, Quad-core CPU
  Compliant Standards:	IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak
  Dimensions (WxDxH):	17.3 in x 15.7 in x 1.7 in
  Weight:	14.51 lbs
  Localization:	Europe, North America, United Kingdom
  Manufacturer Warranty:	NETGEAR lifetime warranty

• General

  Device Type:	Switch - 28 ports - L3 - managed - stackable
  Enclosure Type:	Front to back airflow rack-mountable 1U
  Subtype:	10 Gigabit Ethernet / 25 Gigabit Ethernet
  Ports:	24 x 100/1000/2.5G/5G/10GBase-T (PoE+) + 4 x 1/10/25 Gigabit SFP28
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	576 W
  Performance:	Routing/switching capacity: 680 Gbps
  Capacity:	Packet buffer size: 32 MB ¦ Multicast entries (IPv4): 256 ¦ Multicast entries (IPv6): 16 ¦ VLANs supported: 4000 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ DHCP users: 2000 ¦ ARP entries: 4000 ¦ NDP entries: 512
  MAC Address Table Size:	16K entries
  Jumbo Frame Support:	12000 bytes
  Routing Protocol:	Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP
  Remote Management Protocol:	SNMP, HTTPS, CLI, Telnet, SSH, MIB, RSTP, DHCP, RMON
  Encryption Algorithm:	SSL 3.0, TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, MD5
  Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+
  Features:	Jumbo Frames support, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, LACP, Quad-core CPU
  Compliant Standards:	IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak
  Processor:	X ARM Cortex-A57: 1.8 GHz
  RAM:	2 GB DDR4 SDRAM
  Flash Memory:	512 MB
  Status Indicators:	Link/activity/speed, PoE, power
