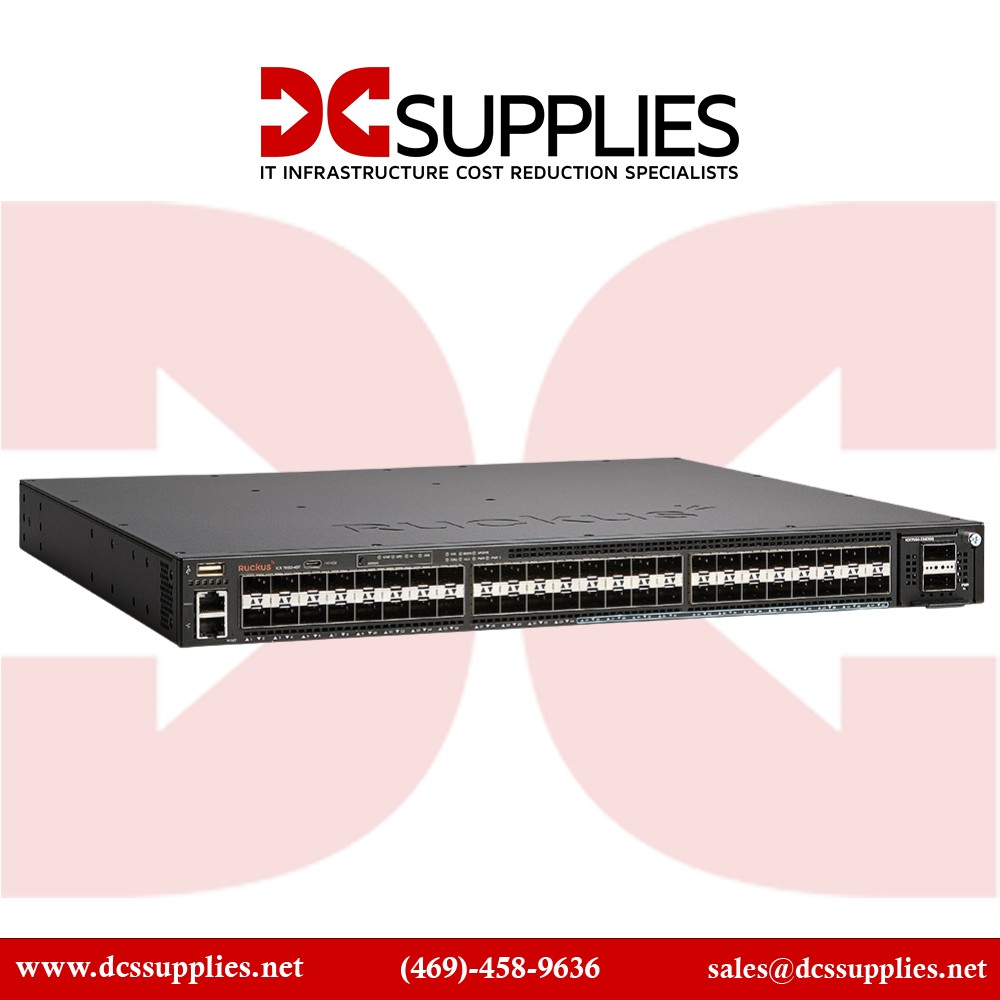

Ruckus ICX7450-48 48 Port GbE Switch with Modular Slots View larger

Ruckus Wireless LLC ICX7450-48 Switch 48 Port 1GBE Switch 3 Modular Slots Option

ICX7450-48

New

Ruckus ICX7450-48 48-port Gigabit switch with Layer 3 routing for high-performance networking
×




Detailed Specifications

Ruckus Wireless LLC   ICX7450-48 Switch  48 Port 1GBE Switch 3 Modular Slots Option

Overview:

The Ruckus Wireless LLC ICX7450-48 switch stands at the forefront of enterprise Gigabit Ethernet (GbE) access deployment, delivering premium performance, flexibility, and scalability. With a cutting-edge design, it offers remarkable stacking density, accommodating up to 12 switches per stack, comprising 576x 1 GbE and 144x 1/10 GbE ports. This stackable solution seamlessly combines chassis-level capabilities with a scalable approach, allowing enterprises to expand effortlessly with a "pay as you grow" model.The Ruckus ICX7450-48 is a high-performance 48-port Gigabit switch that offers advanced Layer 3 routing capabilities. Ideal for enterprise and data center environments, this switch delivers robust performance and scalability, making it suitable for various network applications.

Key Features :

  • 48 x Gigabit Ethernet ports
  • Advanced Layer 3 routing capabilities
  • High switching capacity for efficient network performance
  • Scalable with stacking support for network expansion
  • Energy-efficient design with low power consumption
  • Comprehensive Quality of Service (QoS) features
  • Secure network management with various protocols
  • Jumbo frame support for optimized data transfers
  • Enterprise-grade security features

Technical Specifications :

SpecificationDetail
Model ICX7450-48
Ports 48 x Gigabit Ethernet
Layer Support Layer 2 and Layer 3
Switching Capacity 960 Gbps
Forwarding Rate 715 Mpps
Stacking Support Yes, up to 12 switches
Jumbo Frame Support Yes (up to 9,216 bytes)
Power Supplies Optional redundant power supply
VLANs Up to 4,094 VLANs
Security 802.1x, ACLs, DHCP Snooping, IP Source Guard
Management SNMP, CLI, Web-based, RMON, Telnet
QoS Advanced QoS with 8 queues per port
Dimensions 17.4 x 1.73 x 15.7 inches (WxHxD)
Weight 11.2 lbs
Power Consumption 150W (max)
Operating Temperature 0°C to 45°C
