Lenovo 11BW0009US ThinkCentre M75n IoT 3050e mini PC View larger

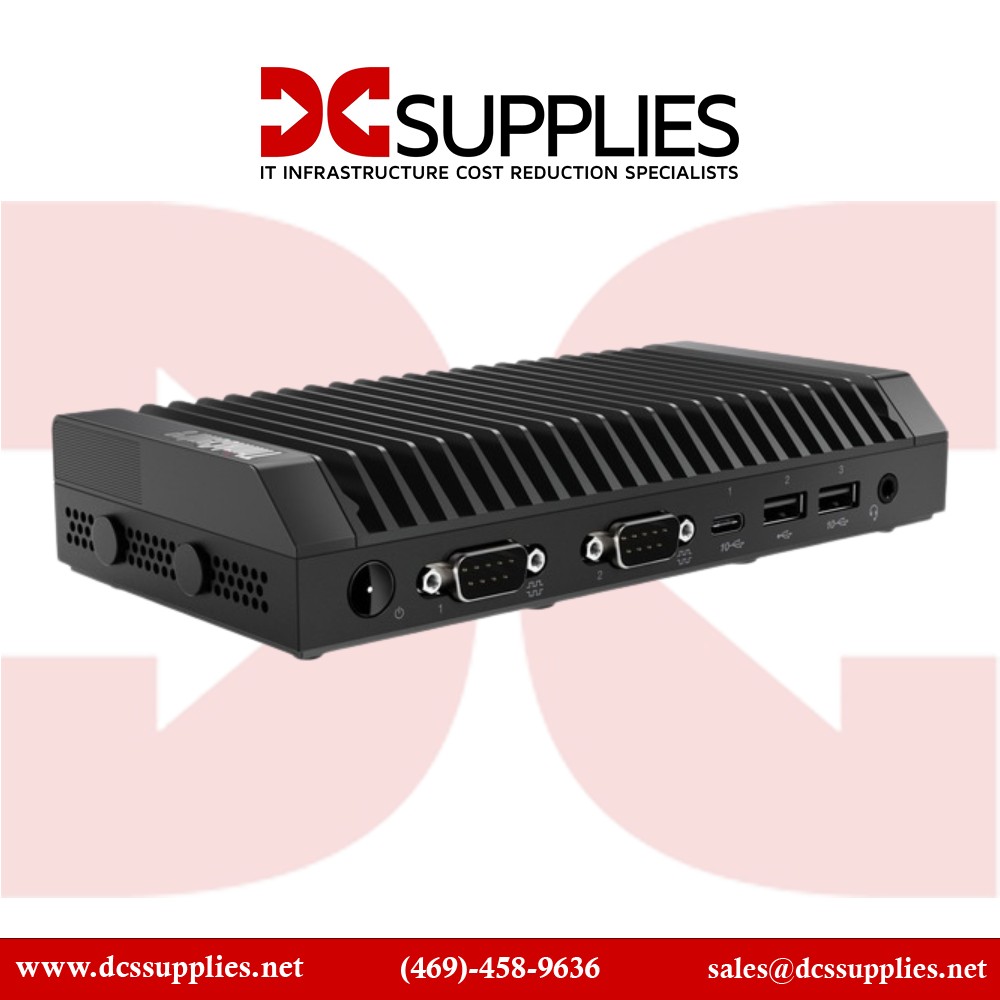

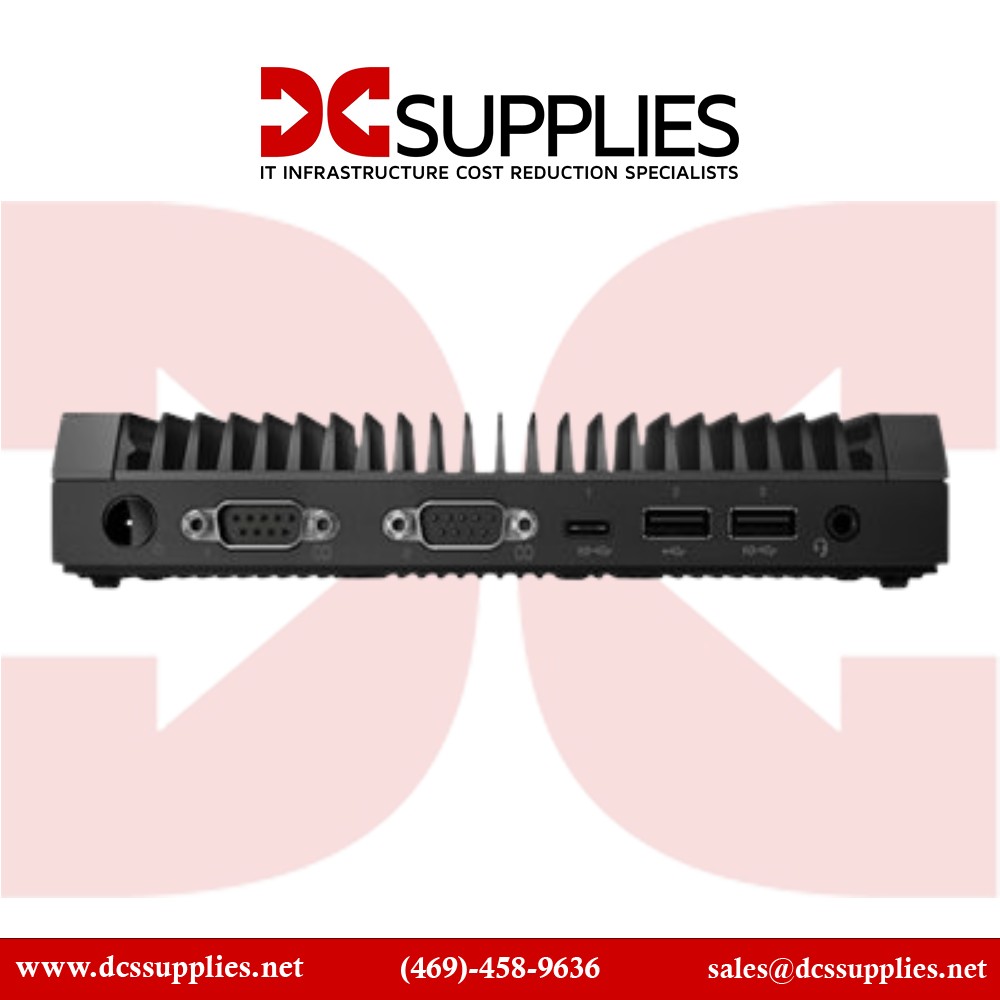

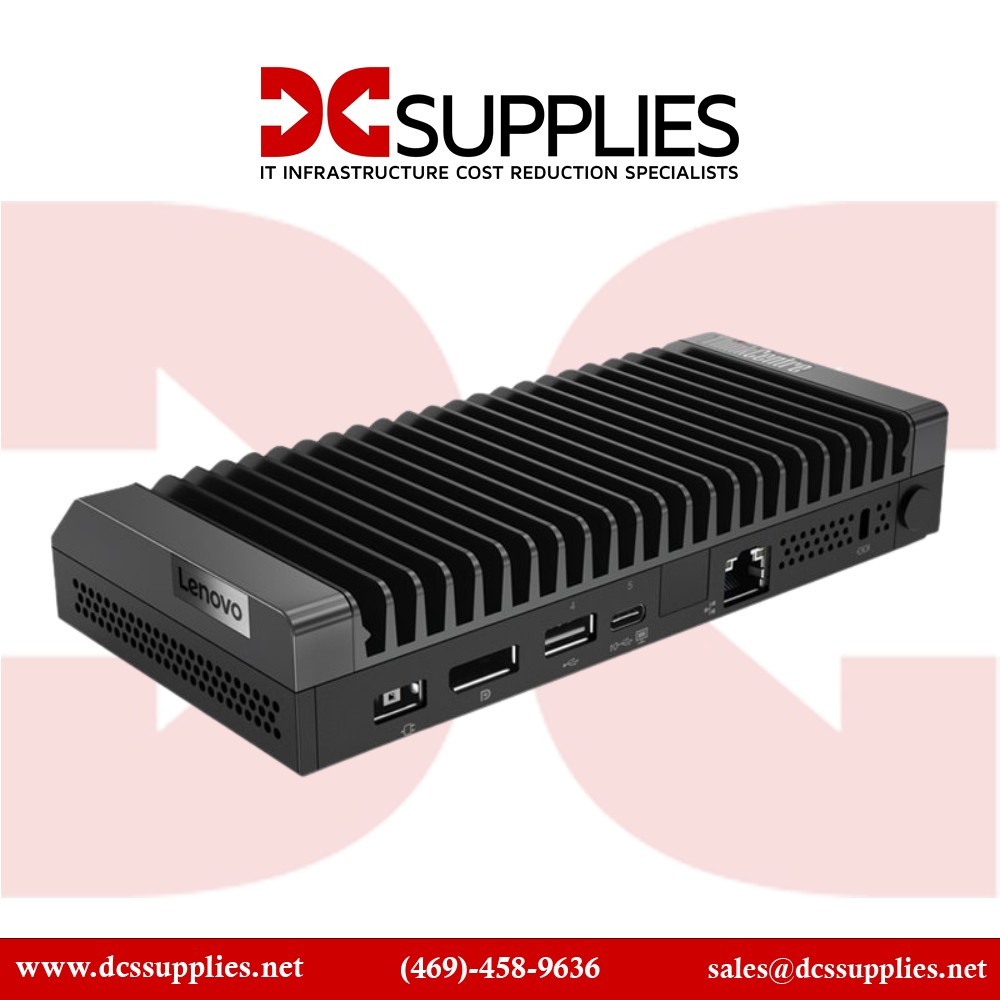

Lenovo 11BW0009US ThinkCentre M75n IoT 3050e mini PC

11BW0009US

New

AMD Athlon Silver 3050e (4MB Cache, 1.4 GHz), 4GB DDR4-SDRAM, 128GB SSD
×




Detailed Specifications

Lenovo 11BW0009US ThinkCentre M75n IoT 3050e mini PC AMD Athlon Silver 4 GB DDR4-SDRAM 128 GB SSD Windows 10 IoT Enterprise Black

Description

Nano in size, not in performance

Only a third of the size of a 1-liter desktop, the ThinkCentre M75n Nano Desktop is just as powerful—and 30% more energy-efficient. Fueled by up to AMD Ryzen™ 5 PRO processors, it delivers real-world performance to drive productivity, along with business-critical security and easy-to-use manageability.

Specifications

Processor
Processor cache type L3
Processor cache 4 MB
Processor frequency 1.4 GHz
Processor model 3050e
Number of processors installed 1
Processor manufacturer AMD
Processor boost frequency 2.8 GHz
Processor threads 4
Processor cores 2
Processor family AMD Athlon Silver
Memory
Non-ECC Yes
Internal memory 4 GB
Maximum internal memory 4 GB
Internal memory type DDR4-SDRAM
Memory clock speed 2400 MHz
Storage
Storage media SSD
Number of storage drives installed 1
Optical drive type No
SSD interface NVMe, PCI Express 3.0
SSD capacity 128 GB
Number of SSDs installed 1
Card reader integrated No
Total storage capacity 128 GB
SSD form factor M.2
Total SSDs capacity 128 GB
Graphics
Discrete graphics card No
On-board graphics card Yes
Discrete graphics card model Not available
On-board graphics card model AMD Radeon Graphics
Optical drive
Optical drive type No
Network
Ethernet LAN Yes
Wi-Fi Yes
Bluetooth Yes
Bluetooth version 5.0
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wake-on-LAN ready Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
WLAN controller model Intel Dual Band Wireless-AC 9260
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Antenna type 2x2
WLAN controller manufacturer Intel
LAN controller Realtek RTL8111FP-CG
Ports & interfaces
Combo headphone/mic port Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB 2.0 ports quantity 1
Serial ports quantity 2
Microphone in No
Headphone outputs 1
Ethernet LAN (RJ-45) ports 1
DVI port No
DisplayPorts quantity 1
Technical details
Cable lock slot type Kensington
Product type Mini PC
Trusted Platform Module (TPM) Yes
Product colour Black
Chassis type mini PC
Placement supported Horizontal/Vertical
Cable lock slot Yes
Motherboard chipset AMD SoC
Sustainability certificates RoHS, EPEAT Silver, ENERGY STAR
Design
Volume 0.55 L
Cable lock slot type Kensington
Product colour Black
Chassis type mini PC
Placement supported Horizontal/Vertical
Cable lock slot Yes
Performance
Audio chip Realtek ALC233
Password protection Yes
Password protection type HDD, Power on, Supervisor
Product type Mini PC
Trusted Platform Module (TPM) Yes
Motherboard chipset AMD SoC
Software
Operating system installed Windows 10 IoT Enterprise
Power
Power supply 65 W
Certificates
Certification MIL-STD-810H
Sustainability
Sustainability certificates RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Volume 0.55 L
Width 7.05" (179 mm)
Depth 3.46" (88 mm)
Height 1.36" (34.5 mm)
Weight 25.4 oz (720 g)
Packaging content
Mouse included Yes
Display included No
Keyboard included Yes
Other features
Trusted Platform Module (TPM) Yes
On-board graphics card Yes
Processor manufacturer AMD
