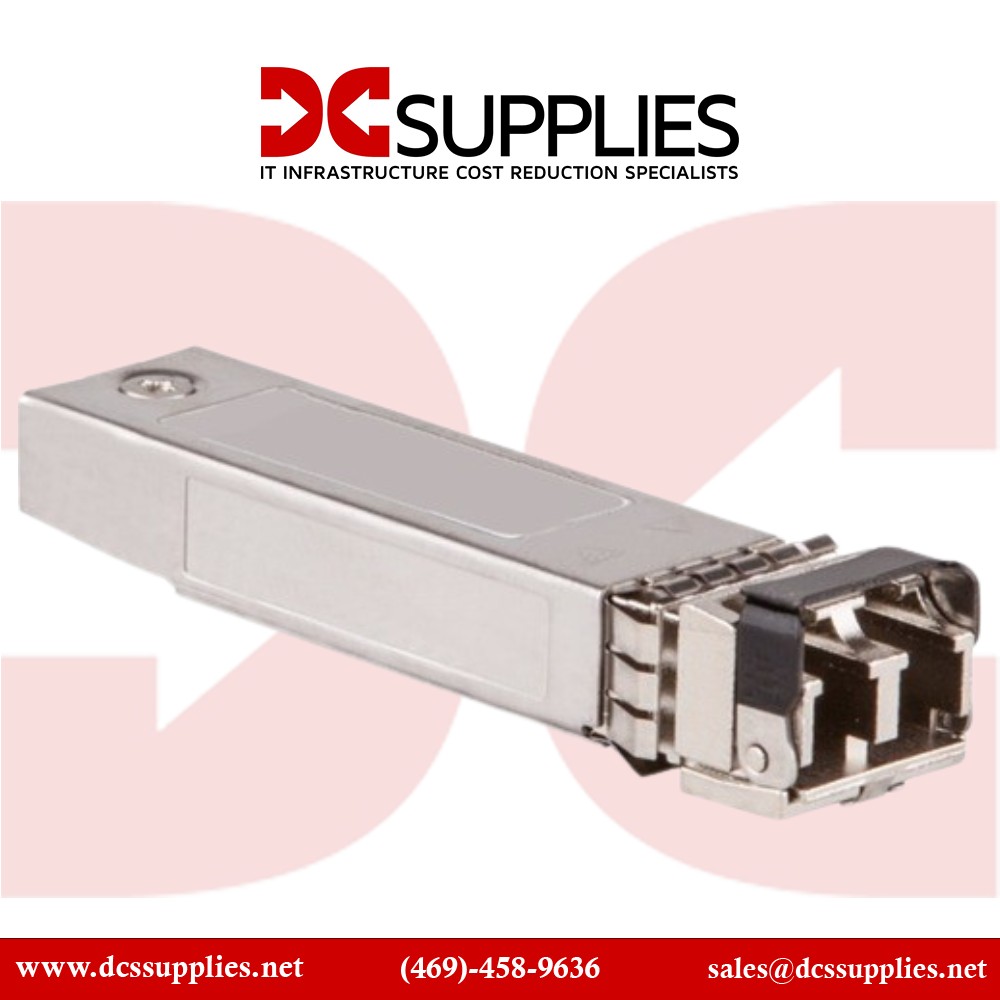

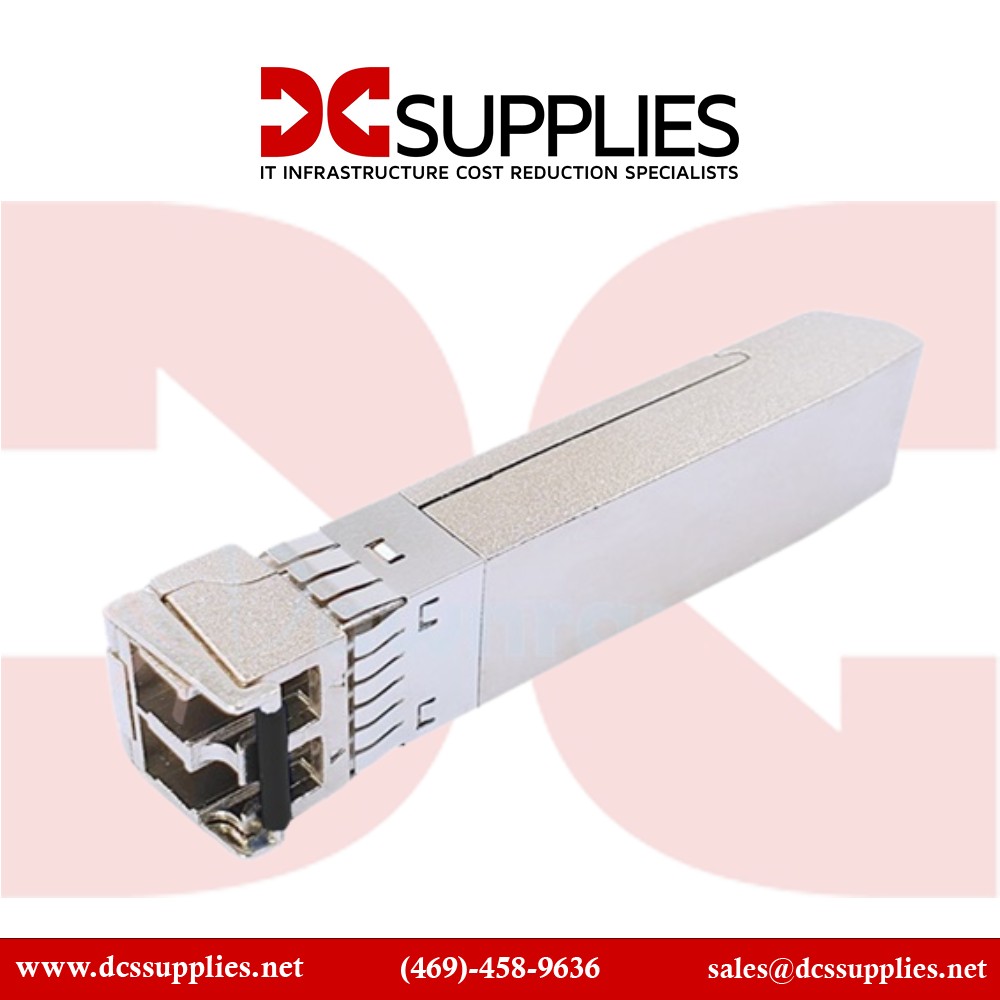

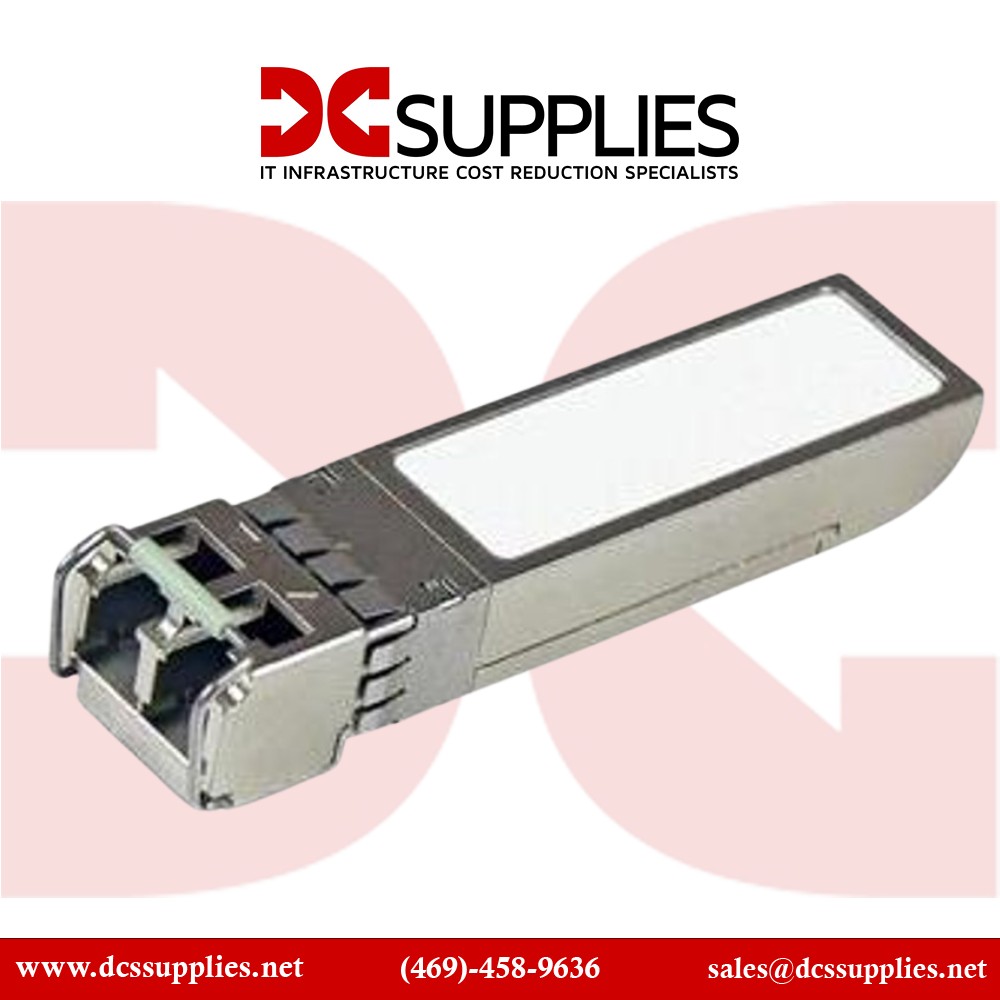

StarTech.com 57-0000076-01-ST Brocade Compatible SFP Transceiver Module View larger

StarTech.com 57-0000076-01-ST Brocade Compatible SFP Transceiver Module

57-0000076-01-ST

New

in stock

StarTech.com 57-0000076-01-ST Brocade Compatible SFP Transceiver Module
×




$269.00

Detailed Specifications

StarTech.com 57-0000076-01-ST Brocade Compatible SFP Transceiver Module

Overview :

Designed for performance and compatibility, the StarTech.com 57-0000076-01-ST transceiver module provides an efficient solution for expanding your network. Its multi-mode capability allows for data rates of up to 1 Gbps over short distances, making it ideal for local area networks (LANs) and data center applications. With LC connectors, installation is straightforward, ensuring a quick setup for your network needs.

Key Features:

  • Compatibility: Fully compatible with Brocade networking equipment, ensuring seamless integration.
  • Data Rate: Supports data rates of up to 1 Gbps, perfect for high-speed network environments.
  • Wavelength: Operates at a wavelength of 850nm for optimal performance over multi-mode fiber.
  • Connector Type: Equipped with LC connectors for easy and secure connections.
  • Distance: Capable of transmitting data over distances up to 550 meters, depending on the fiber type.

Technical Specifications :

AttributeDetails
Part Number 57-0000076-01-ST
Product Type SFP Transceiver Module
Brand Name StarTech.com
Compatibility Brocade Compatible
Form Factor SFP (Small Form-Factor Pluggable)
Data Rate 1 Gbps
Wavelength 850 nm (for multi-mode), 1310 nm (for single-mode)
Distance - Up to 550 meters (for multi-mode)
- Up to 10 km (for single-mode)
Connector Type LC Connector
Fiber Type - Multi-mode
- Single-mode
Operating Temperature 0°C to 70°C (32°F to 158°F)
Hot-Swap Capability Yes
Power Consumption < 1 W
Dimensions 2.3" x 0.9" x 0.4" (59.1 mm x 22.6 mm x 11.5 mm)
Weight Approximately 0.1 lbs (0.045 kg)
Compliance RoHS Compliant
