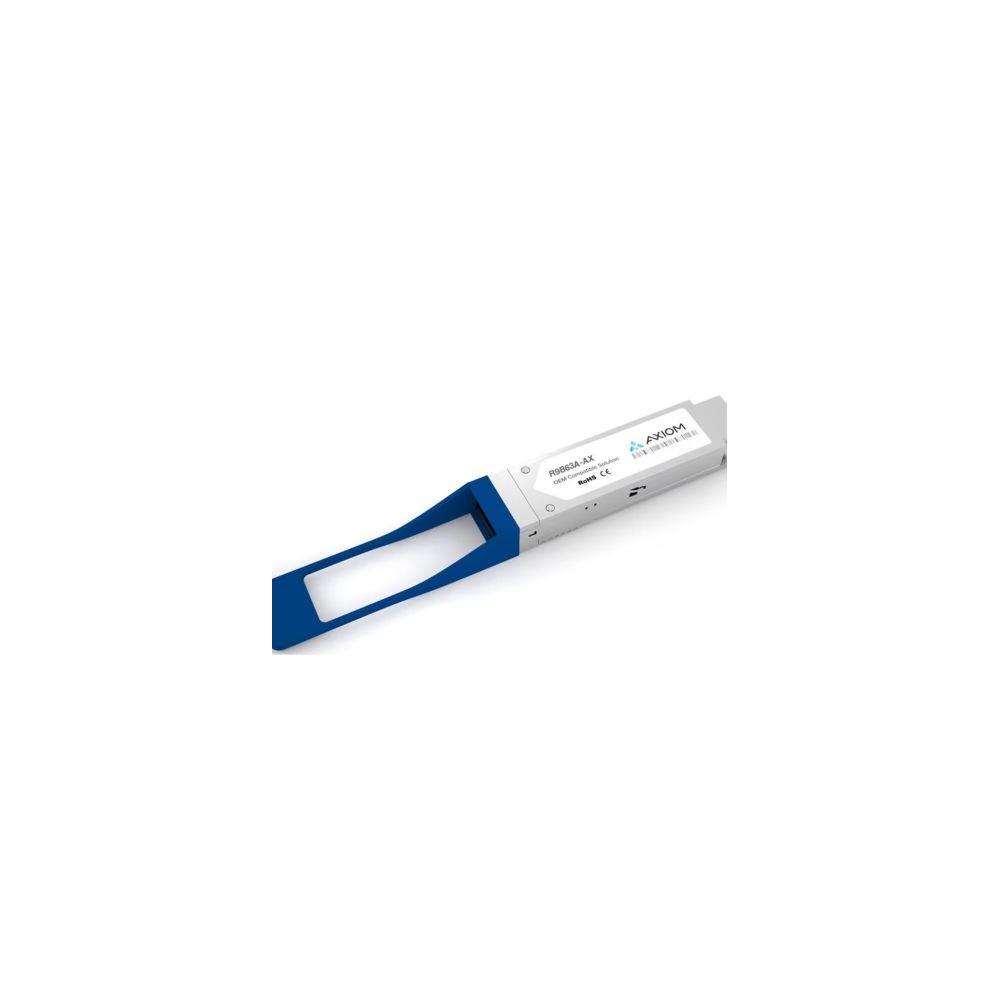

HPE Aruba R9B63A QSFP28 transceiver module - 100GbE View larger

HPE Aruba R9B63A QSFP28 transceiver module - 100GbE

R9B63A

New

In Stock

HPE Aruba R9B63A 100GbE QSFP28 transceiver for high-speed, reliable network connections.
×




$2,065.00

Detailed Specifications

HPE Aruba R9B63A QSFP28 transceiver module - 100GbE

Overview :

The 100GBASE-FR Single Lambda R9B63A QSFP28 optical transceiver module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC. The transceiver includes a Broadcom chip to convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. This transceiver is compliant with QSFP28 MSA, IEEE 802.3cd and 100G Lambda MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet, 400G to 100G breakout applications.

Specifications :

Product Name Aruba 100G QSFP28 LC FR1 2KM SMF XCVR
Manufacturer Part Number R9B63A
Product Type QSFP28
Ethernet Technology 100 Gigabit Ethernet
Media Type Supported Optical Fiber
Total Number of Ports 1
Fiber Mode Supported Single-mode
Connector Type LC
Compatibility Aruba CX 9300 Switch Series
Maximum Distance Supported 2 km
Interfaces / Ports Details 1 x LC Network
