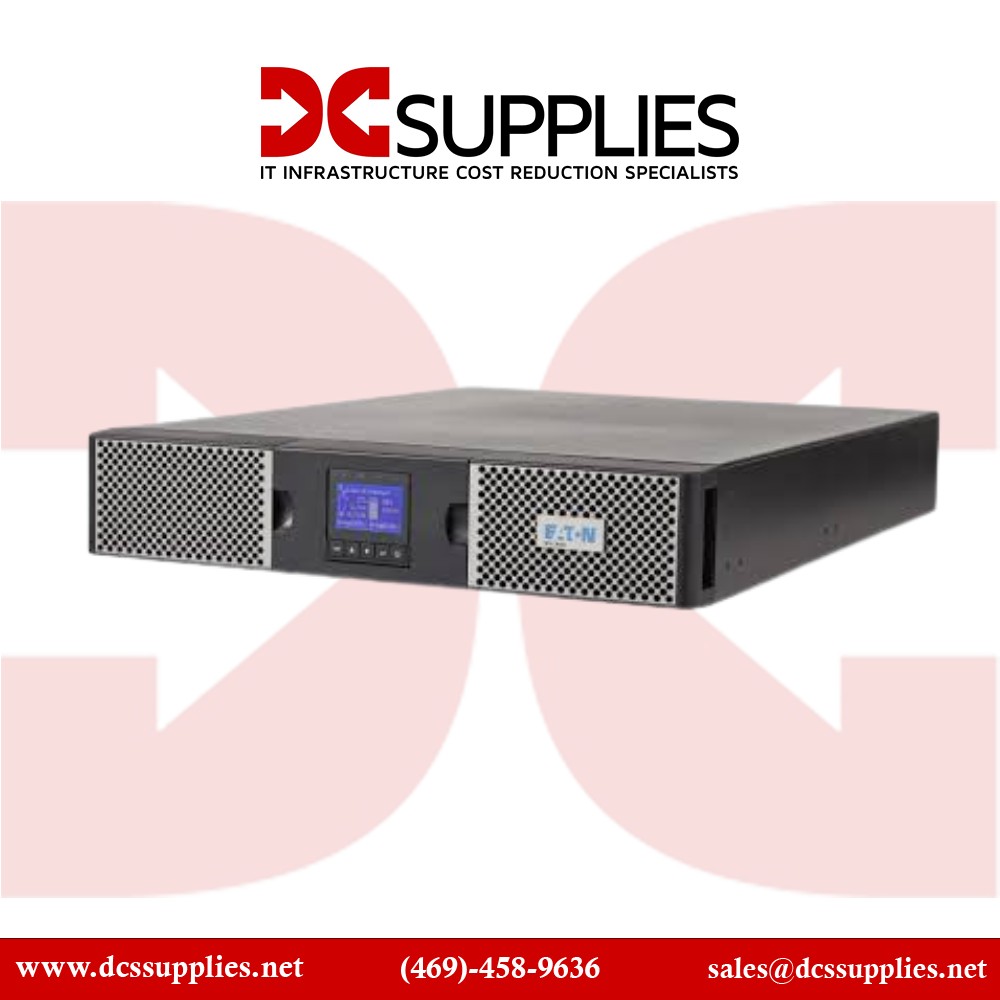

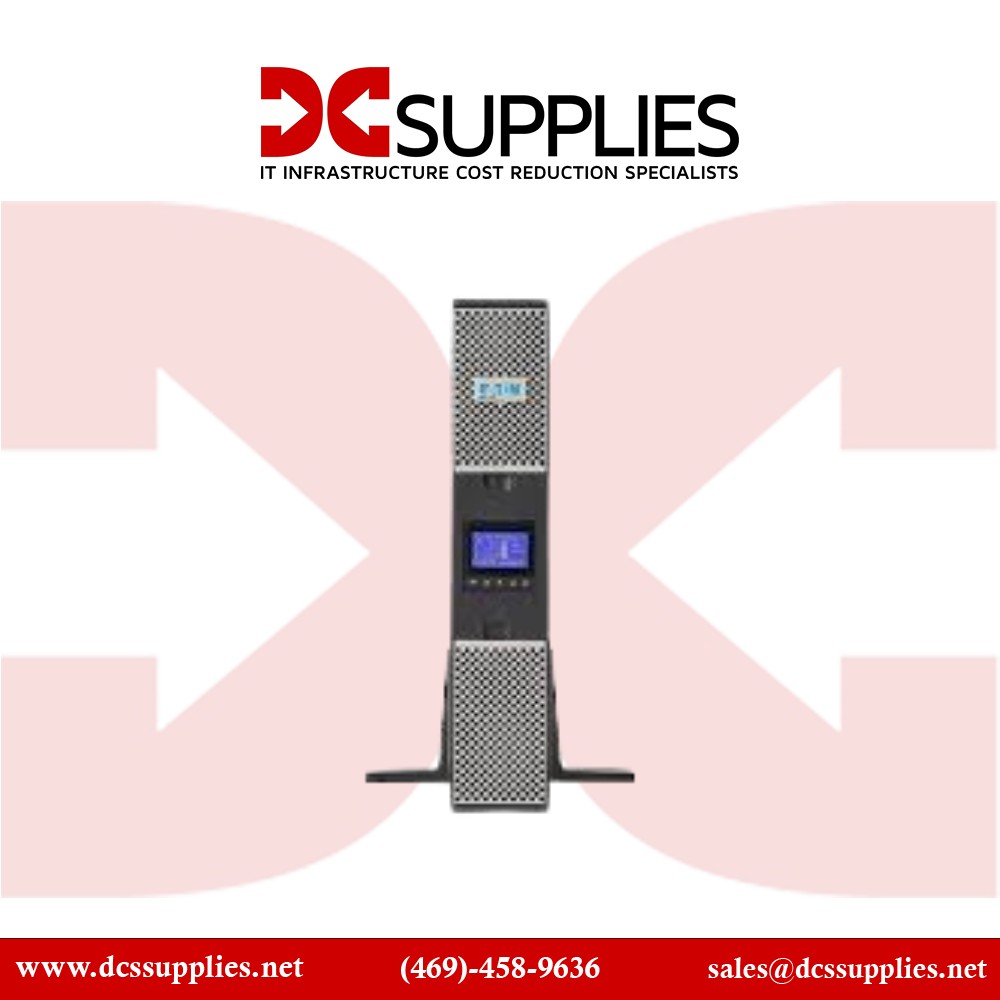

Eaton 9PX1000GRT Online UPS 1000VA 900 Watt 208V 2U Rack/Tower Network Card Optional View larger

Eaton 9PX1000GRT 9PX UPS, 2U 1000VA, 900W C14 input

9PX1000GRT

New

In Stock

Eaton 9PX1000GRT 9PX UPS, 2U 1000VA, 900W C14 input

×




$959.00

Detailed Specifications

Eaton 9PX1000GRT 9PX UPS, 2U 1000VA, 900W C14 input

Overview:

1kVA/900W/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable valve-regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM48RT, sold separately) for hours of extended runtime. Optional Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card (sold separately or as a network card bundle) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect businesses from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

Specifications:

Brand Eaton
Product Line Eaton 9PX
Model 9PX1000GRT
Manufacturer Powerware Systems
Network & Communication
Remote Management Interface RS-232, USB
Expansion Slots
Expansion Slots 1 (total) / 1 (free) x expansion slot
Connectivity
Input Connectors 1
Interface Provided 1 x management (RS-232) - RJ-45, 1 x USB
Power
Battery Technology Lead acid
Emergency Power Off Advance Battery Management (ABM), Automatic self-test, Cold-start function, LCD display, Remote Emergency Power Off (REPO)
Expandable Battery Expandable
Frequency 50/60 hertz
Input Connector Type Power IEC 60320 C20
Input Voltage Range AC 176 - 276 / 100 - 276 V
Lead Acid Battery Features Maintenance free, Sealed
Load Type At full load
Output Connector Quantity 8
Output Connector Type Power IEC 60320 C13
Power Capacity 1000 volt ampere per kilogram
Power Factor (PF) 0.99
Power Output Connectors Details 8 x power IEC 60320 C13
Power Provided 900 watt
Provided Voltage AC 200/208/220/230/240 volt
Required Voltage AC 200/208/220/230/240 volt
Total Harmonic Distortion (THD) 3 percent
UPS Technology On-line
Voltage Provided Margin ± 1%
Battery Run Time (Up To) 7 minute (time unit)
Software
Software Type Eaton Intelligent Power Software Suite
Technical Information
Efficiency 92%
Form Factor (Power Device) Rack-mountable / external
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Sound Emission 40 decibel
Product Information
Packaged Quantity 1
Product Type UPS
Subcategory UPS
Included Items
Cables Power cable, Serial cable - external - 6 ft, USB cable - external
Included Accessories 4-post rail kit, Tower stand
Dimensions & Weight
Height 3.4 inch
Height (Rack Units) 2
Weight 38.58 lbs
Width 17.3 inch
Depth 17.7 inch
Physical Characteristics
Color Black, Silver
Color Category Black, Silver
Certifications & Listings
Compliant Standards ANSI C62.41, CISPR 22 Class B, FCC Part 15 Class B, IEC 62040-2 class B, RoHS
Energy Star Yes
ENERGY STAR Certified No
