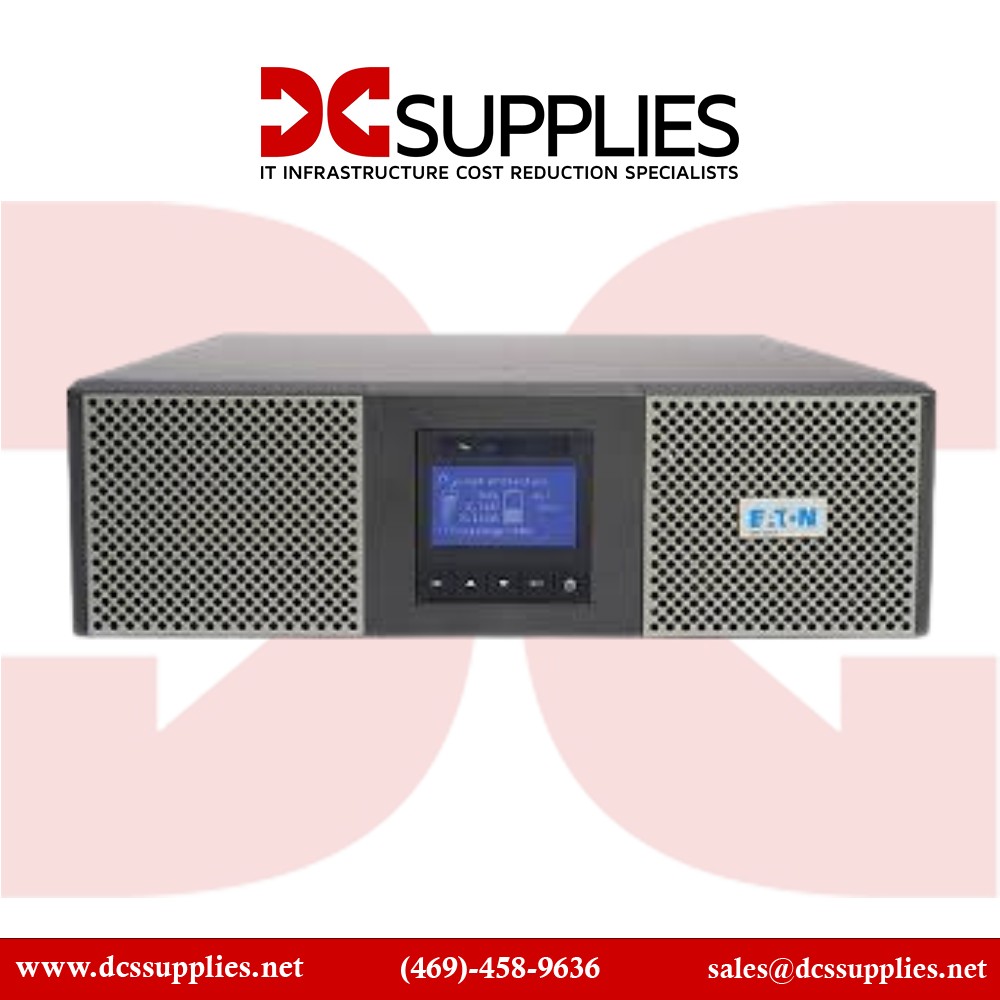

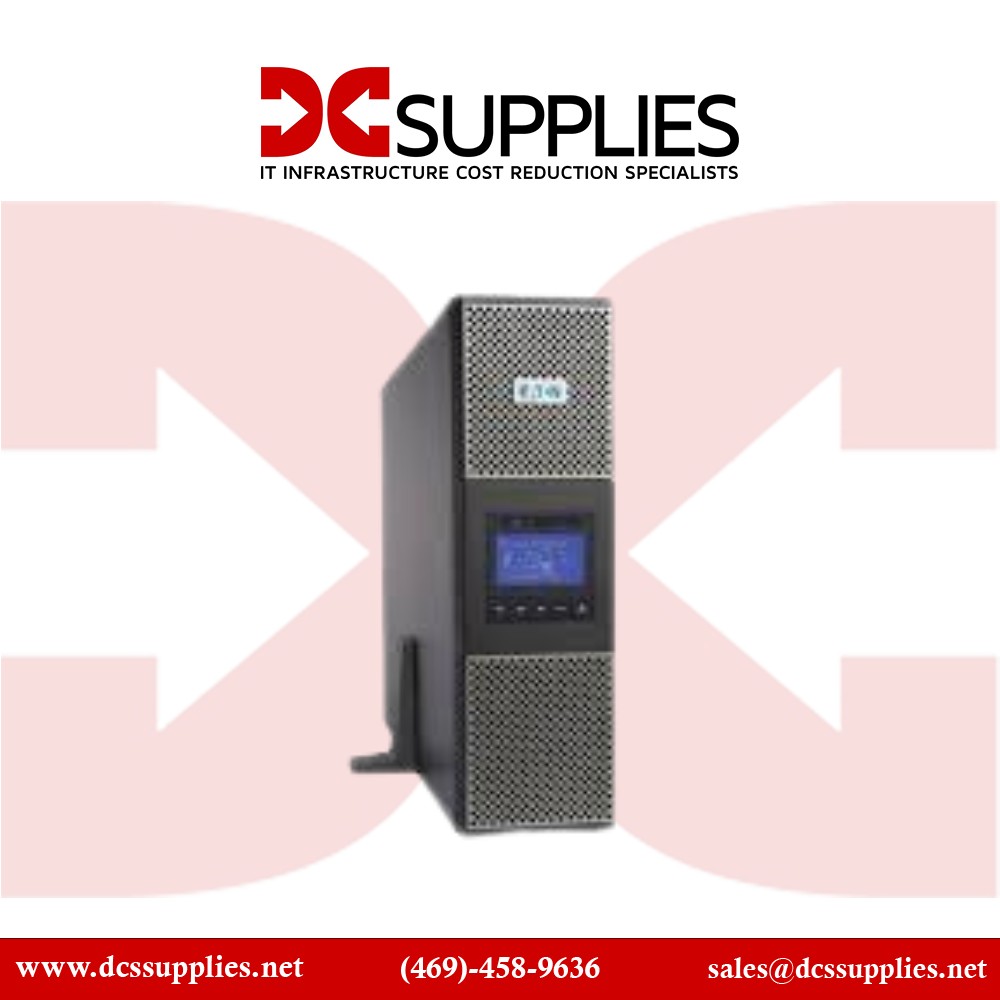

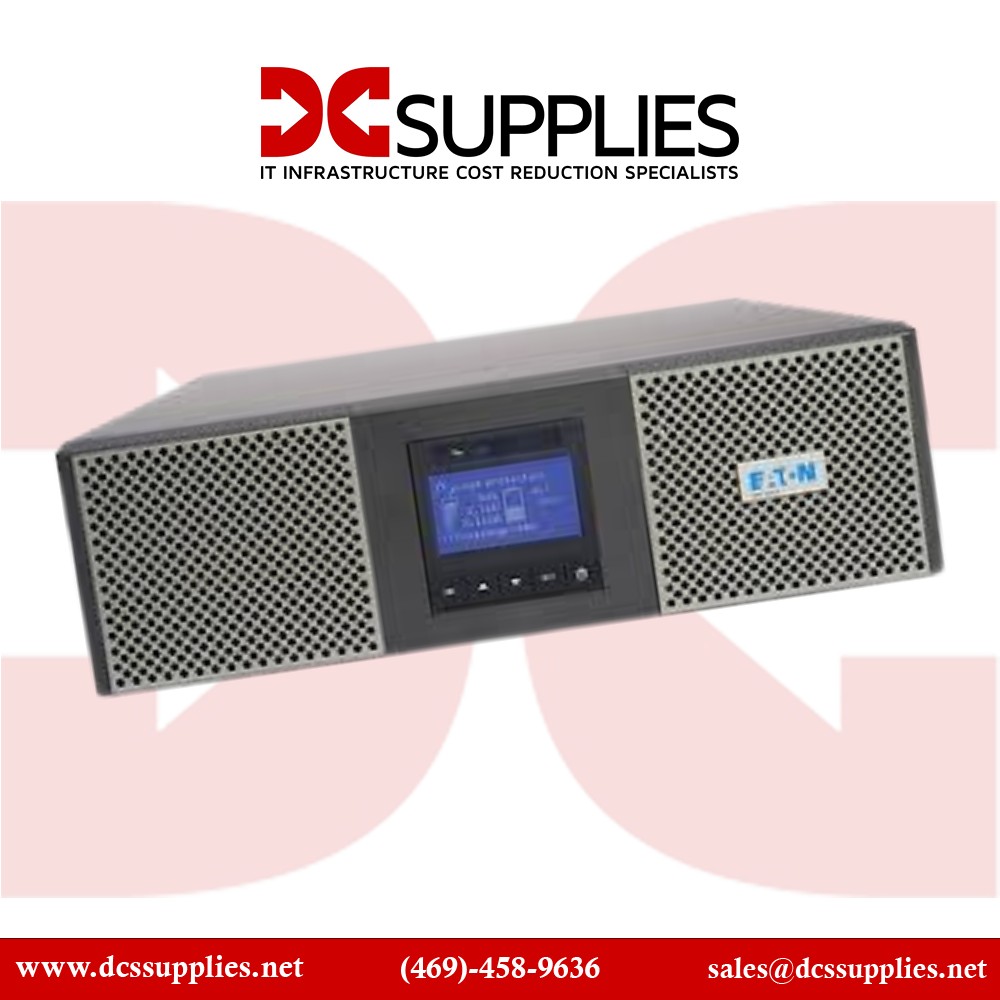

Eaton 9PX6K Online UPS 6000VA 5400W 208V 3U Rack/Tower Network Card Included View larger

Eaton 9PX6K 6000VA 208V Online UPS with Network Card

9PX6K

New

In Stock

Eaton 9PX6K 6000VA/5400W Online UPS with 208V input, 3U rack/tower form factor, and integrated network card
×




$4,799.00

Detailed Specifications

Eaton 9PX6K 6000VA 208V Online UPS with Network Card

Overview :

The Eaton 9PX6K is a powerful and reliable 6000VA/5400W Online UPS designed to provide continuous power protection for mission-critical applications. This UPS features double-conversion topology, ensuring clean and consistent power output regardless of input fluctuations. The 9PX6K operates with a 208V input and delivers the same voltage output, making it ideal for environments where stable power is essential. Its 3U rack/tower convertible form factor offers flexibility in installation, fitting seamlessly into both rack-mounted and standalone setups. The included network card allows for remote monitoring and management, enhancing control over power systems in data centers, server rooms, and network closets. With an intuitive LCD display, energy metering, and load segment control, the Eaton 9PX6K provides advanced functionality to optimize power management, reduce energy consumption, and ensure the longevity of your critical equipment.

Specifications :

Output power 5400 W
Input operation voltage (min) 176 V
Input operation voltage (max) 276 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Maximum current 20 A
Efficiency 93%
Power factor 0.9
Input current Total Harmonic Distortion (THD) 5%
Output power capacity 6 kVA
Input frequency 50/60 Hz
Cable length 72" (1.83 m)
AC outlets quantity 4 AC outlet(s)
AC outlet types NEMA L6-20R, NEMA L6-30R
USB 2.0 ports quantity 1
RS-232 ports 1
UPS topology Double-conversion (Online)
LED indicators Yes
Noise level 45 dB
UPS topology Double-conversion (Online)
Output power 5400 W
Input operation voltage (min) 176 V
Input operation voltage (max) 276 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Maximum current 20 A
Efficiency 93%
Power factor 0.9
Noise level 45 dB
Input current Total Harmonic Distortion (THD) 5%
Output power capacity 6 kVA
Input frequency 50/60 Hz
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at half load 7 min
Typical backup time at full load 3 min
Hot-swap battery Yes
Cold start Yes
