Tripp Lite B126-004 4-Port HDMI over Cat5 6 Extender Splitter TAA GSA View larger

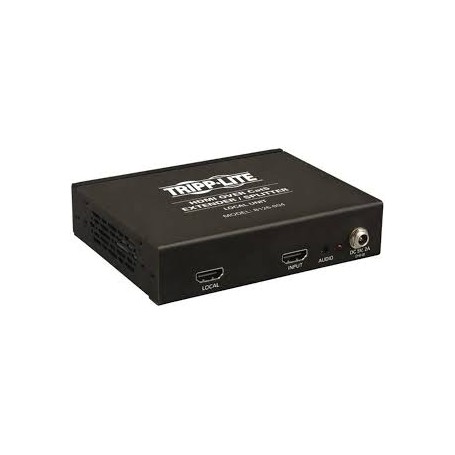

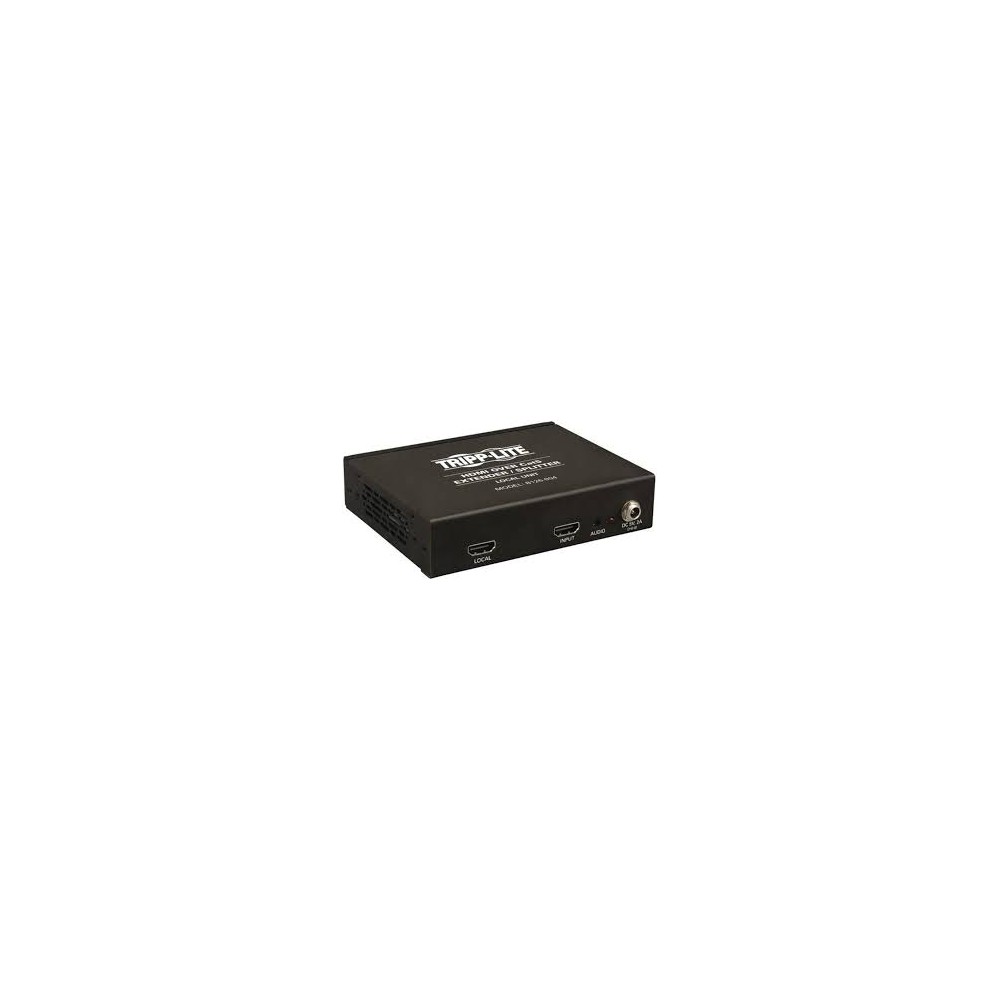

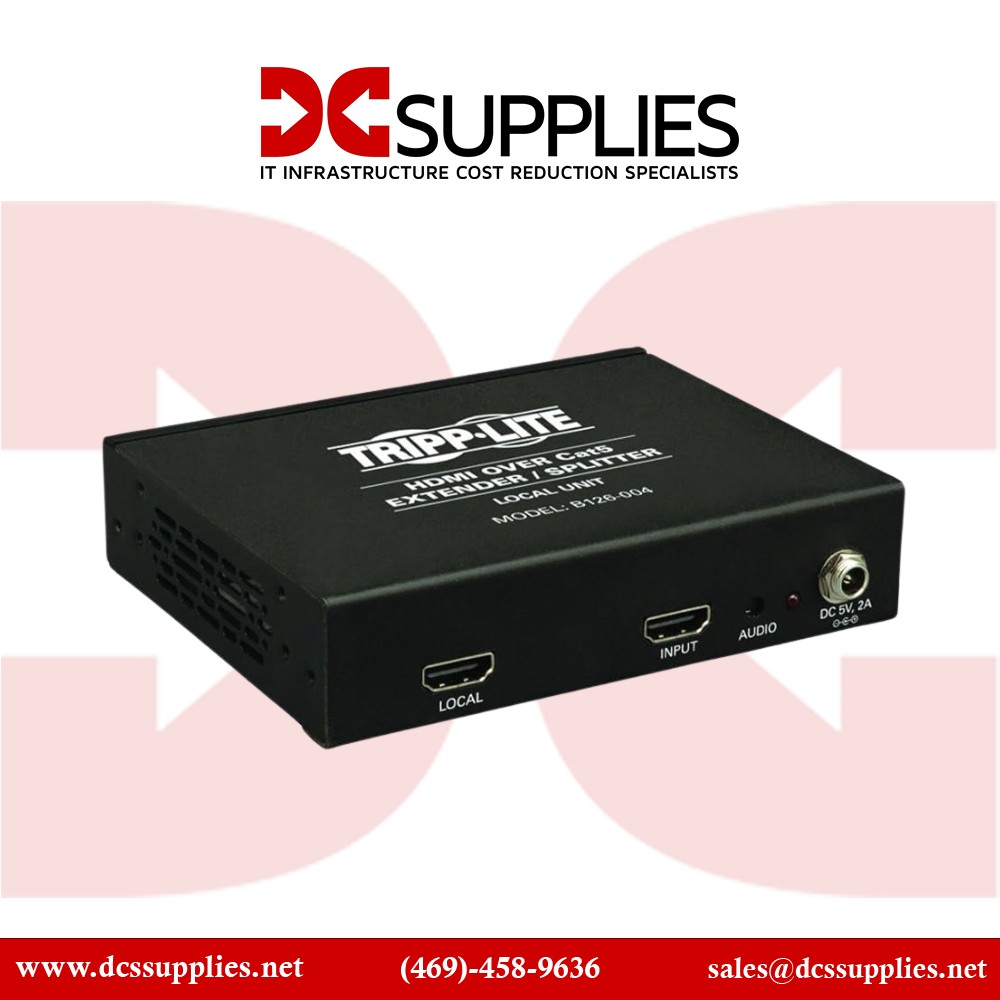

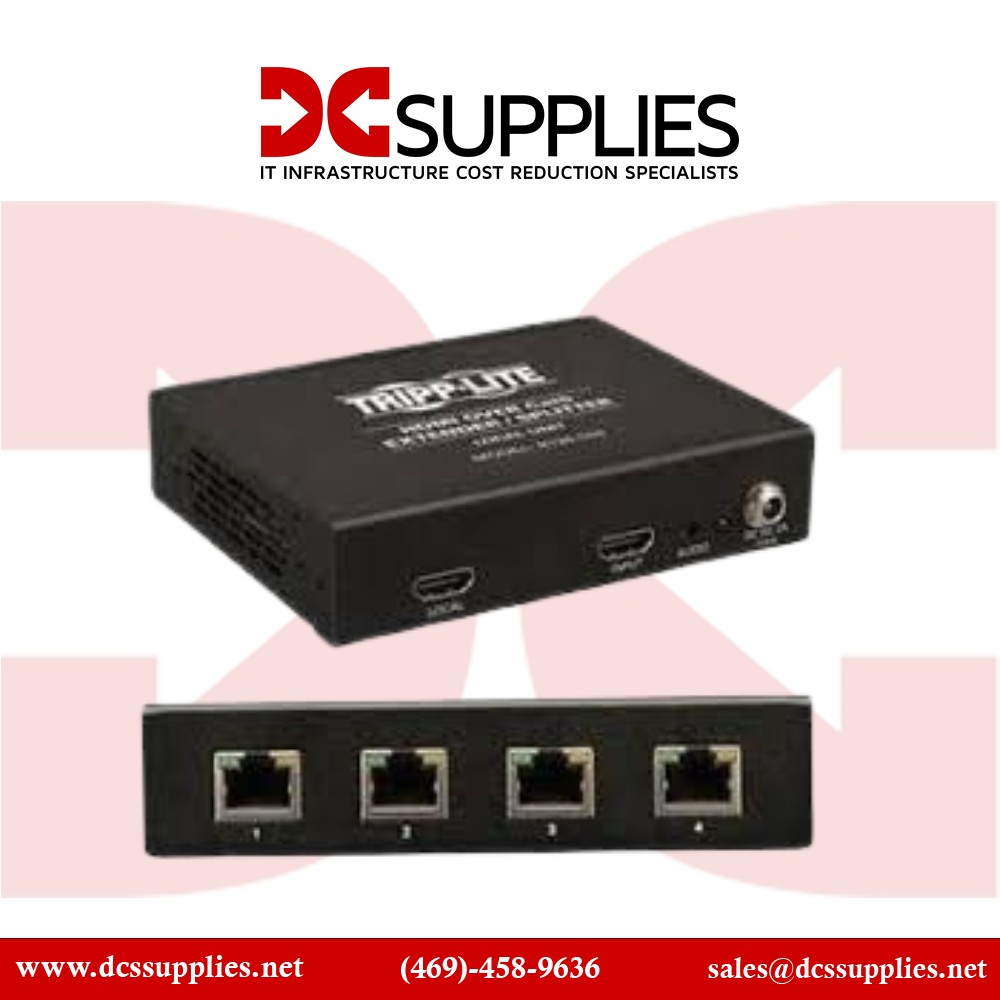

Tripp Lite B126-004 4-Port HDMI over Cat5/6 Extender Splitter TAA GSA

B126-004

New

In Stock

Tripp Lite B126-004 4-Port HDMI over Cat5/6 Extender Splitter, HD video, TAA compliant
×




$249.99

Detailed Specifications

Tripp Lite B126-004 4-Port HDMI over Cat5/6 Extender Splitter TAA GSA

Overview :

The Tripp Lite B126-004 is a 4-Port HDMI over Cat5 Extender that transmits high-definition 1080p video signals to up to 4 displays over Cat5 cables. It’s perfect for conference rooms, classrooms, or retail displays where long-distance signal transmission is required. The extender supports up to 200 feet of cable length and maintains top video quality without degradation, making it an essential solution for reliable HDMI distribution.

Key Features :

  • 4-Port HDMI Extender: Supports up to 4 displays over Cat5/Cat6 cables.
  • 1080p Resolution: Maintains Full HD video quality over long distances.
  • 200 ft Transmission Distance: Extend signals up to 200 feet without degradation.
  • Plug-and-Play: Easy installation with no software required.
  • Compatible with HDMI Devices: Works with all HDMI-equipped devices like Blu-ray players, computers, and gaming consoles.
  • LED Indicators: Provide clear status updates on connection and performance.
  • Supports Daisy-Chaining: For extended range, multiple extenders can be linked.
  • HDCP Compliant: Ensures seamless compatibility with protected content.

Technical Specifications :

SpecificationDetails
Product Type HDMI Over Cat5 Extender
Part Number B126-004
Brand Tripp Lite
Max Video Resolution 1080p (1920x1080)
Number of Ports 4 Output Ports
Transmission Distance Up to 200 ft (60m)
Supported Cable Type Cat5, Cat5e, Cat6
HDMI Version HDMI 1.3
HDCP Compliance Yes
Video Bandwidth 6.75 Gbps
Power Source External Power Supply (Includes Power Adapter)
Operating Temperature Range 32°F to 122°F (0°C to 50°C)
Operating Humidity 10% to 85%, Non-Condensing
Dimensions 5 x 2.5 x 1 inches
Weight 0.5 lbs
