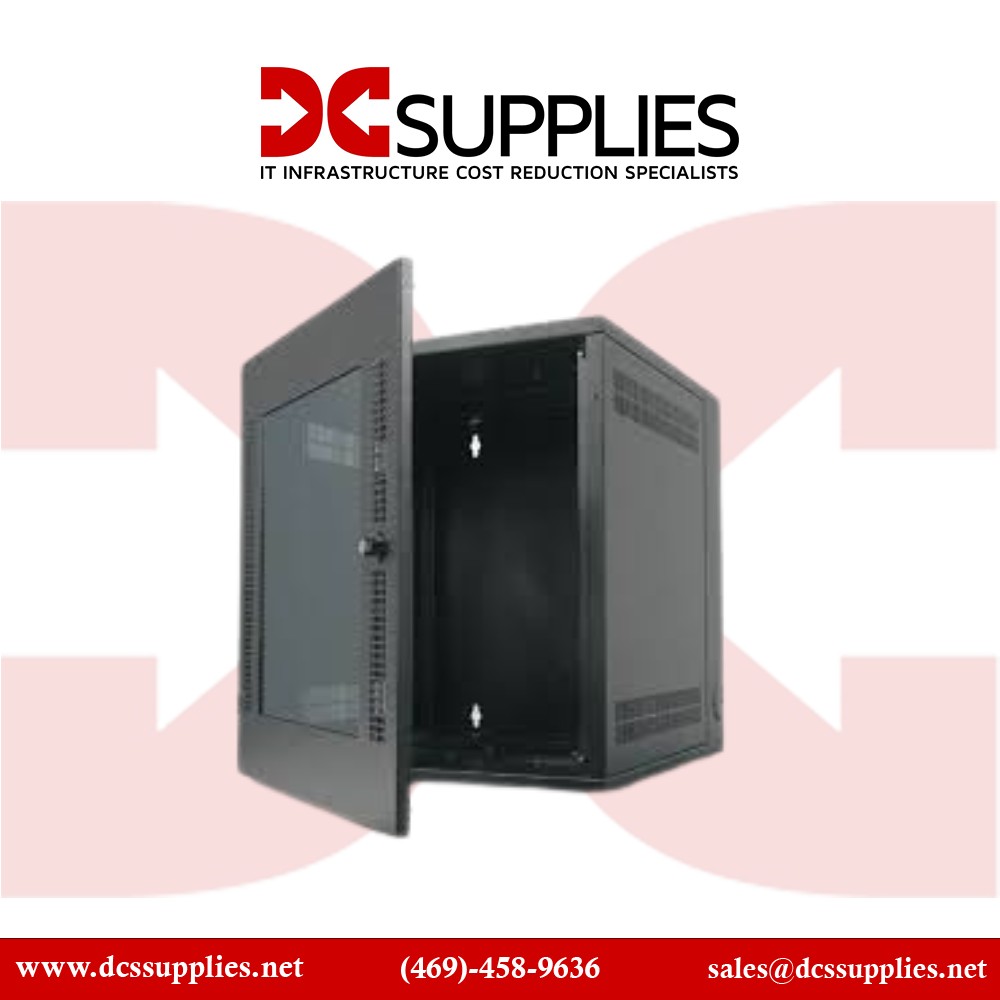

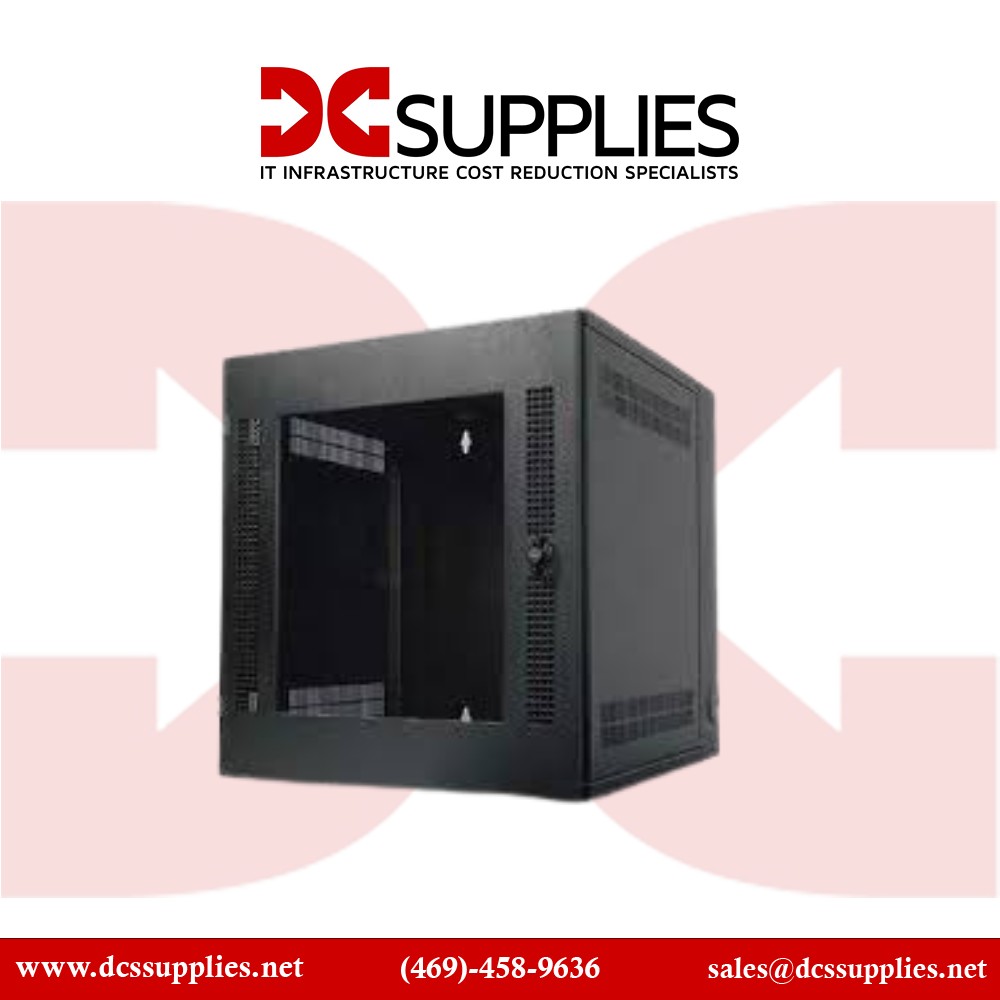

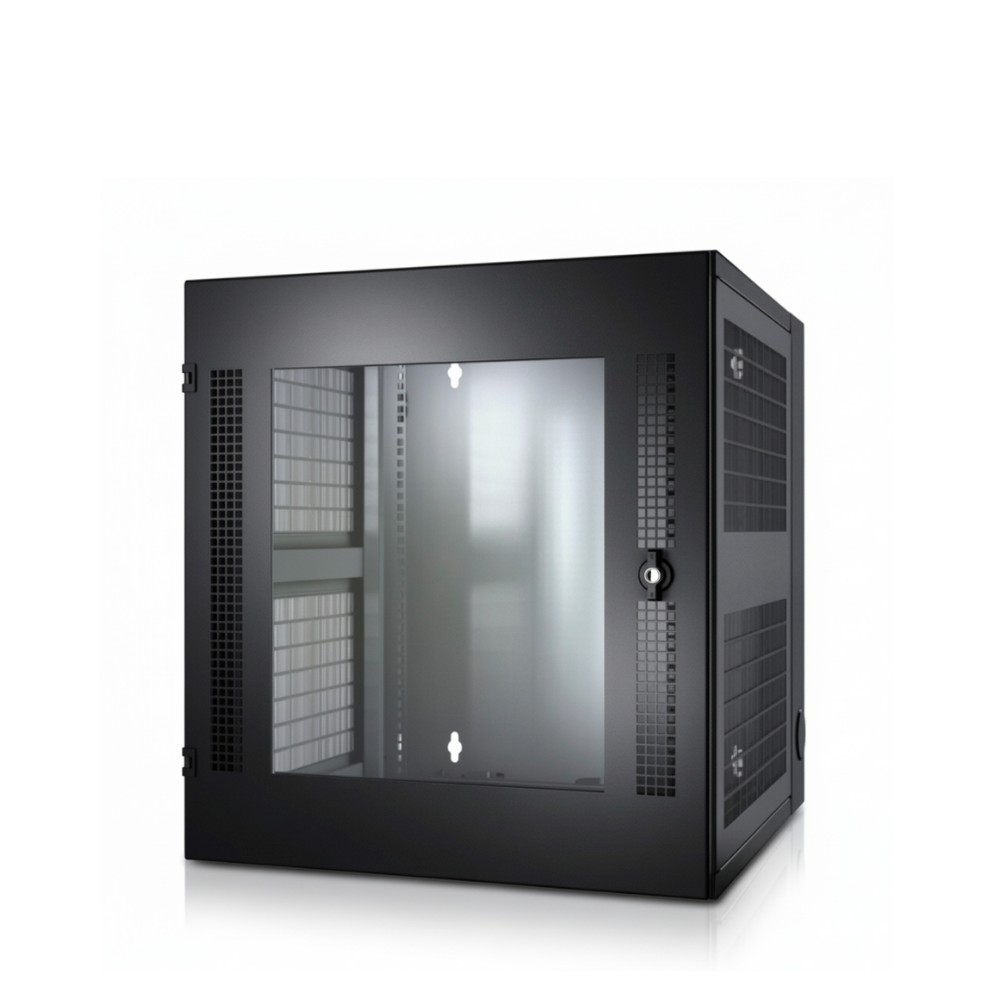

APC AR100 13U Wall-Mount Enclosure Rack Cabinet View larger

APC AR100 13U Wall-Mount Enclosure Rack Cabinet

AR100

New

Apc 13U wallmount rack cabinet with glass door and double-hinged design
×




Detailed Specifications

APC AR100 NetShelter 13U Wallmount Rack Cabinet Glass Door Double Hinged Server Depth

Overview :

The APC AR100 NetShelter 13U Wallmount Rack Cabinet is a space-saving solution designed for networking and server applications. Featuring a double-hinged design, it provides easy rear access to equipment, making maintenance simple.Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, glass door, 5 year APC warranty.

Key Features :

  • 13U Capacity: Ideal for mounting servers, switches, and networking equipment.
  • Double-Hinged Design: Enables rear access for convenient maintenance.
  • Glass Door: Enhances visibility while protecting internal components.
  • Server Depth: Accommodates deeper IT hardware for maximum compatibility.

Specifications :

SpecificationDetails
Part Number AR100
Brand APC
Product Type 13U Wall Mount Cabinet
Number of Rack Units 13U
Maximum Mounting Depth 19.00 in (48.26 cm)
Rack Width 19"
Permanent Load Capacity 200 lb (90.7 kg) static
Color Black
Dimensions (H x W x D) 26.10 in x 22.99 in x 24.84 in (66.3 cm x 58.4 cm x 63.1 cm)
Net Weight 94.20 lb (42.73 kg)
Material Marking 16 gauge EIA mounting rail, front door, post; 13 gauge rear door; 18 gauge roof, side panels
Certifications & Standards EIA-310E
GTIN 731304111429
Package Dimensions (H x W x L) 32.99 in x 27.01 in x 30.51 in (83.8 cm x 68.6 cm x 77.5 cm)
Package Weight 114.99 lb (52.16 kg)
