HPE JY681A AP-303H 802.11ac 1.24Gbps Wireless Access Point View larger

HPE JY681A AP-303H 802.11ac 1.24Gbps Wireless Access Point

JY681A

New

HPE JY681A AP-303H: 802.11ac wireless access point with 1.24Gbps speed and TAA compliance
×




Detailed Specifications

HPE JY681A Wireless Access Point

Overview :

The multi-functional Wave 2 303H access point delivers best-in class Wi-Fi connectivity for hospitality and branch offices, enabling an always-on user experience with low Total Cost of Ownership (TCO).

With a maximum concurrent data rate of 867Mbps in the 5GHz band and 400Mbps in the 2.4GHz band, the 303H AP delivers high-performance Gigabit Wi-Fi for hospitality and branch environments at an attractive price point. It supports multi-user MIMO MU-MIMO) and 2 spatial streams (2SS) to provide simultaneous data transmission for up to 2 devices, maximizing data throughput and improving network efficiency.

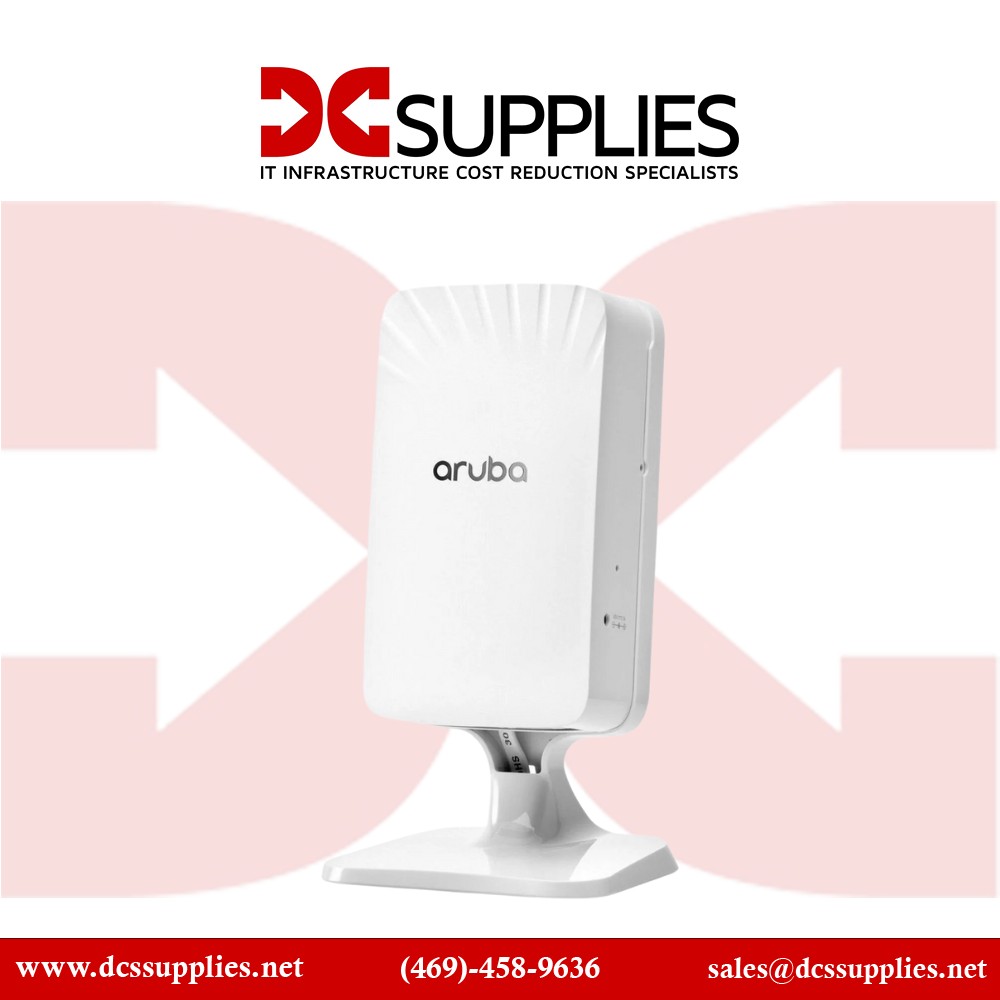

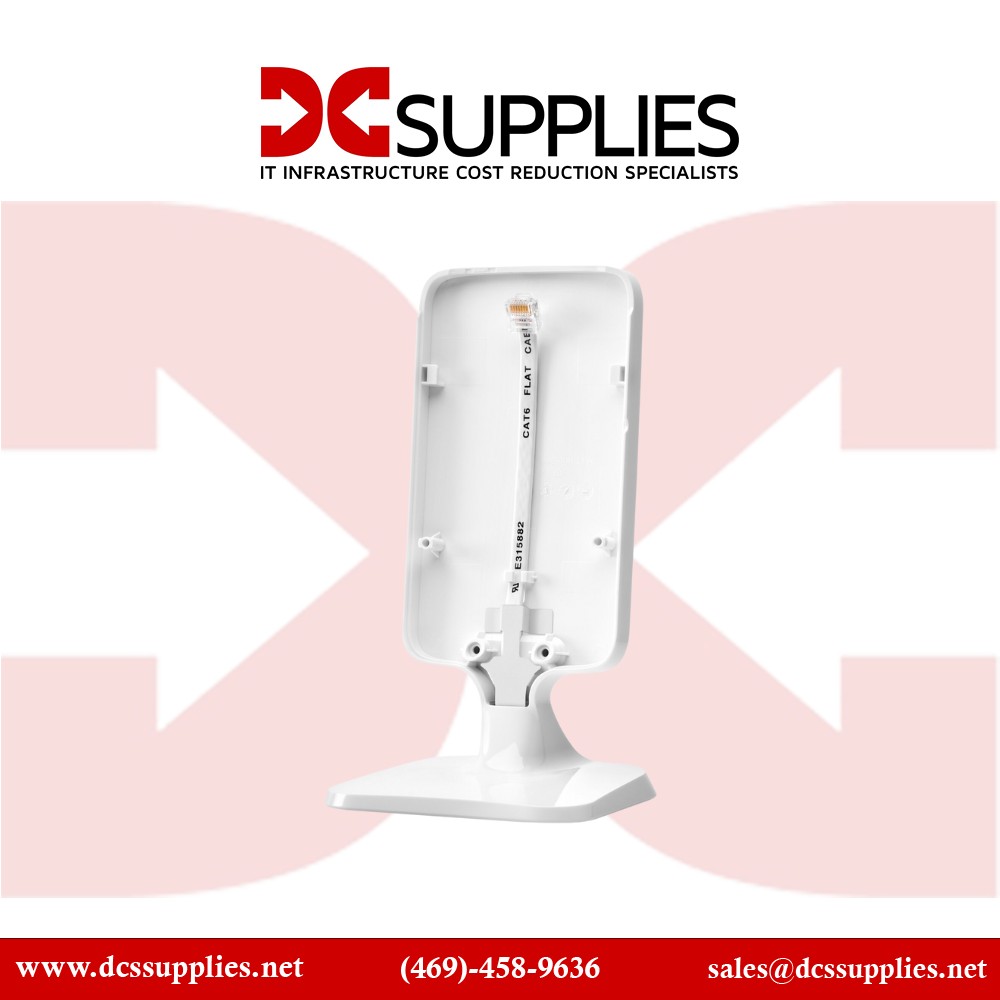

The 303H AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit. It is ideal for schools (dormitories, classrooms), hotels, medical clinics, branch offices and remote workstations which often require flexible and easy deployment options.

Specifications :

Product Name Aruba AP-303H (US) FIPS/TAA Dual-radio 802.11ac 2x2 Unified Hospitality AP with Int
Manufacturer Part Number JY681A
Product Type Wireless Access Point
Frequency Band 5 GHz

2.40 GHz
Wireless LAN Standard IEEE 802.11ac
Ethernet Technology Gigabit Ethernet
USB Yes
Number of Network (RJ-45) Ports 6
PoE (RJ-45) Port Yes
Total Number of Antennas 2
TAA Compliant Yes
Wireless Transmission Speed 1.24 Gbit/s
Form Factor Wall Mountable

Desktop
HDMI No
VGA No
Powerline No
Management Port Yes
Number of Internal Antennas 2
MIMO Technology Yes
Beamforming Technology Yes
PoE PD Port Yes
Height 5.9"
Width 3.4"
Depth 1.6"
Product Model AP-303H
