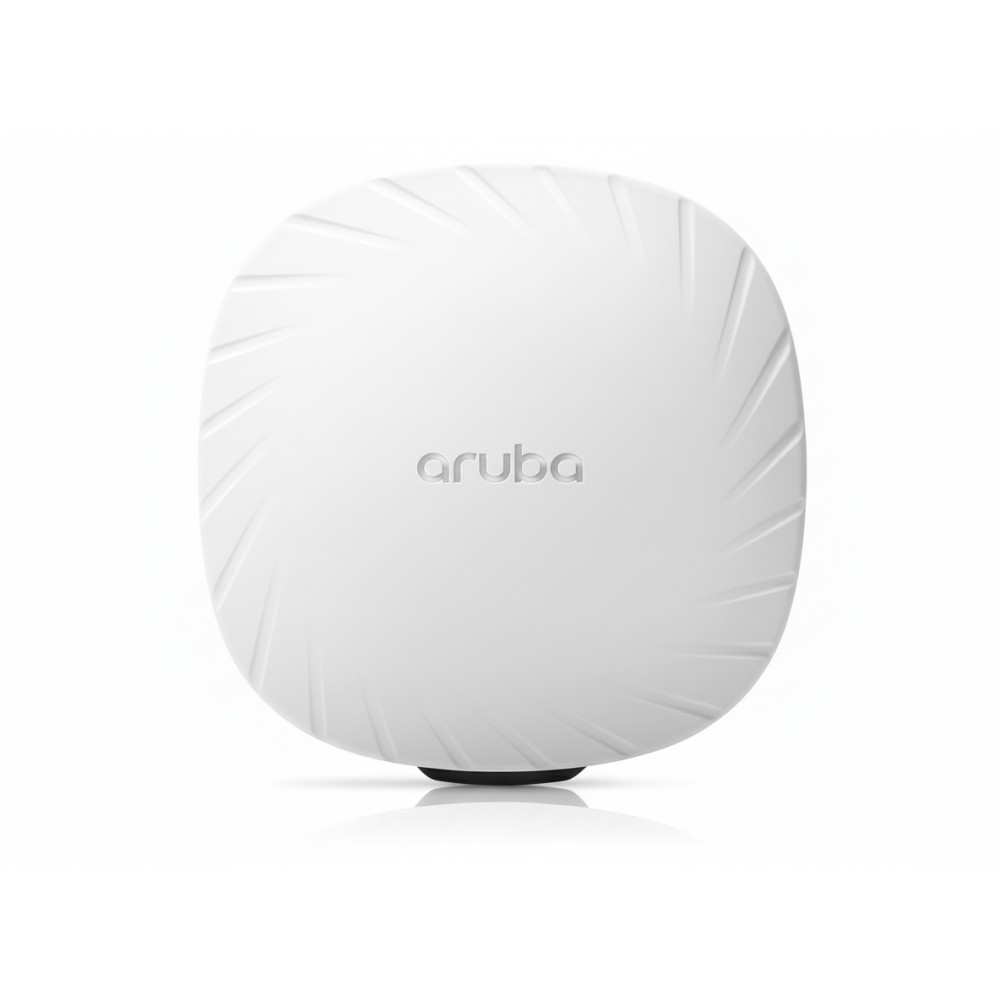

HPE Aruba S1E84A Ap-503 Networking Wireless Access Point View larger

HPE Aruba S1E84A Ap-503 Networking Wireless Access Point

S1E84A

New

In stock

HPE Aruba S1E84A AP-503 Networking Wireless Access Point
×




$4,558.00

Detailed Specifications

HPE Aruba S1E84A Wireless Access Point

Overview :

The Aruba 503 Series Access Points (APs) provide cost effective, high-performance connectivity for any organization experiencing device growth due to increased mobility, the shift to cloud, or IoT. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), the 503 Series deliver the speed and reliability needed for medium-density venues and workplaces such as schools, midsize offices, and retailers. Each 503 Series AP provides connectivity for a maximum of 256 associated clients per radio (512 in total). The 503 Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

This capability allows Aruba's APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that multiple clients are sharing a channel and not competing for airtime and bandwidth.

Specifications :

Product Name HPE Aruba Networking Ap-503-US10 PL-VL
Manufacturer Part Number S1E84A
Product Type Wireless Access Point
Network Band Dual Band
Frequency Band 2.40 GHz, 5 GHz
Antenna Form Factor Internal
Wireless LAN Standard IEEE 802.11ax
Bluetooth Standard Bluetooth 5
Ethernet Technology Gigabit Ethernet
USB Yes
Number of Network (RJ-45) Ports 1.0
Product Family 503
Indoor / Outdoor Indoor
Wireless Transmission Speed 1.49 Gbit/s
Form Factor Ceiling Mountable, Rail-mountable
Encryption Standard WPA, WPA2, WPA3, WPA2-MPSK, WPA3-ENT, WPA3-SAE
USB Standard USB 2.0
Management Port Yes
Data Encryption Yes
MIMO Technology Yes
Beamforming Technology Yes
PoE PD Port Yes
Height 1.4"
Width 5.7"
Depth 5.7"
Product Series 503
Product Model AP-503
Power Consumption 10.90 W
