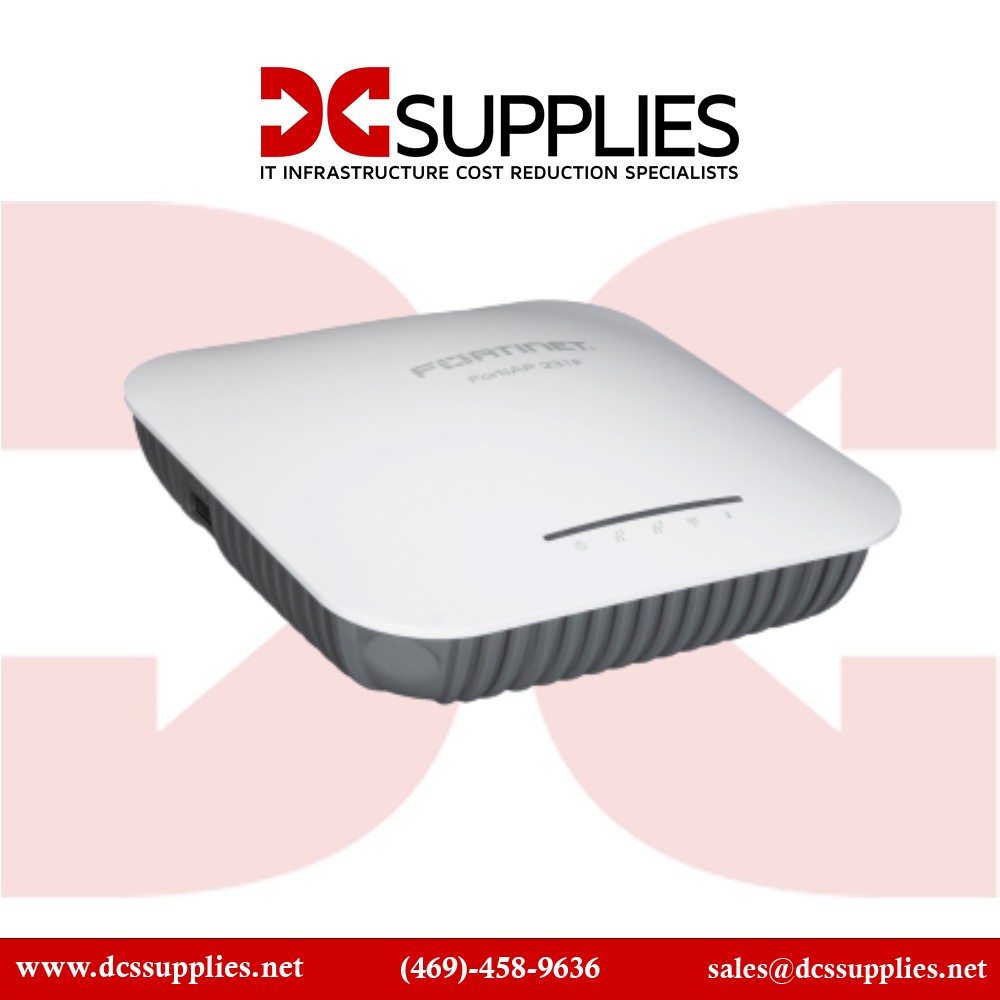

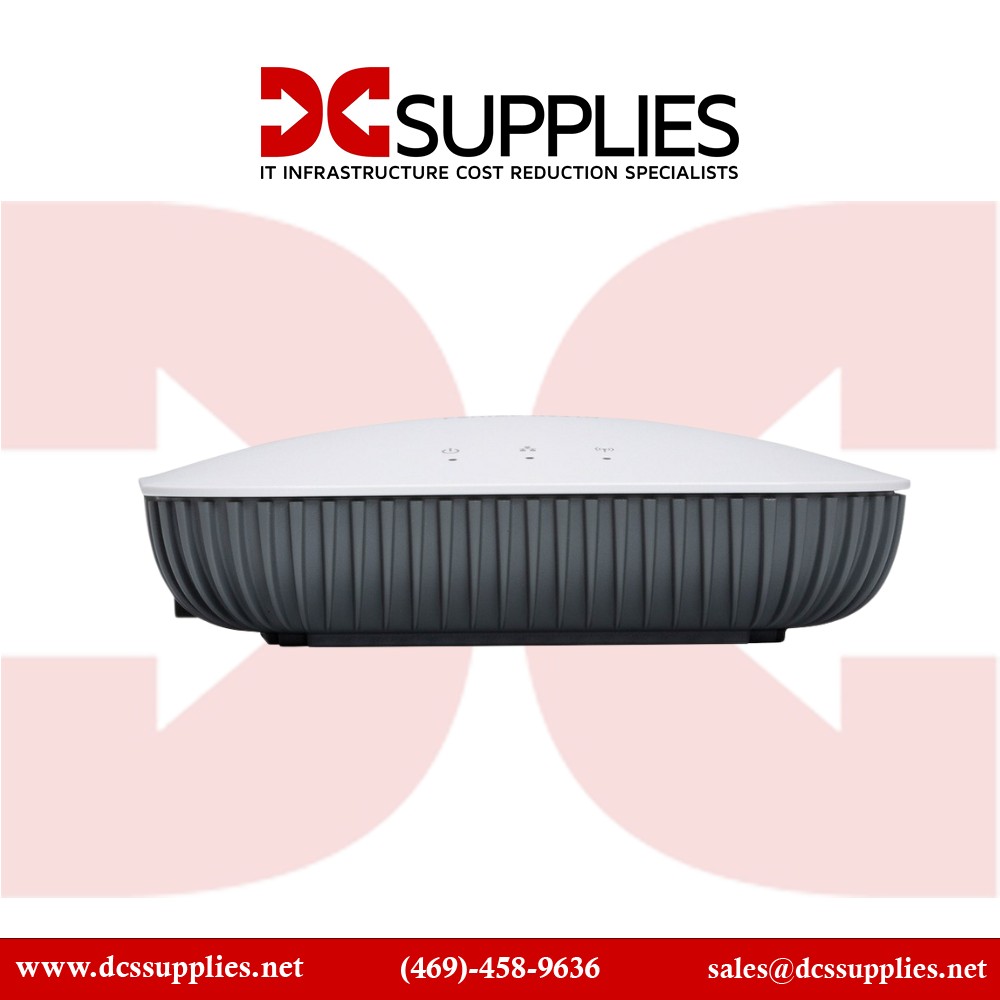

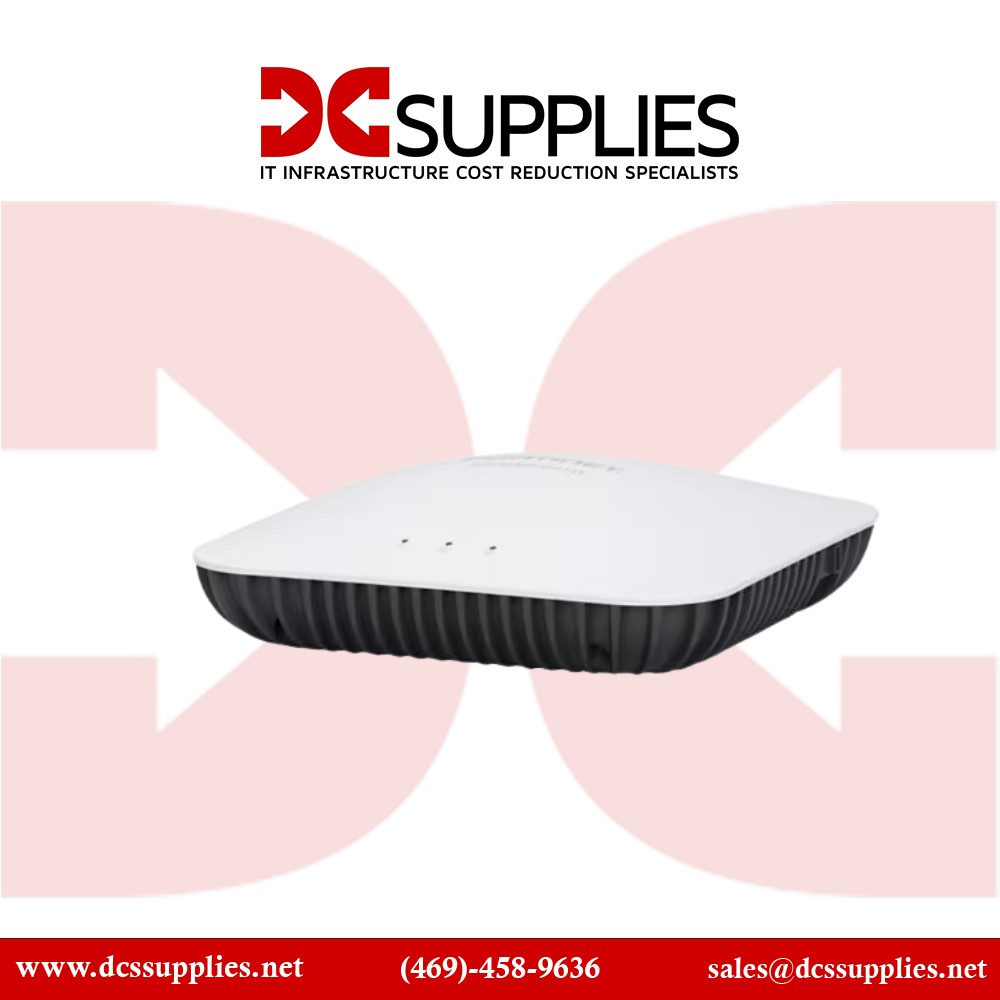

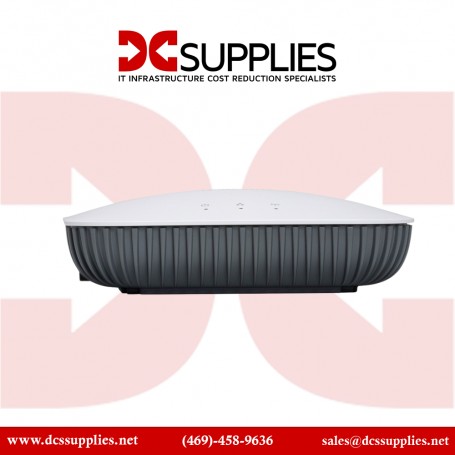

Fortinet FAP-231G-A Wi-Fi Wireless Access Point Tri Band View larger

Fortinet FAP-231G-A Wi-Fi Wireless Access Point Tri Band

FAP-231G-A

New

Wi-Fi-6E IEEE 802.11ax Tri-band 2.4/5/6GHz and dual 5G operation 2+2+2 2 streams 3 radios, 1x10/100/1000 RJ45, 1x 100/1000/2500...

×




$274.00

Detailed Specifications

Overview :

FortiLAN Cloud- or FortiGate-Managed Access Points

FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiLAN Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Singlepane-of-glass management console and protects your network from the latest security threats.

Specifications :

Data transmission
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate 2401 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Spread spectrum method OFDMA
Frequency band 2.400–2.4835, 5.150 - 5.850, 6.425 - 7.125
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Channel bandwidth 40 MHz
Maximum data transfer rate 2401 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Wireless LAN features
Frequency band 2.400–2.4835, 5.150 - 5.850, 6.425 - 7.125
Network
Spread spectrum method OFDMA
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz
Bandwidth
Channel bandwidth 40 MHz
Security
Cable lock slot Yes
Security algorithms EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SSID, WEP, WPA, WPA2, WPA3
Wireless Intrusion Detection System (WIDS) Yes
Features
6 GHz Yes
2.4 GHz Yes
5 GHz Yes
Spread spectrum method OFDMA
Frequency band 2.400–2.4835, 5.150 - 5.850, 6.425 - 7.125
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Channel bandwidth 40 MHz
Maximum data transfer rate 2401 Mbit/s
Tunnel forwarding Yes
MIMO type Multi User MIMO
MIMO Yes
Maximum data transfer rate (2.4 GHz) 574 Mbit/s
Maximum data transfer rate (5 GHz) 1201 Mbit/s
Fit AP mode features Mesh networking
Maximum data transfer rate (6 GHz) 2401 Mbit/s
Bluetooth Low Energy (BLE) Yes
Management features
Local AP management Serial port
Ports & interfaces
RS-232 interface Yes
USB connector type USB Type-A
Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) Yes
Design
Placement Ceiling, Wall
Product colour White, Black
LED indicators Yes
Cable lock slot Yes
Cable lock slot type Kensington
Antenna
Antenna type Internal
Technical details
Compliance certificates CE, RoHS
Indication
LED indicators Yes
Software
Tunnel forwarding Yes
Local AP management Serial port
Weight & dimensions
Width 7.18" (182.4 mm)
Depth 7.18" (182.4 mm)
Weight 28.2 oz (800 g)
Height 2.13" (54 mm)
Package weight 3.09 lbs (1.4 kg)
Packaging data
Mounting kit Yes
Package weight 3.09 lbs (1.4 kg)
AC adapter included Yes
Packaging content
Mounting kit Yes
AC adapter included Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -30 - 70 °C
Storage relative humidity (H-H) 5 - 90%
