Fortinet FAP-U231F-A Forti AP Indoor Bluetooth wireless access point WiFi 6 View larger

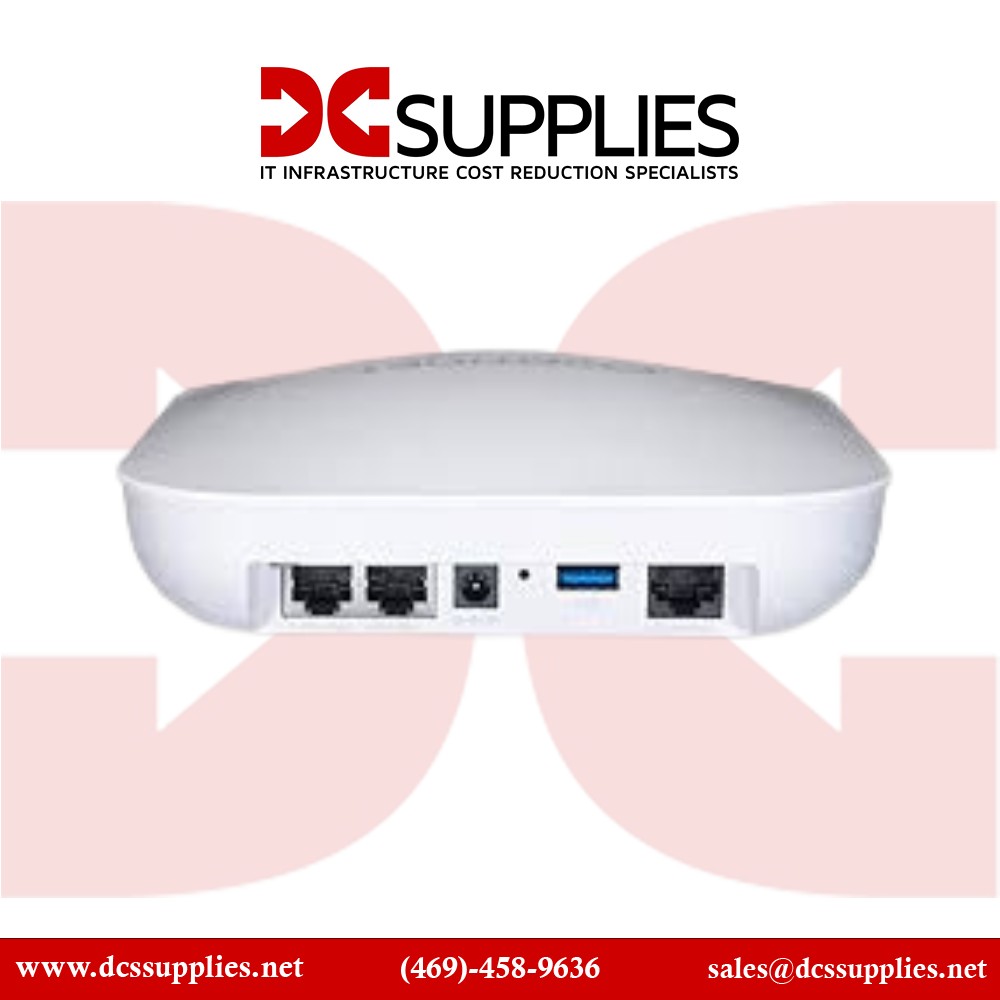

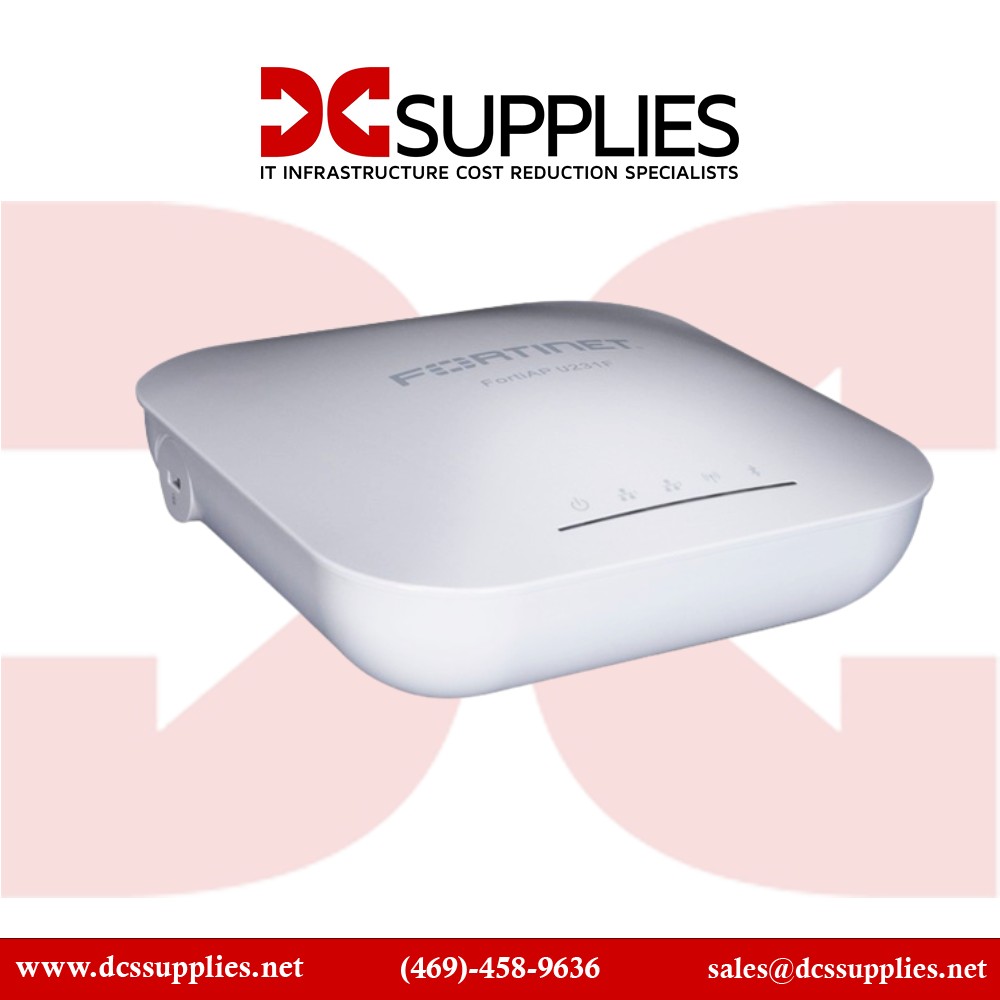

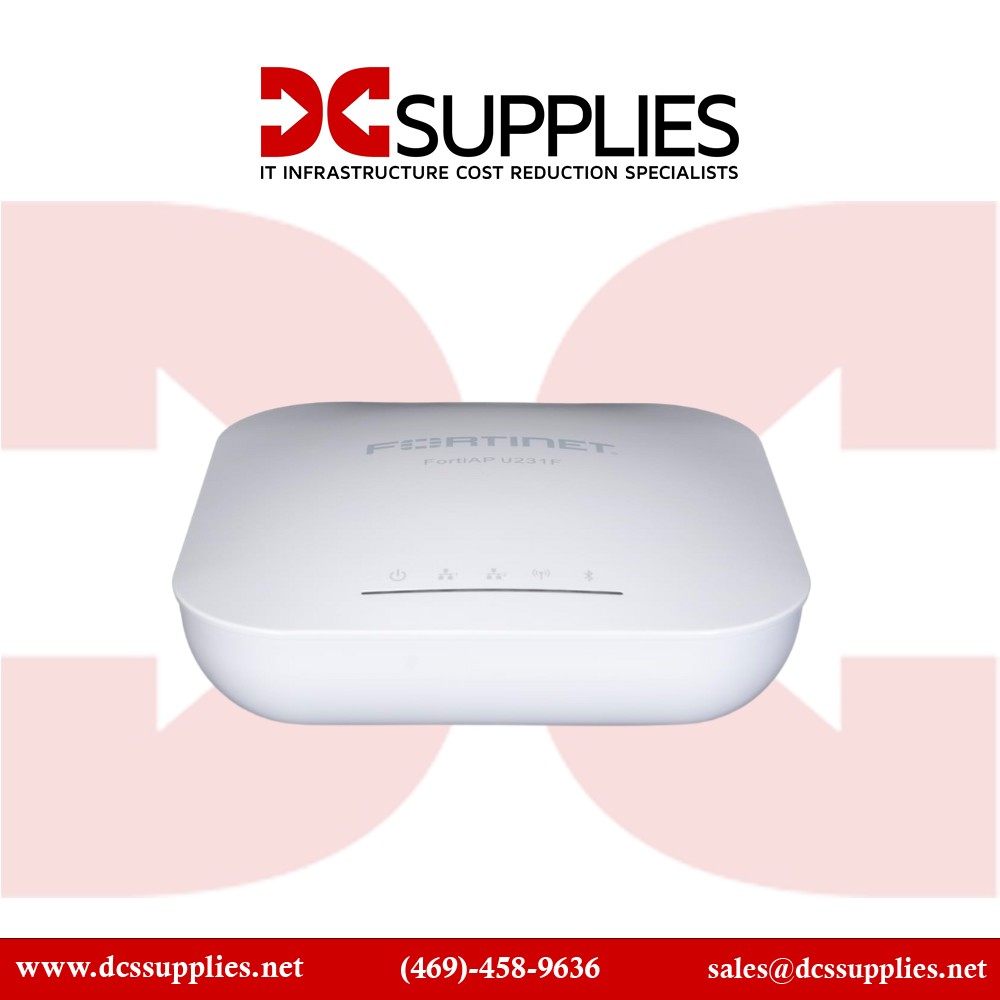

Fortinet FAP-U231F-A Forti AP Indoor Bluetooth wireless access point WiFi 6

FAP-U231F-A

New

The Fortinet FAP-U231F-A is a high-performance indoor access point with Bluetooth connectivity
×




Detailed Specifications

Fortinet FAP-U231F-A Wireless Access Point

Overview :

The Fortinet FAP-U231F-A is an advanced WiFi 6 (802.11ax) indoor access point designed to deliver high-speed, reliable wireless connectivity for offices, campuses, retail stores, and enterprise networks. Featuring dual-band MU-MIMO technology, this AP ensures efficient bandwidth management, reduced latency, and seamless connectivity for multiple devices. The built-in Bluetooth Low Energy (BLE) radio enhances IoT and location-based services, making it ideal for modern smart environments. Integrated Fortinet Security Fabric support ensures secure, scalable, and easily managed deployments. This enterprise class Wi-Fi 6 (802.11ax) indoor AP provides three radios as well as features such as OFDMA and dual 1 Gbps Ethernet ports for PoE diversity. The APs can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.

Specifications :

Brand Fortinet
Product Name Universal Indoor Wireless Ap 3 Radio 2XRJ45 802.3AT
Manufacturer Part Number FAP-U231F-A
Product Type Wireless Access Point
Network Band Dual Band
Frequency Band 2.40 GHz, 5 GHz
Antenna Form Factor Internal
Wireless LAN Standard 802.11ax
Ethernet Technology Gigabit Ethernet
USB Yes
Number of Network (RJ-45) Ports 2
Product Family Forti AP
PoE (RJ-45) Port Yes
Total Number of Antennas 5
Indoor / Outdoor Indoor
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Wireless Transmission Speed 2.91 Gbit/s
Form Factor Wall Mountable, Ceiling Mountable, T-bar Mount
Environmentally Friendly Yes
Encryption Standard WPA, WPA2, WPA3, WEP, WPA-PSK, WPA2-PSK, WPA3-PSK
Management Port Yes
Number of Internal Antennas 5
Data Encryption Yes
MIMO Technology Yes
Beamforming Technology Yes
PoE PD Port Yes
Country of Origin Taiwan
Product Model U231F
Power Consumption 18.50 W
Product Line Forti AP
