Fortinet FAP-432F-N FortiAP 432F Mbps PoE Wireless Access Point View larger

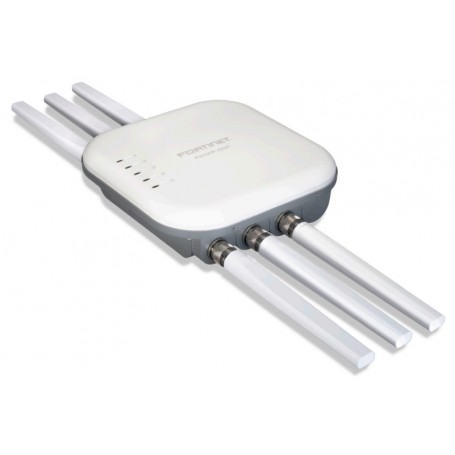

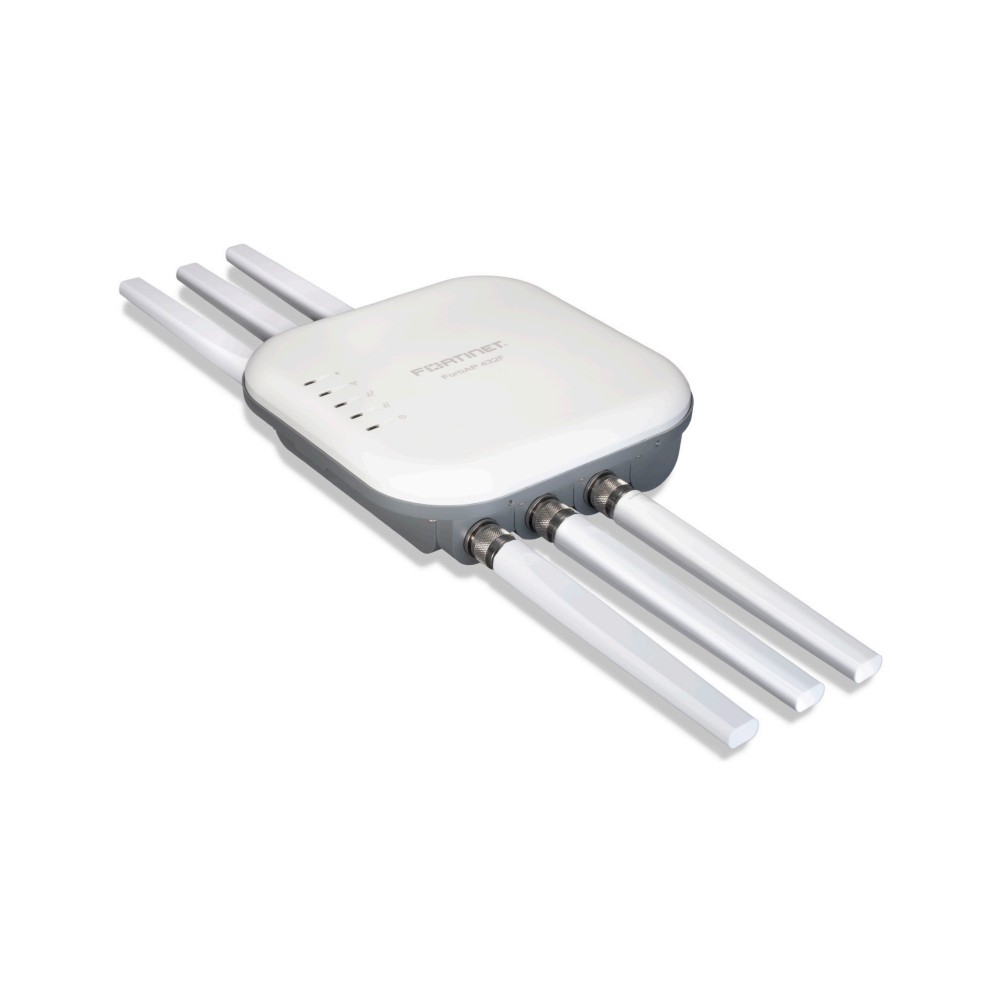

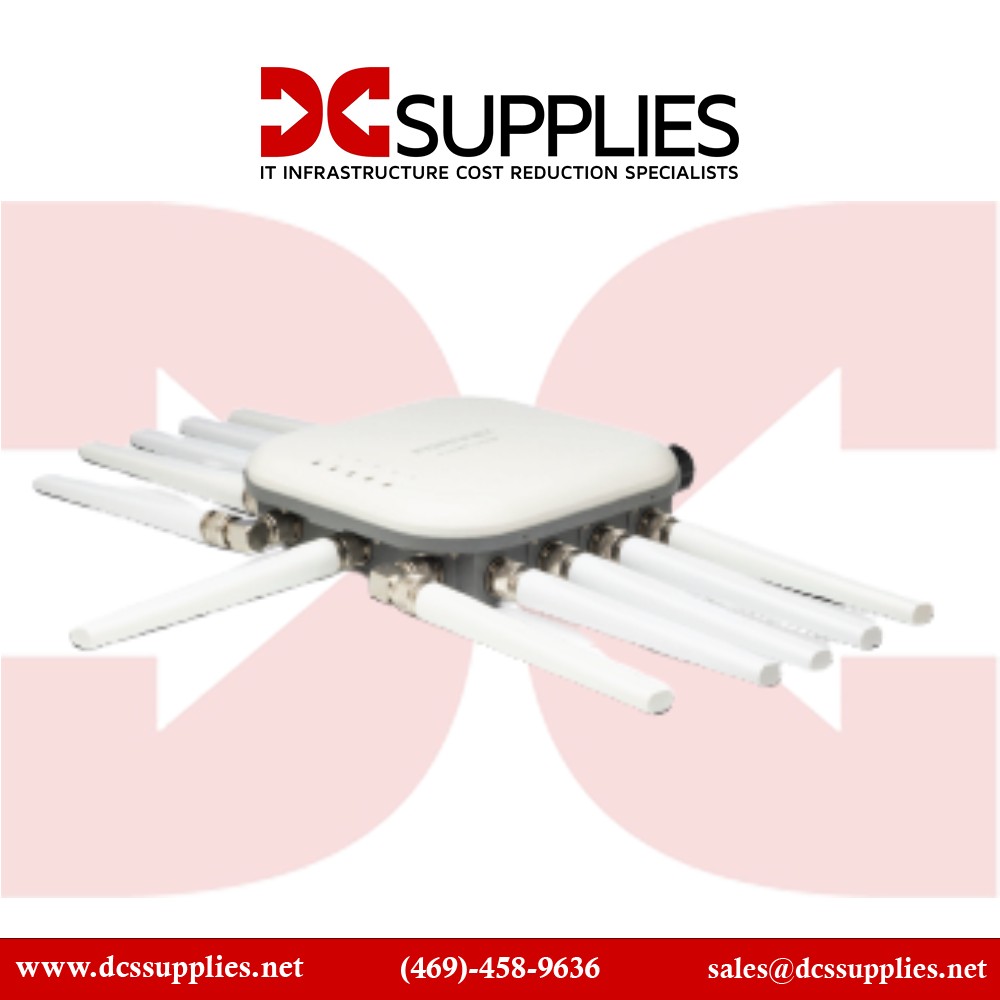

Fortinet FAP-432F-N FortiAP 432F Mbps PoE Wireless Access Point

FAP-432F-N

New

High-performance Fortinet FortiAP 432F wireless access point with PoE
×




Detailed Specifications

Fortinet FAP-432F-N FortiAP 432F Mbps PoE Wireless Access Point

Overview :

This enterprise class 802.11ax ruggedized indoor/outdoor AP provides three radios. As a top-of-the-line Wi-Fi 6 access point it provides OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port with PoE out. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.

The Fortinet FAP-432F-N FortiAP 432F is a high-performance wireless access point designed to deliver reliable and secure connectivity for demanding environments. Supporting speeds up to 2402 Mbps and equipped with Power over Ethernet (PoE), this access point simplifies deployment while ensuring seamless integration with Fortinet’s security-driven networking framework. The white, sleek design complements any professional setting, and advanced features like Wi-Fi 6 support and enhanced security protocols make it ideal for offices, schools, and large enterprises. Boost your network's performance and reliability with this versatile solution.

Specification :

SpecificationDetails
Brand Fortinet
Part Number FAP-432F-N
Product Type Wireless Access Point
Maximum Data Transfer Rate 2402 Mbps
Ethernet LAN Data Rates 100/1000/2500 Mbps
Channel Bandwidth 160 MHz
MIMO Support Yes, Multi-User MIMO
Modulation 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK
Ports 2x Ethernet LAN (RJ-45), 1x RS-232
PoE Support Yes
Power Consumption (Typical) 25 W
Placement Options Ceiling, Wall
Color White
Antenna Type External, Max Gain: 7.2 dBi
Maximum Data Rate (2.4 GHz) 1147 Mbps
Maximum Data Rate (5 GHz) 2402 Mbps
Security Features WPA, WPA2, WPA3, EAP-AKA, EAP-TLS, MSCHAPv2, PEAP, etc.
Number of SSIDs Supported 16
Cable Lock Slot Yes, Kensington Lock
LED Indicators Yes
Compliance & Certifications CE, A, RoHS
Dimensions (W x D x H) 8.23" x 8.23" x 2.38" (209 mm x 209 mm x 60.5 mm)
Weight 5.14 lbs (2.33 kg)
Package Weight 12.6 lbs (5.7 kg)
