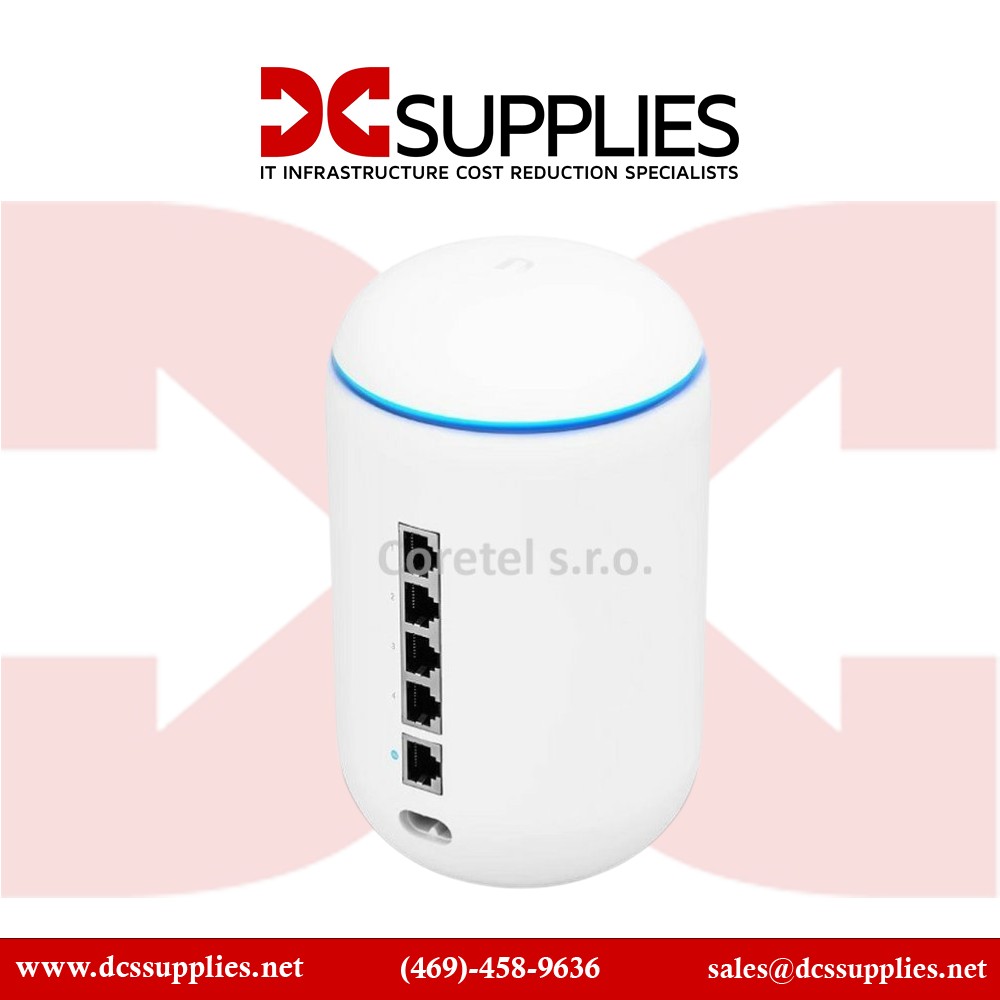

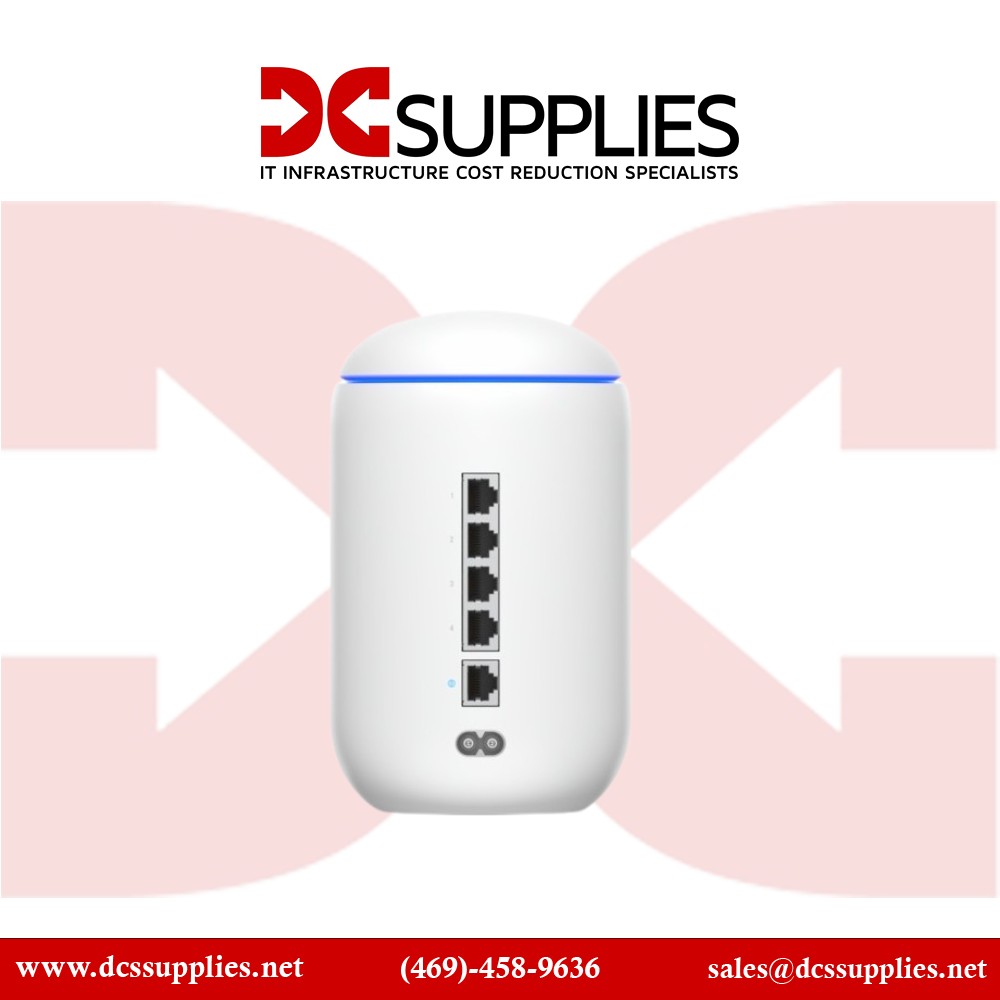

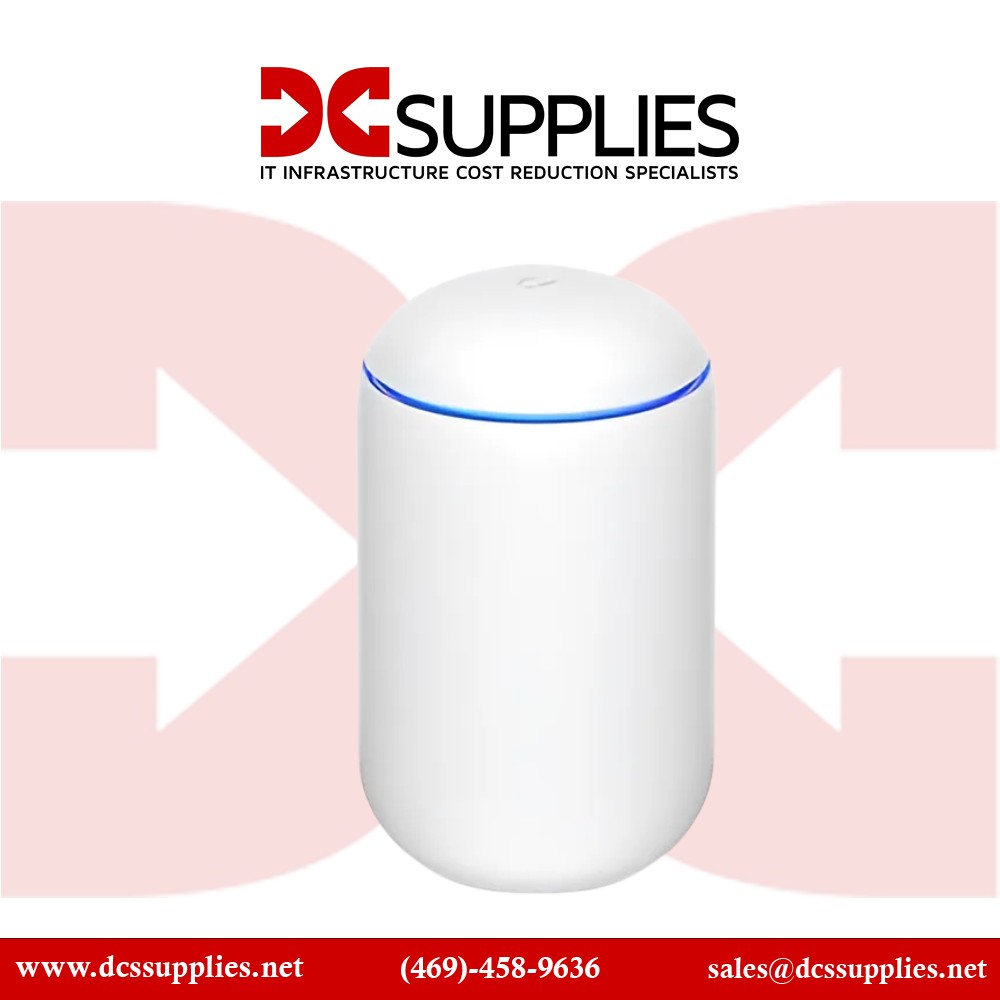

The all-in-one device with an access point, 4-port switch, and security gateway. Everything you need for a small-scale wired and Wi-Fi network. UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The includes everything you need for a small-scale wired or Wi-Fi network. It's easy to use and still offers all the benefits of UniFi for homes and businesses. Features High? Performance Dual Band 802.11ac 4x4 Wave 2 AP Managed 4-Port Gigabit Switch Advanced Security Gateway with IDS/IPS and DPI UniFi Network Controller with Intuitive User Interface Scalable Through Additional UniFi Devices Connected to LAN Powered by Fast 1.7 GHz Quad-Core Processor $299 UDM-US Dimensions Ø 110 x 184.2 mm (Ø 4.33 x 7.25") Weight 1.05 kg (2.32 lb) Networking Interfaces (4) LAN 10/100/1000 RJ45 Ports (1) WAN 10/100/1000 RJ45 Port Buttons Reset IDS/IPS Throughput 850 Mbps Processor Arm Cortex-A57 Quad-Core at 1.7 GHz System Memory 2 GB DDR RAM On-Board Flash Storage 16 GB Maximum Power Consumption 26W Supported Voltage Range 100 - 240VAC Power Method AC Power Cord Power Supply Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC) Power Save Supported Beamforming Supported TX Power* 2.4 GHz 5 GHz 23 dBm 26 dBm Antenna (1) Dual-Band, Quad-Polarity Antenna Antenna Gain 2.4 GHz 5 GHz 3 dBi 4.5 dBi Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2 Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF BSSID Up to 8 per Radio Operating Temperature -10 to 45° C (14 to 113° F) Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC * Including antenna gain. Maximum TX power level may be limited by the user's country-specific regulations.
- High‐Performance Dual Band 802.11ac 4x4 Wave 2 AP
- Managed 4-Port Gigabit Switch
- Advanced Security Gateway with IDS/IPS and DPI
- UniFi UDM Network Controller with Intuitive User Interface
- Scalable Through Additional UniFi Devices Connected to LAN
- Powered by Fast 1.7GHz Quad-Core Processor
Specifications :
Dimensions |
Ø 110 x 184.2 mm (Ø 4.33 x 7.25") |
Weight |
1.05 kg (2.32 lb) |
Networking Interfaces |
(4) LAN 10/100/1000 RJ45 Ports (1) WAN 10/100/1000 RJ45 Port |
Buttons |
Reset |
IDS/IPS Throughput |
1 Gbps |
Processor |
Arm Cortex-A57 Quad-Core at 1.7 GHz |
System Memory |
2 GB DDR RAM |
On-Board Flash Storage |
16 GB |
Maximum Power Consumption |
26W |
Supported Voltage Range |
100 - 240VAC |
Power Method |
AC Power Cord |
Power Supply |
Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC) |
Power Save |
Supported |
Beamforming |
Supported |
TX Power* 2.4 GHz 5 GHz |
23 dBm 26 dBm |
Antenna |
(1) Dual-Band, Quad-Polarity Antenna |
Antenna Gain 2.4 GHz 5 GHz |
3 dBi 4.5 dBi |
Wi-Fi Standards |
802.11 a/b/g/n/ac/ac-wave2 |
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
BSSID |
Up to 8 per Radio |
Operating Temperature |
-10 to 45° C (14 to 113° F) |
Operating Humidity |
5 to 95% Noncondensing |
Certifications |
CE, FCC, IC |
